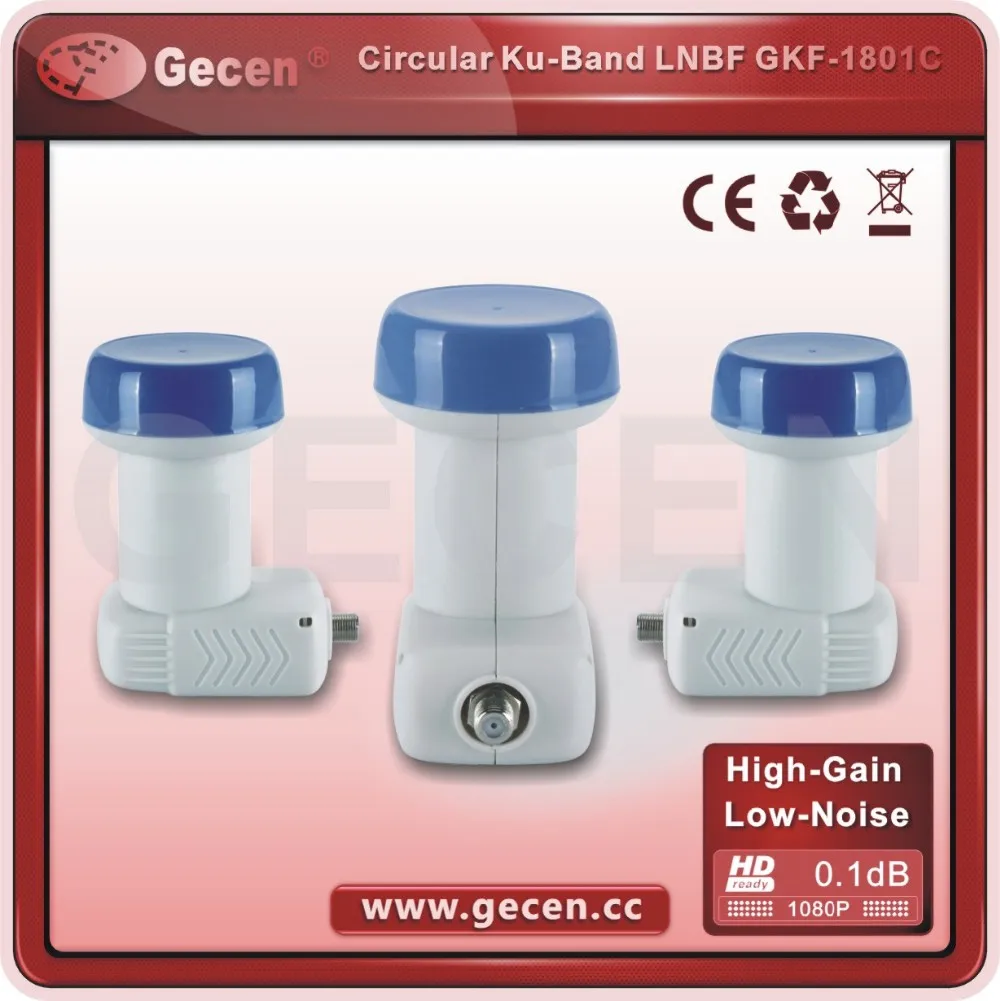

Gecen Ku Band Circular Single LNB Full HD Satellite LNB Model GKF 1801C
- Category: Satellite TV Receivers >>>
- Supplier: Zhuhai Gecen Electronic Co. Ltd.
Share on (60491382072):
Product Overview
Description
Product Description
Ku band circular single lnb full hd satellite LNB
Specifications
| Item | Specification | Item | Specification |
| Input Frequency Range | 11.70~12.75GHz | Gain Flatness | ±0.5dB/26MHz |
| Output Frequency Range | 950~2000MHz | POL. Isolation | 25dB(Typ.) |
| L.O. Frequency | 10.75GHz | Image Rejection | 40dB(Min.) |
| L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | Output VSWR | 2.0:1(Max.) |
| ±2.0 MHz (Max.)@-30℃~+70℃ | P1dB | 0dBm (Min.) | |
| L.O. Phase Noise | -60dBc/Hz@1KHz | DC Current Consumption | 80mA(Typ.) |
| -80dBc/Hz@10KHz | POL. Switching Voltage | 10.5~14.0V @Right | |
| -100dBc/Hz@100KHz | 16.0~20.0V @Left | ||
| Conversion Gain | 60dB(Typ.) | Relative Humidity | 0%~95% |
| Noise Figure | 0.3dB(Typ.) | Operating Temperature | -30℃~+70℃ |
| Axial Ratio | 1.35(Max.) | Connector Type | 75Ω Female Connector |
• Superior Phase Noise performance, DVB-S2 (HDTV) compliant
• Low Noise Figure
• Higher Conversion Gain
• Excellent Cross Polarization Isolation
• Ultimate Reliability
• High quality weather protection
Packaging & Shipping
For small quantity, shipping by DHL / Fedex under buyer's account
For larger quantity, shipping by sea under buyer's account
Company Information
Located in Zhuhai National Hi-Tech Industry Development Zone, we, Zhuhai Gecen Electronic Co., Ltd, have been persisting in the development strategy of High Starting Point, High Technology, High Quality and High Efficient since founded. At present, we have our own leading core technology and the capability of sustainable research and development. Our turnover is increasing geometrically in recent years due to mature technology, very high quality products and strong market response ability. Moreover, our products are taking a large percentage in Middle East, Southeast Asia and Americas market rapidly which makes Gecen become one of the outstanding manufacturers in this field among the world. Nowadays Gecen this brand has become a well-known brand in SATV and CATV industry.
FAQ
Q1. Can I get some samples before mass prduction?
A: Low MOQ or 1pc for sample checking is available. we welcome sample order to test and check quality.
Q2. What is the delivery time?
A: 30-35 working days. DHL, UPS, FedEx, TNT usually take 3-5 days to arrive. Airline and sea shipping are also optional.
Q3. OEM can be supported?
A: Yes, OEM can be supported.
Q4: What is the guarantee for the products?
A: We offer 1~2 years warranty for our products.
Q5: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
