Effective Mineral Magnetic Seperation Price , Magnetic Seperation Price for Gold Copper

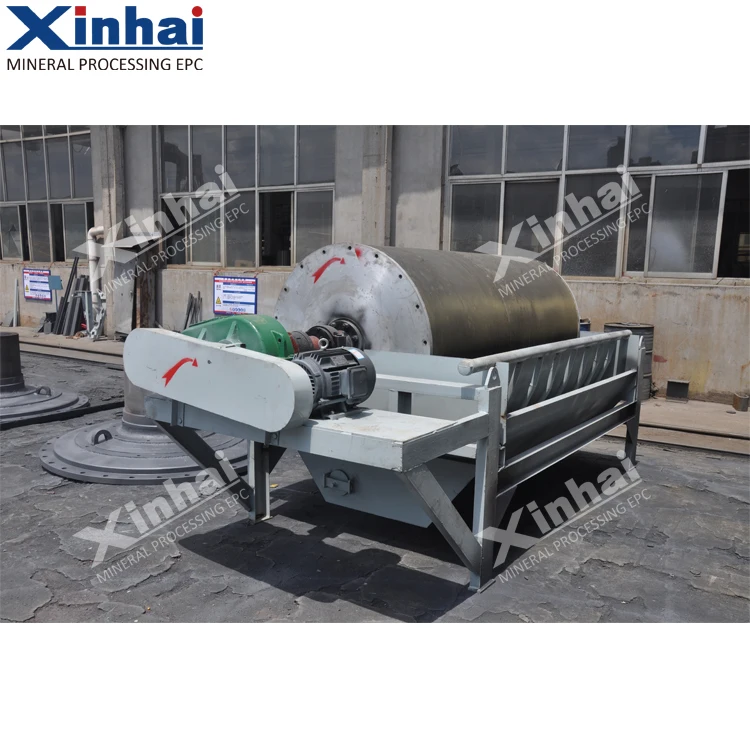

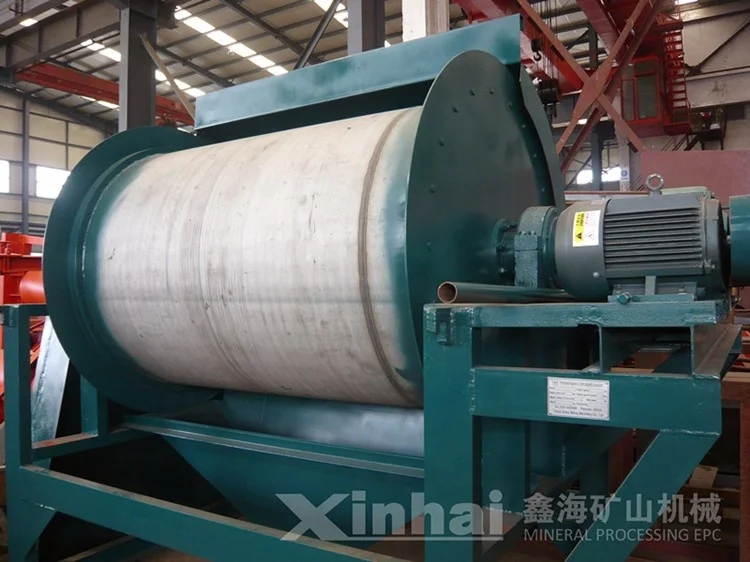

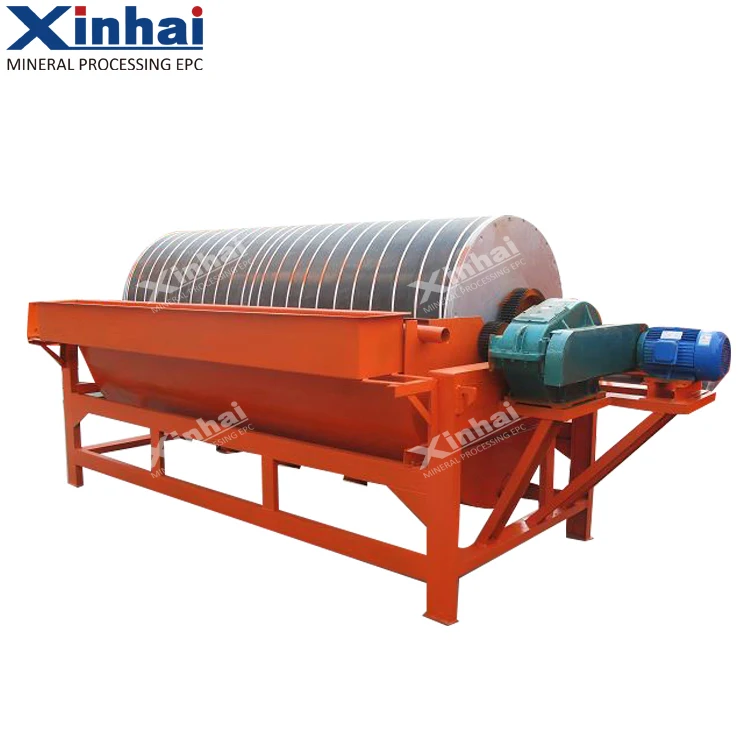

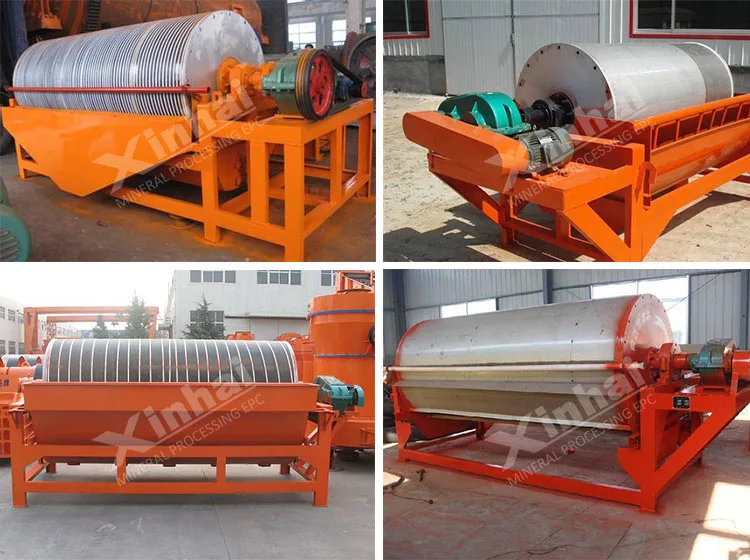

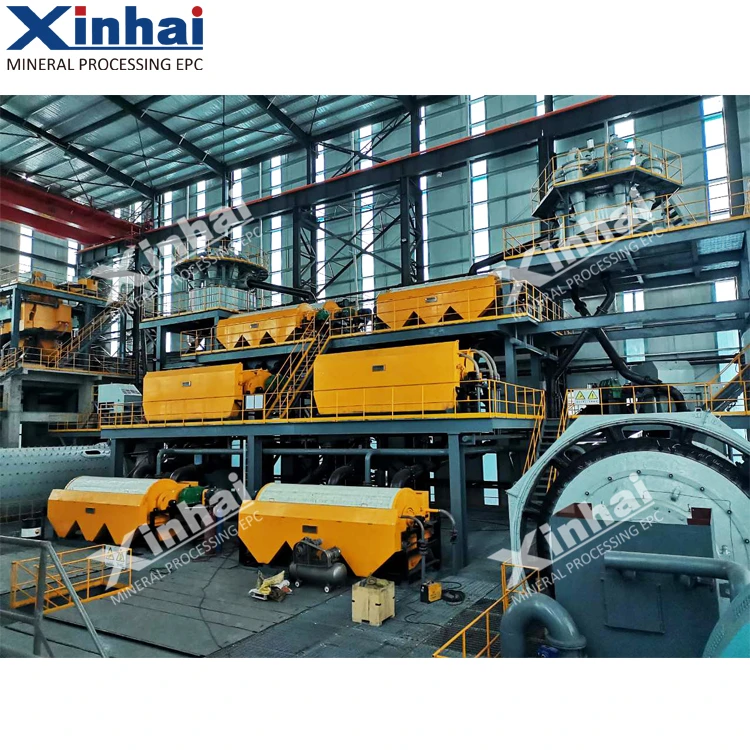

Magnetic Separator
[Introduction]: A wet permanent magnetic separator for separating strong magnetic minerals
[Capacity]: 24t/h-240t/h
[Improvement]: Magnetic system materials adopt the NdFeB with high magnetic energy product and high coercivity, strong magnetic density and high affect depth; the surface of the cylinder is lined with Xinhai wear-resistant rubber.
[Capacity]: 24t/h-240t/h
[Improvement]: Magnetic system materials adopt the NdFeB with high magnetic energy product and high coercivity, strong magnetic density and high affect depth; the surface of the cylinder is lined with Xinhai wear-resistant rubber.
Advantages
Magnetic Seperation Price
Magnetic system is compounded of ferrite and permanent magnets, the average magnetic induction intensity of cylinder surface is 100～600mT;
The same cylinder can be equipped with three types of tank adapting to different dressing process;
Small floor space, good separation for magnetic minerals, reduce the load of next process.

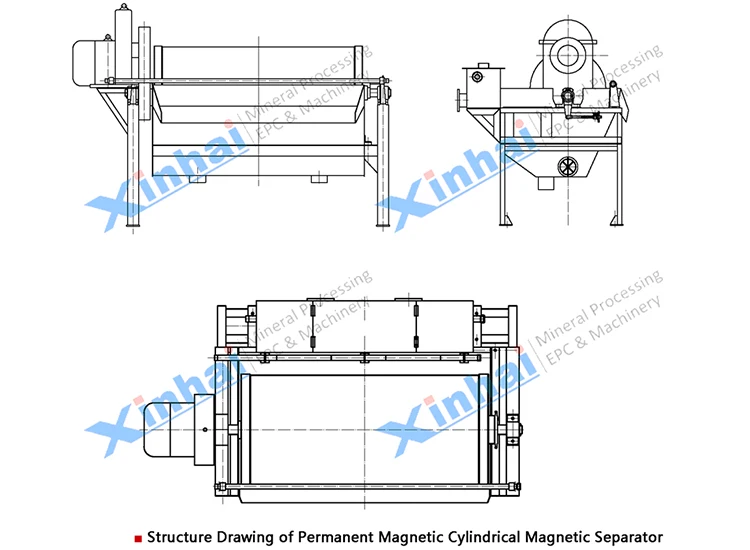

Product Structure
Magnetic Seperation
Permanent magnetic drum separators have 3 kinds including downstream type, counter flow type and semi- counter flow type according to the difference of base structures.
Downstream type permanent magnetic drum separator: slurry flows in the same direction with the drum.
Counter flow type permanent magnetic drum separator: slurry flows over against the drum, which create great conditions for cleaning of non magnetic ores. The non magnetic ores approach the clean surface of the drum and the magnetic ores can be absorbed in the strongest magnetic field.
Semi-counter flow type permanent magnetic drum separator: slurry is fed into the cavity from the bottom of the drum, and the magnetic ores fall into the concentrate tank after reaching a certain height, while the non magnetic ores will enter into tailings tank along with slurry in the opposite direction with drum.
Downstream type permanent magnetic drum separator: slurry flows in the same direction with the drum.
Counter flow type permanent magnetic drum separator: slurry flows over against the drum, which create great conditions for cleaning of non magnetic ores. The non magnetic ores approach the clean surface of the drum and the magnetic ores can be absorbed in the strongest magnetic field.
Semi-counter flow type permanent magnetic drum separator: slurry is fed into the cavity from the bottom of the drum, and the magnetic ores fall into the concentrate tank after reaching a certain height, while the non magnetic ores will enter into tailings tank along with slurry in the opposite direction with drum.
Technical Parameters
Model & Spec. | CTBY1018 | CTBY1024 | CTBY1030 | CTBY1218 | CTBY1224 | CTBY1230 |
Diameter of Cylinder (mm) | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
Length of Cylinder (mm) | 1800 | 2400 | 3000 | 1800 | 2400 | 3000 |
Surface Magnetic Density (mt) | 350~550 | 350~550 | 350~550 | 350~550 | 350~550 | 350~550 |
Rotating Speed of Cylinder (r/min) | 23 | 23 | 23 | 20 | 20 | 20 |
Capacity of Dry Ore (t/h) | 42 ~65 | 53 ~86 | 82~124 | 58 ~97 | 71~120 | 103~158 |
Feed Size (mm) | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 |
Slurry Density (%) | 20 ~50 | 20 ~50 | 20 ~50 | 20 ~50 | 20 ~50 | 20 ~50 |
Motor Power (kW) | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
Total Weight (t) | 5.2 | 6.4 | 7.1 | 6.7 | 7.2 | 8.9 |
Equipment Length (mm) | 3160 | 3790 | 4460 | 3380 | 4190 | 4770 |
Equipment Width (mm) | 2250 | 2250 | 2250 | 2460 | 2460 | 2460 |
Equipment Height (mm) | 1750 | 1750 | 1750 | 2000 | 2000 | 2000 |

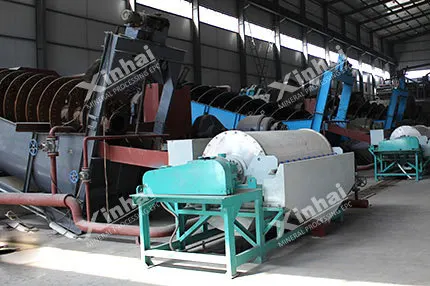

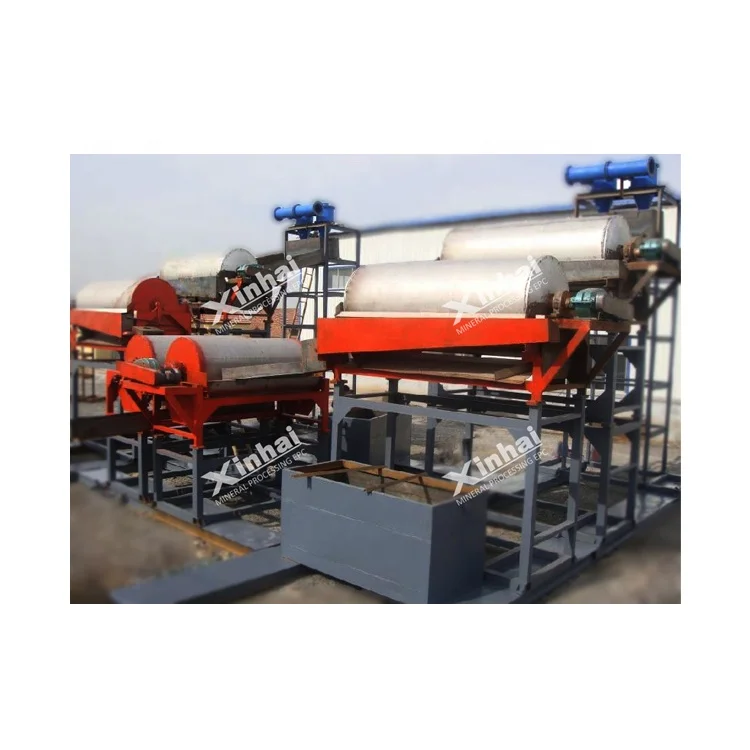

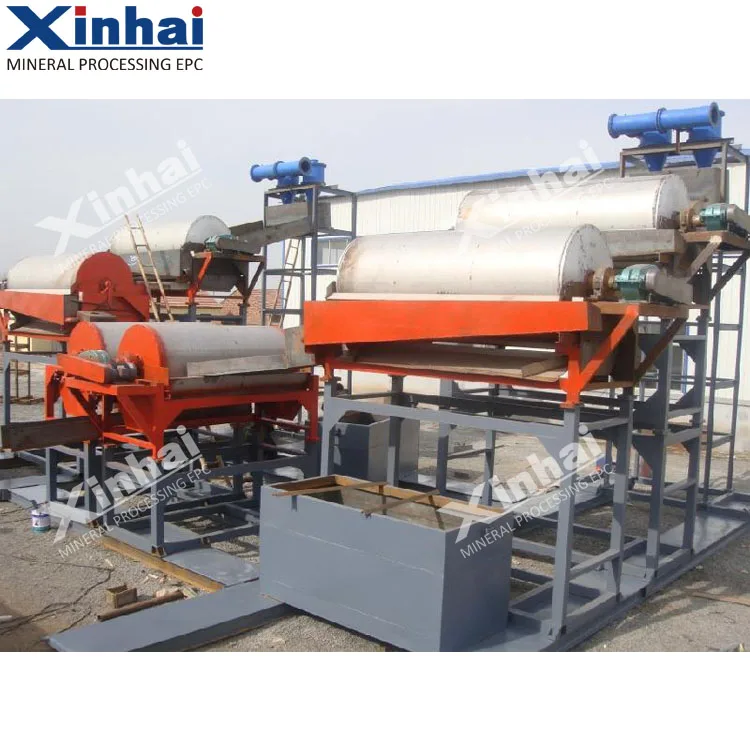

Successful case
