PVC lay flat hose plastic extruder machine production line / PVC spiral flexible pipe extrusion machine
- Category: >>>
- Supplier: Shanghai Zeno Industry Co. Ltd.
Share on (60491572020):
Product Overview
Description

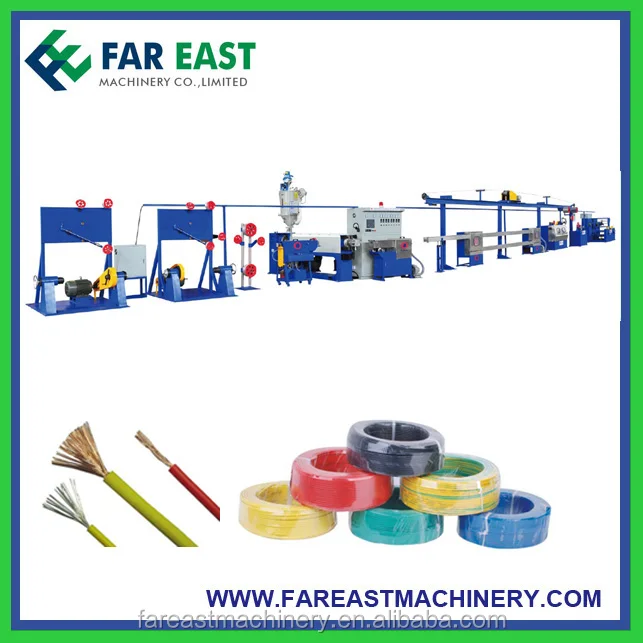

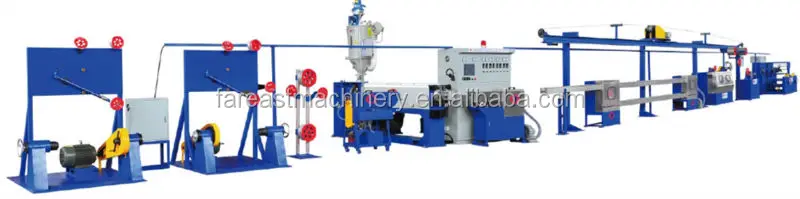

PVC lay flat hose plastic extruder machine production line / PVC spiral flexible pipe extrusion machine
Usage:
It’s used for the insulation of wire &cable with PVC,LDPE,NYLON,TPU. Also it can be equipment with triple co-extrusion crosshead and double layer.
Main Parameter:
Model | Screw Parameters | Extrusion Capacity(kg/h) | Power(kw) | Finished Wire Dia.(mm) | Pay-off Unit | Line Speed(m/min) | ||||||
Dia. (mm) | L/D Ratio | Rotation Speed (r/min) | PVC | LDPE | PP | Main Motor Power | Total Power | Bobbin Dia.(mm) | Power (kw) | |||
FJX-30 Extrusion | Φ30 | 25:1 | 20-110 | 25 | 16 | 13 | 5.5 | 21 | 0.2-1 | 300/400 | 2.2 | 10-650 |
FJX-40 Extrusion | Φ40 | 25:1 | 20-110 | 40 | 20 | 17 | 7.5 | 24 | 0.4-3 | 300/500 | 3.7 | 10-650 |
FJX-50 Extrusion | Φ50 | 25:1 | 20-110 | 80 | 40 | 34 | 11 | 28 | 0.8-5 | 400/630 | 3.7 | 10-650 |
FJX-60 Extrusion | Φ60 | 25:1 | 15-110 | 100 | 53 | 41 | 18.5 | 42 | 1-8 | 500/630 | 3.7 | 10-650 |
FJX-70 Extrusion | Φ70 | 25:1 | 15-110 | 130 | 86 | 68 | 22-37 | 50 | 2-12 | 500/630 | 10-350 | |
FJX-80 Extrusion | Φ80 | 25:1 | 10-90 | 200 | 122 | 96 | 30-55 | 65 | 3-25 | 500/630 | 10-350 | |
FJX-90 Extrusion | Φ90 | 25:1 | 10-80 | 240 | 133 | 124 | 37-75 | 75-113 | 5-35 | 630/800 | 10-250 | |
FJX-100 Extrusion | Φ100 | 25:1 | 85 | 280 | 190 | 150 | 75-90 | 134-149 | 10-60 | 800/2000 | 7.5 | 10-150 |
FJX-120 Extrusion | Φ120 | 25:1 | 80 | 380 | 260 | 200 | 90-132 | 176-208 | 12-70 | 1250/2500 | 11 | 10-100 |
FJX-150 Extrusion | Φ150 | 25:1 | 60 | 650 | 400 | 350 | 110-160 | 205-255 | 15-80 | 1600/3150 | 11 | 10-60 |
Auxiliary machine:
Color injection machine: Horizontal color injection machine, Vertical color injection machine.

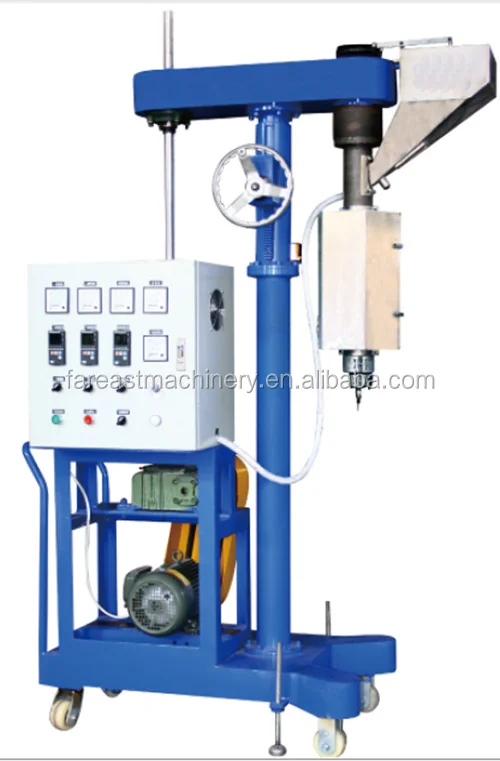

Vertical color injection machine: The machine is a mini-type extruder which can connect with extruding line and inject another color. There are four wheels which can be flexible moved from one place to another. The height for the crosshead is around 990mm to 1120mm.
Horizontal color injection machine: With advanced machine structure and electrical control, apply to extruding different kinds of wire, can connect with 50, 60, 70, 80, 90, 120 double color cross-head to extrude double-colored cable.
Parameter of color injection machine :
Screw dia. | Φ35mm |
Screw L/D ratio | 17: 1 |
Screw revolution speed | 0-80 rpm |
Extruding capacity | PVC 10-16kg |
Power | 380V, 50H |
Motor power | 2.2kw |
About us
Trade Shows
FAQ
1. Q:Are you a factory or trading company?
A: We are a factory.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu, China.You can fly to Shanghai airport directly. We welcome you to visit our factory.
3. Q: Why choose your factory for service?
A: Our factory is specializing in producing cable machines for about 10 years. We can provide thoughtful pre-sale and after-sale service.
4. Q:How does your factory do regarding quality control?
A: "Quality first, customers foremost”. We always attach great importance to quality controlling from the very beginning to very end.
5. Q: What is your company mainly produce?
A: Extrusion line series, Varieties of double twist buncher, Varieties of back-twisting, pair-twisting and double-twist cabling machine, Series of coiling and packing machine,Complete plant of Lan cable, Varieties of single-twist cabling machine, Auxiliary equipment.
