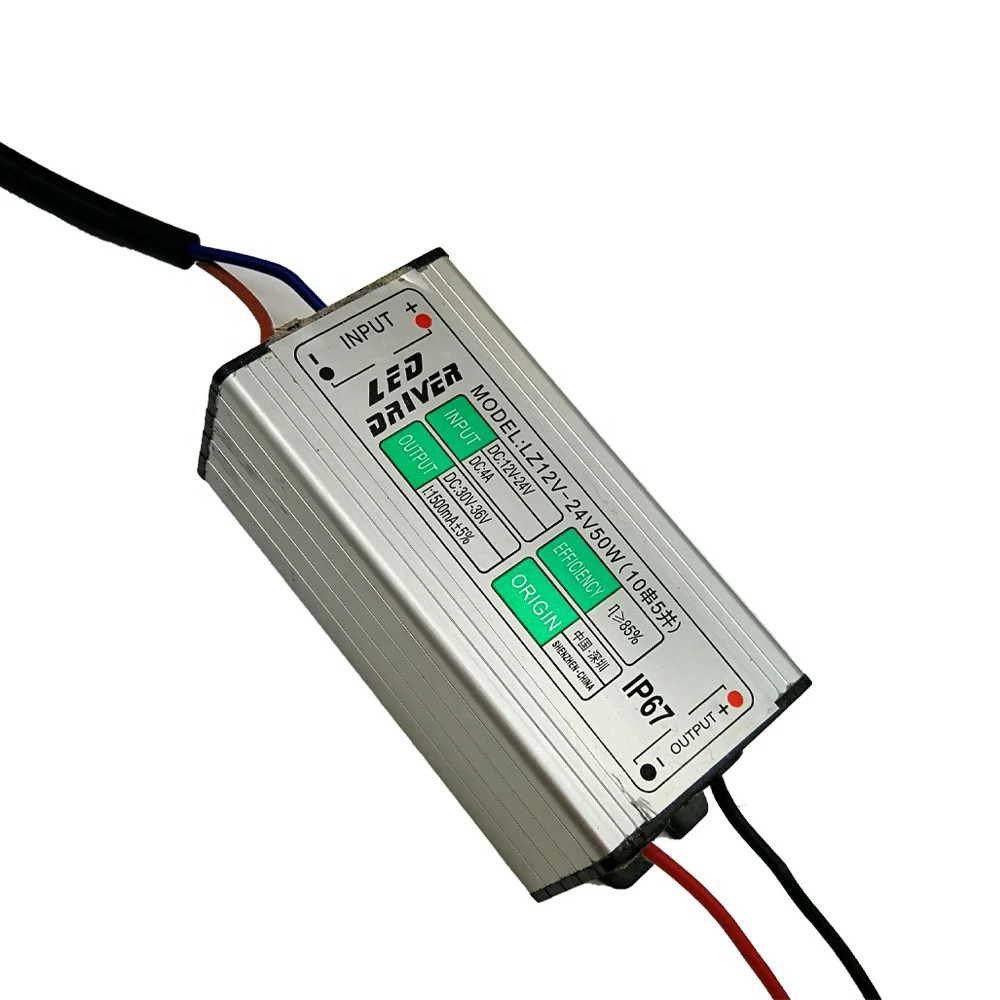

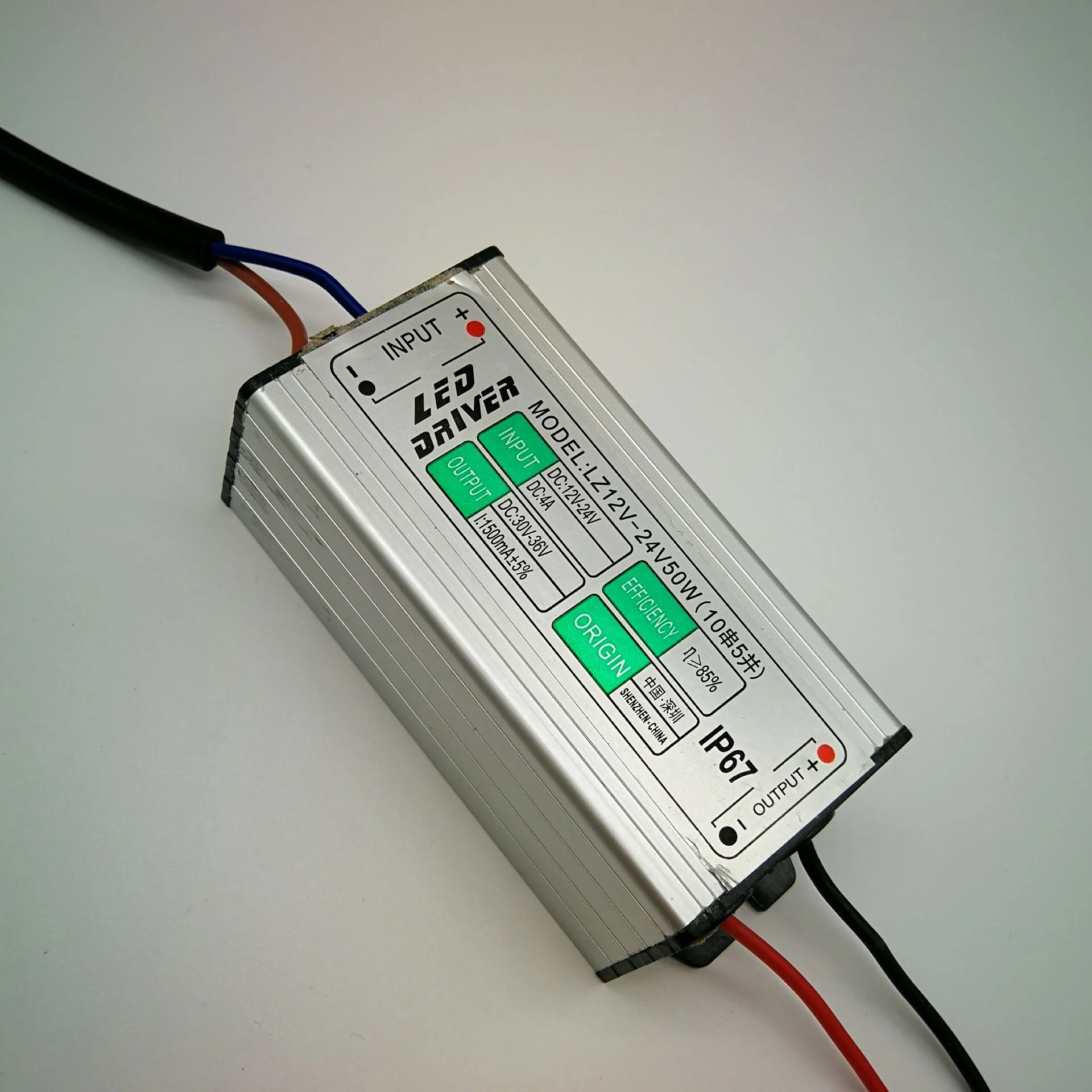

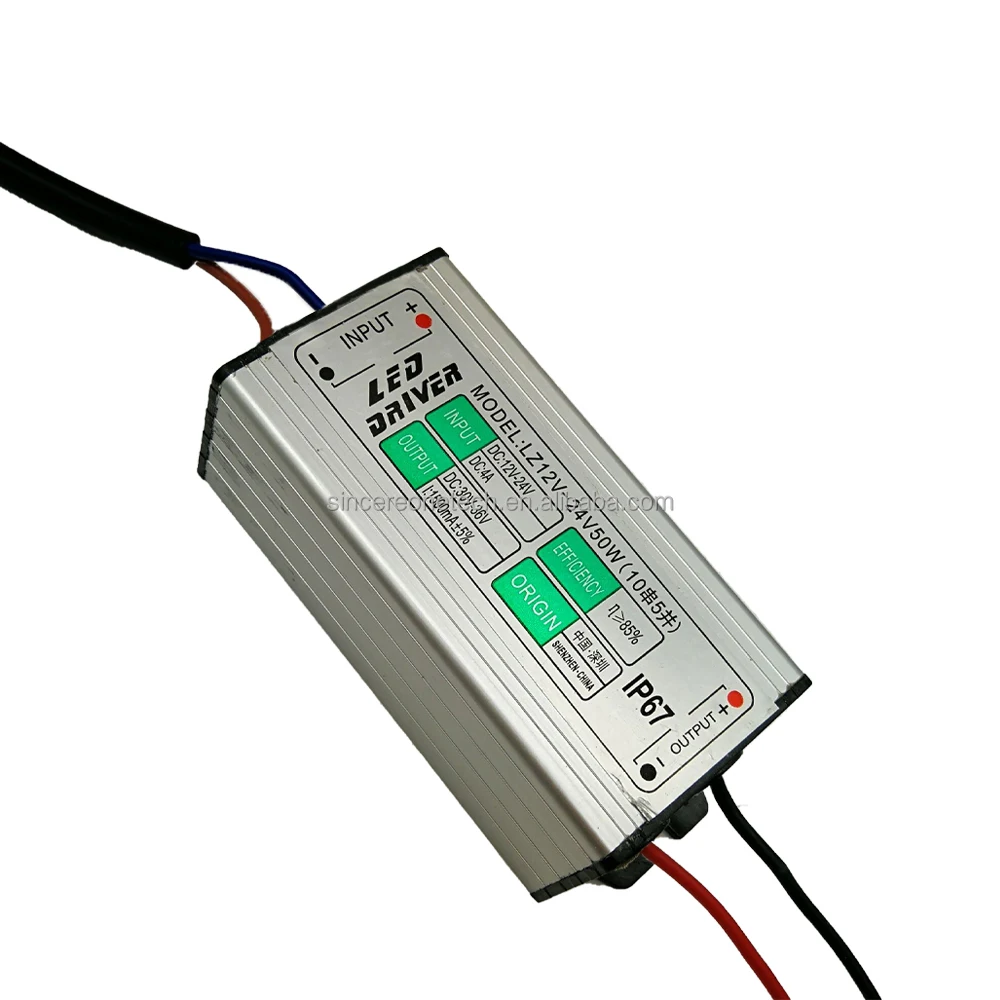

Constant current 50W 1500mA boost led driver 12 24vdc input for solar lamp

Product Overview

Description

Waterproof boost driver DC12-24v input constant current led driver 50W 1500mA IP65 wholesale for led street light



Power	Input voltage	Output voltage	Output current	efficiency	waterproof	Size ( L*W*H)	Weight	Remark
4-9*1W	DC12V	12-32V	300mA±3%	90%	yes	55*25*20mm	50g	7cm cable
10W(3S3P)	DC12-24V	9-12V	900mA±3%	90%	yes	55*25*20mm	50 g	7cm cable
5-12*1W	AC/DC12V	15-42V	300mA±3%	90%	yes	85*24*24mm	70 g	7cm cable
9-12*1W	AC/DC24V	27-42V	300mA±3%	90%	yes	85*24*24mm	70 g	7cm cable
6-18*1W	AC/DC12V	18-65V	300mA±3%	90%	yes	102*29*19mm	100 g	9cm cable
10-25*1W	AC/DC24V	30-90V	300mA±3%	90%	yes	102*29*19mm	100 g	9cm cable
20W-A(10S2P)	DC12-24V	30-36V	600mA±3%	90%	yes	105*36*25mm	150 g	half aluminum
20W-B(10S2P)	AC/DC12-24V	30-36V	600mA±3%	90%	yes	102*29*19mm	100 g	half aluminum
28W(14S2P)	DC12-24V	42-50V	600mA±3%	90%	yes	105*36*27mm	150 g	half aluminum
30W-A(10S3P)	DC12-24V	30-36V	900mA±3%	90%	yes	105*36*27mm	150 g	half aluminum
30W-B(10S3P)	DC12-24V	30-36V	900mA±3%	90%	yes	105*36*27mm	150 g	half aluminum

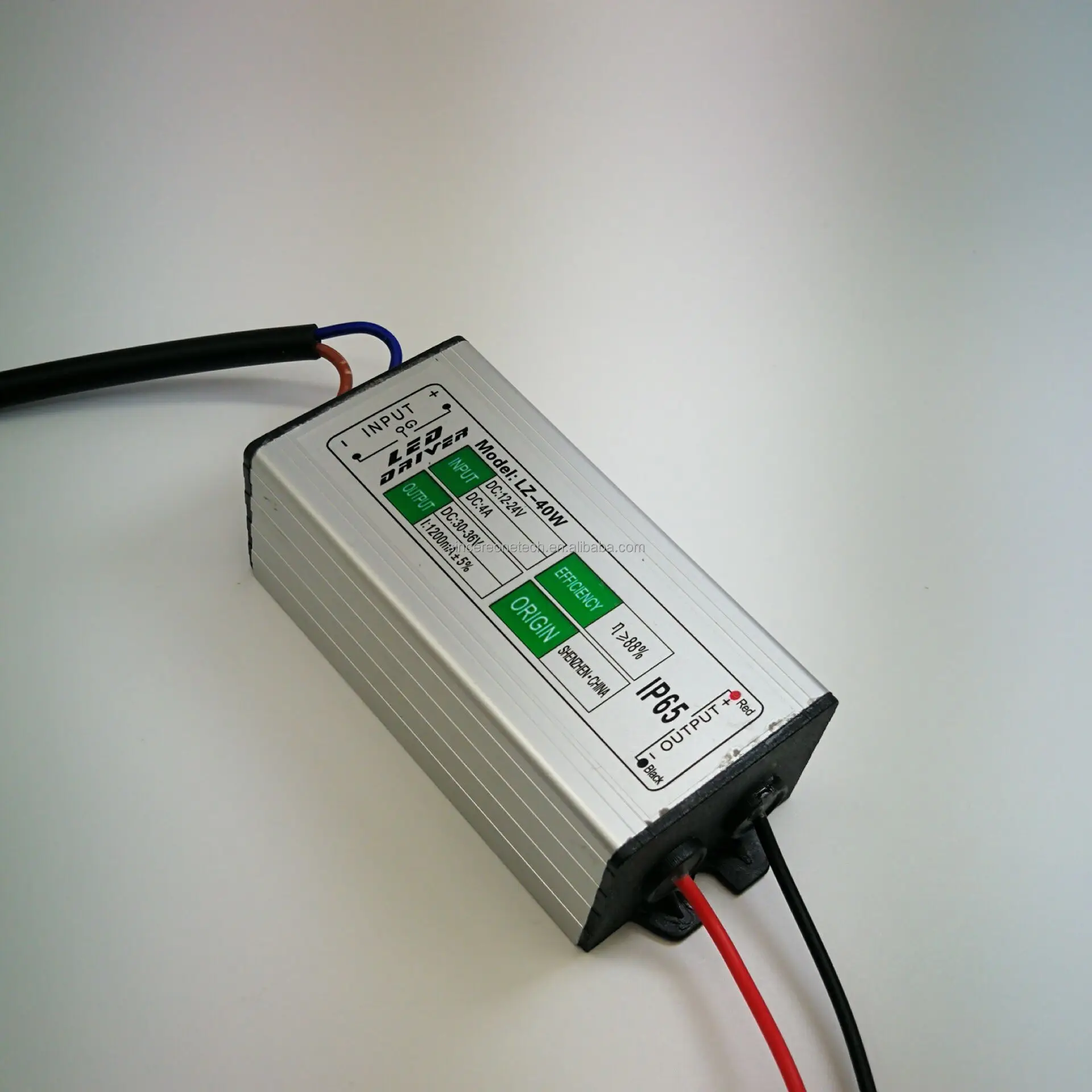

42W(14S3P)	DC12-24V	42-50V	900mA±3%	90%	yes	100*42*31mm	220 g	aluminum case
50W(10S5P)	DC12-24V	30-36V	1500mA±3%	90%	yes	100*42*31mm	220 g	half aluminum
56W(14S4P)	DC12-24V	42-50V	1200mA±3%	90%	yes	148*49*38mm	440 g	aluminum case
60W(10S6P)	DC12-24V	30-36V	1800mA±3%	90%	yes	162*50*40mm	490 g	aluminum case
70W(10S7P)	DC12-24V	30-36V	2100mA±3%	90%	yes	168*49*38mm	580 g	aluminum case
70W(14S5P)	DC12-24V	42-50V	1500mA±3%	90%	yes	168*49*38mm	580 g	aluminum case
80W(10S8P)	DC12-24V	30-36V	2400mA±3%	90%	yes	168*49*38mm	580 g	aluminum case
84W(14S6P)	DC12-24V	42-50V	1800mA±3%	90%	yes	168*49*38mm	580 g	aluminum case
98W(14S7P)	DC12-24V	42-50V	2100mA±3%	90%	yes	153*66*43mm	760 g	aluminum case
100W(10S10P)	DC12-24V	30-36V	3000mA±3%	90%	yes	153*66*43mm	760 g	aluminum case
120W(10S12P)	DC12-24V	30-36V	3600mA±3%	90%	yes	219*66*44mm	1250 g	aluminum case
150W(10S15P)	DC12-24V	30-36V	4500mA±3%	90%	yes	219*66*44mm	1250 g	aluminum case

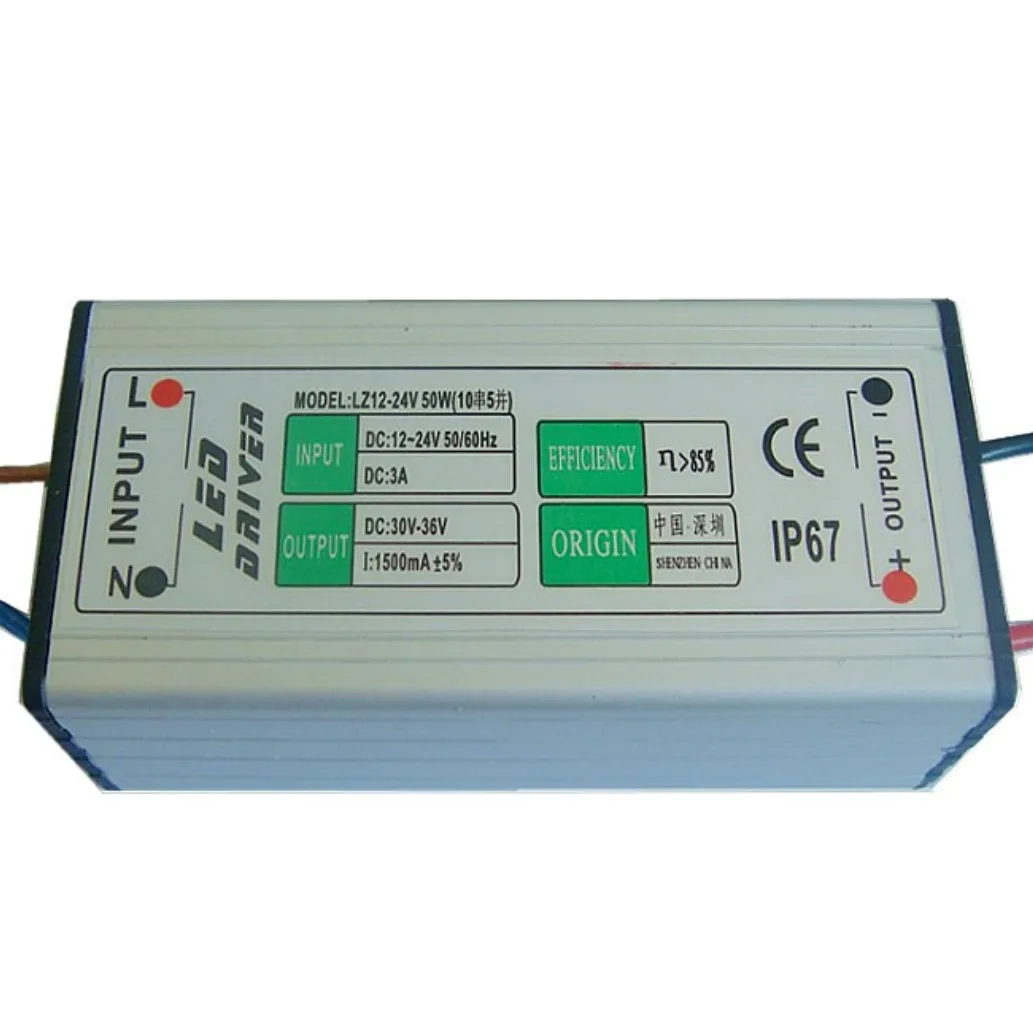

Model Number	SOT-LZ12-24v-50WB
Place of Origin	China
Brand Name	SOT/OEM
Output Power	50W
Output Type	Single
Input Voltage	AC/DC12-24V
Output Voltage	DC30-36V
Output Frequency	50-60Hz
Output Current	1500mA
Power Factor	0.7-0.95 (optional)
LED Connection Type	high power led 10 series and 5 parallel
Color	black or Grey
Material	FR4 pcb
Size	100x42x31mm
IP Rating	waterproof
Lifespan	30,000-50,000 hours
Warranty	2 years
Certificate	CE, RoHS



Power	Input voltage	Output voltage	Output current	efficiency	PF	Size ( L*W*H)	Weight	Remark
Boost/Solar Energy Driver
1-3*1W	AC/DC12-24V	3-12V	300mA±3%	90%	NA	26*17*12mm	6 g	both end 7cm cable
1-7*1W	AC/DC24V	3-25V	300mA±3%	90%	NA	26*17*12mm	6 g	both end 7cm cable
4-9*1W	AC/DC12V	12-33V	300mA±3%	90%	NA	26*17*12mm	6 g	both end 7cm cable
6-9*2W	DC36V-48V	18-30V	600mA±3%	90%	NA	30*25*26mm		both end 7cm cable
6-9*3W	DC36V-48V	18-30V	900mA±3%	90%	NA	47*23*14mm		both end 7cm cable
1-3*3W	AC/DC12-80V	3-12V	900mA±3%	90%	NA	41*19*13	12 g	both end 7cm cable
1-10*1W	AC/DC12-80V	3-36V	600mA±3%	90%	NA	41*19*13	12 g	both end 7cm cable
5-12*1W	AC/DC12V	15-42V	300mA±3%	90%	NA	47*23*14mm	15 g	both end 7cm cable
9-12*1W	AC/DC24V	27-42V	300mA±3%	90%	NA	47*23*14mm	15 g	both end 7cm cable
10W(3S3P)	AC/DC12-24V	9-12V	900mA±3%	90%	NA	26*17*12mm	6 g	both end 7cm cable
6-18*1W	AC/DC12V	18-65V	300mA±3%	90%	NA	80*25*18mm	20 g	both end 9cm cable
10-25*1W	AC/DC24V	30-90V	300mA±3%	90%	NA	80*25*18mm	20 g	both end 9cm cable





Power	Input voltage	Output voltage	Output current	efficiency	PF	Size ( L*W*H)	Weight	Remark
MR16 Spotlight Driver
1*1 W	AC/DC8-15V	3-4V	300mA±5%	80%	NO	15*17*10mm	3 g	5cm cable
3*1  W	AC/DC8-15V	9-11V	300mA±5%	80%	NO	15*17*10mm	3 g	5cm cable
1*3  W	AC/DC8-15V	3-4V	600mA±5%	80%	NO	15*17*10mm	3 g	5cm cable
4*1 W	AC/DC8-15V	6-7V	600mA±5%	80%	NO	15*17*10mm	3 g	5cm cable
3*2W	AC/DC8-15V	9-11V	450mA±5%	80%	NO	15*17*10mm	3 g	5cm cable
3*3W	AC/DC8-15V	9-11V	600mA±5%	80%	NO	15*17*10mm	3 g	5cm cable
4-6*1W	AC/DC8-15V	12-22V	300mA±5%	80%	NO	15*17*10mm	4 g	5cm cable
3*1W	AC/DC8-24V	9-11V	300mA±5%	88%	NO	18*17*12mm	4 g	5cm cable
3*2W	AC/DC8-24V	9-11V	450mA±5%	88%	NO	18*17*12mm	4 g	5cm cable
3*3W	AC/DC8-24V	9-11V	600mA±5%	88%	NO	18*17*12mm	4 g	5cm cable
1-7*1W	AC/DC24V	3-22V	300mA±5%	88%	NO	18*17*12mm	4 g	5cm cable



Power	Input voltage	Output voltage	Output current	efficiency	PF	Size ( L*W*H)	Certificate
42W(12-14S3P)	AC 85-265V	42-50V	900mA±3%	0.88	0.95	141*57*34MM	CE, SAA, ROHS
56W(12-14S4P)	AC 85-265V	42-50V	1200mA±3%	0.88	0.95	155*62*38MM	CE, SAA, ROHS
70W(12-14S5P)	AC 85-265V	42-50V	1500mA±3%	0.88	0.95	155*62*38MM	CE, SAA, ROHS
84W(12-14S6P)	AC 85-265V	42-50V	1800mA±3%	0.88	0.95	155*62*38MM	CE, SAA, ROHS
98W(12-14S7P)	AC 85-265V	42-50V	2100mA±3%	0.88	0.98	153*66*43mm	CE, SAA, ROHS
112W(12-14S8P)	AC 85-265V	42-50V	2400mA±3%	0.88	0.98	219*66*44mm	CE, SAA, ROHS
126W(12-14S9P)	AC 85-265V	42-50V	2700mA±3%	0.9	0.98	219*66*44mm	CE, SAA, ROHS
140W(12-14S10P)	AC 85-265V	42-50V	3000mA±3%	0.9	0.98	219*66*44mm	CE, SAA, ROHS
154W(12-14S11P)	AC 85-265V	42-50V	3300mA±3%	0.9	0.98	219*66*44mm	CE, SAA, ROHS
168W(12-14S12P)	AC 85-265V	42-50V	3600mA±3%	0.9	0.98	219*66*44mm	CE, SAA, ROHS
182W(12-14S13P)	AC 85-265V	42-50V	3900mA±3%	0.9	0.98	219*66*44mm	CE, SAA, ROHS
196W(12-14S14P)	AC 85-265V	42-50V	4200mA±3%	0.9	0.98	219*66*44mm	CE, SAA, ROHS



Model	Input voltage	Output voltage	Output current	efficiency	PF	Size ( L*W*H)	Certificate
10W(10S1P)	AC85-265V	30-40V	300mA±3%	0.88	≥0.95	79*29*21mm	CE, SAA, ROHS
20W(10S2P)	AC85-265V	30-40V	600mA±3%	0.88	≥0.95	105*35 *23mm	CE, SAA, ROHS
30W(10S3P)	AC85-265V	30-40V	900mA±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
40W(10S4P)	AC85-265V	30-38V	1.2A±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
50W(10S5P)	AC85-265V	30-38V	1.5A±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
60W(10S6P)	AC85-265V	30-38V	1.8A±3%	0.88	≥0.95	155*62*38MM	CE, SAA, ROHS
70W(10S7P)	AC85-265V	30-38V	2.1A±3%	0.88	≥0.93	155*62*38MM	CE, SAA, ROHS
80W(10S8P)	AC85-265V	30-38V	2.4A±3%	0.88	≥0.93	155*62*38MM	CE, SAA, ROHS
90W(10S9P)	AC85-265V	30-38V	2.7A±3%	0.88	≥0.93	140*62*40mm	CE, SAA, ROHS
100W(10S10P)	AC85-265V	30-38V	2.8-3A±3%	0.88	≥0.93	140*62*40mm	CE, SAA, ROHS
120W(10S12P)	AC 85-265V	30-36V	3600mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
150W(10S15P)	AC 85-265V	30-36V	4500mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
160W(10S16P)	AC 85-265V	30-36V	4800mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
180W(10S18P)	AC 85-265V	30-36V	5400mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
200W(10S20P)	AC 85-265V	30-36V	6000mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS







Features of LZ led  boost driver

1, Professional waterproof Constant Current LED Driver from SOT, accept oem orders

2, International full-range input voltage and widely used

3, Protection: shortcircuit/overload/overvoltage/overheat

4, Natural air cooled, 100% full load aged

5, Idle power < 1.1W

6, High quality components choosed and tested, all capacitors are 105°C long-life electrolytic

7, Capacity of surge of 300VAC: 5 seconds, working temperature up to 70°C

8, Passes 5G vibration test, high efficiency, long life & high reliability

9,  With CE certificate, complied RoHS standard

10, Over-heat, short-circuit & over-load protection with self-setting

11,  Rigorous ripple and low noise

12, 2-5-year warranty for 12-24v input 50w led driver 1500mA constant current for output solar led street lamp
