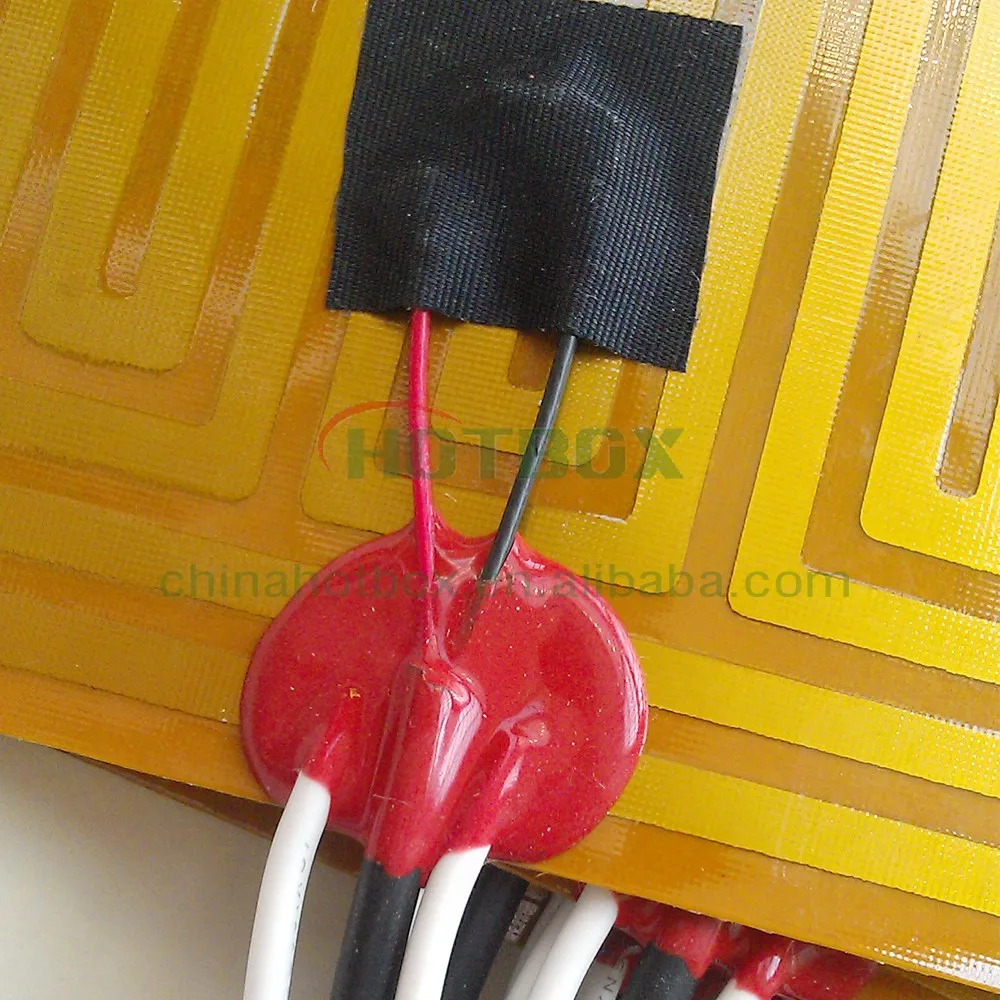

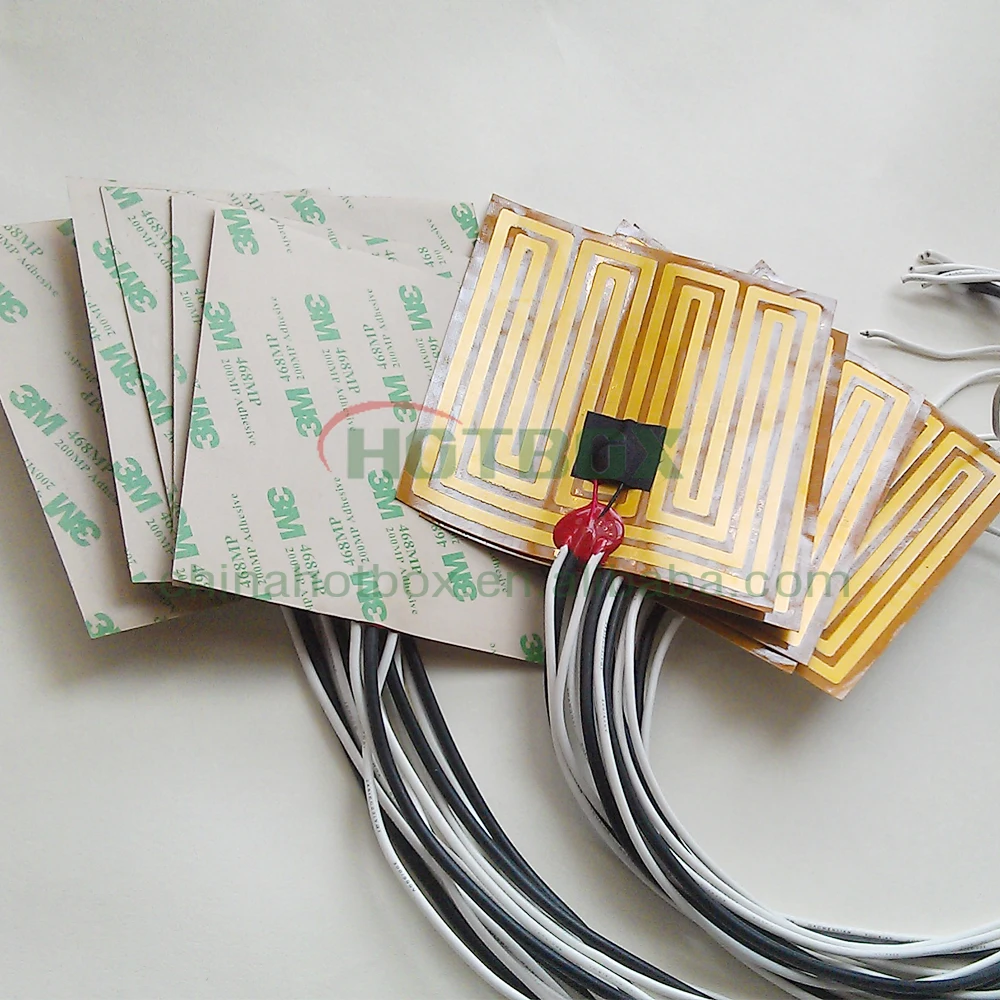

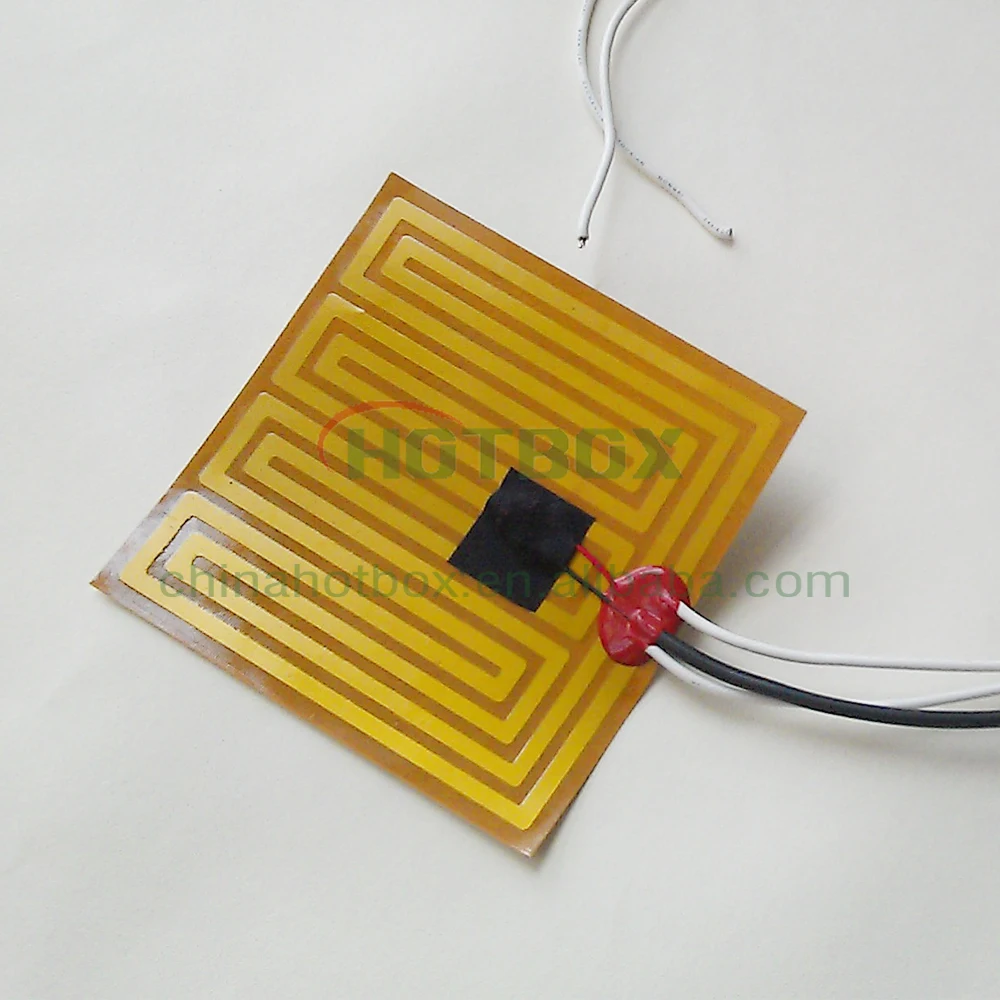

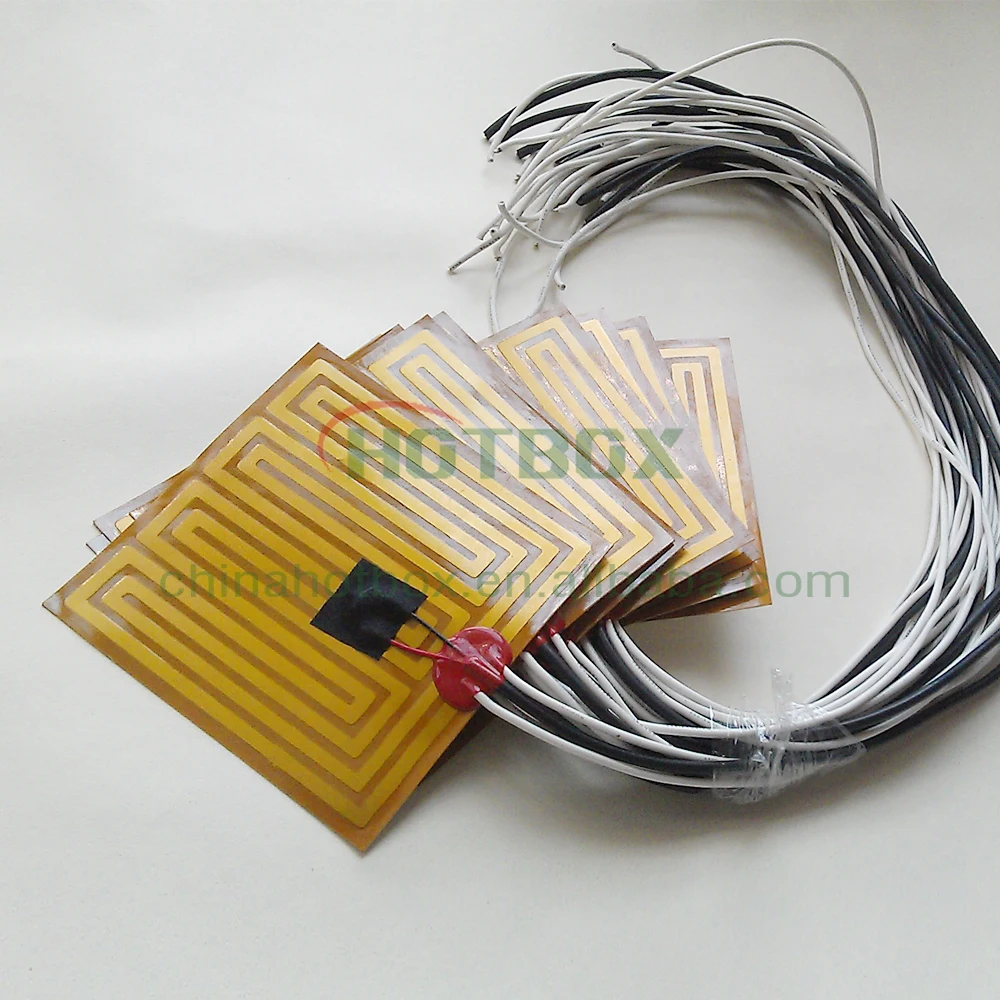

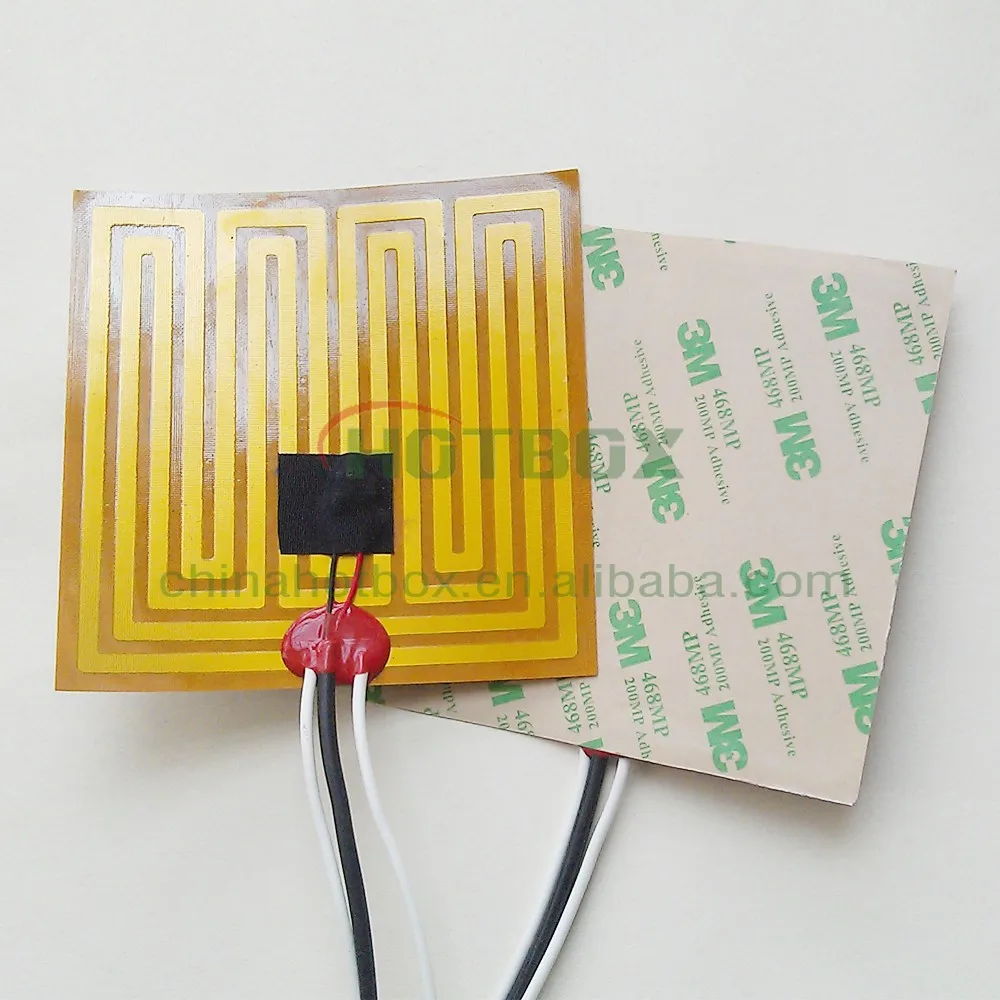

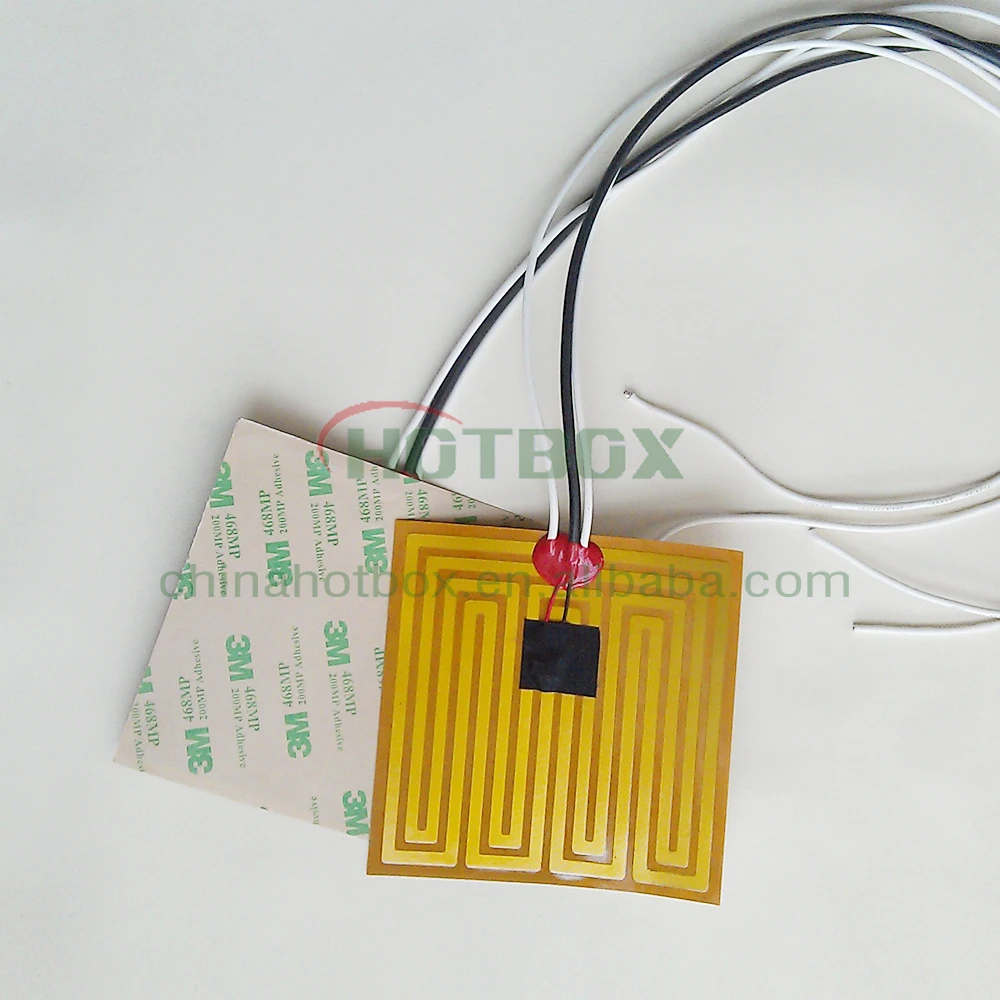

Kapton polyimide thin film heater 100*100mm surface with adhesive on a face 12V 90W with 400mm lead wire and 100k thermistor
Product Description
Kapton polyimide heater,Semi-transparent, flexible and extremely thin with excellent dielectric strength, Polyimide film is ideally suited for the manufacture of etched foil heaters.
PI heaters have low thermal mass and excellent resistance to most chemicals, and allow high power densities(1w/cm2) with fast and efficient thermal transfer. Where fast response, chemical resistance is required or applications with space and weight limitations such as as satellites and aerospace equipment, kapton heaters offer the ideal solution.
PI heaters can also be exposed to vacuum with low out gassing and to radiation.
Technical Date Sheet:
Voltage
12~440V
Wattafe
Max. 0.5w/cm2
Operationg Temperature
-60~200C
Width
Max. 500mm
Thickness
0.126_0.266mm
Thermal protection
On board thermal fuse,thermostat,thermistor and RTD devices are available as part of your thermal management solution.
Lead wire
Silicone rubber,SJ power cord
Heatsink Assemblies
Hooks,lacing eyelets,Or Temperature control(Thermostat)
Flammability Rating
Flame retardant material systems to UL94 V-O available.
Types of sensors in heater:
Electrical Termination:
Why Kapton:
Heating for very small sizes
Very thin
High dielectric strength
Flexible circuit design
Superior tensile strength and tear resistance
Resistant to radiation and most solvents
Better choice far high watt density heaters
Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes and/or cutouts
May provide and economic advantage for high volume applications
Main Applications:
Prevent condensation in motors or instrument cabinets
Freeze or condensation prevention in housings containing electronic equipment,for example:traffic signal boxes,automatic teller machines,temperature control panels,gas or liquid control valve housings
Composite bonding processes
Semiconductor process heating
Food pricessing equipment
Airplane engine heaters and aerospace industry
Drums and other vessels and viscosity control and asphalt storage
Curing of plastic laminates
Computer peripherals such as laser printers,duplicating machines
