China good price Aluminium window making machine Single Head Any Angle Cutting Saw

Share on (60491742339):


Price:$4,300.00

Quantity:


Product Overview

Description

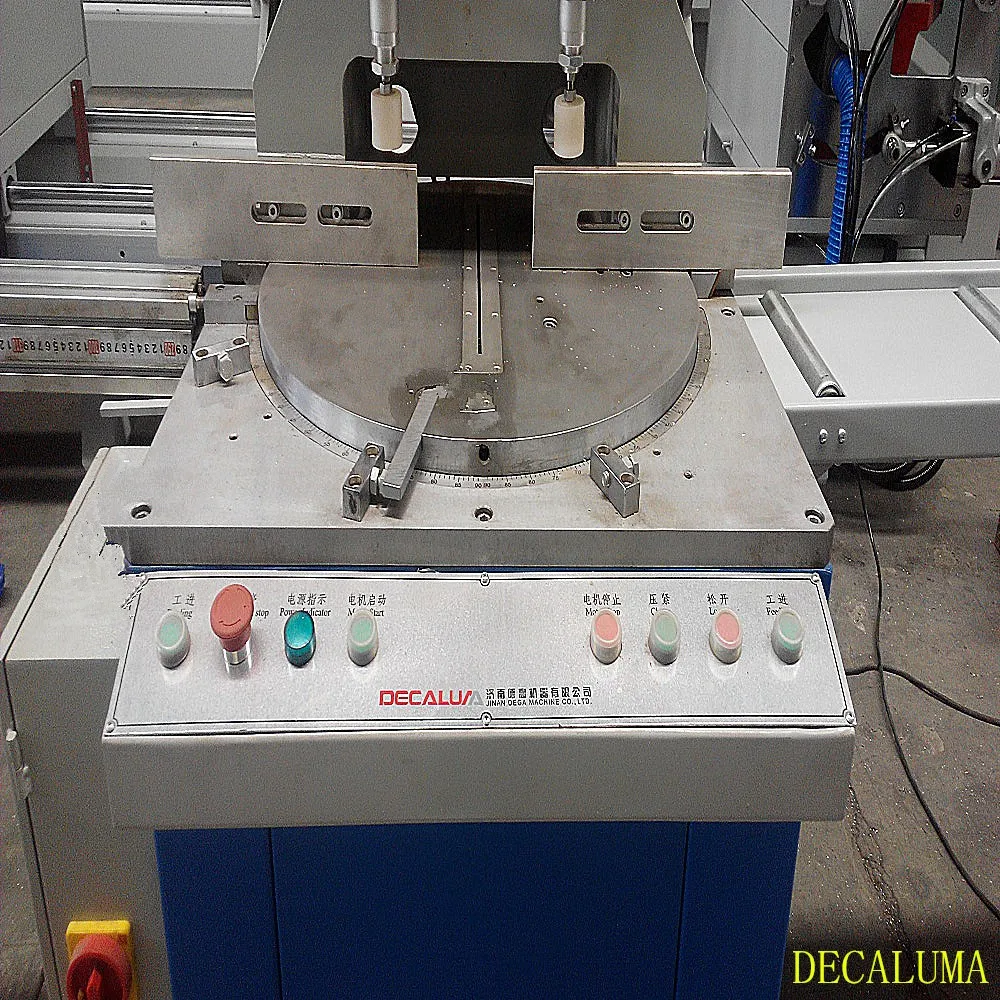

Aluminium window machine Any Angle Cutting Saw


Model:  LJZB-400M



Product Description



 Specification:





lUsed for curtain wall and window of aluminum accurate cutting ,also for UPVC profile . Angle Cutting Saw


Single head any angle cutting saw with the carbide saw blade, which make sure the high speed and accurate cutting.


This machine can be installed the size positioning frame, also can added the digital display device according to your requirement, thus can make the locating size more accurate.


The workbench rotating between the left (-15 °)~90°~(+15°). after the plate retrocession, the workbench can be 0°positioning, then raise and fix the saw blade thus this machine can be used as Routing saw.





Parameters:

































































Power supply



380V 50Hz,three phase



motor power



1.5Kw



air pressure



0.5~0.8MPa



air consumption



0.03m³/min



motor rotation speed



2800r/min



Blade feeding speed



stepless timing 0~3m/min



cutting angle



(-15°) ~90°~(+15°)



Cutting profile surface plane



0.10mm



Cutting angle tolerance



Ra12.5 μm



Cutting width



165mm,90°MAX



Cutting height



123mm,90°,MAX



saw blade specification



φ400mm×3.5mm×φ30mm  Z=80



Overall dimension



5000×900×1300mm(L×W×H)



Weight



600Kg

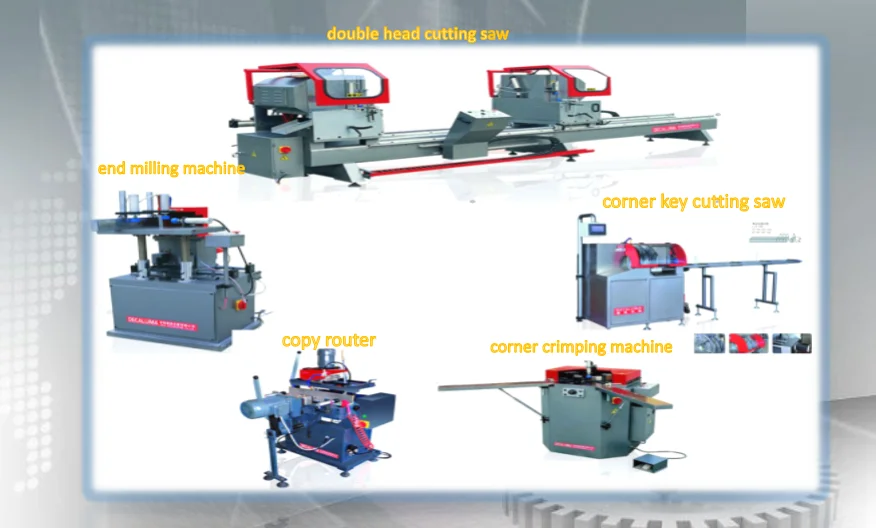

Basic Products line


You may need the following machine if you want start a new factory!







Our Suppliers


The following is our main supplier brand:







Customer visiting


WE ARE NOW EXPORTING TO MORE THAN 35 COUNTRIES ALL OVER THE WORLD

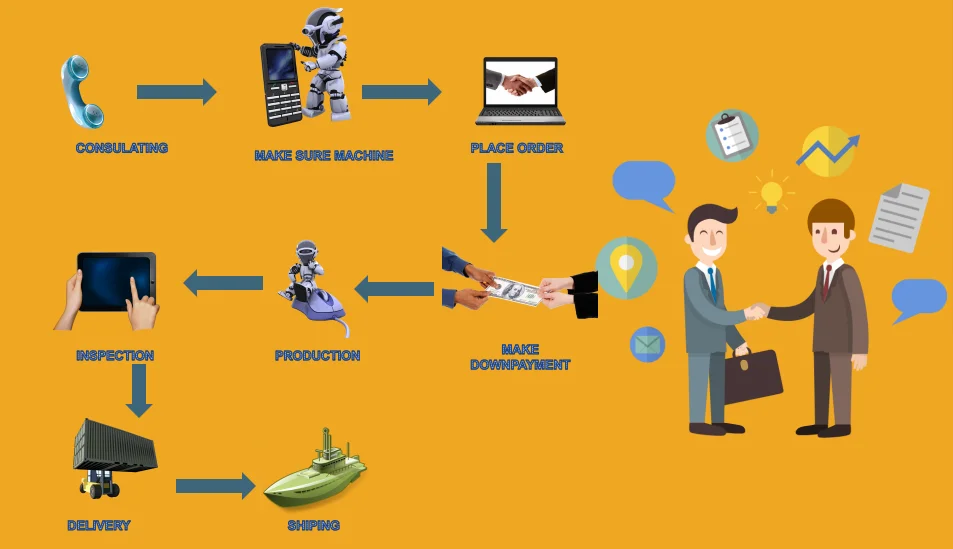

Buying Guides







Packaging & Shipping


Packaging Detail: in plastic film and Wooden case


Delivery Detail:   10-20 days once receiving from the 30% deposit








Our Services


Service of  Professional Aluminium Alloy Window Making Machine





ABOUT OUR MACHINE:


1. All our machines are 12 months quality guarantee,lifetime maintance.


2. Engineers available  for machinery overseas  service.


3. Make specialized solutions for client's requirements.


4. 24-Hour on line by Email , Skype ,WhatsApp or call .


5. Can get spare parts  quickly from our Agency or Headquarters.


 ABOUT YOUR FACTORY:


1. Give you the suggestions on your factory building.


2.Arrange the machine in your workshop so that can get high efficiency.


3.According to your prodction give you the best plan of full set of machine that you need .


Payment Terms





♦ L/C, 30% deposit by T/T,70% spare payment L/C.


♦ T/T, 30% deposit by T/T,70% spare payment before shipment.


♦ Western Union





Quality Testing





Before delivery ,our engineer must make the Testing for every machine, to make sure that our machines can work with perfect  performance !
