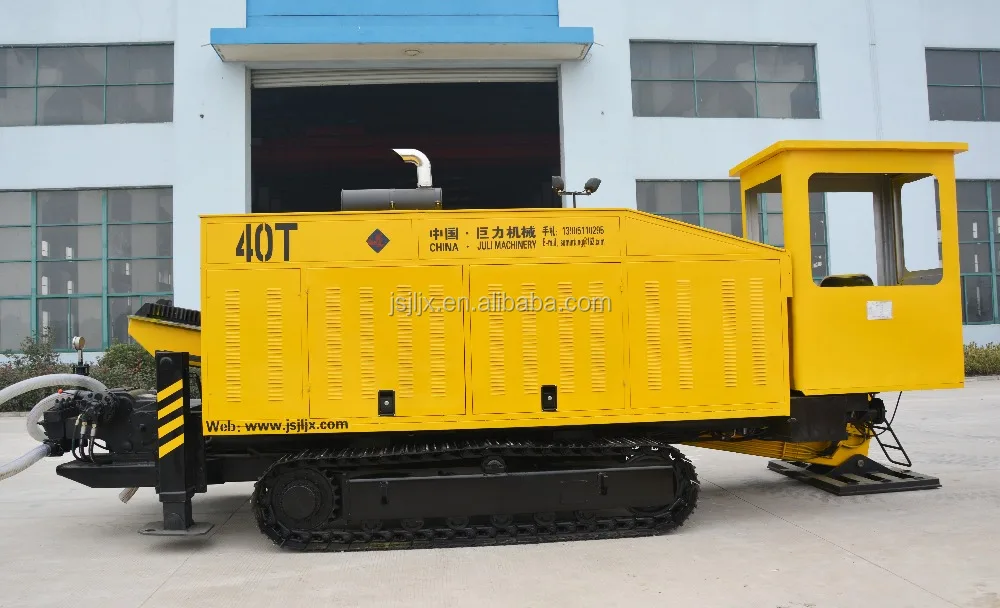

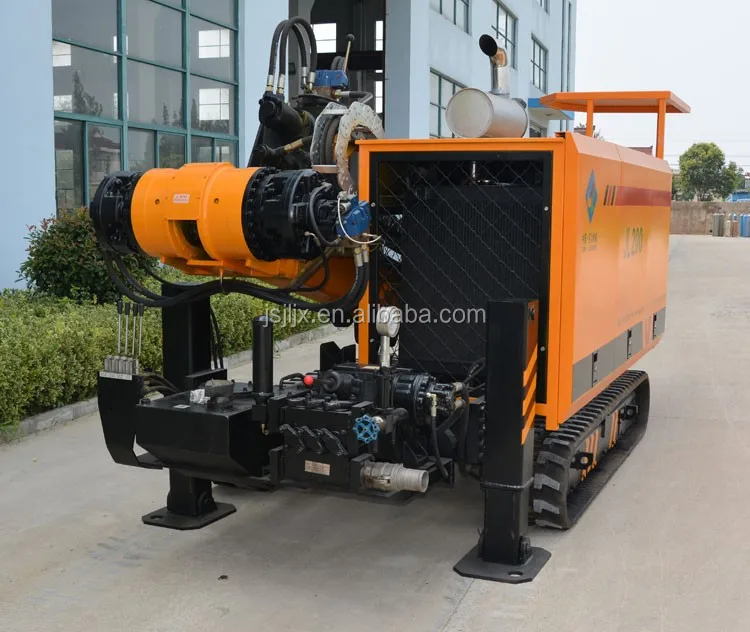

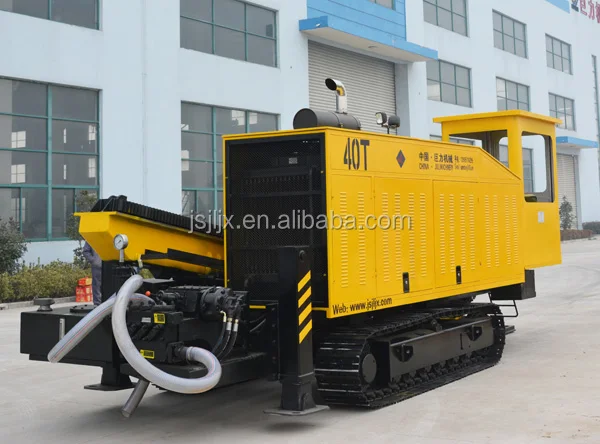

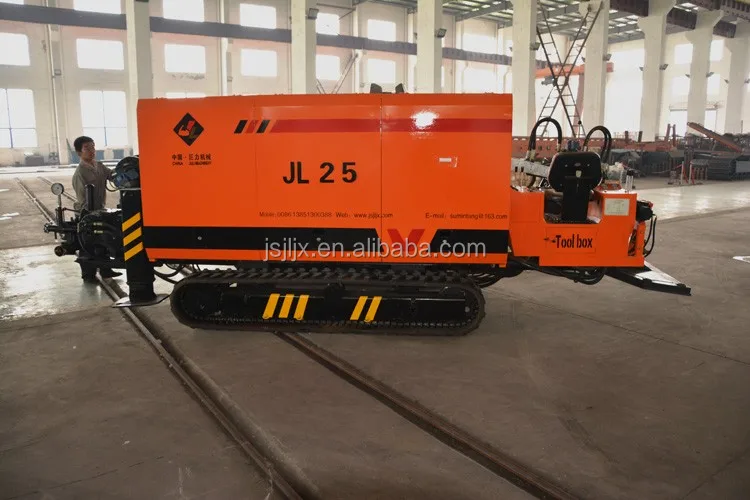

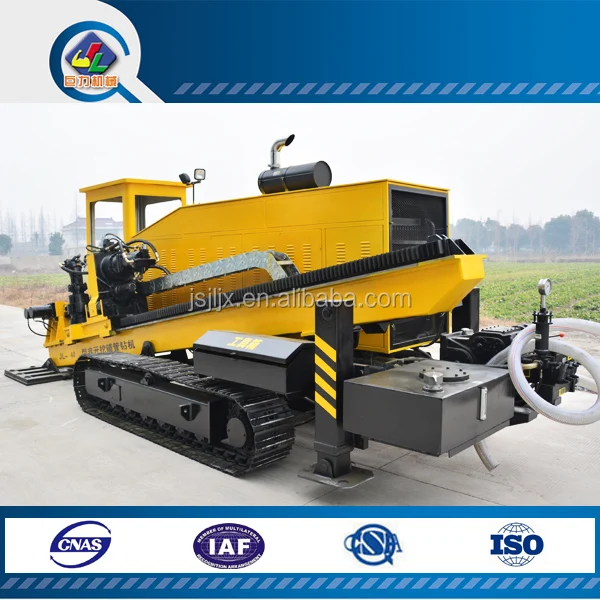

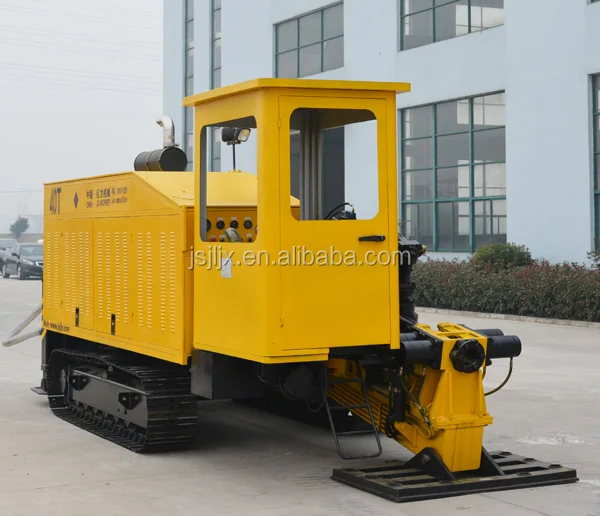

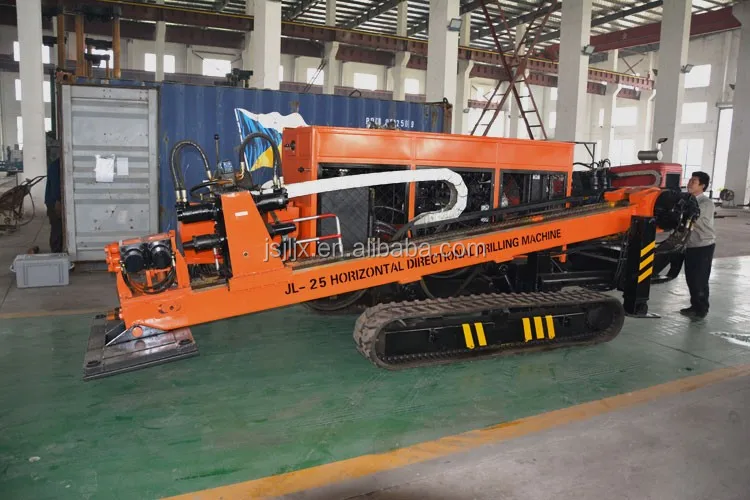

Trenchless underground drilling machine for water
Our trenchless underground drilling machine for water is driven with fullly hydraulic system. The rotator can drill with different speeds due to its advanced and compact structure. The chain feeding system of drilling machine for water is driven by motor. The motor works stably and offers high performance. The entry anggle of trenchless machine can be adjusted in big range. The overall machine is in low gravity and can work fast. Our drilling machine for water offers comfortable operation circumstance for the operator.
Photos
Parameters
| Item | Unit | JL-10 | JL-12 | JL-15 | JL-18 | JL-25 | JL-33 | JL-36 | JL-40 |
| Rated power | kw | 60 | 75 | 75 | 110 | 125 | 132 | 160 | 179 |
| Max pullback/thrusting | kn | 100/100 | 120/120 | 150/150 | 180/180 | 250/250 | 330/330 | 360/360 | 400/400 |
| Max spindle torch | n.m | 2400 | 4000 | 5000 | 6000 | 8000 | 12000 | 14000 | 16000 |
| Spindle speed | r/min | 0-120 | 0-120 | 0-110 | 0-110 | 0-125 | 0-125 | 0-70-120 | 0-65-100 |
| Travelling speed of power head | m/min | 0-22 | 0-21 | 0-30 | 0-21 | 0-20 | 0-22 | 0-28 | 0-28 |
| Max backreaming diameter | mm | 400 | 500 | 600 | 700 | 800 | 800 | 900 | 900 |
| Pipe length | mm | 2000 | 2000 | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Pipe diameter | mm | 50 | 50 | 60 | 60 | 73 | 73 | 76 | 76 |
| Entry angle | ° | 10to22 | 10to22 | 10to23 | 10to22 | 10to22 | 10to20 | 10to20 | 10to23 |
| Max mud flow rate | l/min | 200 | 200 | 250 | 250 | 250 | 320 | 320 | 320 |
| Weight | T | 5 | 5.5 | 7 | 7.5 | 8 | 9.5 | 10.5 | 13 |

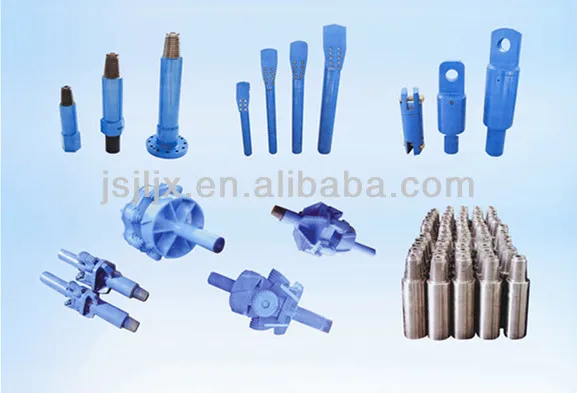

*With all types of drill pipe, drill tool, component, orientation instrument

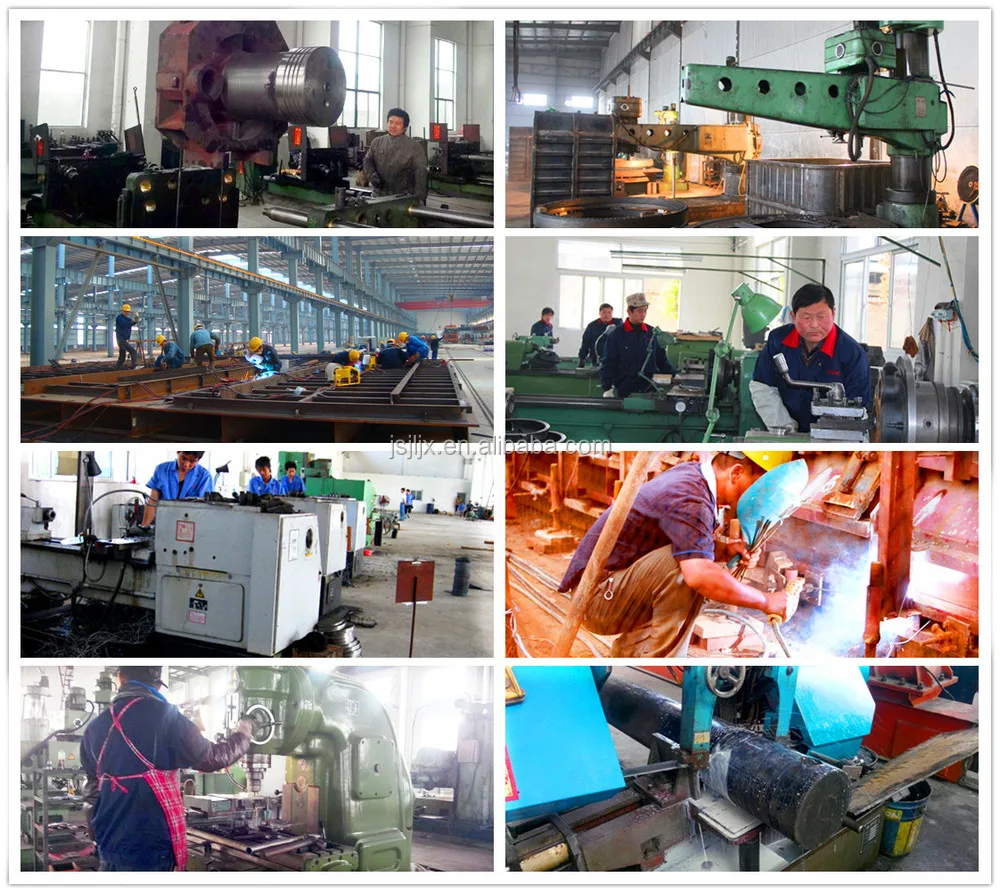

Company Information
We are prefessional manufacturers of trenchless underground drilling machine for water, leader pile driver and diesel pile hammer in China. Vessel parts are also our classic products. We are located in dongtai,Jiangsu, China which is near Shanghai. We sell our products to every corner of Southeast Asia, the Middle East, CIS countries, China and etc. Welcome clients from all over the world to contact us for inquiry.
Our Services
- 24 hours online technical support
- Total logistics information tracking report
- Spare parts to be sent immediately
