Plant Multi effect Water Distiller Stainless Steel ISO CE GMP 120 5000lt/h 0.2mpa 0.3mpa Industrial, Pharmacuetical

 Description

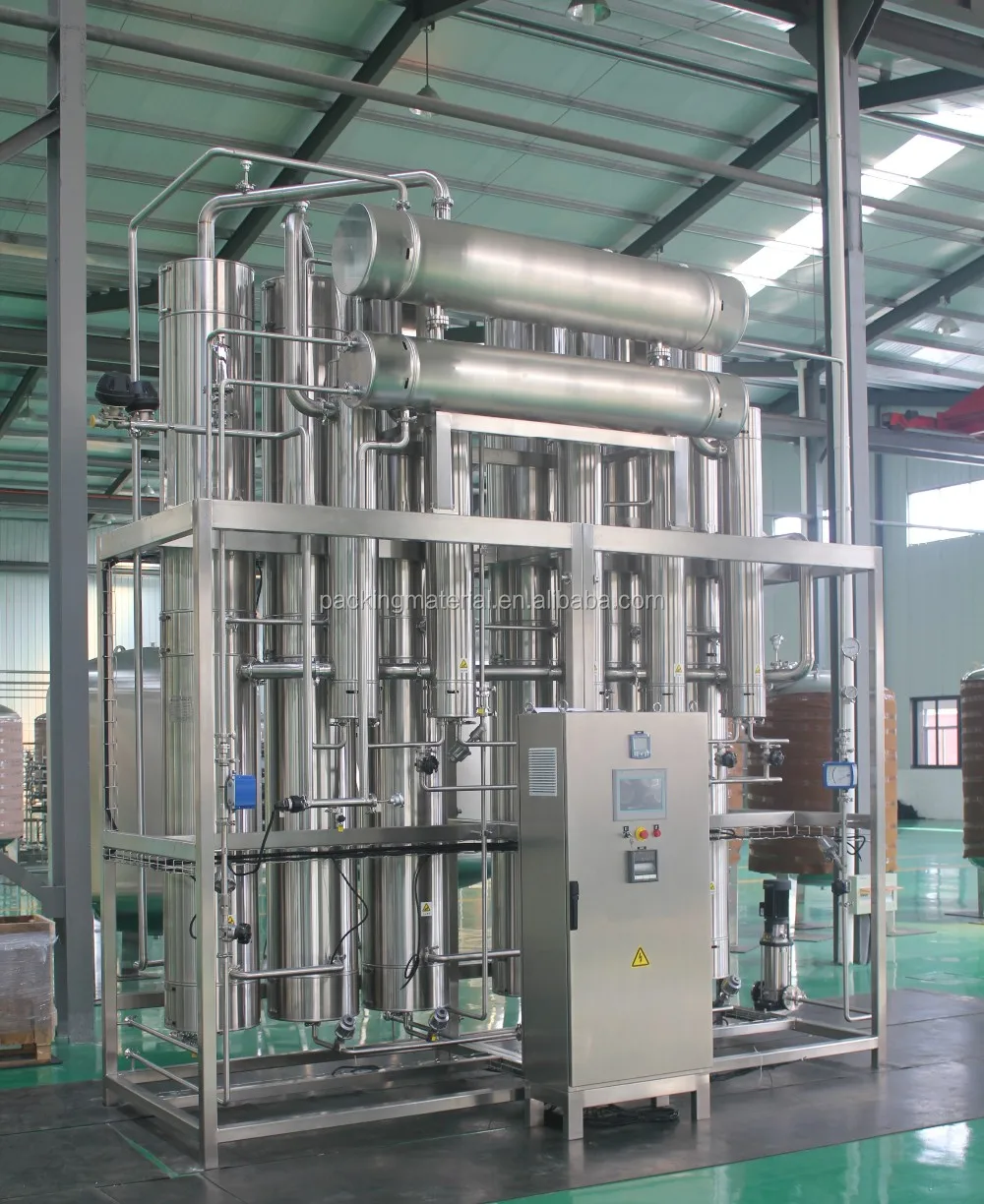

B series multi-effect water distiller adopts rising film and multi-diversion form to evaporate. The industrial steam enters the evaporate shell pass through valves and interchange heat with the purified water rising film in tube pass. The purified water after heat exchange becomes vapour, then impure heat source will be removed from the vapour through diversion separation device in the machine to produce the secondary steam. The pure steam after steam-water separation will become distilled water after being condensated as heating source in Ⅱ effect. Then the distilled water will enter into the condenser under the pressure differential action and then enter the storage tank through the pipe for storage. The concentrated water without evaporation and separation shall enter the next effect for re-evaporation through concentrated water inlet

Equipment features

1. Adopts rising film for evaporation to solve the problem of uneven distribution of water.

2. High thermal efficiency, 100% heat exchange.

3. Save industrial steam consumption, 20% energy saving.

4. Distribute feeding water consumption amount for each effect accurately to reduce material water loss.

5. No need to exchange the multi-diversion separation device and life-span of the equipment can be extended.

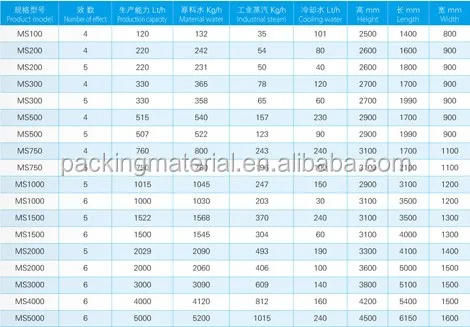

6. Technical parameters of B series multi-effect water distiller

7. Inlet pressure of industrial steam is 0.3MPa and the inflow working pressure of cooling water is 0.2MPa
