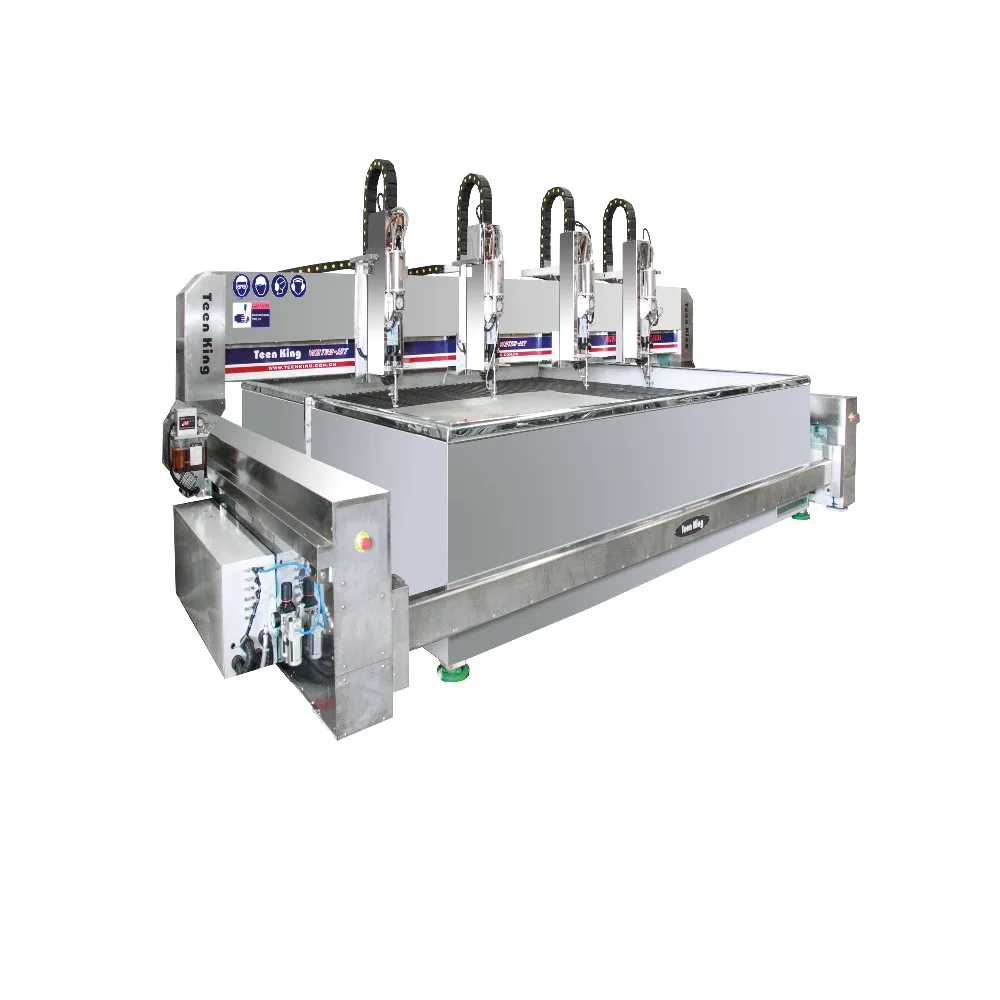

high efficiency waterjet machine with 4 heads
- Category: >>>
- Supplier: Foshan Shunde Teenking CNC Machinery Co. Ltd.
Share on (60492217825):
Product Overview
Description
Product description:
A full set of abrasive waterjet cutting machine includes work table, CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Sludge Removal System, etc.
Why Teenking 4-head waterjet?
---a. 4 heads = 4 times cutting effeciency of single head
---b. 1-4 cutting head can working simultaneously. The number of cutting head in use can be choose freely.
---c. Able to cut all most all materials, such as metal (steel, stainless steel, bronze, aluminum and titanium), stone (marble,granite and slate), ceramic, glass, plastic and other kinds of composite material.

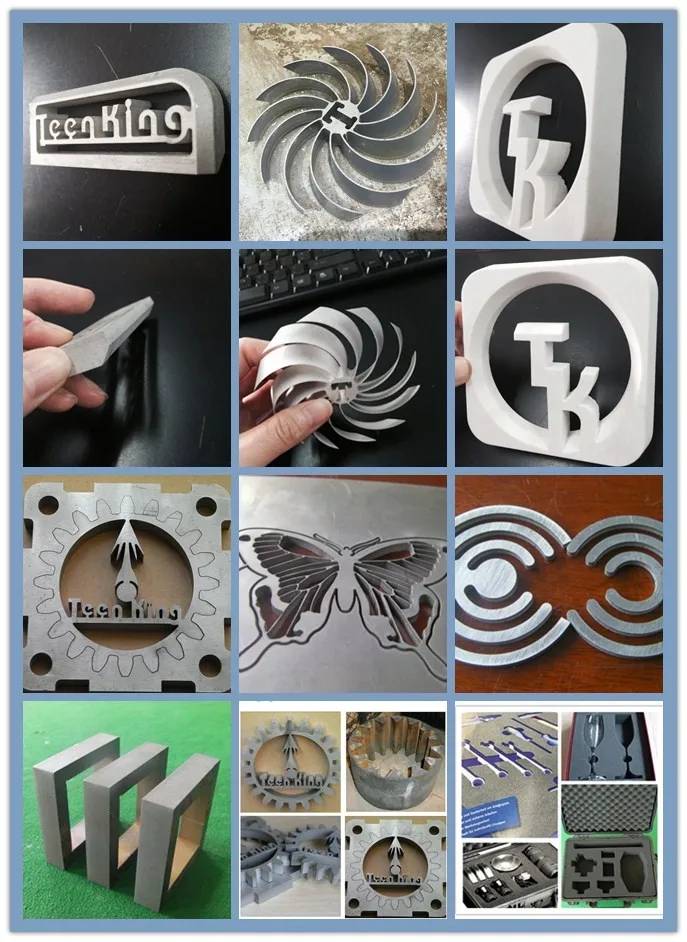

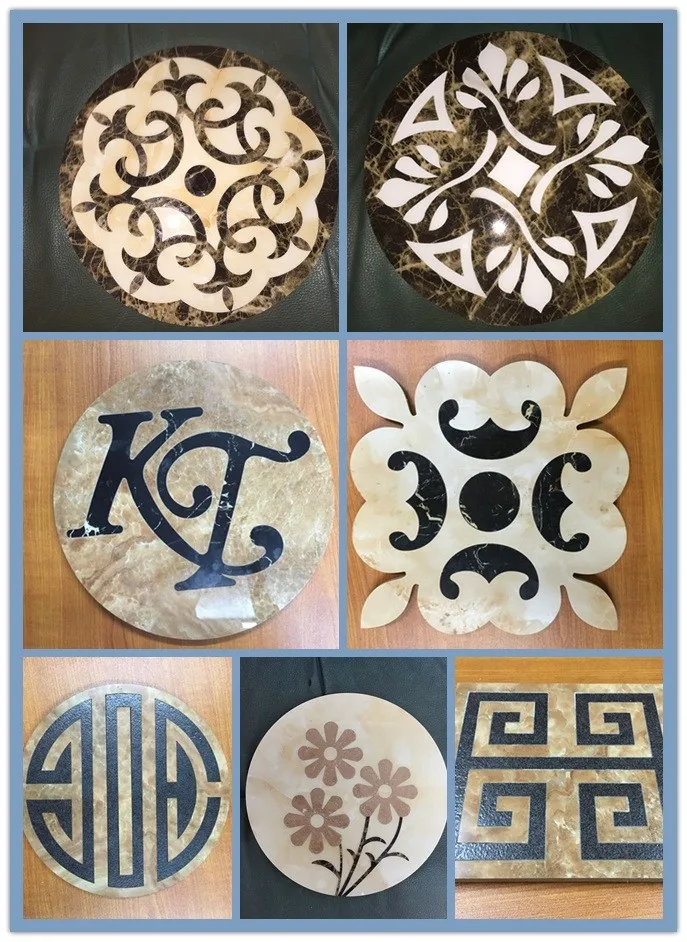

---d. Perfect cutting effect as follow
|

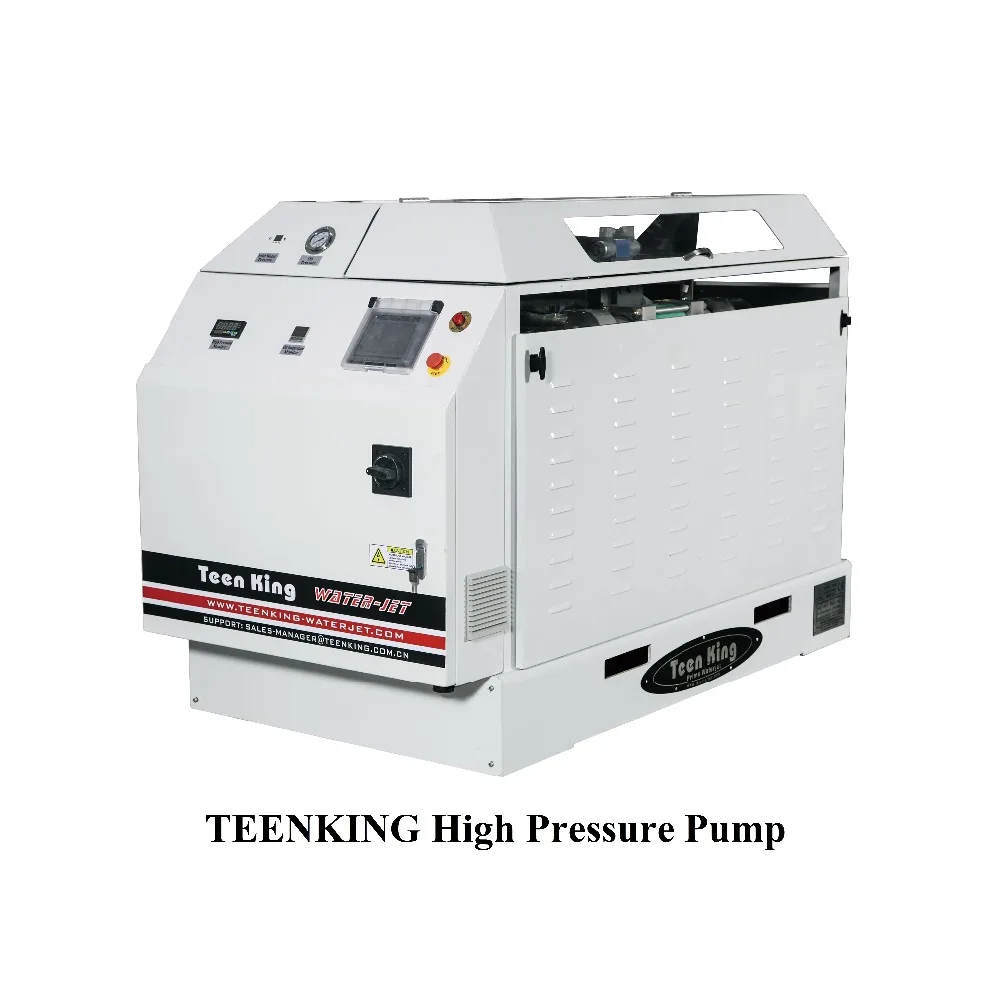

Teenking-High Pressure System |
||
|
I. Main configuration |
||
|
|
||
|
Intensifier |
ERTI USA Assembly Intensifier (Most stable Flow type intensifier) |
|
|
Accumulator |
Accustream from USA |
|
|
Main motor |
German Siemens Motor |
|
|
Oil pump |
Rexroth automatic variable oil pump |
|
|
1. Imported original intensifier and accumulator assembly are specially adapted to ensure system stability and service life. |
||
| 2. Low pressure pipes use reliable import C-type taper joints, high pressure resistant, durable and easy to maintenance. | ||
| 3. High-pressure pipe uses rigid cone seal, safe and reliable with good sealing effect. | ||
| 4. With effective fan-oil cooling system, oil temperature is strictly control to not over 60 degrees Celsius, guaranteeing life of sealing elements. | ||
| 5. Various Instruments monitor data of temperature, pressure and running. | ||
|
6. Auto dual pressure (low/high range 70~380MPa) pressure control system enables automatic low/high pressure switching when cutting, decreasing damages to work pieces. |
||
|
||
| 1. Hydraulic system is equipped with oil temperature sensor for oil temperature protection, machine automatic shutdown starts when over 60 degrees Celsius. |
||
| 2. System with multiple alarm and protection, once alarm automatic shutdown protection starts. | ||
|
(1) Low-pressure water under-voltage alarm |
||
|
(2) Ultrahigh pressure over-pressure alarm |
||
|
(3) Oil filter clogging alarm |
||
|
(4) Oil temperature alarm |
||
|
(5) Hydraulic pressure alarm |
||
|
Model |
TK-Trump50 |
|
|
Drive system |
Motor |
|
|
Pressure system |
Intensifier |
|
|
Max. cutting pressure |
420MPa/60000psi |
|
|
Continuous working pressure |
350-380MPa/50000-55000psi |
|
|
Max. flow rate |
3.7L/min |
|
|
Power |
37KW/50HP |
|
|
Power Supply |
380V/50Hz, 3 Phases |
|
|

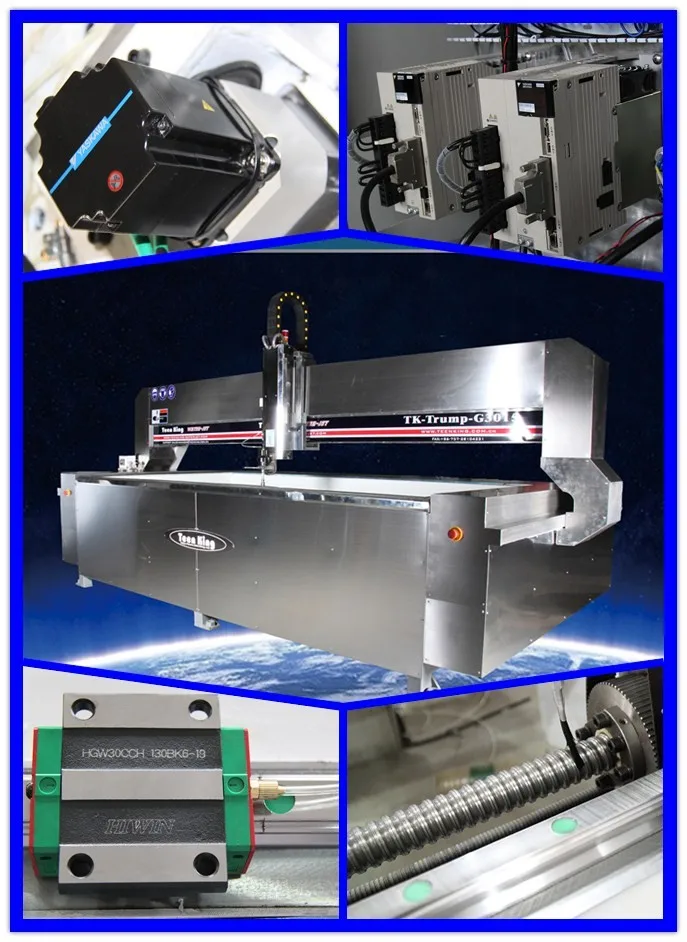

Teenking-Work table |
|||
|
Main facts |
|||
|
|
|||
|
Servo motor system: |
Japan Panasonic or Yaskawa absolute value encoder servo motor system |
||
|
Linear guide |
HIWIN, form TAIWAN |
||
|
Ball screw |
ABBA, from TAIWAN |
||
|
Cutting head |
ACCUSTREAM type Dia-line cutting head |
||
|
High pressure tube |
|
||
|
Max. speed of X,Y axis |
20m/min |
||
|
Max. speed of Z axis |
2.5m/min |
||
|
Max. speed of A,C(B) axis |
2.5º/min |
||
|
Max. processing speed |
10m/min |
||
|
Z axis travel journey |
220mm |
||
|
Cutting accuracy |
±0 .08mm per 300 mm |
||
|
Re-position accuracy |
±0.02mm |
||
|
1. Separate body between cutting table and load-bearing platform minimize resonance and heat conduction, to ensure accuracy for long time. |
|||
| 2. All Stainless Steel Covered and strictly sealed. | |||
| 3. Gantry type structure. | |||
| 4. Motion system: ball bearing rotating on ball screw to support high speed movement. The unique ball screw straightening system supports for fast & stable movement. | |||
| 5. Cutting platform load capacity and flatness: 1 ton/M2, ±0.7mm for whole capture | |||
|

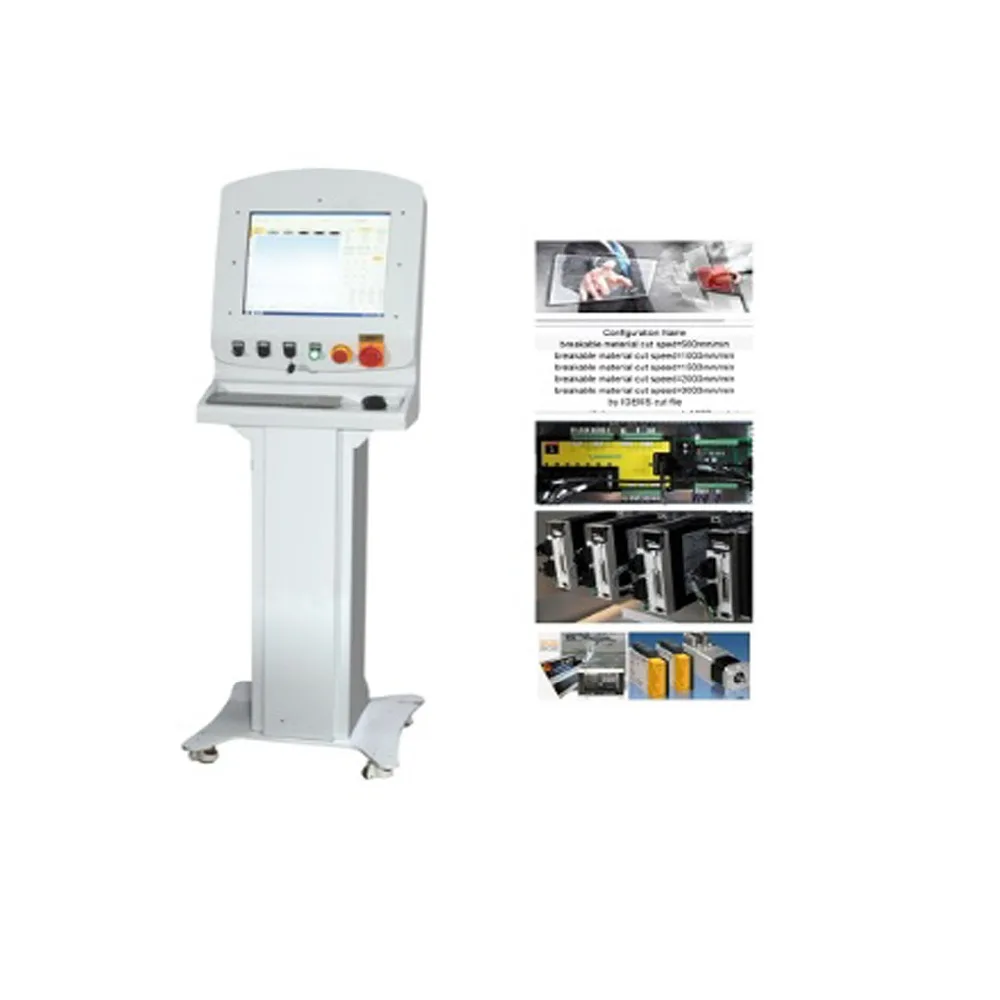

Teenking-CNC controller |
||
|
|
||
|
1. Industrial control computer: high reliability, convenient man-machine dialogue, real-time control of the cutting process. |
||
| 2. Apply 19’’ touch screen, wireless keyboard and mouse, remote control machine movement. | ||
|
3. Supported by absolute value encoder, user can continue the program after power-break directly but no need back to reference. |
||
| 4. Easy operation Built-in TeenKing material database, simply choose material and thickness, machine will automatically finished remaining work, and give you ideal part. | ||
| 5. More build-in function: Dynamic speed control, over range protection, cutting cost estimate and trouble-shooting diagnose, etc. |
|
Recommended Units
|
|||
|
|
|||
|

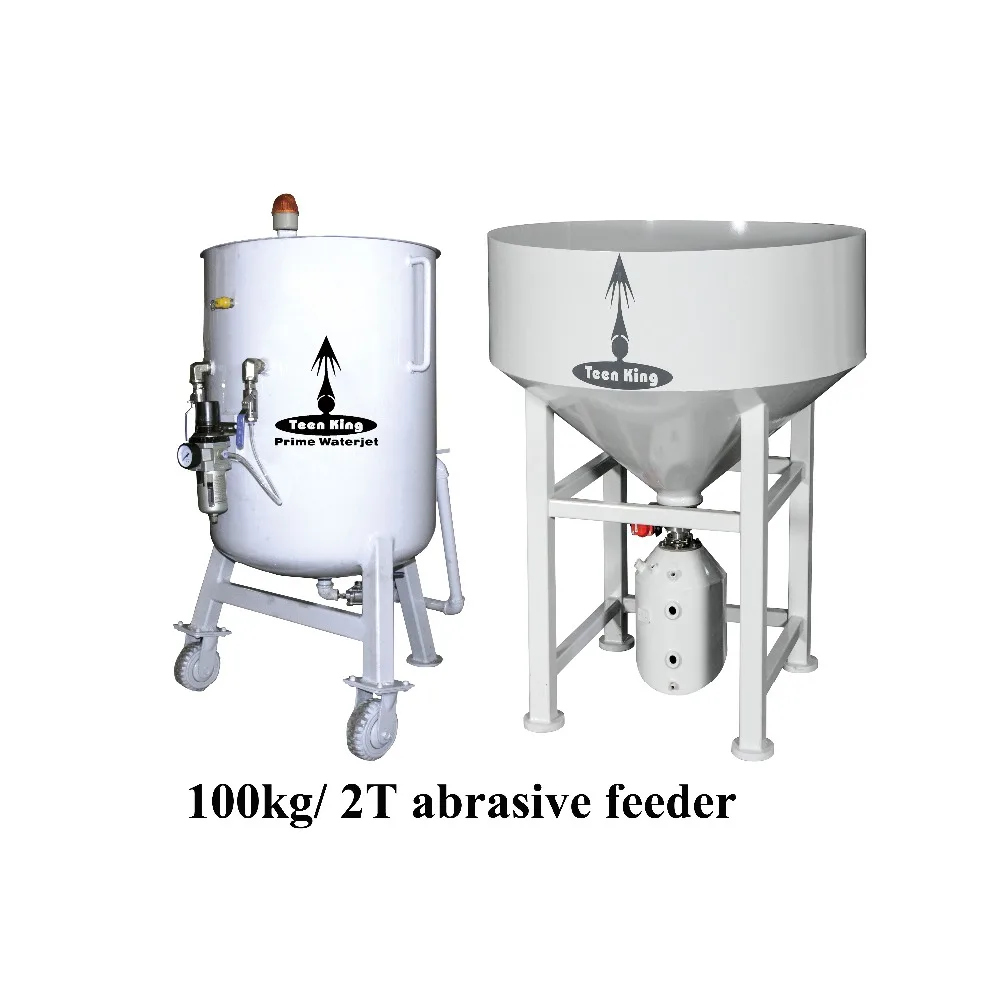

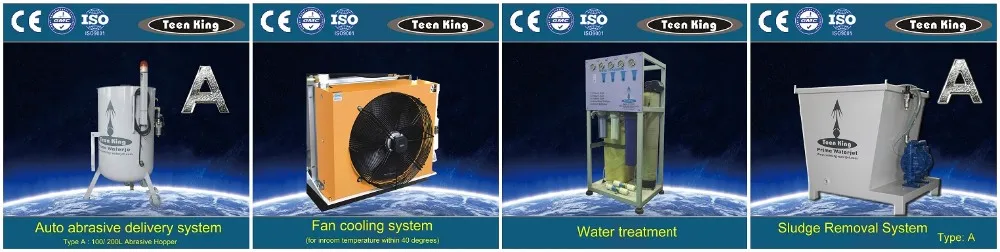

Auto Abrasive Feeder Deliver the abrasive automatically by pressed air (2.5 bars) , volume controlled by the level of the hopper. |

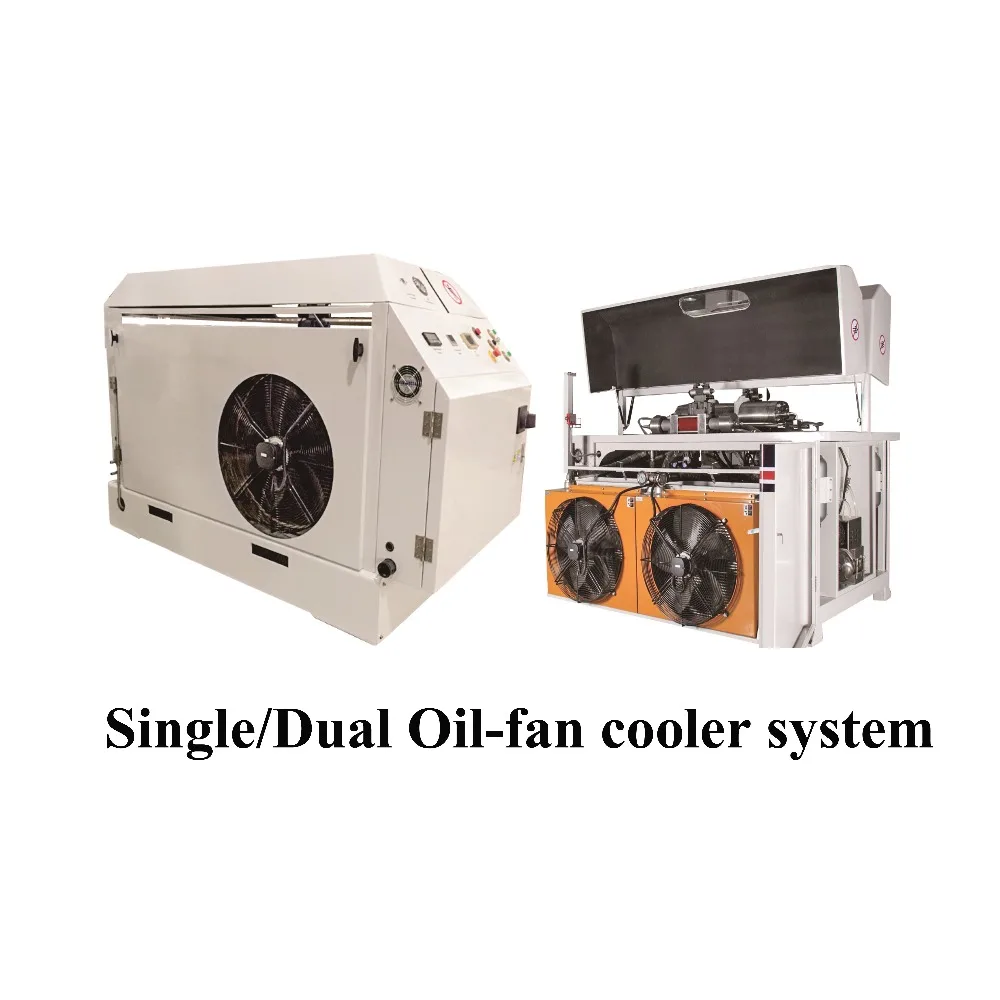

Auto Cycling Fan Cooling System Cooling down hydraulic oil efficiently. |

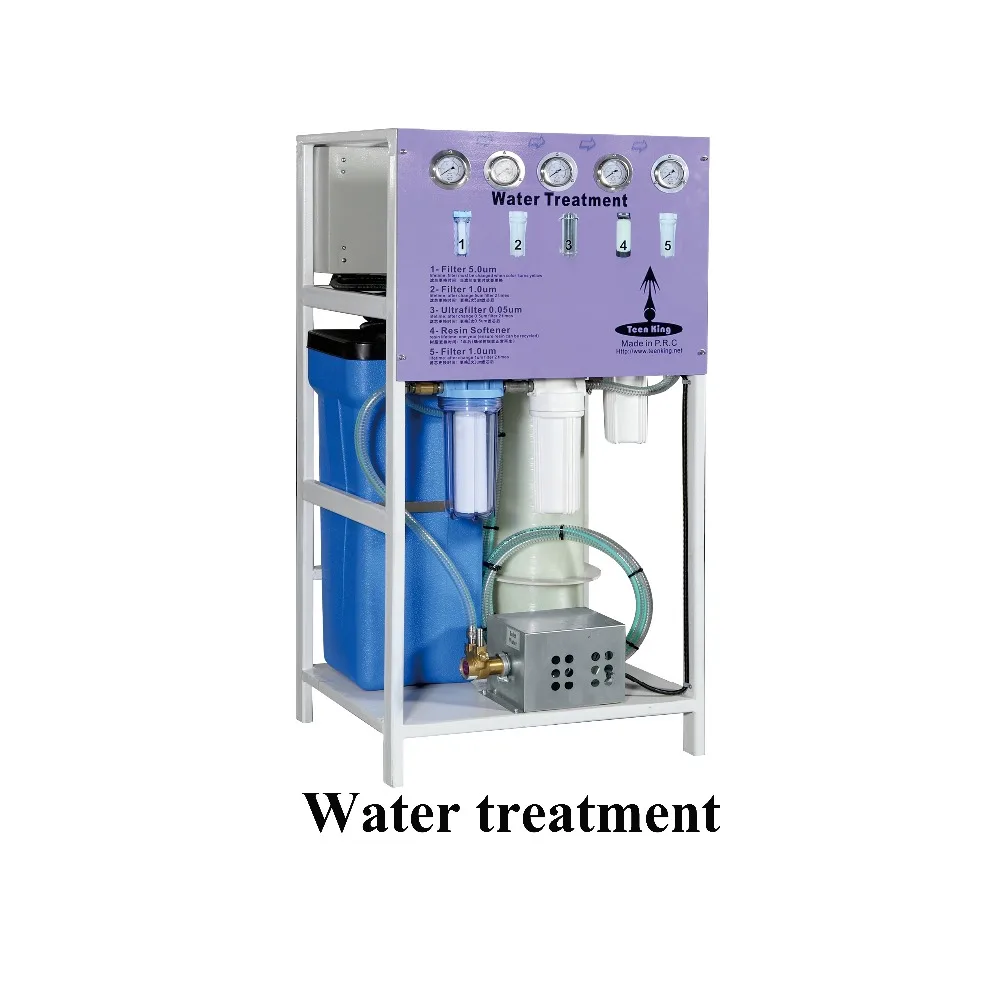

Water Treatment Generate soft and clean water for intensifier, maximize the life time of all high-pressure elements. |
Sludge removal system Automatically clean up and collect sludge from water tank. |
|
|
|||
 |
|||
|

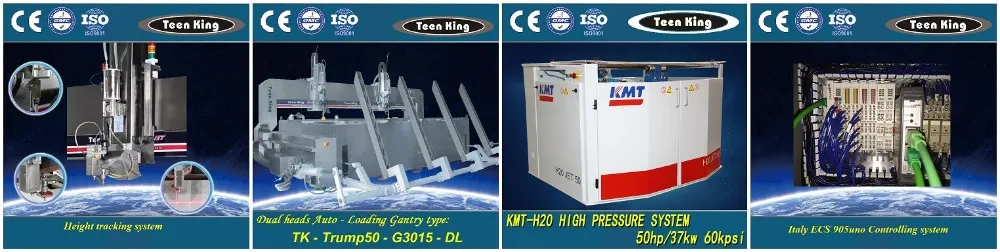

Height tracking system Auto detect the height before & during cutting. |
Auto load/unload system Unique double-layer load/unload system with Max Weight 1000Kg/m2. |
KMT pump (USA) Stable ultra high pressure pump. |
Italy ECS 905uno + Baumuller absolute encoder servo Ensure high accuracy cutting. |
|
|
|||
|
|
|||
|

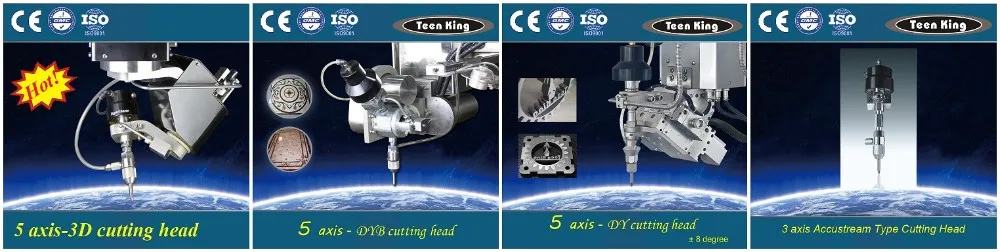

5 axis 3D cutting head: Cut with +/-65 degrees, vertical compensation. |
5 axis DYB cutting head: parquet cutting application. |
5 axis DY cutting head: Vertical compensation, cut with taper +/-8 degrees. |
3 axis cutting head: Strong flame in favor of smooth cut, “ACCUSTREAM” type cutting head support high efficiency cutting. |
Packing & Shipping
Our Customers

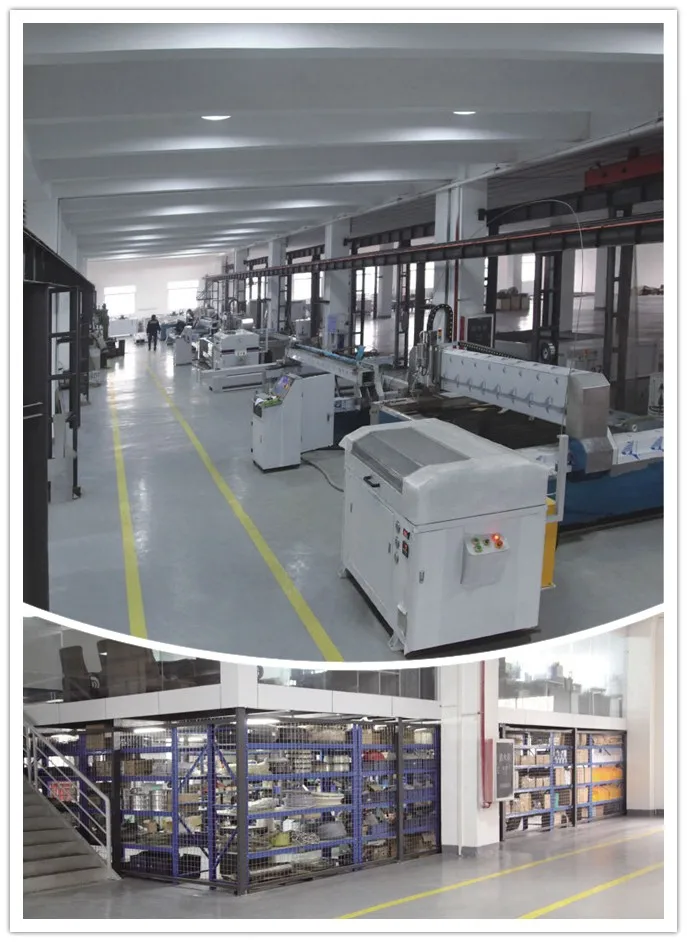

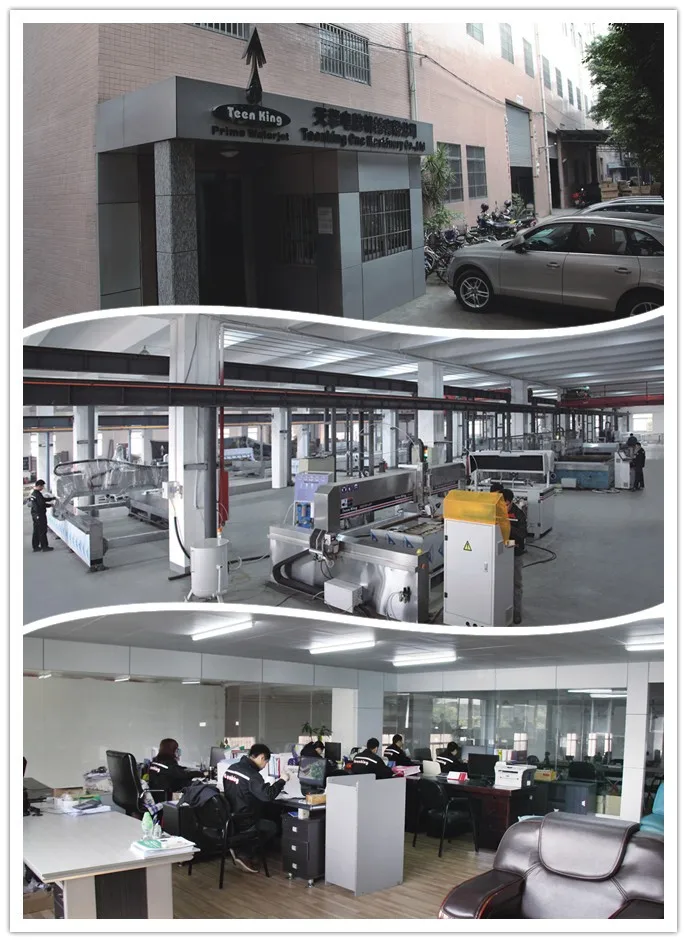

Company Profile & Qualification Certificates
TEEN KING CNC Machinery CO., LTD was established in 2004, specializing in manufacturing high efficiency CNC cutting machines. Teen King Waterjet is commonly used to cut steel, metal, marble, stone and glass. By becoming the preferred choice of the high end customers at home and abroad, we are dedicated in producing quality products with our know how and innovations, in order to give good service and fulfill our customers’ requirements. By making our customers as our partners, we work together to achieve their needs, maximum economical benefits and produce easy to use machines.
With the development and enlargement of the company, we strive for perfection through our motto “Innovations, Practice, Diligence”. We insist on “better quality and service” to serve our customer’s needs. We appreciate your opinions and feedbacks which will help us improve and be closer to perfection. We are making “Teen King” a worldwide brand and at the same time satisfy all our customer needs.
