conductive electrical elastic textile tape for signal transduction
- Category: >>>
- Supplier: LITEX TEXTILE & TECHNOLOGY CO. LTD.
Share on (60492491553):
Product Overview
Description
conductive electrical elastic textile tape for signal transduction
Product Description

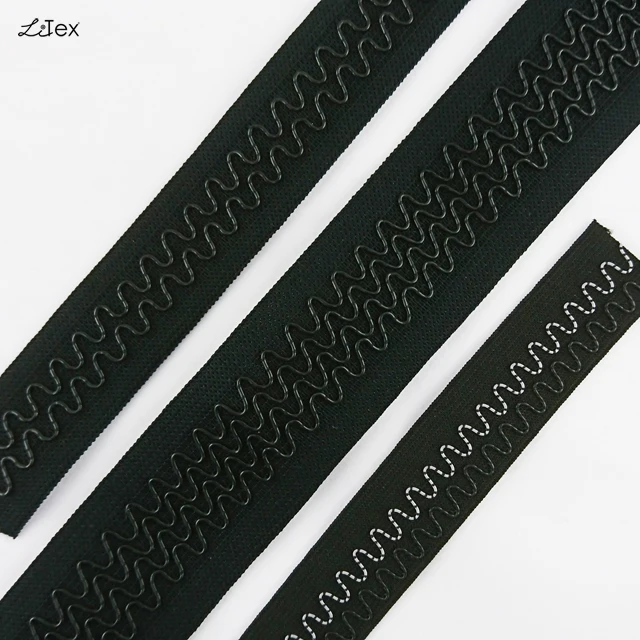

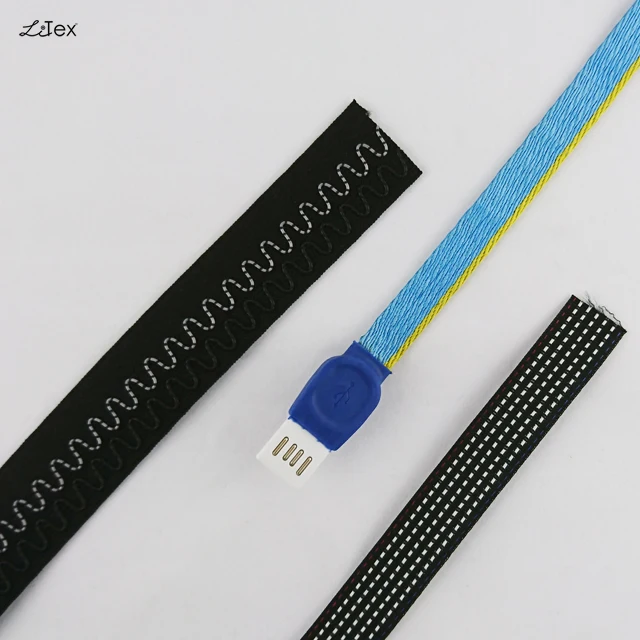

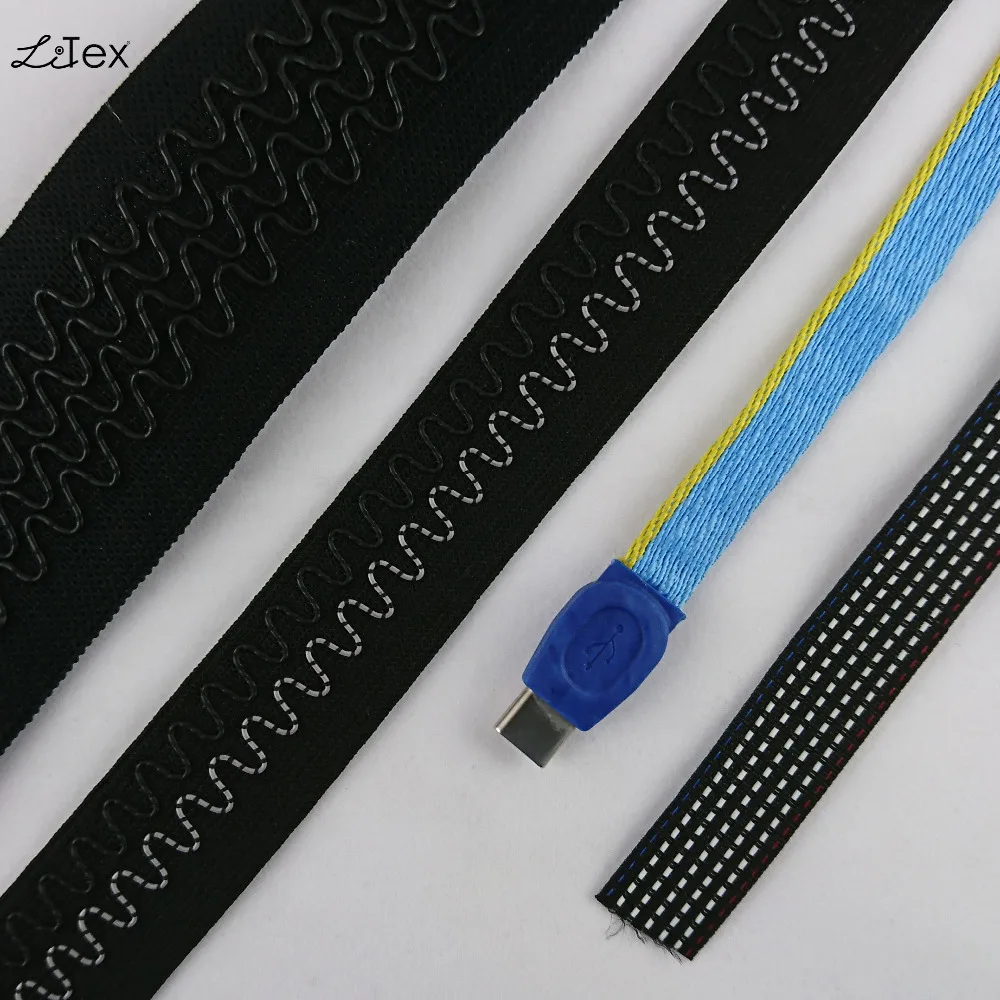

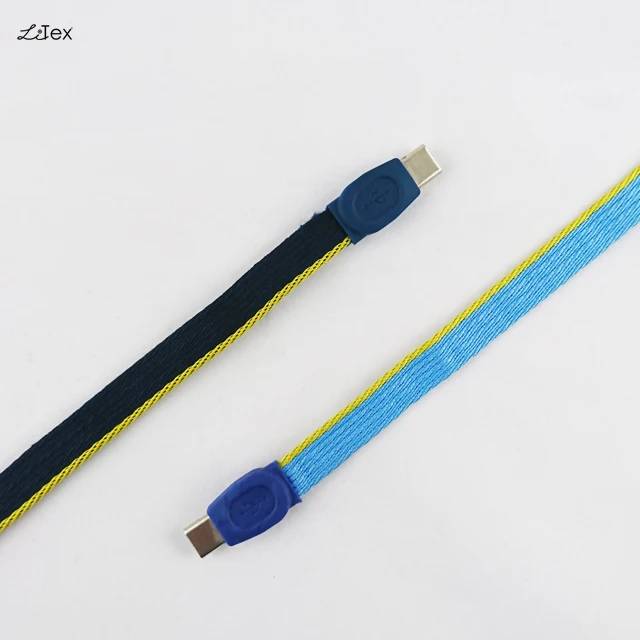

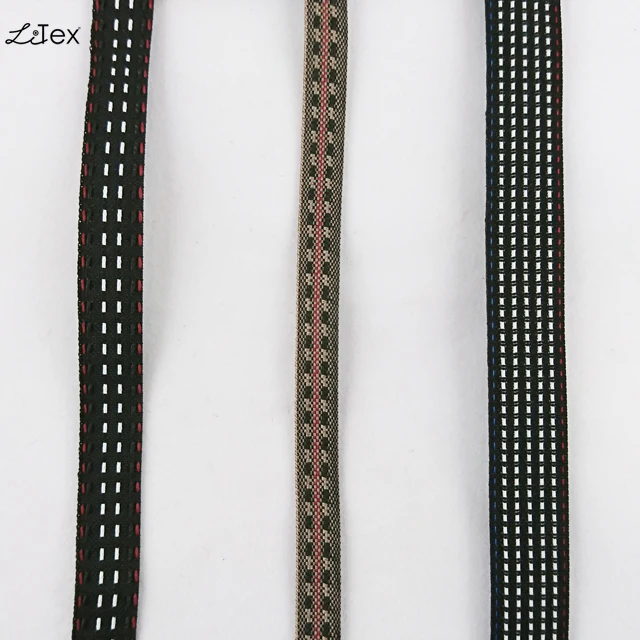

LiTex specializes in incorporating conductive metal elements into fabric products to create functional fabrics. Our Wired Conductive Tape (WCT) has two main product categories, the Elastic Conductive Tape (ECT) and Non-elastic Conductive Tape (NCT).
WCT is one of LiTex’s main product that offers numerous customizability options. WCT is a narrow textile tape with conductive wire woven in. It can be used as a cable for any signal and power delivery applications.
About Us
| LiTex is a spinoff company founded in 1999 from a traditional narrow fabrics manufacturing business that was founded in 1960 called Hen Hao Trading. Through special projects and contracts that we took on, we ventured into manufacturing for heavy industries that needed woven metal products. The skills and knowledge learned through these special projects helped us innovate new products and expand our product line. |  |
Applications
Features
| The comfortable and stretchable nature of ECT makes it most suitable to connect wearable electronics. | Elastic and flexible nature protects the wires from breakage and snapping while in intensive use. | Using our patented Conductive Metal Yarn (CMY), our ECT can be transformed to an Elastic Heating Strip that can be used for warmth and joint pain alleviation. |
Product Usage
| ** Wearable electric product |
| ** Functional garment use |
Specification
30 AWG POWER WIRE | Amount | Units | |
Conductive Core | Material | Copper |
|
Orientation | S |
| |
Max resistance(20℃) | 326.2 | Ω/km | |
Max current | 0.2 | A | |
Covering | Outer diameter | 0.631-0.633 | mm |
Material | TPU |
| |
Color | Black |
| |
|
|
|
|
28 AWG POWER WIRE | Amount | Units | |
Conductive Core | Material | Copper |
|
Orientation | S |
| |
Max resistance(20℃) | 213 | Ω/km | |
Max current | 0.3 | A | |
Covering | Outer diameter | 0.76±0.05 | mm |
Material | TPU |
| |
Color | Natural |
| |
|
|
|
|
24 AWG POWER WIRE | Amount | Units | |
Conductive Core | Material | Copper |
|
Orientation | S |
| |
Max resistance(20℃) | 89.4 | Ω/km | |
Max current | 0.921 | A | |
Covering | Outer diameter | 0.9±0.05 | mm |
Material | TPU |
| |
Color | Black |
| |
Our Services
We have a variety of customization options:
1.Customer selects desired customizable setting.
2.We will send closest resembling sample we have available for customer’s reference.
3.We will provide quotation for customer to confirm (we provide Alipay).
4.We will arrange the firm order and double check the quality while the production runs.
5.We will contact the customer and double check shipping method once production is complete.
Certification
Left: Patents (Taiwan Patent #: M545145)
Center: 2014 International Taitronic Innovation Award - Quality Award
Right: ROHS, REACH
2015 Techtextil Show in Messe Frankfurt |
Our Factory |
Delivery & Payment
We recommend using Alibaba Trade Assurance:
Our Courier Service Provider:
Please contact us below for additional information!
