AA1100 alloy aluminum strip for evaporator fin
- Category: Aluminum Strips >>>
- Supplier: Chongqing Shijie Aluminum Industry Co. Ltd.
Share on (60492511780):
Product Overview
Description
Product Description

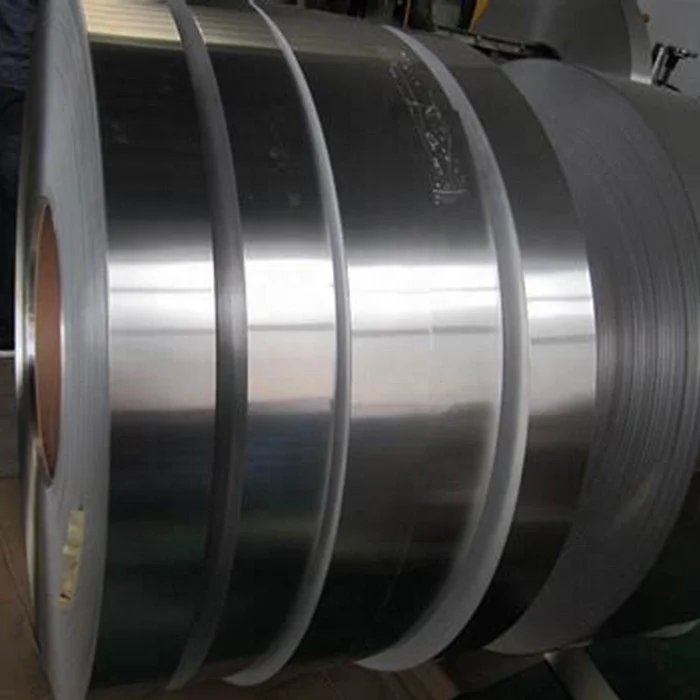

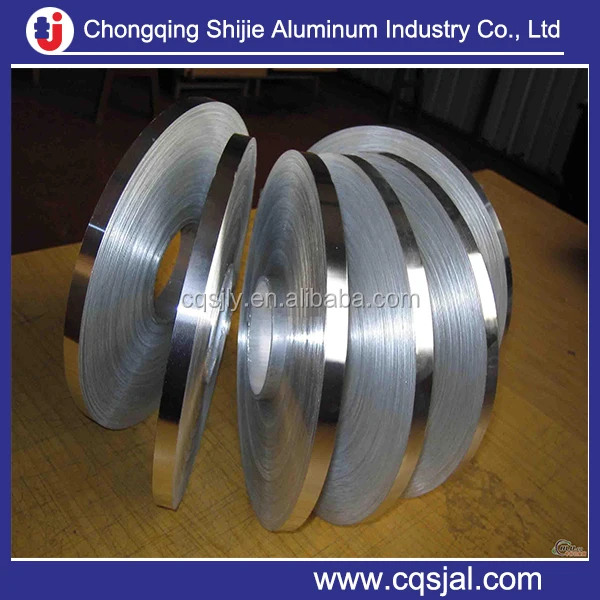

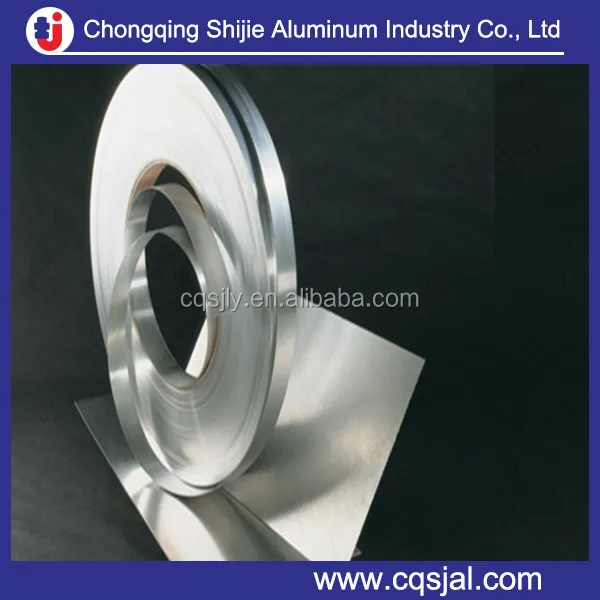

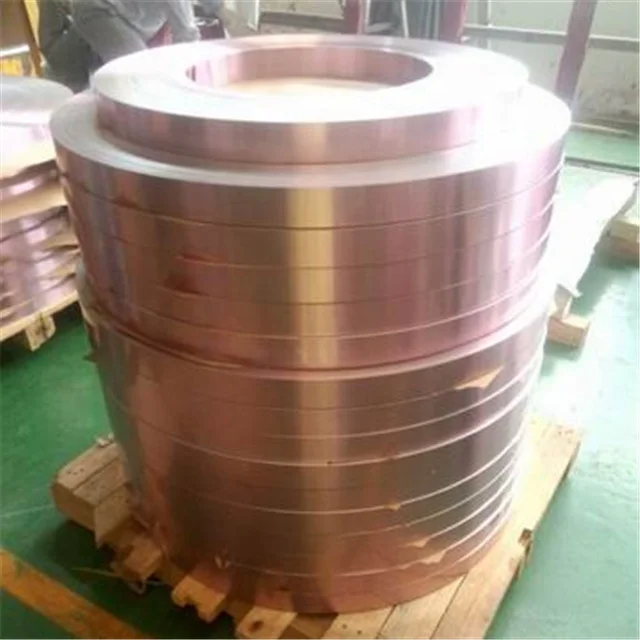

AA1100 alloy aluminum strip for evaporator fin
Advatage we can support you :
1, fast delivery :15~ 35 days produce leading time
2, free sample available and delviered by us .
3, MOQ: 1000kgs
4,factory price
4, flexible payments term: 5~30% advance payments , the balance by L/C or T/T against bill of loading copy.
5, Kinds of quality certification is vailable such as ISO , SGS etc
Aluminum strips details :

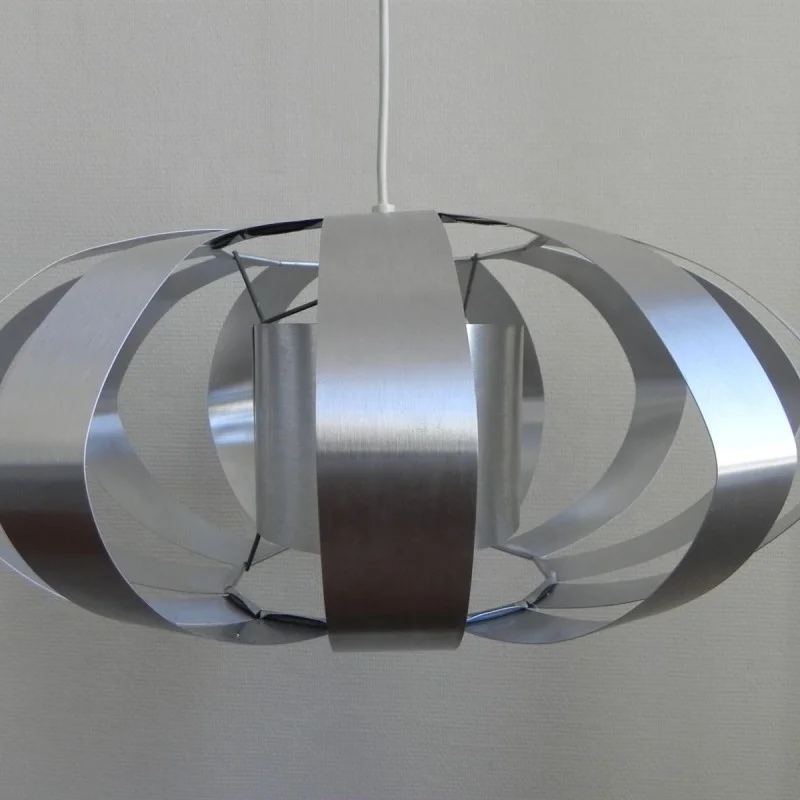

Aluminium strip are used in various applications such as refrigerator, commercial freezer, cable wrap, capacitor, PP cap, anti-theft strips, aluminum/plastic composite pipes, PS substrates and etc
| alloy | Temper | Thickness (mm) | Width | Coil ID | Application |
| 1100,1050, 1060,1070, 3003,3105, 3004,5052, 8011 | O,H12,H14, H16,H18 | 0.02~4.00 | 5~100 | 75, 150, 300, 400, 500 | Cable,cosmetic cap, aluminum composite, pipe, transformer, shutter,aluminum battery , aluminum strip for evaporator |
| 8011,1235, 1060,1100, | o | 0.10~0.20 | 100~300 | 75,150 | Cable Wrapping |
| 1060, 1100, 8011 | O, H22 | 0.20~1.5 | 30~250 | 75 | Aluminum plastic composite pipe |
| 1060, 1070 | O | 0.20~2.0 | 100~1200 | 150, 300, 400, 500 | Low voltage electrical transformer |
| 8011 | H18, H19 | 0.08~0.10 | 140~600 | 75,150 | Water tank radiator in Automobile |
| 8011 | O | 0.10~0.13 | 60 | 75 | Aluminum tube for kitchen ventilator |
| 5052, 3004 | H19 | 0.125~0.25 | 15~100 | 300 | Roller shutter |
| 3004 | O | 0.25~0.40 | 85~400 | 75, 150 | Aluminum lamp base |
Chemical limits data sheet :
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | -- | -- | 0.03 | 0.03 | 99.6% | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | -- | -- | 0.05 | 0.03 | -- | 99.5% |
| 1100 | 0.95 | 0.05~0.2 | 0.05 | -- | -- | -- | 0.1 | -- | -- | 99% | |
| 3003 | 0.6 | 0.7 | 0.05~0.2 | 1.0~1.5 | -- | -- | -- | 0.1 | -- | -- | Remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | -- | 0.25 | 0.1 | -- | Remainder |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3~0.8 | 0.2~0.8 | 0.2 | -- | 0.4 | 0.1 | -- | Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | -- | 0.1 | -- | -- | Remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | -- | 0.25 | -- | -- | Remainder |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | -- | 0.1 | 0.08 | -- | Remainde |
If coating , coating details :
| coating | PE (Polyester)/EPOXY/PVDF |
| color | Ral color chart , as per clients sample |
| Coating thickness | 10~35um |
| color warranty | 10~20 Years |
Adhesion | 5B(EN ISO-2409:1994) |
| T benb | 0T~3T |
Impact resistance | No cracking and peeling(A.S.T.M D2794-1993) |
| Mek resistance Test | More than 100times |
| color quality | No color difference , high flatness , smooth surface , hard to be polluted , easy to be cleaned , high wearability , uniform coating ,cost advantage |
