Standard AL Cable Lug Clamps for Low Voltage Cable Fitting Aluminium Terminal Lugs

Share on (60492518904):


Price:

Quantity:


Product Overview

Description



Product Description




H type aluminium cable clamp





H series specific forms parallel groove clamp is suitable for force splicing and branch on the aerial wire, being used with insulation cover, it action is insulation protection.





Features:


H shape tap connector was universal and reversible design separates run and tap, and minimizes galvanic corrosion. It was use for wide range conductor; Conductors are separated by the shape of the connector. Each connector has many aluminum cable combination applications allowing maximum flexibility for the design and installation of a system. Tap grooves function independently of each other.





Advantages:


1) Connector can be gripped in tool and slipped over line for easier and faster installation.


2) Massive aluminum design minimizes corrosion due to galvanic corrosion.


3) Constrains conductors while installer completes crimp.


4) Simplifies installation can reduce installed cost.


5)  Permanent inspect ability of installed connectors to insure consistently reliable and dependable connection.





Instructions:


H Type Aluminum Connector is suitable for branching identical cross-sections and no need to split the main conductor.

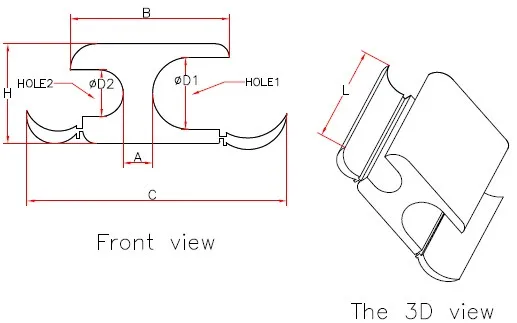

Item No.



HOLE1 (mm²)



R1


(mm)



HOLE2 (mm²)



R2


(mm)



A (mm)



B


(mm)



C


(mm)



H


(mm)



L


(mm)



Weight


(g)



AS-H 1



16-35



4.8-8.2



16-35



4.8-8.2



7.1



24.3



41



15



38.3



30



AS-H 2



50-95



8.3-14.0



16-50



4.8-9.6



13



37



59.7



22.4



63



91



AS-H 3



50-95



10.0-14.0



50-95



10.0-14.0



5.4



36.4



63.9



22.3



63.5



78



AS-H 4



95-240



13.0-22.4



16-70



4.8-11.4



14.3



50.8



81.4



30



63



185



AS-H 5



95-240



13.0-22.4



70-150



11.6-16.0



9.4



50.2



83.5



32



63



176



AS-H 6



15-240



16.2-22.4



150-240



16.2-22.4



5



50.5



90.6



30.3



114



255









Shipping:


Port of Departure: Ningbo or Shanghai
Delivery Time: 15 days after receiving the payment





H type aluminium cable clamp
