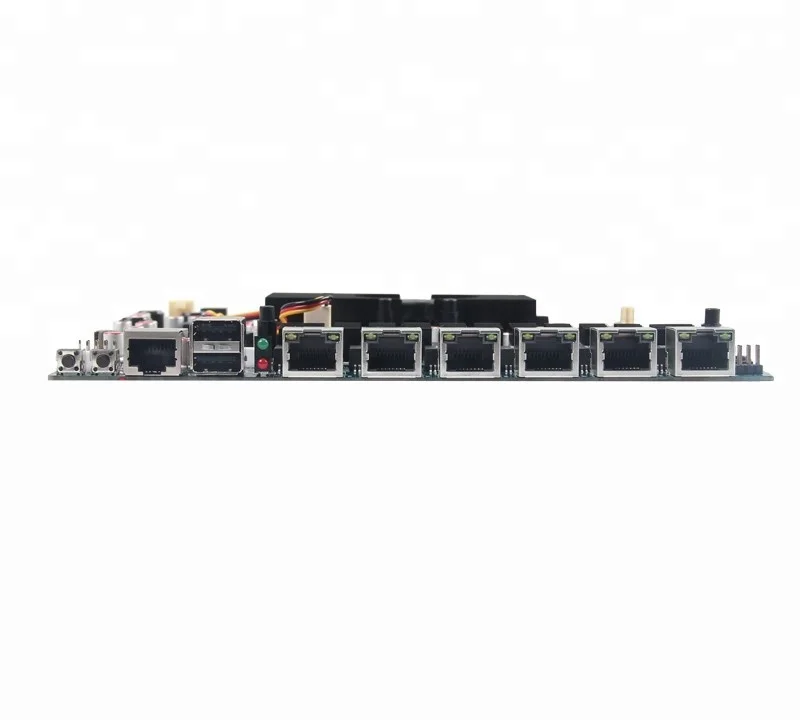

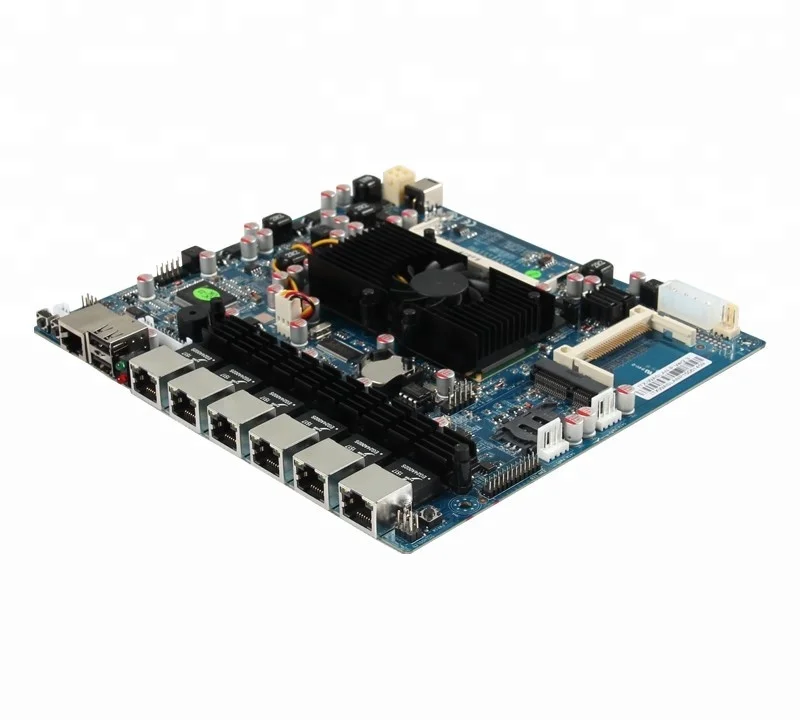

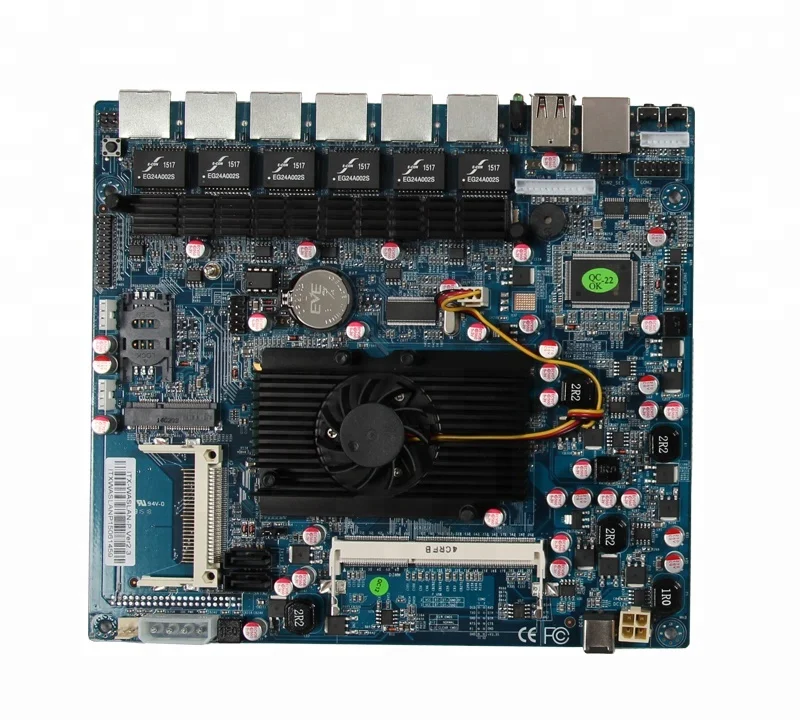

Intel Atom D525 industrial network security firewall computer motherboard 6 lan, dc power,sim,CF
- Category: >>>
- Supplier: Shenzhen Hcsmart Technology Co. Ltd.
Share on (60492690690):
Product Overview
Description
6 Lan Intel atom D525 network security firewall motherboard
Processor | CPU | Intel Atom D525 |
Frequency | Dual core 1.8Ghz | |
Chipset | ICH8M | |
TDP |
| |
Memory | Slot | 1*SO-DIMM,DDR3 800 MHz Memory |
capacity | MAX to 4GB | |
Storage |
connector | 2*SATA2.0 |
1*CF | ||
1*MINI PCIE (For WIFI) 1*SIM | ||
Display | chipset | CPU integrated HD Graphics |
output | VGA header | |
LAN | chipset | 6*Intel 82583V 1000M |
connector | 6*RJ45 | |
Audio | chipset |
|
connector |
| |
I/O | com | 1*COM header |
Lpt |
| |
USB | 2*USB2.0,1*USB2.0 header (can expand to 2*USB2.0) | |
GPIO |
| |
Header |
1*IDE PWR 1*Reset 1*LED 1*USB 2.0 header 1*12PIN VGA 1*Sata-PWR 1*4pin DC 1*CLR-CMOS jumper 1*SYS-FAN 1*PS2 header
| |
Power | power supply | 1*DC IN 12V/5A 1*4PIN ATX |
OS | Version | Win7/Win8/Linux |
BIOS |
| AMI BIOS |
working environment | working temp | -10~60℃ |
storage temp | -10~70℃ | |
relative humidity | 5%-95% non-condensing | |
Form factor | size | 180*200mm |
Packaging & Shipping
Carton box packaging, shipped by door to door express (Fedex, Dhl,Ups,Tnt etc,) or air
Our Services
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.

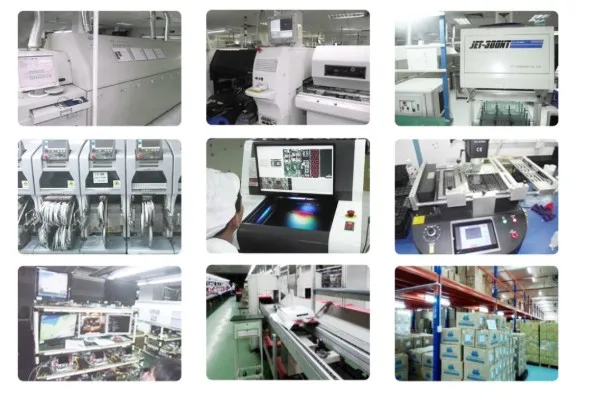

Company Information
FAQ
1.What is your payment terms ?
T/T, Paypal ,westunion ,money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
