2.2kw Water Cooled Er20 400HZ 24000rpm Gdz80-2.2B Atc Cnc Router Spindle Motor
Product Description
Technical parameter:
Spindle type
GDZ80-2.2B
Diameter
80mm
Speed
24000rpm
Power
2.2KW
Voltage
220V or 110V
Current
8A
Frequency
400HZ
Joint of nose
ER20
Lub
grease
Cool
water cooling
Bearing type
7005CP4*2+7002CP4*1
Weight
5KG
Torque
0.91Nm
Collet
ER20
Collet nut
3.175mm,4mm,6mm,12.7mm
Warrantyperiod
bearings=half a year other parts a year

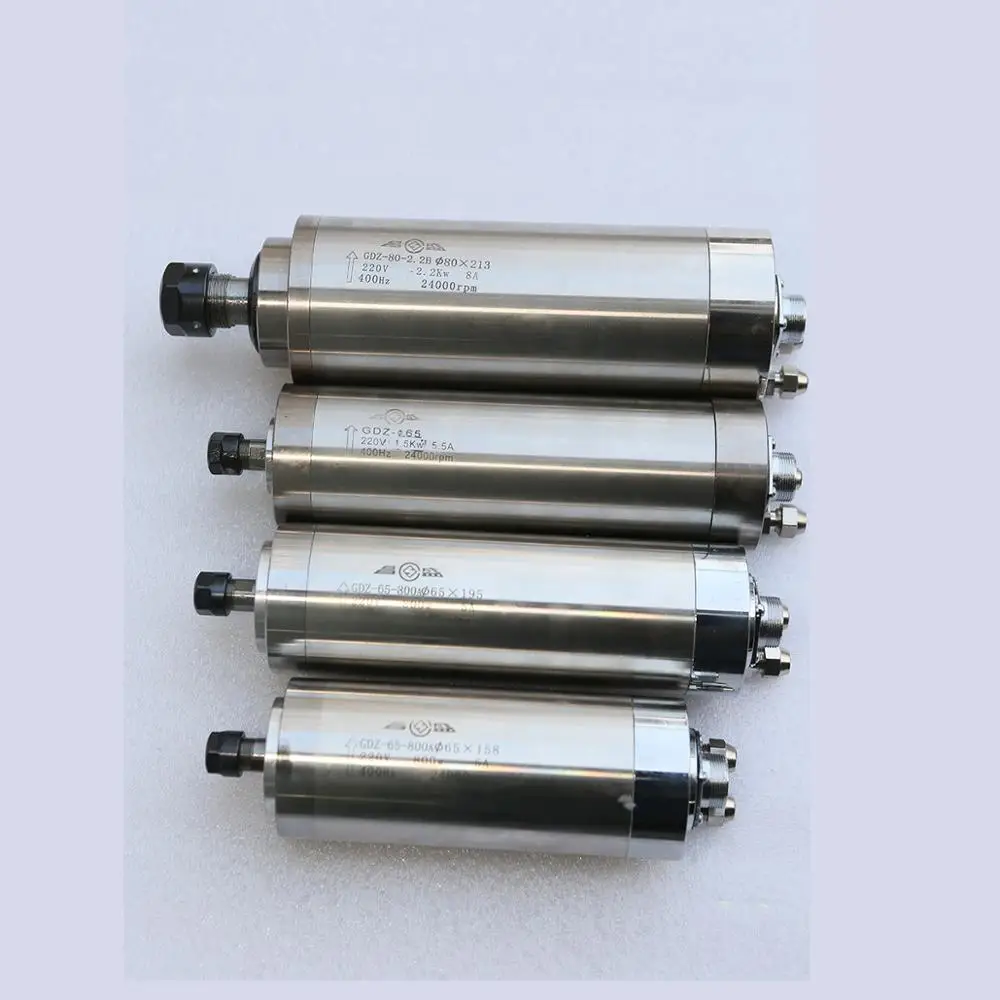

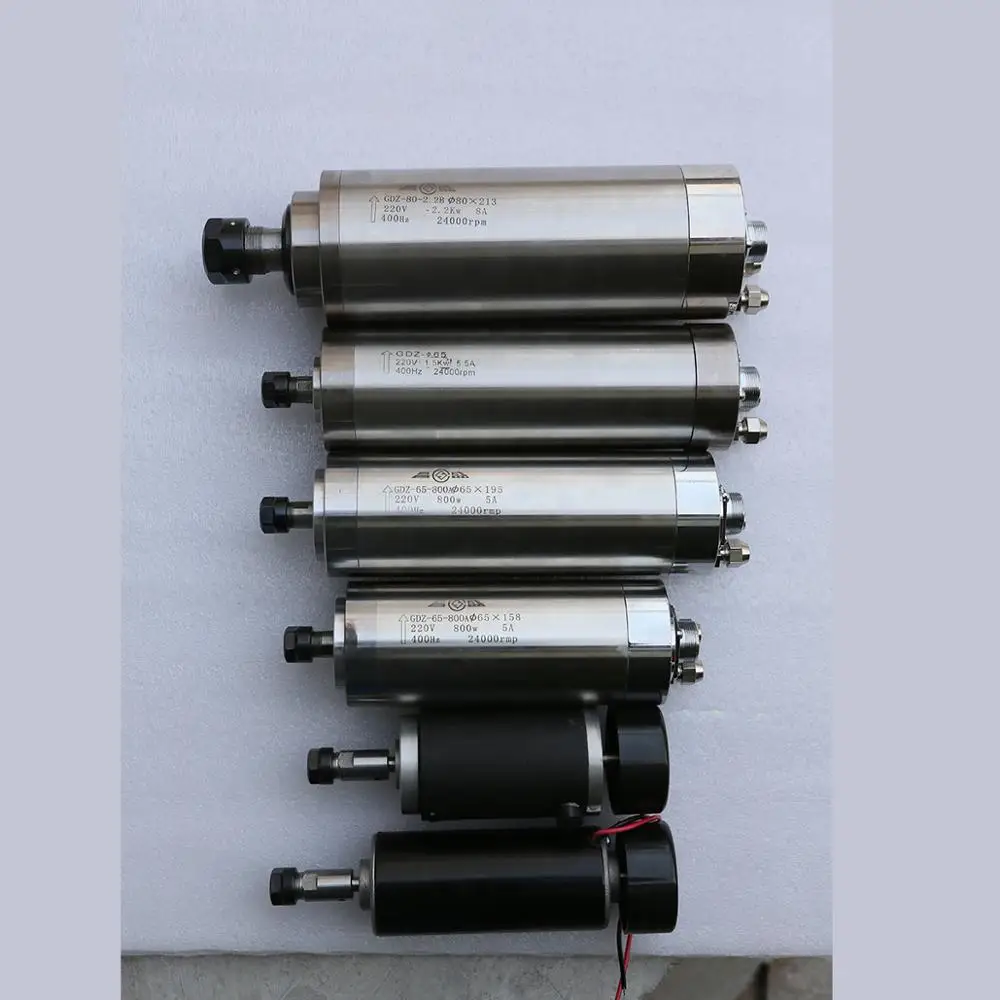

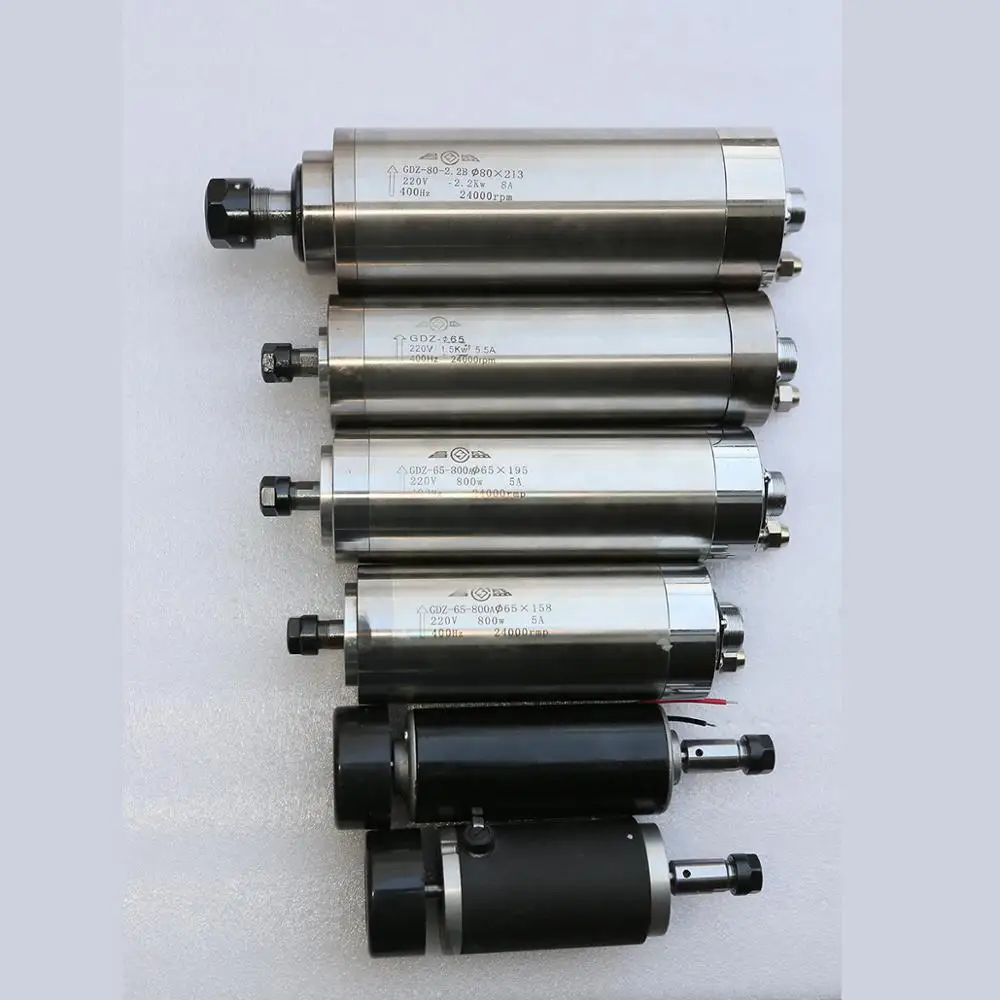

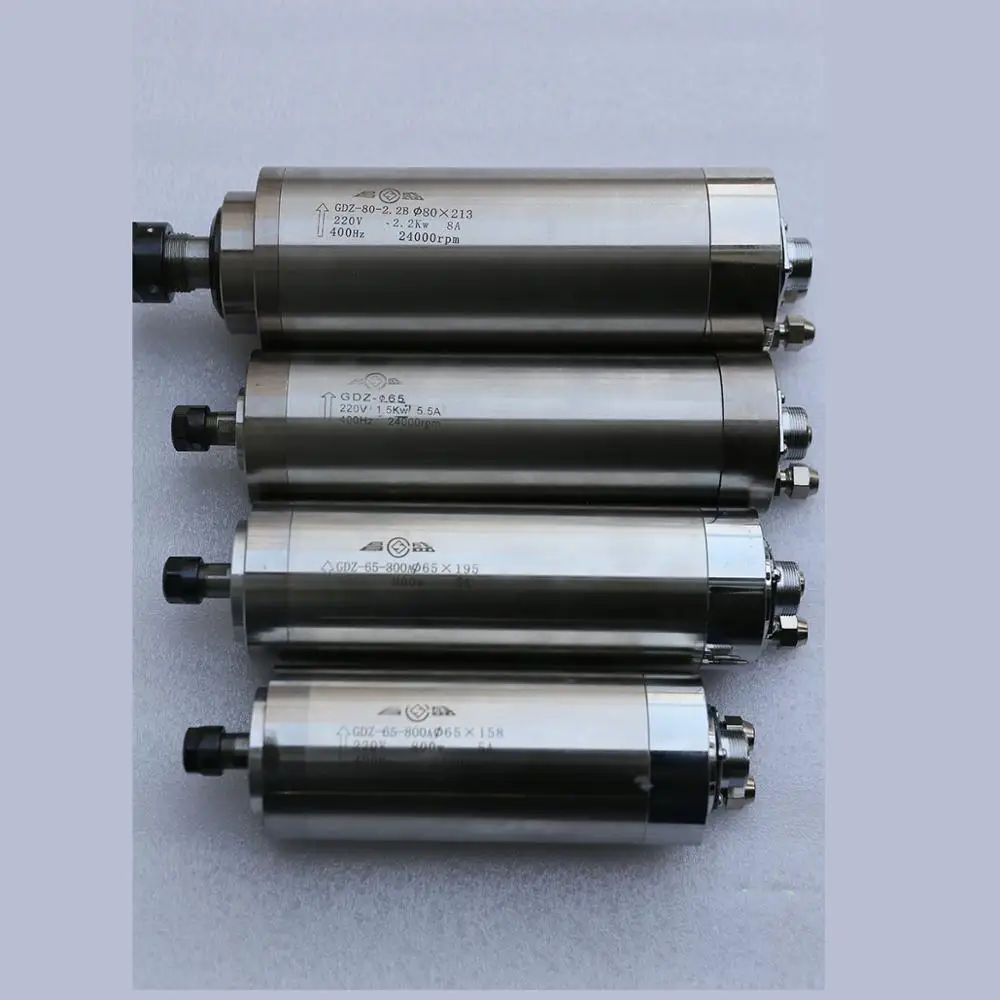

Product Picture :
Spindle motor features:
1) Imported bearings with good quality, long working life. 2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine. 3) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Provide:
1.water cooling:800w,1.5kw,2.2kw.
2. We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.
Packaging & Shipping
Packaging:
1.Packing: The goods are packed with foam and carton or wood carton to ensure perfect condition when reach you.
2.Goods delivery: We can send out the goods within 3 days as soon as the payment recieved.
Shipping:
3.Shipping method: We usually send out the products byTNT ,DHL,Fedex,Ups,Special Line and so on, it takes about 4-5 working days can reach you. We can supply you the tracking No. as soon as the goods are sent out.
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
Our company specializes in the R&D, production and marketing various types of CNC advertising engraving machine, woodworking engraving machine, marble engraving machine, computer cutting plotter, laser engraving machine, laser cutting machine, crafts laser engraving machine, laser engraving machine and other equipment.
1) This is the first time I use this kind of machine, is it easy to operate?
There is an English manual also a guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
We provide 1 year warranty, if you there is any problem when you receive CNC machine, just feel free to contact us.
3)What is your MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why i choose you ?
A. Because we are the manufacturer, we can keep the quality for you.
B. At the same quality grade, our products' price is better.
C. At the same products' price level, our service is better
D.Short delivery time 2-3 days after confirming the ordery.
Vedio
Different Engraving Vedio for your reference, more You Tube link welcome to contact us.
IC Grinding machine: https://youtu.be/Jz0ouZC6acE
Aluminum: https://youtu.be/XcxrXnTOjfk
Wood: https://youtu.be/6DKhk37H2Ho
Bakelite: https://youtu.be/fZzHo3aEdS8
Nuclear: https://youtu.be/sxEG2kXnIPw
Ivory: https://youtu.be/RB_4NESG020
Plastic meter box cutting: https://youtu.be/pFI6HrahBNg
Plastic housing: https://youtu.be/QRd4y7c6OSI
Hollow cutting: https://youtu.be/JkNk_5yPOmw
Acrylic: https://youtu.be/D7IrcHzTvW4
Ceramic tile: https://youtu.be/HLgOQu3N7k8
Mach3 Install Vedio:https://youtu.be/JOCqC-tBAK8
Contact
If you are interested in it, just send us a inquiry, we will have professionals to follow you immediately, make sure you are satisfied with our service.
