Stainless Steel Tank Storage Water Tank 6000 Litres
- Category: >>>
- Supplier: Shanghai Youcan Beverage Machinery Co. Ltd.
Share on (60492761748):
Product Overview
Description

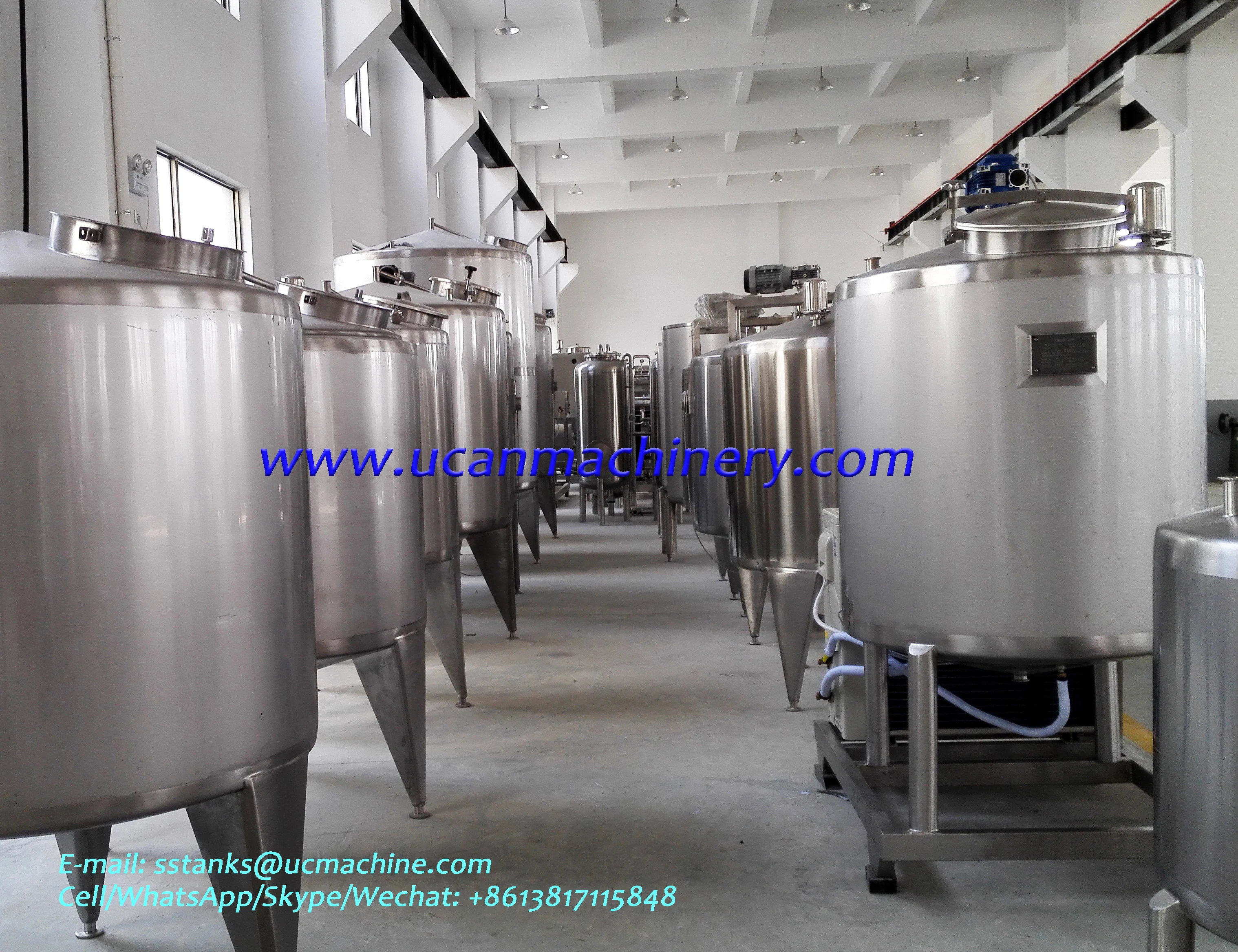

Stainless Steel Tank Storage water tank 6000 Litres
Product Description
Field of Application:
- Can be used as liquid storage tank, blending vessel, temporary storage tank, buffer tank and water storage tank etc.
- Ideal for food, dairy processing, fruit juice beverages, pharmaceutical, beer and wine brewing, chemical and biological engineering industries.
Structure Characteristics:
- Single-layer shell body.
- Fabricated from cold-rolled sanitary stainless steel (AISI 304 or 316.)
- Humanized design, easy to operate.
- Interior welds are ground smooth, passivated and polished. Transitional areas are made into arc shaped blends to ensure no dead zones of sanitation.
- Top and bottom are either conical or flat, and designed to be self-draining with no potential hold up of its contents.
Tank Configuration:
- Quick opening manway.
- Various types of CIP cleaners.
- Sanitary breathing cover to keep out flies and insects.
- Adjustable triangular legs.
- Dismountable inlet pipe assembly.
- Temperature probe (as per customer requirements.)
- Ladder (as per customer requirements.)
- Liquid level probe and level controller (as per customer requirements.)
- Vortex breaker / baffles.
Technical Parameters
Technical Parameters:
| Working Volume (L) | Total Height (mm) | Diameter of Inlet & Outlet (mm) |
| 500 | 2,450 | 38 |
| 600 | 2,550 | 38 |
| 700 | 2,550 | 38 |
| 800 | 2,700 | 38 |
| 900 | 2,700 | 38 |
| 1,000 | 2,850 | 51 |
| 1,500 | 3,050 | 51 |
| 2,000 | 3,110 | 51 |
| 3,000 | 3,700 | 51 |
| 4,000 | 3,700 | 51 |
| 5,000 | 3,950 | 51 |
| 6,000 | 4,000 | 51 |
| 7,000 | 4,250 | 51 |
| 8,000 | 4,700 | 51 |
| 9,0000 | 4,750 | 51 |
| 10,000 | 4,750 | 51 |
| 12,000 | 5,300 | 51 |
| 15,000 | 5,400 | 63 |
| 20,000 | 6,100 | 63 |
* Note:
- We also can supply customized tanks meeting your unique requirements, please feel free to contact us.
- For other details and customized tanks, please contact us at WhatsApp/Cell: +86 138 1711 5848.
