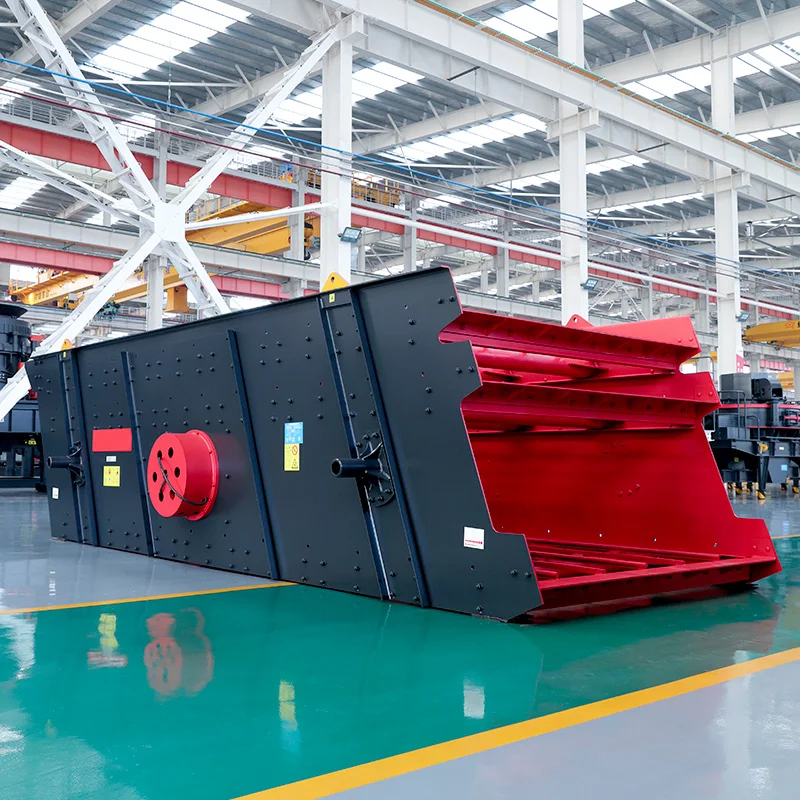

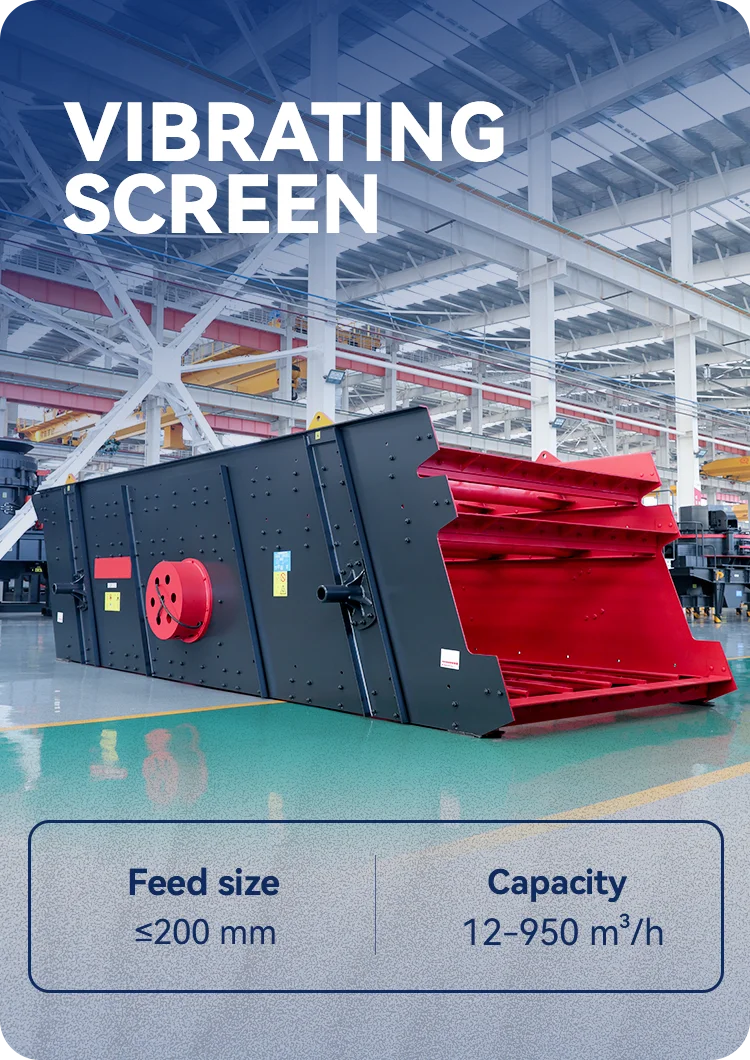

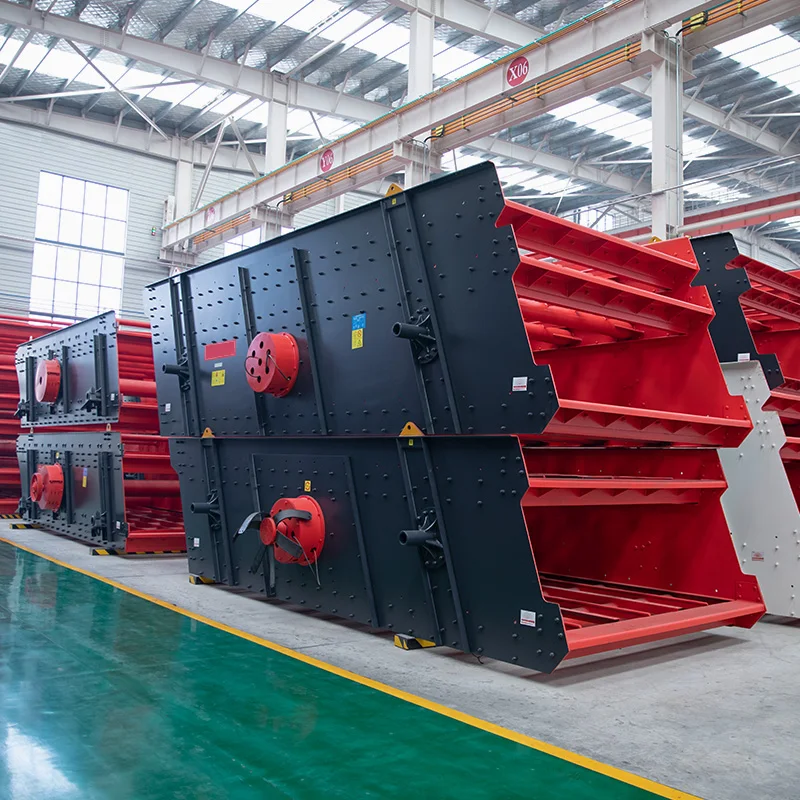

Mining Machinery YK Vibrating Screen Customized Screen Mesh Foe Sale

Product Overview

Description





The vibrating screen is an ideal equipment for processing the products of primary and secondary crushing, and it is a multi-layer sand and gravel separator. It is suitable for various screening operations such as heavy-duty, medium-duty, and fine screening. Currently, it is widely used in product classification in industries such as mining, construction materials, transportation, energy, and chemical industry.

We are one of the leading manufacturers of high-quality vibrating screens. Our main products include circular vibrating screens, inclined vibrating screens, horizontal vibrating screens, high-frequency vibrating screens, and drum screens.



Applicable Materials





Sandstone, pebble, basalt, limestone, granite, quartz, iron ore, copper ore, gold ore, etc.

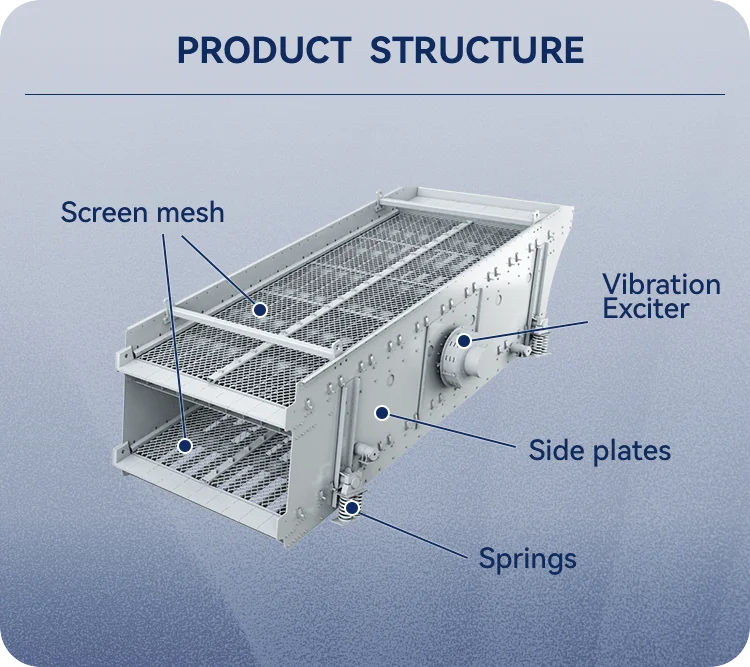

Product Structure

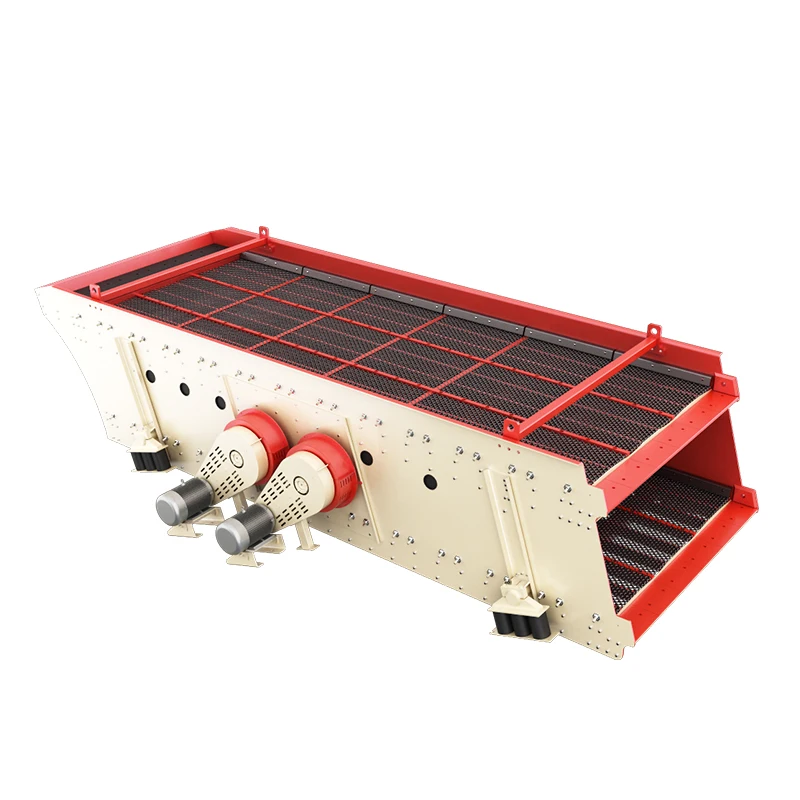

The key components of the circular vibrating screen include screen box, screen mesh, vibration exciter, motor, screen plate, liners, and side plate.





Outstanding Advantages



1. High Screening Efficiency: The strong vibration of the screen box reduces material blockage, resulting in high screening efficiency and productivity, with a maximum processing capacity of up to 950 m³/h.



2. Durable Steel Screen Mesh: Our screen mesh contains carbon for enhanced durability compared to regular screen mesh. We also offer various types of mesh materials and screen shapes.



3. Easy Maintenance: Convenient screen surface replacement effectively reduces downtime. Grease-lubricated vibrator requires lubricant replacement only once every six months. The detachable inlet and outlet chutes enable rapid installation and disassembly.



4. Strong Adaptability: The 15°-22°screen inclination angle range allows better adaptation to specific on-site conditions.



5. Customizable Design: All machines can be custom-designed to meet specific requirements.

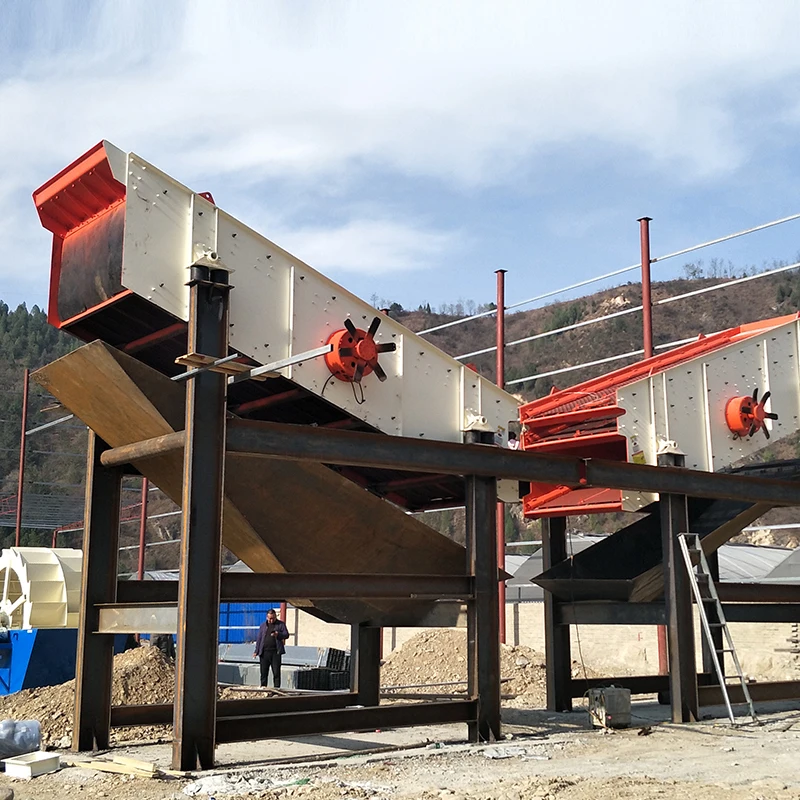

The vibrating screen operates with a dynamic exciter that transmits vibration to the screen deck through a V-belt, ensuring uniform shaking and even distribution of materials. As the material moves through the screen, larger particles remain on the top surface, while smaller and finer particles pass through the screen mesh to the bottom, resulting in the classification of materials into different sizes.



Model	Sieve layer	Mesh size (mm)	Processing  capacity (m³/h)	Motor power (kw)	Sieve specification (mm)
2YK1230	2	4-50	12-78	6P   7.5	1200×3000
3YK1230	3	4-50	13-80	6P   7.5	1200×3000
2YK1237	2	4-50	15-86	6P   7.5	1200×3700
3YK1237	3	4-50	16-90	6P   7.5	1200×3700
2YK1548	2	5-50	22.5-162	6P   11	1500×4800
3YK1548	3	5-50	22.5-162	6P   15	1500×4800
4YK1548	4	5-50	22.5-162	6P   18.5	1500×4800
2YK1854	2	5-80	32-312	6P   22	1800×5400
3YK1854	3	5-80	32-312	6P   22	1800×5400
4YK1854	4	5-80	32-336	6P  22	1800×5400
2YK2160	2	5-100	50-475	6P   30	2100×6000
3YK2160	3	5-100	50-475	6P  30	2100×6000
4YK2160	4	5-100	50-497	6P   37	2100×6000
2YK2460	2	5-100	65-550	6P   30	2400×6000
3YK2460	3	5-100	70-620	6P   37	2400×6000
4YK2460	4	5-100	80-680	6P   45	2400×6000
2YK2873	2	5-100	70-680	6P   37	2800×6440
3YK2873	3	5-100	80-720	6P   45	2800×6440
4YK2873	4	5-100	90-950	6P   55	2800×6440

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.









Henan Zhongde Mining Machinery Co., Ltd was founded in 1982 in Zhengzhou, Henan, the capital of Chinese machinery manufacturing. The company is large in scale and has four major production bases with a total area of 500,000 square meters, of which standardized heavy industry plants cover an area of 360,000 square meters, providing advanced and reliable infrastructure for production.





Our company focuses on the development and production of mining machinery, including crushers, mills, beneficiation equipment, briquette machines, rotary kilns and other products, which are widely used in mining, chemical industry, construction, coal, ceramics, and other industries. With excellent quality and professional solutions, it has won the trust of customers around the world.







Our Services



1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.



2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.



3. We visit customers regularly to provide lifelong service and technical support.



4. Except for wearing parts, we provide one-year warranty, long-term supply of spare parts, and two-year maintenance of major parts if used correctly.





Quality Control



1. Our equipment holds ISO 9001, CE, and GOST certifications and all equipment undergoes pre-wiring, assembled, and factory tested at our manufacturing facility.



2. We take a test on each machine before delivery.
