Trade Assurance Trolley Hanging Overhead Conveyor Chain for Powder Coating and Finishing

Product Overview

Description

Product Description



Product Name: Trade Assurance Trolley Hanging Overhead Conveyor Chain for Powder Coating and Finishing

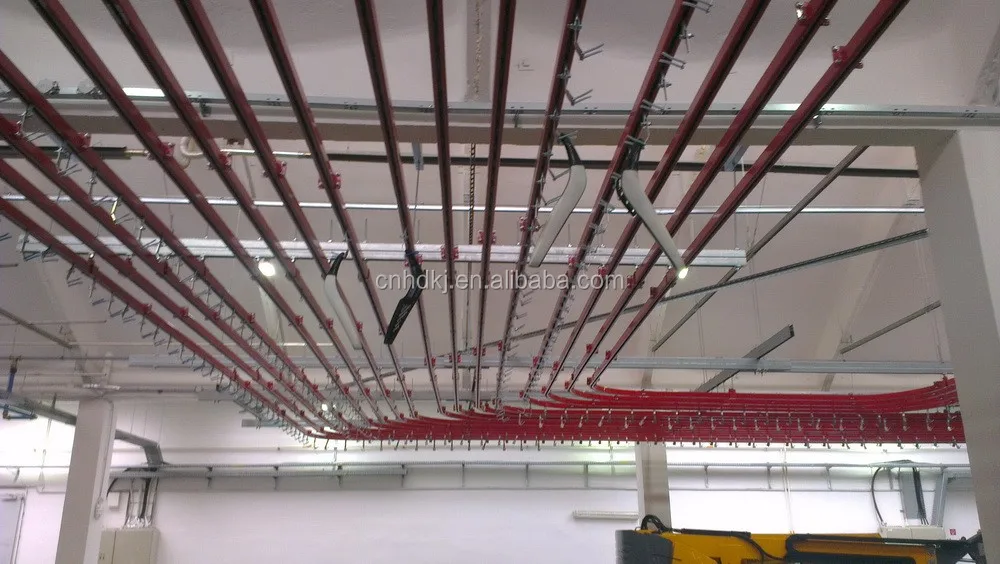

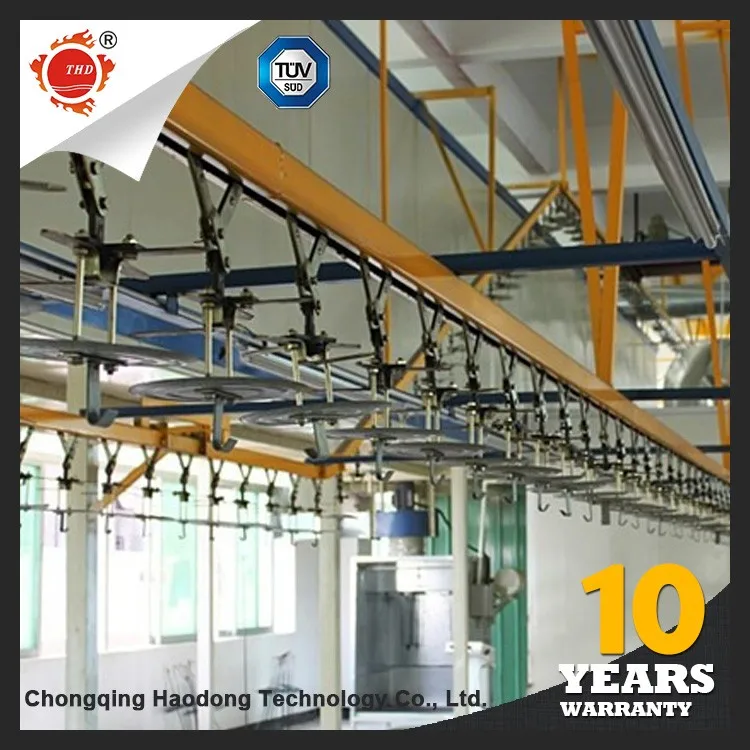

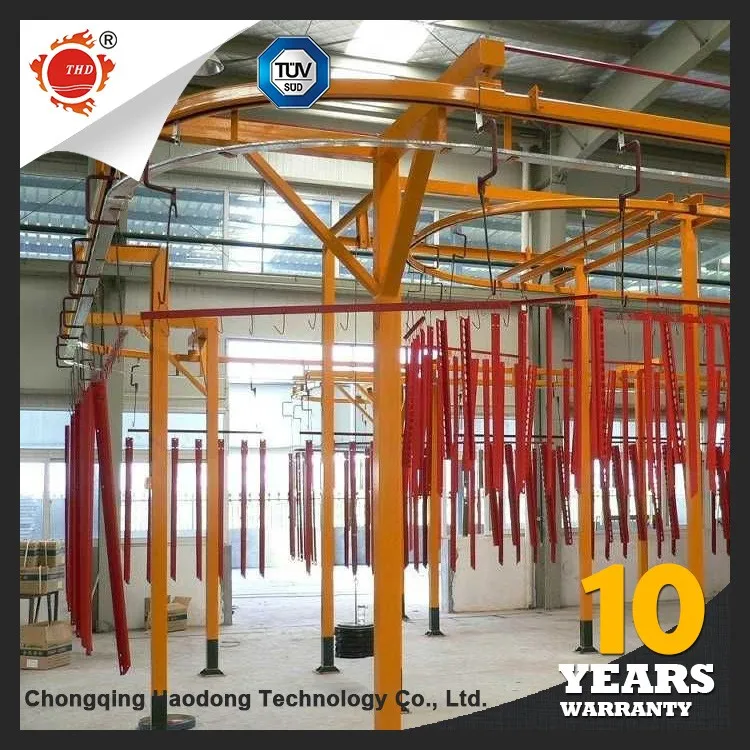

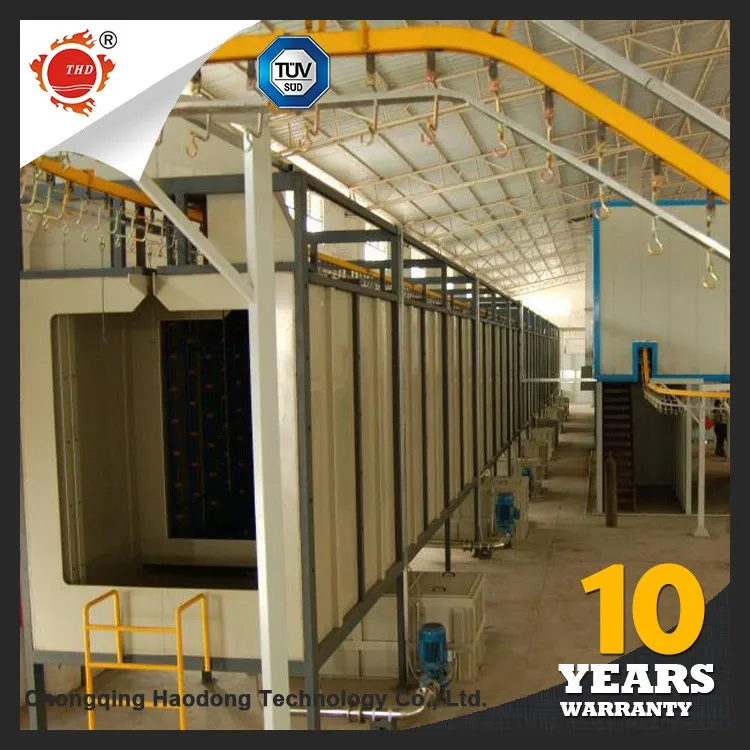

Overhead trolly conveyor makes full use of space and works together with ground facilities, widely used in furniture factory, bicycle plant, electronic products line, auto plants etc.

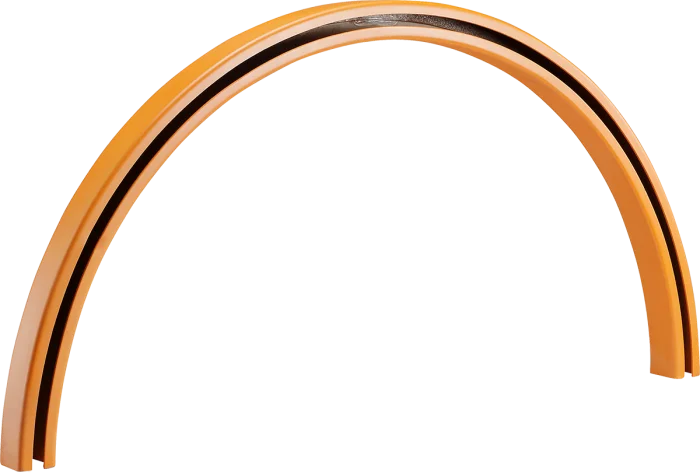

It can turn on both horizonal and vertical plans, run across long routes and automaticlly transmit objects along scheduled route to destination. Working efficiecy and quality is improved and management level will be strengthened.

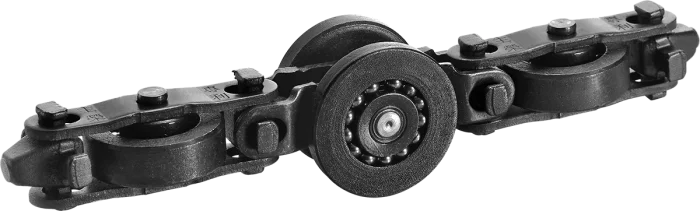

Feature of Trade Assurance Trolley hanging Conveyor Chain

1. Material: high-grade medium carbon steel

2. Perfectly used in poisonous and high-temperature environment

3. Automatical and safety

4. Smooth running

5. low noisy

6. easy operating

7. Professional design and custom-made as your drawing and requirements







Specification of Trade Assurance Trolley hanging Conveyor Chain



MODEL ITEM	UH-5075-S Standard chain	UH-5075-HH Heavy-duty chain	UH-5075-HV Heavy-duty chain	UH-5075-HA Heavy-duty chain
Suspension Spacing (mm)	150+(150× N)	150+(150 × N)	150+(150 × N)	150+(150 × N)
Chain's Weight (kg/m)	4.2	4.58	4.83	5.3
Single-span Weight (≤kg)	35	40	45	50
Chain's Allowed Pull Force (≤kgf)	3000	3000	3000	3000
Chain's Catastrophic Pull Force (≥kgf)	5500	5500	5500	5500
Working temperature (≤°C)	250	300	300	400
Applicable Equipment	General conditions	Large bending; High temperature;	High temperature; Heavy work piece;                    Frequently lifted;	High temperature; Heavy work piece;                   Complicated route;
Material	16# Medium-carbon steel, Steel A3
Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements.
