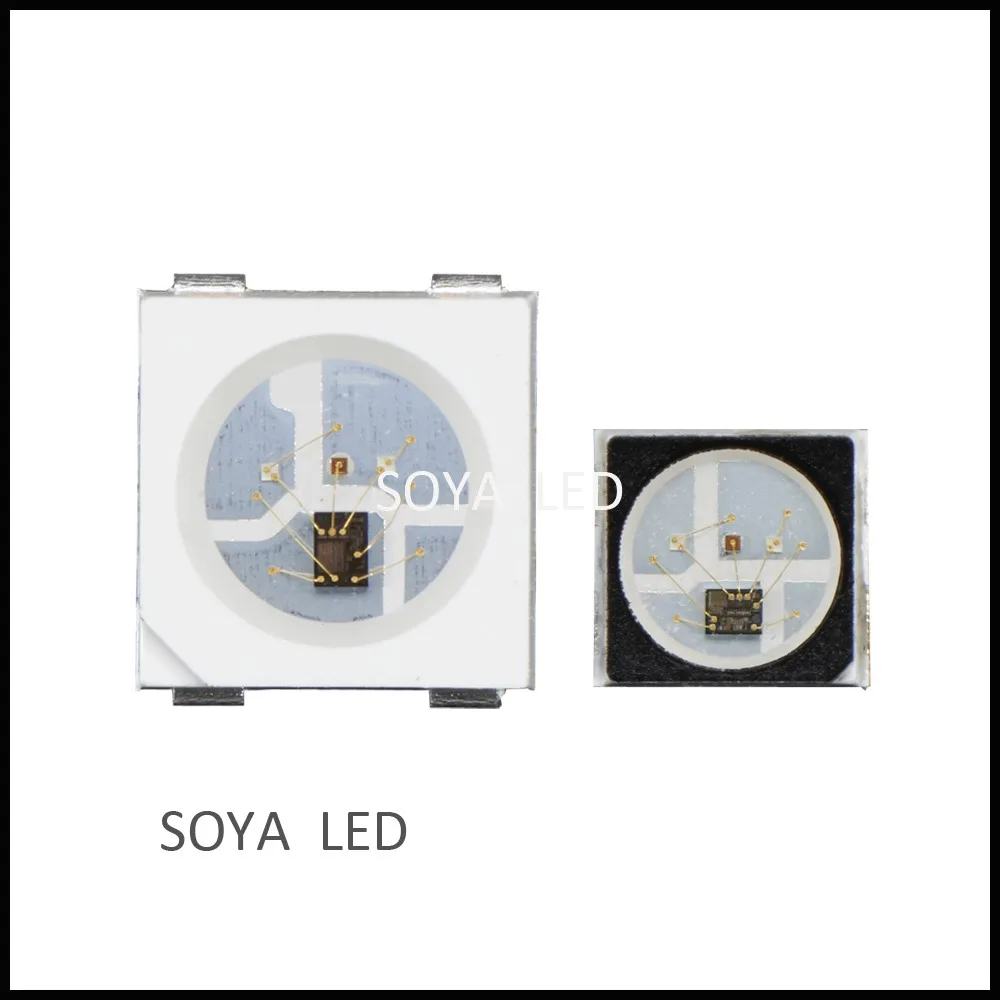

SK6812mini 3535 RGB LEDs with black casing

1. Mini 3535 RGB LEDs could make your own smart LED arrangement with the same integrated LED that is used in our mini pixel strip and pixels.

2. These MINI (3.5mm x 3.5mm) 3535 RGB LEDs are fairly easy to solder and are half the size of the standard 5x5mm RGB LEDs you may be used to seeing.

3. The driver chip is inside the LED and has a constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors

4. We have mini 3535 RGB LEDs s in a white and black casing here.

5. The LEDs are 'chainable' by connecting the output of one chip into the input of another - see the datasheet for diagrams and pinouts. There is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microcontroller such as an AVR, Arduino, PIC, mbed, etc.

6.The LEDs basically have a WS2811 inside, but fixed at the 800KHz 'high speed' setting

7. We have mini 3535 LED pixel strips and matrixs, welcome to inquiry!
