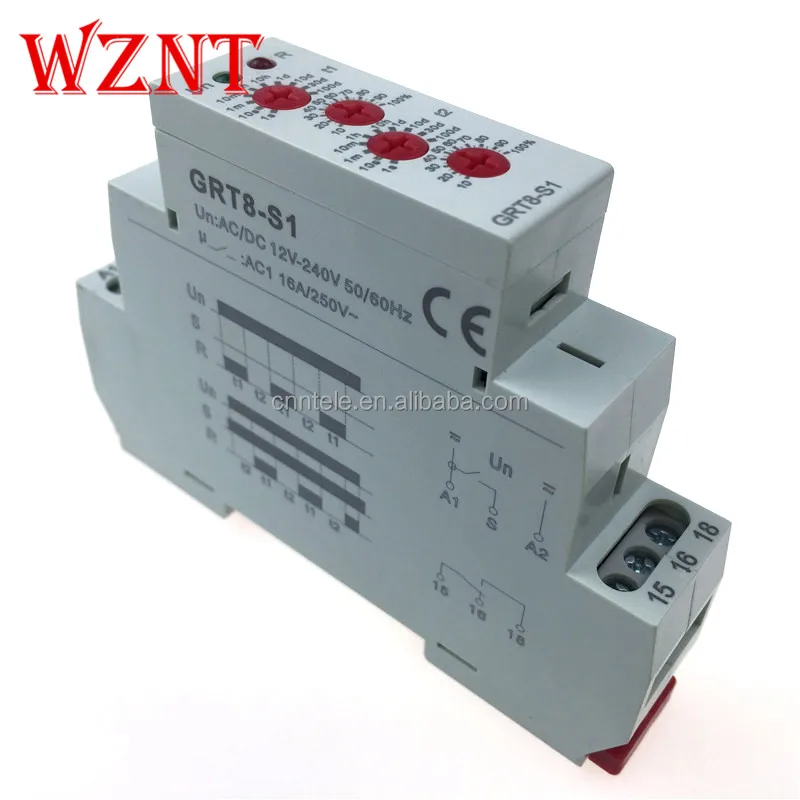

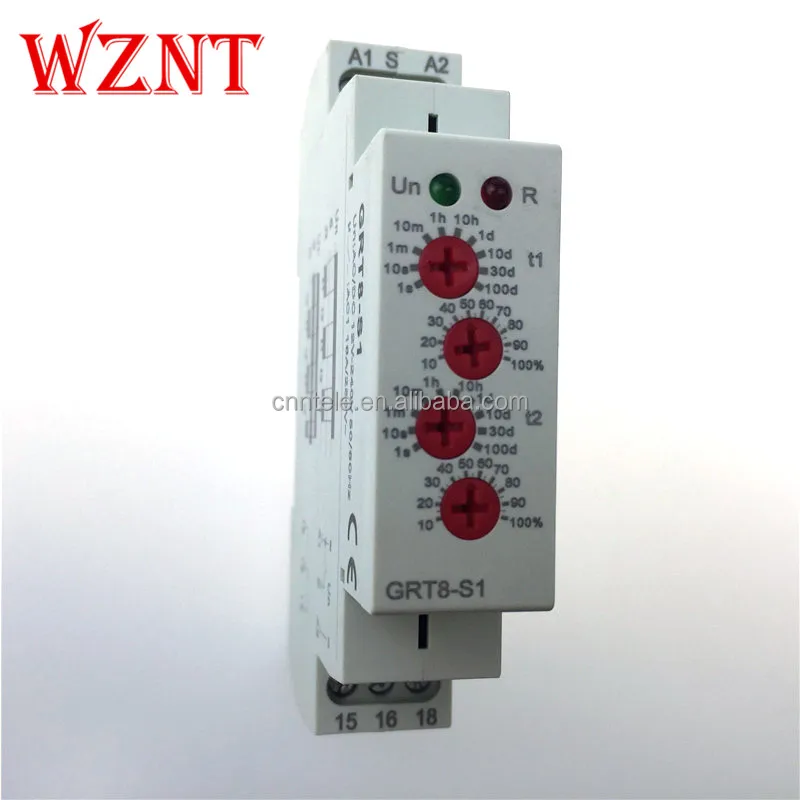

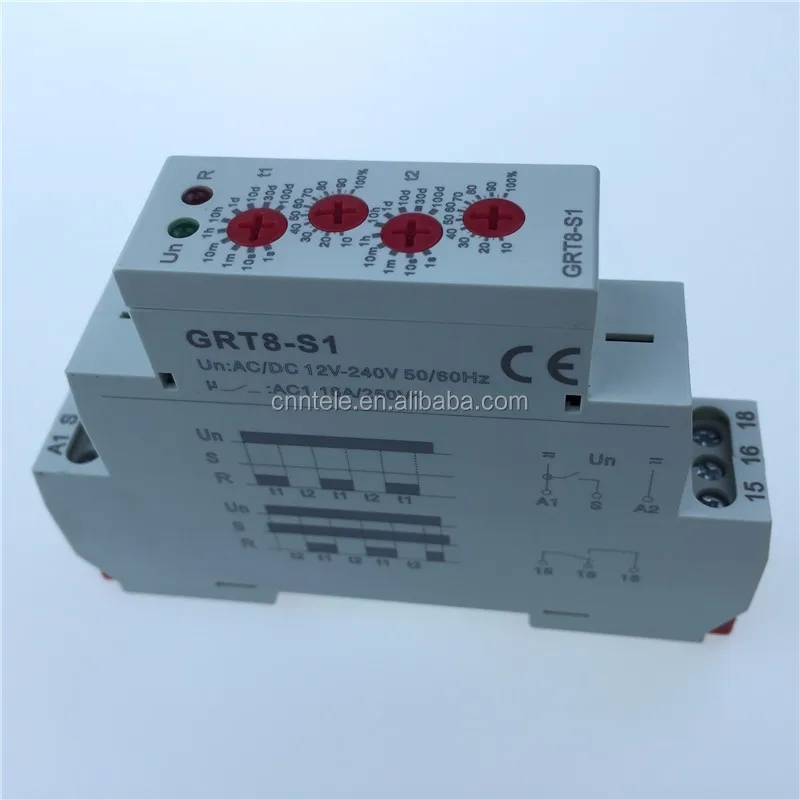

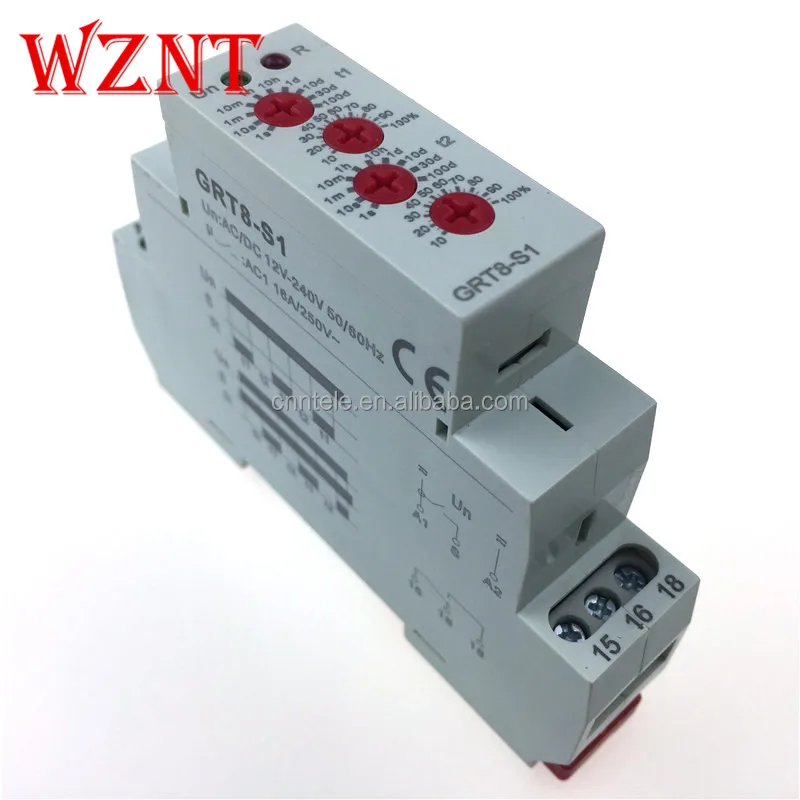

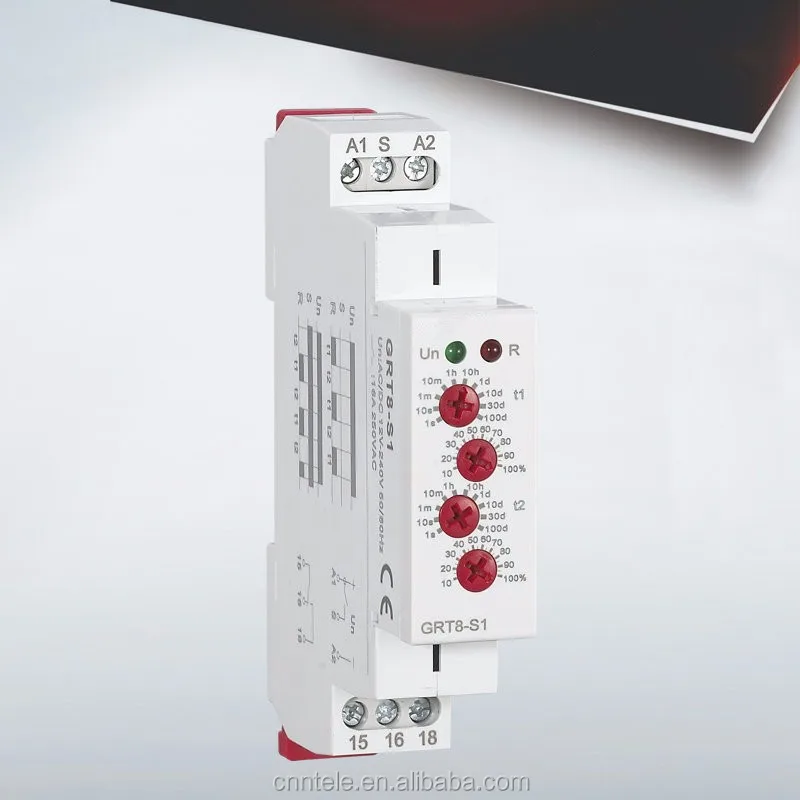

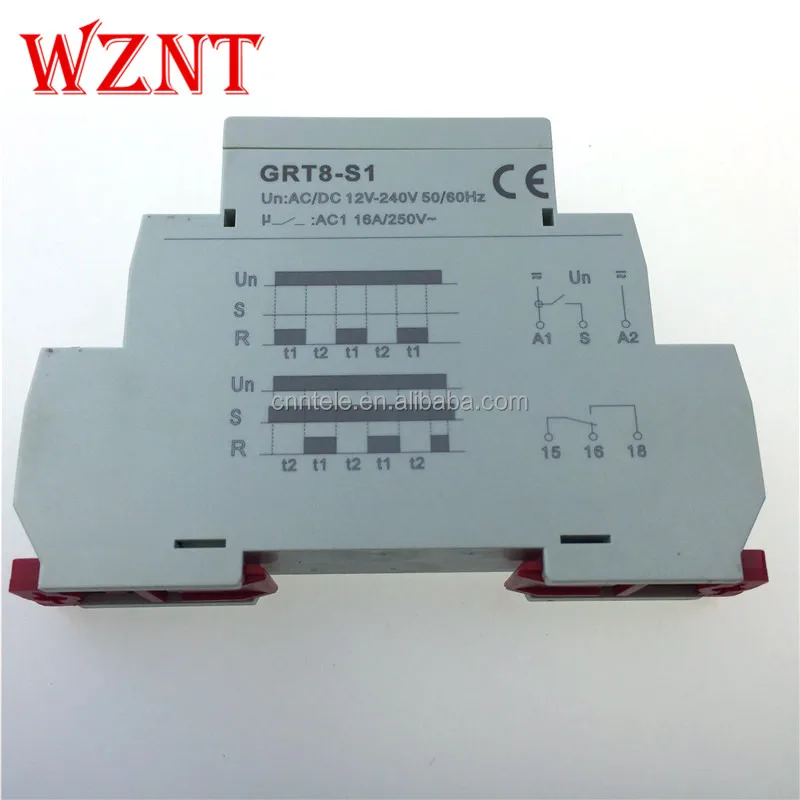

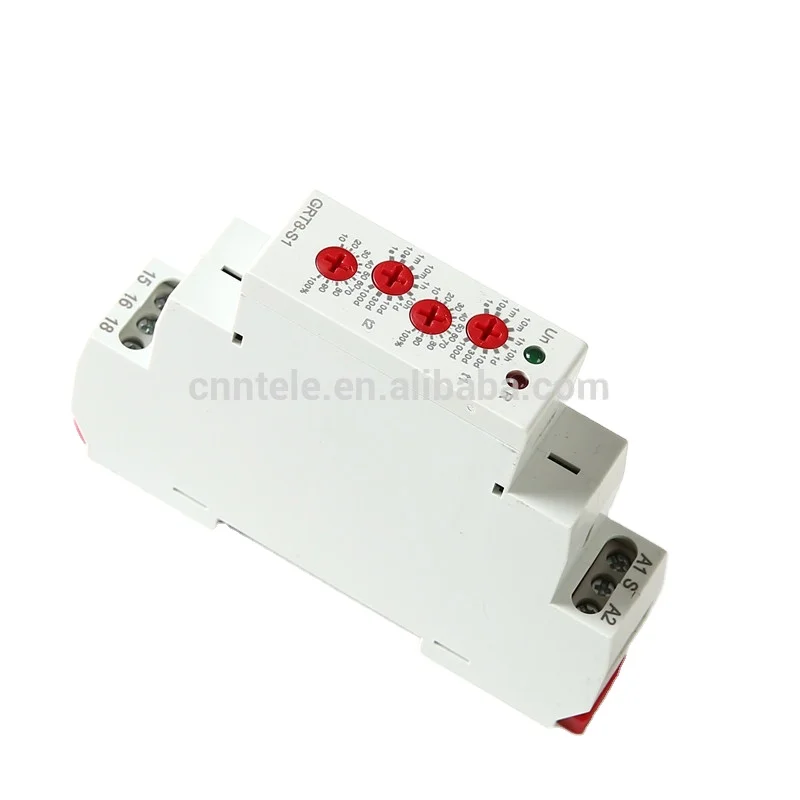

GRT8 S1 Asymmetric cycle timer relay

When you order, please note what voltage do you want?

A230
AC/DC12V~240V

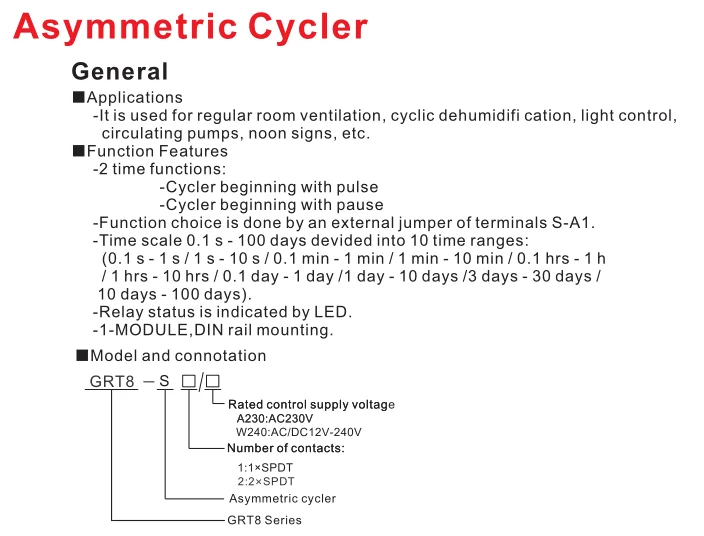

■Applications
-It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.
■Function Features

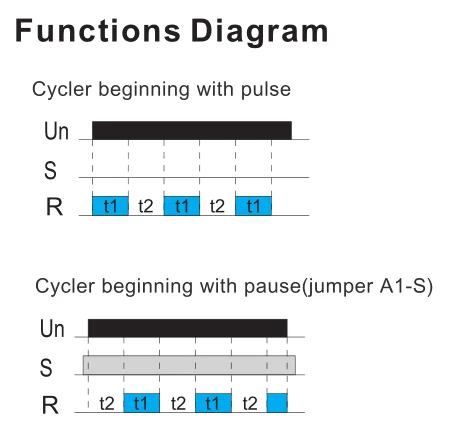

-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause

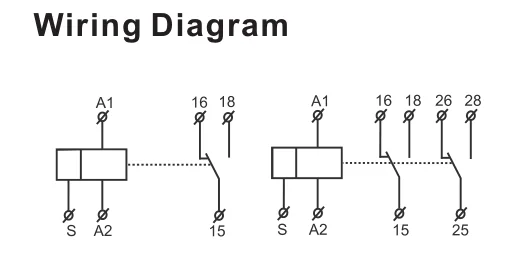

-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1s - 100days devided into 10 time ranges:
(0.1s-1s/1s-10s/0.1min-1min/1min-10min/0.1hrs-1h/1hrs-10hrs/0.1day-1day/1day-10days/3days-30days/10days-100days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
■Model and connotation

Q 1. what's the payment term?
A. We accept TT,Paypal,Western union.

If large amount,we accept 30% deposit and 70% balance before delivery the goods.
Q 2. how's the delivery time ?
A. It depend on your quantity,usually it will take about 7 days for production
Q 3. tell me the standard of package?

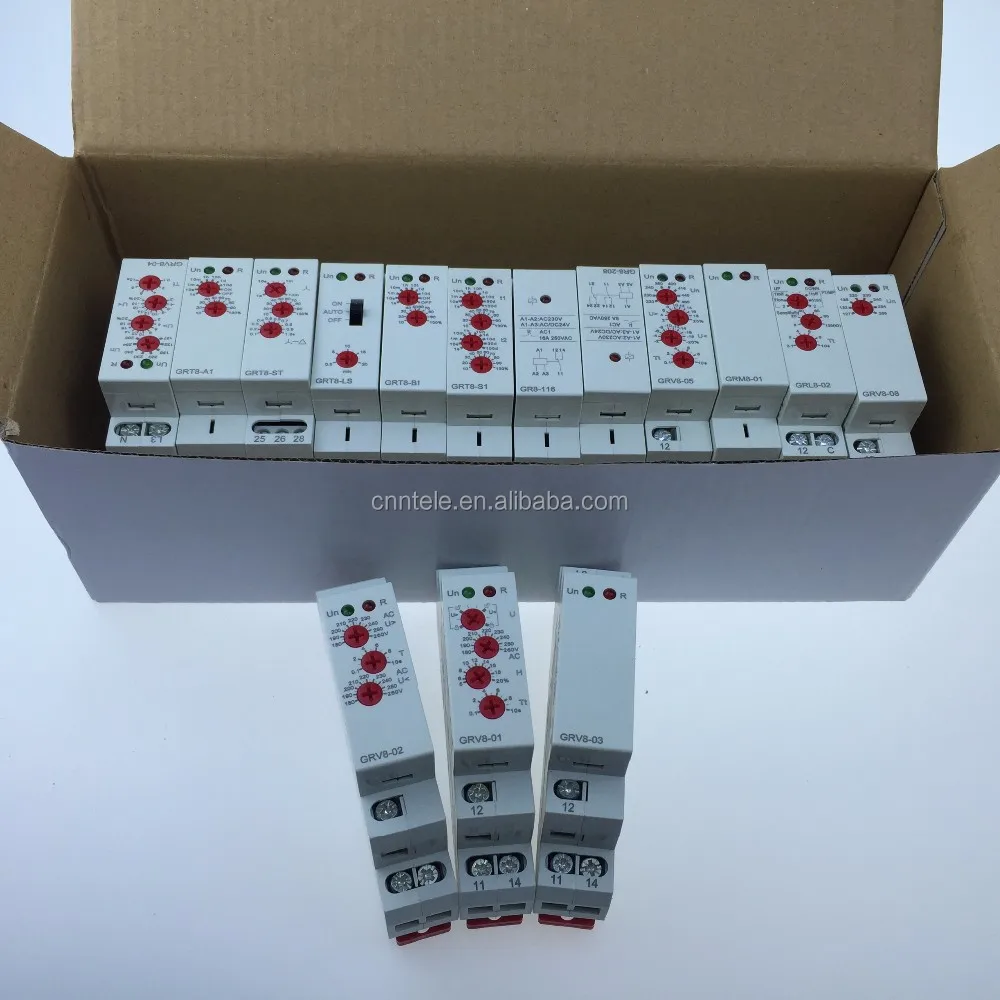

A. Normally are cartons, but also can packed into PLATES for more safe.
