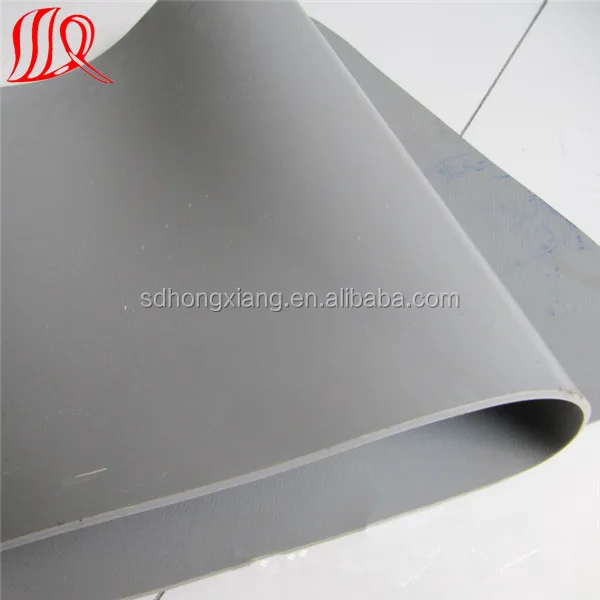

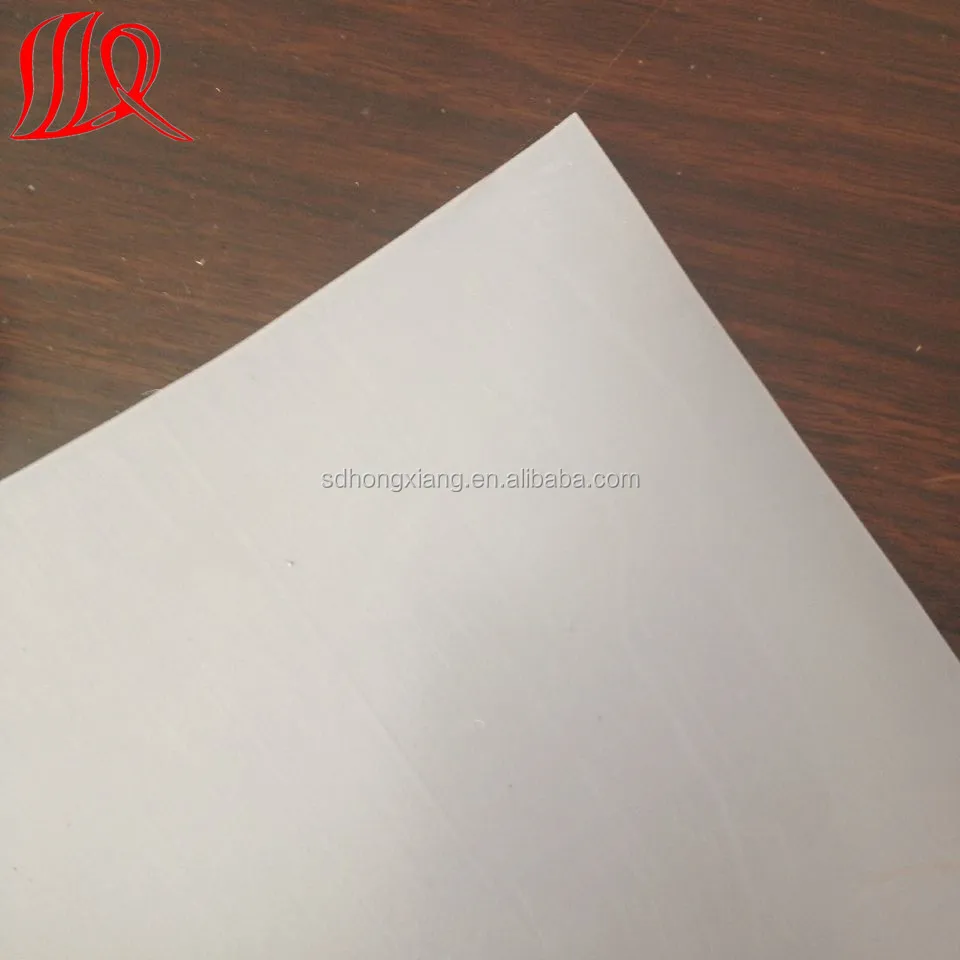

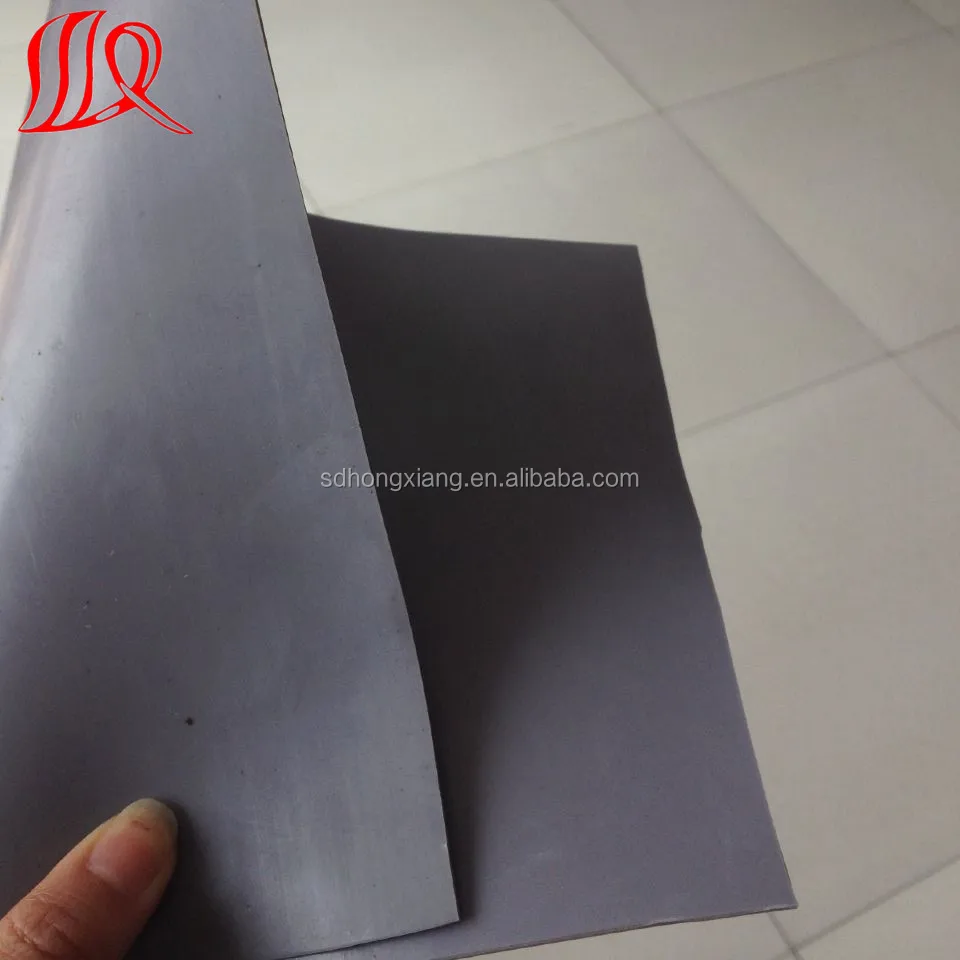

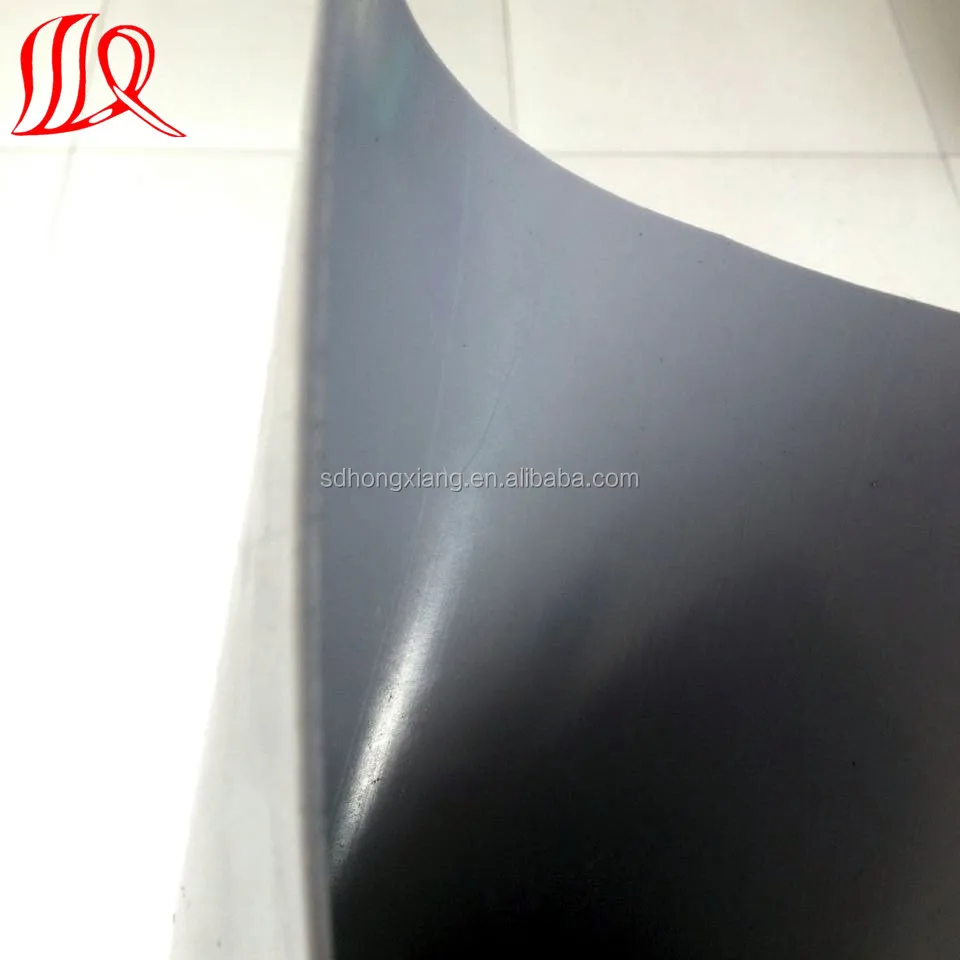

1.PVC Waterproofing Membrane used in Landfill 2.soft,high strengthl,UV resistance,antiseepage,separation
Description:
Made from PVC resin with some addictives.
Specification:
1. Thickness: 1.0mm -3.0mm
2. 2m to 4m in roll width, the length as clients request.
Property:
Anti-aging,long lifetime,30 years lifetime for roof usage,while 50 years lifetime for basement usage.
Resist to root penetration
Excellent flexibility under low temperature. Excellent adaptability to environmental temperature changes.
Resist to chemical erosion
Application:
Roof waterproofing,such as industry and civil roof.
Underground waterproofing,example:reserior,dam,channel and cellar.

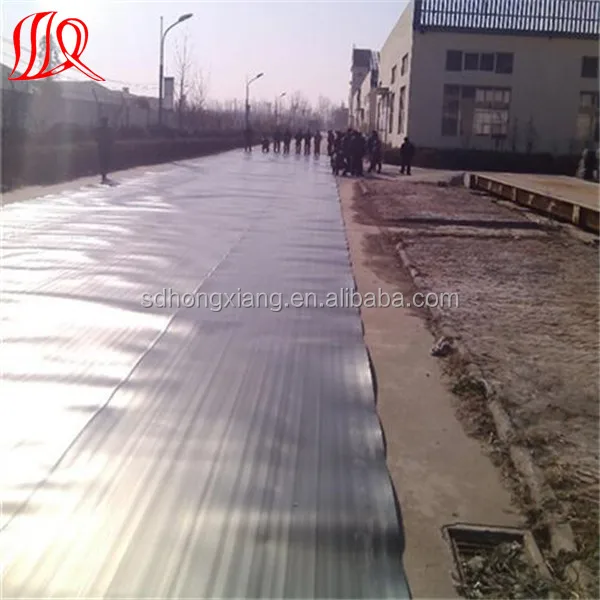

Tunnel,expressway,bridge,landfill and artificial lake.
Production Standards:GB/T12952-2011
PVC geomembrane specifications(GB12952-2003)
No.
Items
I type
II type
1
Tensile strength Mpa>
8.0
12.0
2
Elongation at break %>
200
250
3
Size change rate in heat treatment %<
3.0
2.0
4
Bending low temperature oC
No crackle at
-20oC
No crackle at
-25oC
5
Anti-puncture
Not leaking
6
Impermeability
Impermeable
Packaging & Shipping
Our Services
Quality assurance
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
3. For quality-related construction delay or substandard construction(except for damage or losses due to customer’s responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers’ feedbacks on quality issues within 24 hours.
After-sales service
1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.
2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.
3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.
4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.
Company Information
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
Our annual productivity is as below: 50 million square meters of needle-punched geotextile; 55 million square meters of compound geomembrane; 9,000 metric tons of PE geomembrane; 36 million square meters of macromolecule waterproof materials; 8 million square meters of geosynthetic clay liners (GCL); 5 million square meters of single direction geogrid; 8 million square meters of double-direction geogrid; 1 million square meters of geocell; 4 million square meters of geonet; 3 million square meters of tri-dimensional geomat; 10 million square meters of woven geotextile; 9,000 metric tons of geomembrane; 300 metric tons of PP long fiber; 4,000 metric tons of PP long fiber; 6 million plastic woven bags.
At present, we are one of the largest manufacturers of geosynthetic in China. Our trademark is "Hongxiang", registered in 2000. We passed the evaluation of ISO9001 in 2001 as well as ISO14001 certification. Our products were appraised as qualified products during the National Product Quality Selective Examination in 2004. We participated in the drafting of the National Standard of Geosynthetics of the People's Republic of China in 1998. We are also a participator to draft two national standards of short fiber needle-punched geotextile and non-woven compound geomembrane.
And here are some test machine pictures in our test room:
FAQ
1. Where is our company located ?
Economic Development Zone, Ling County, Dezhou City, Shandong Province. China.
2. Can you send samples to us ?
Yes , free samples could be provided , but customer need pay for the freight cost .
After order placed , the freight charge could be refund .
3. What’s your Payment term ?
T/T , L/C , Western Union.
4. What’s your delivery method ?
By sea , By train , By ari,depend on your country.
5. What's your MOQ quantity ?
MOQ is one 20' container , the quantity could be negotiable .
