Product Overview
Description

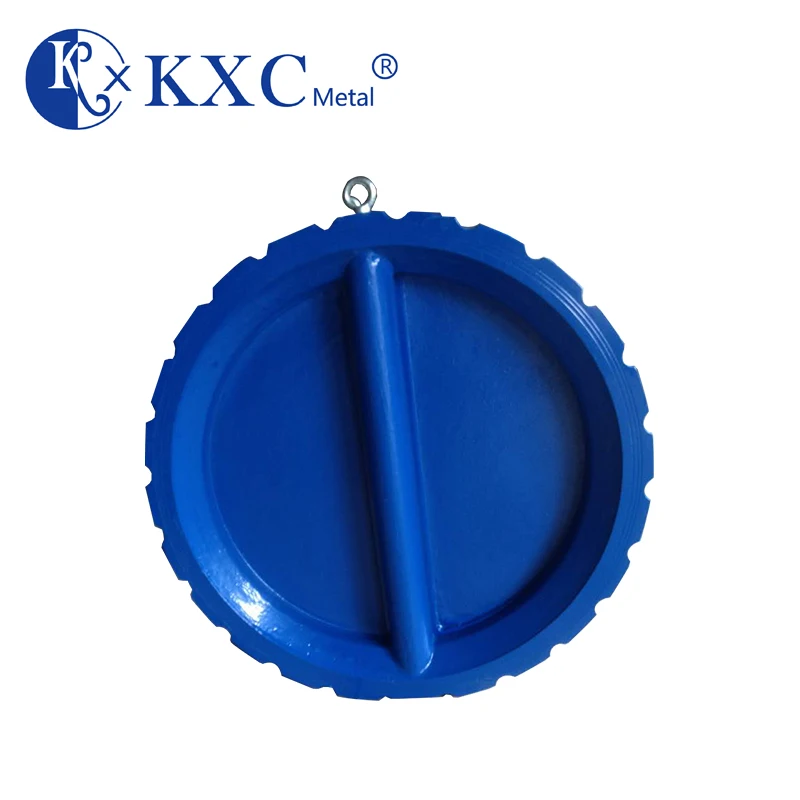

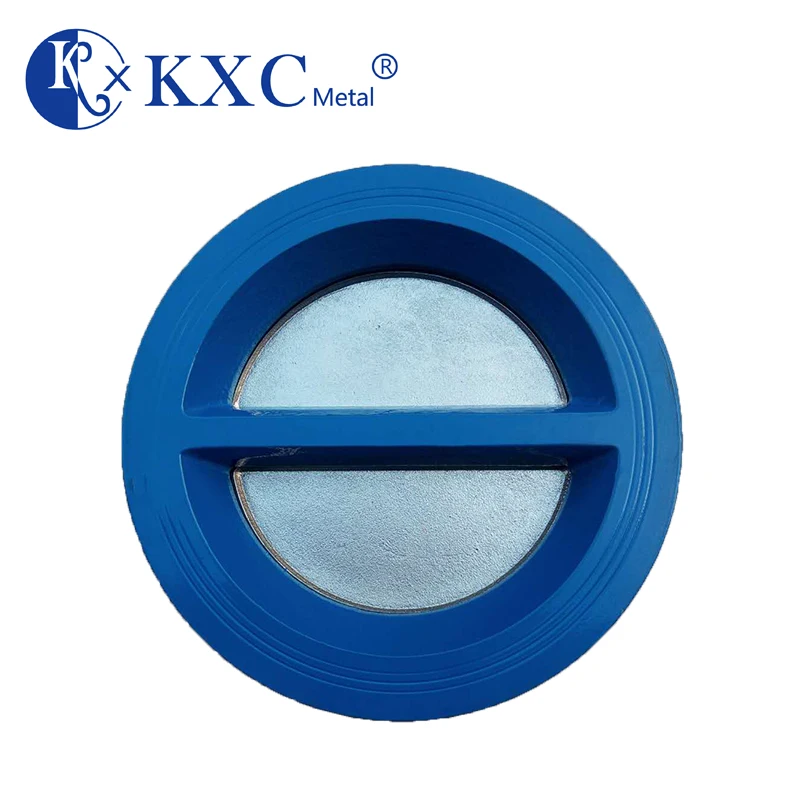

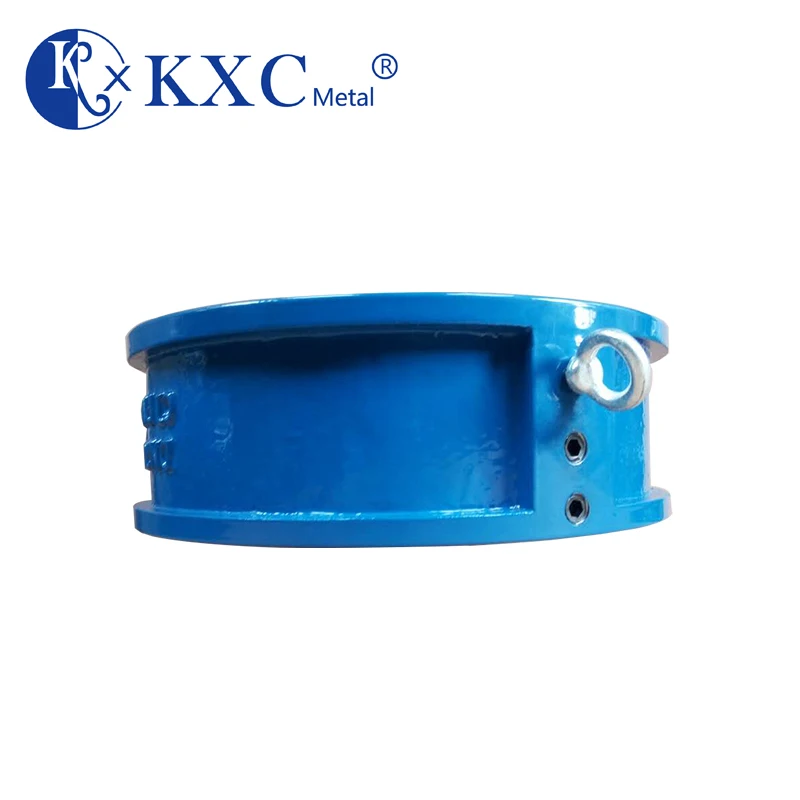

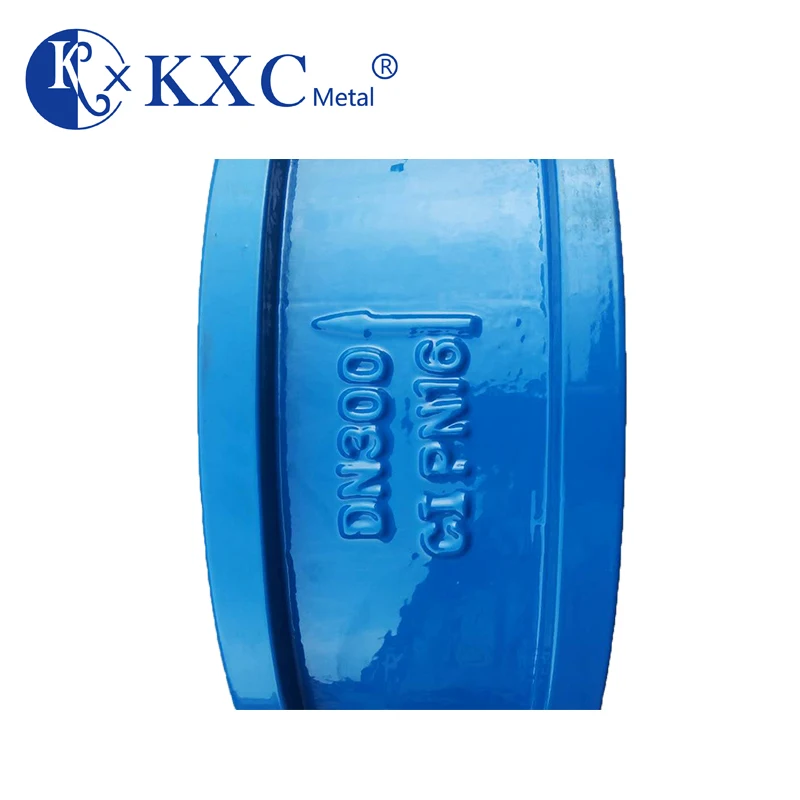

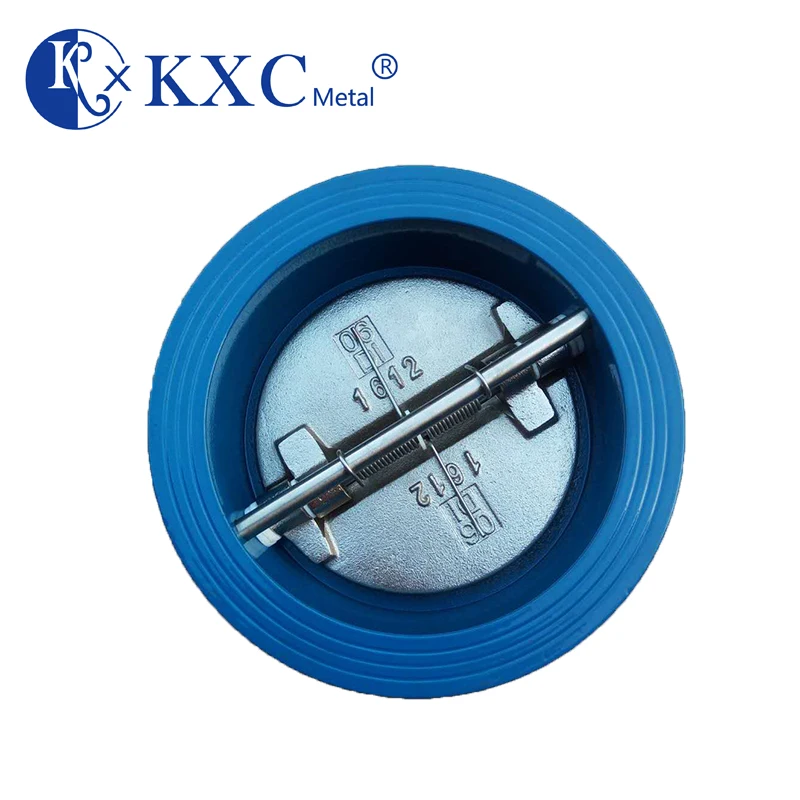

PN16 DN50-DN400 oem water meter check valve
Product Description

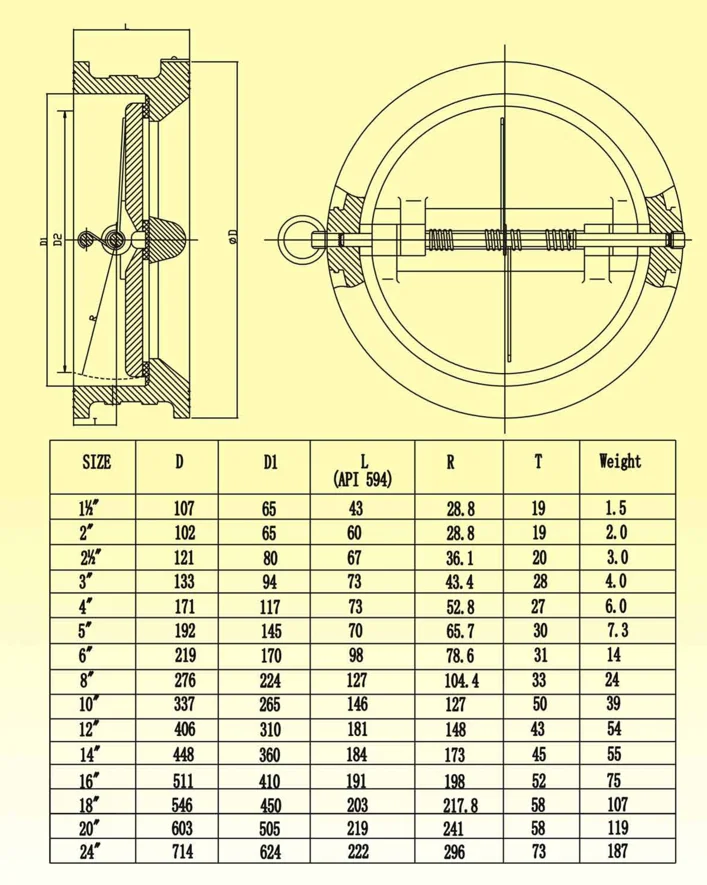

| TECHNICAL DATA: | |
| Nominal diameter: | DN50-600/2"-24" |
| Face to face: | API 594, API 609, BS 5155 |
| Flange accommodation: | AS 2029 "D","E" BS 10 "D","E" JIS 5K/10K/16K ASME B16.1 125LB ASME B16.5 150LB BS 4504 PN6/PN10/PN16 DIN 2501 PN6/PN10/PN16 ISO 7005 PN6/PN10/PN16 |
| Design standard: | API 594, API 609, BS 5155 |
| Temperature range: | -20℃ to+120℃(depending on pressure,medium and materal) |
| Test inspection: | APL 598 GB/T 13927 |
| Suitable medium: | fresh water, waste water, sewage, air, vapor, food, oil, etc. |
| Name | Material |
| Seat | NBR/EPDM/Viton |
| Eyebolt | SS304 |
| Body | CI/DI/WCB/CF8/CF8M |
| Plate | DI/DI+EPOXY/CF8/CF8M |
| Spring | SS304 |
| SHaft | SS304/SS316/SS416 |
| nut | SS304 |
Why choose us

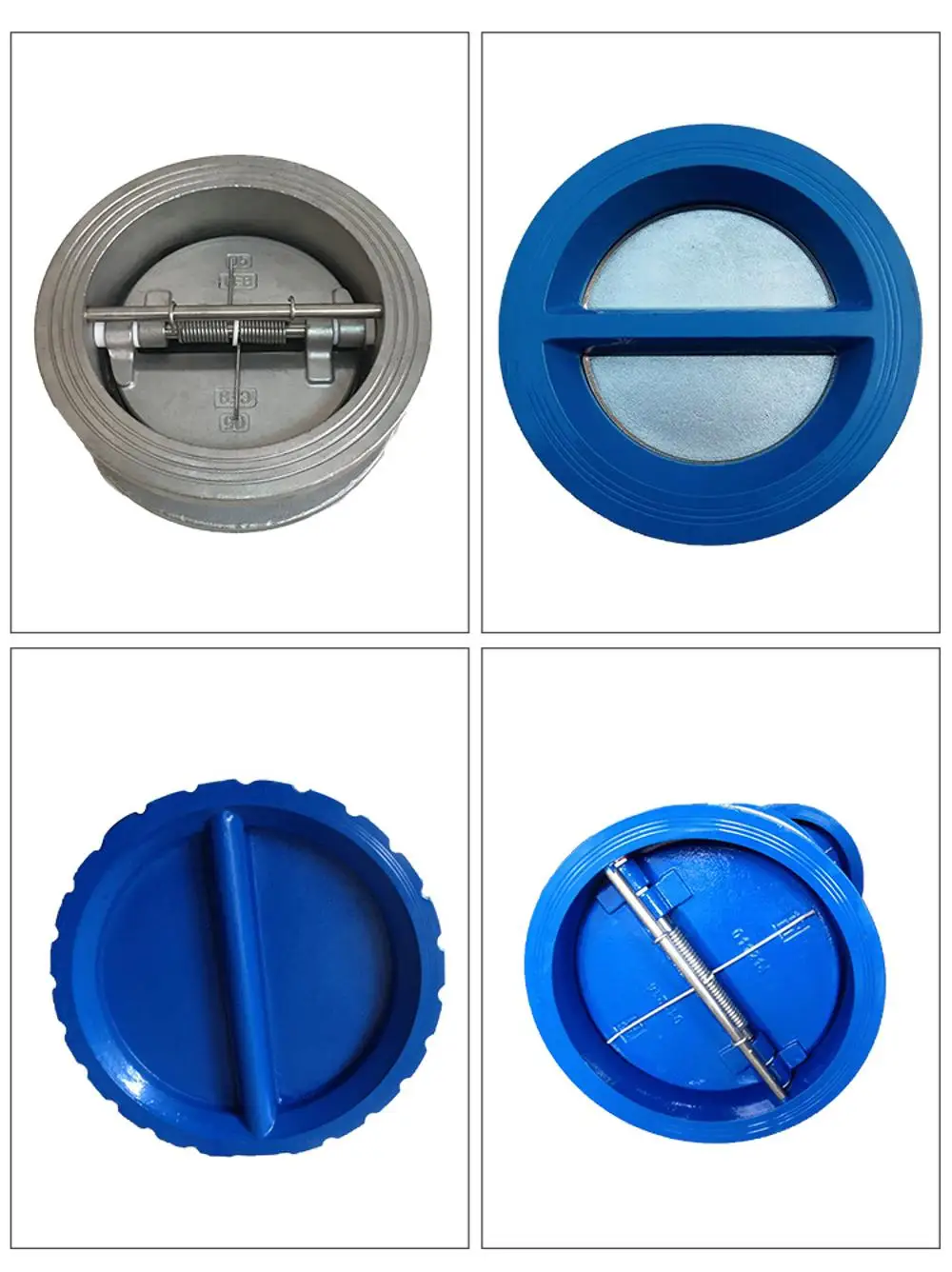

Product Details
Company Information
Certifications
Packaging & Shipping
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer, so we have cost advantage and you can enjoy faster communication on product detail.
2. How long does it take to get a quotation?
Generally, it takes 2 work day to make the offer. However, for urgent inquiry, we can provide the quotation within 12 hours.
3. How do you control your quality?
We use top quality material to manufacture our products in order to guarantee prime quality. All the products will be fully inspected before delivery.
4. Can I get a sample to check your quality?
Yes, of course. It is our pleasure to send a sample for you to check our product quality.
