Mining Solid Slurry Pump Spare Shim End Cover Gasket in Rubber
- Category: >>>
- Supplier: Shijiazhuang Naipu Pump Co. Ltd.
Share on (60493369167):
Product Overview
Description

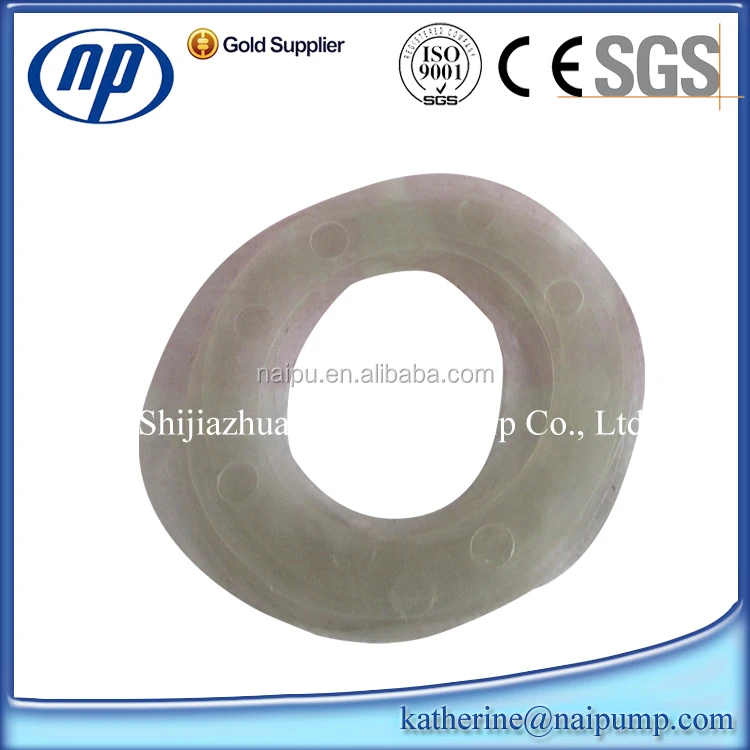

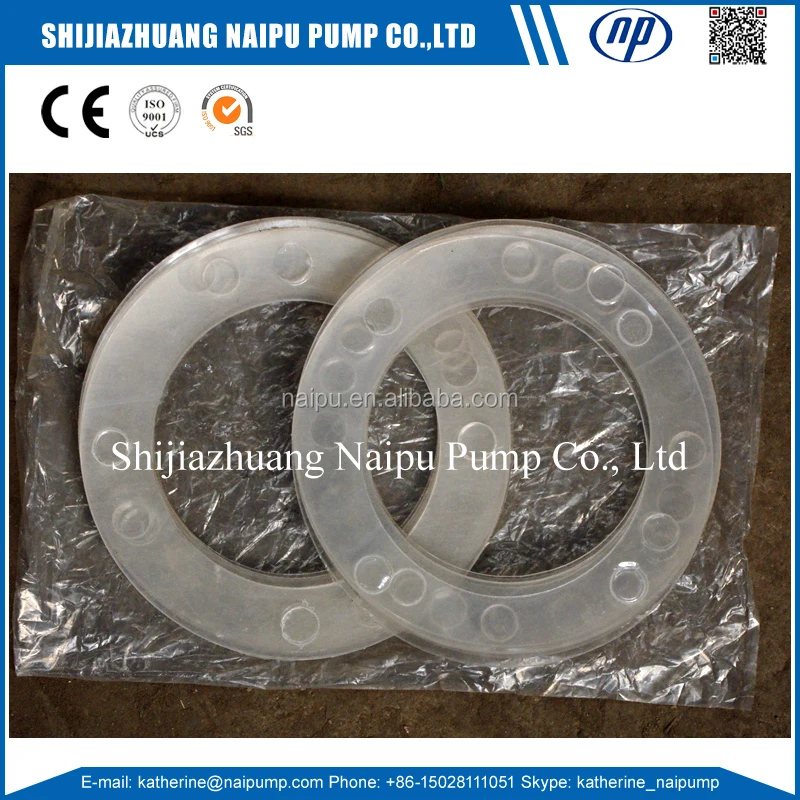

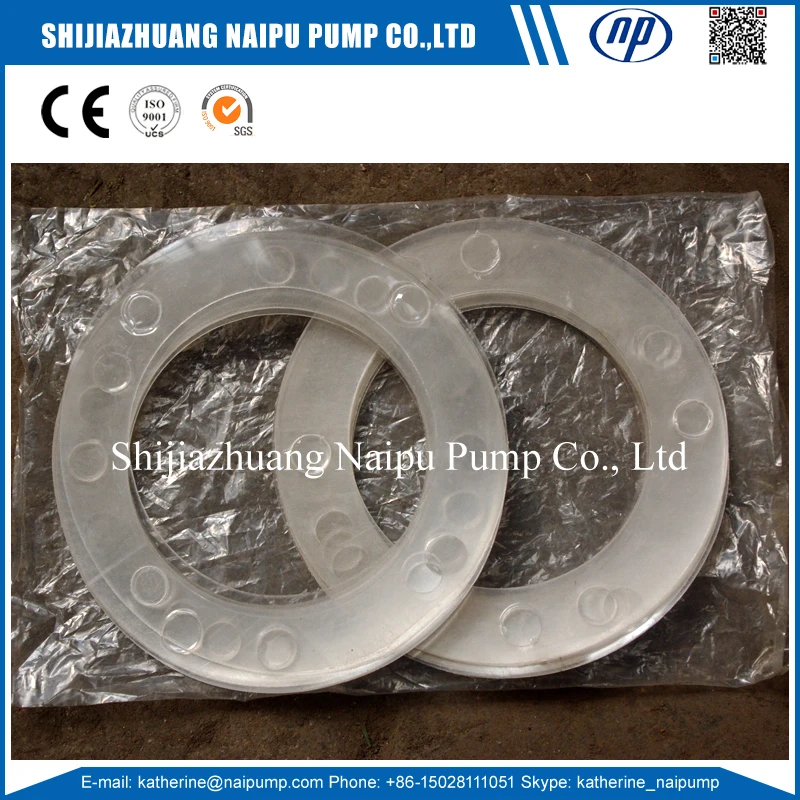

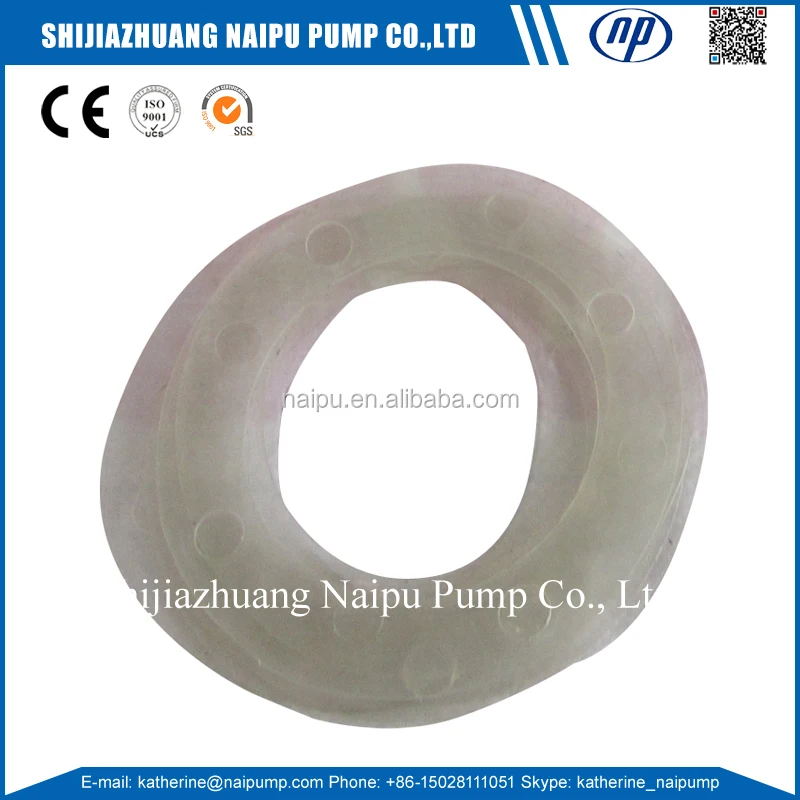

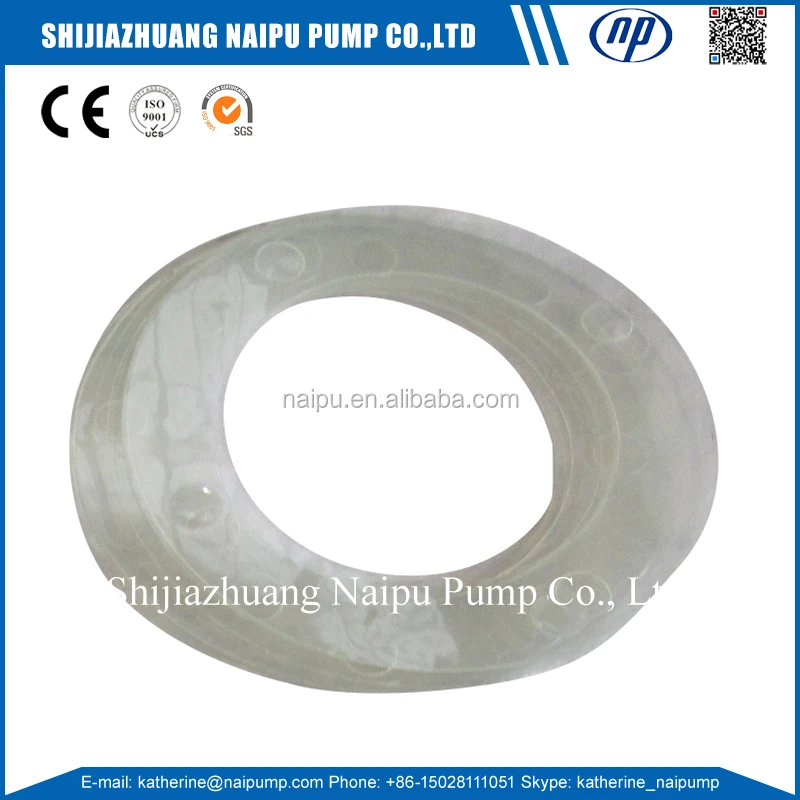

Mining Solid Slurry Pump Spare Shim End Cover Gasket in Rubber
Product Description

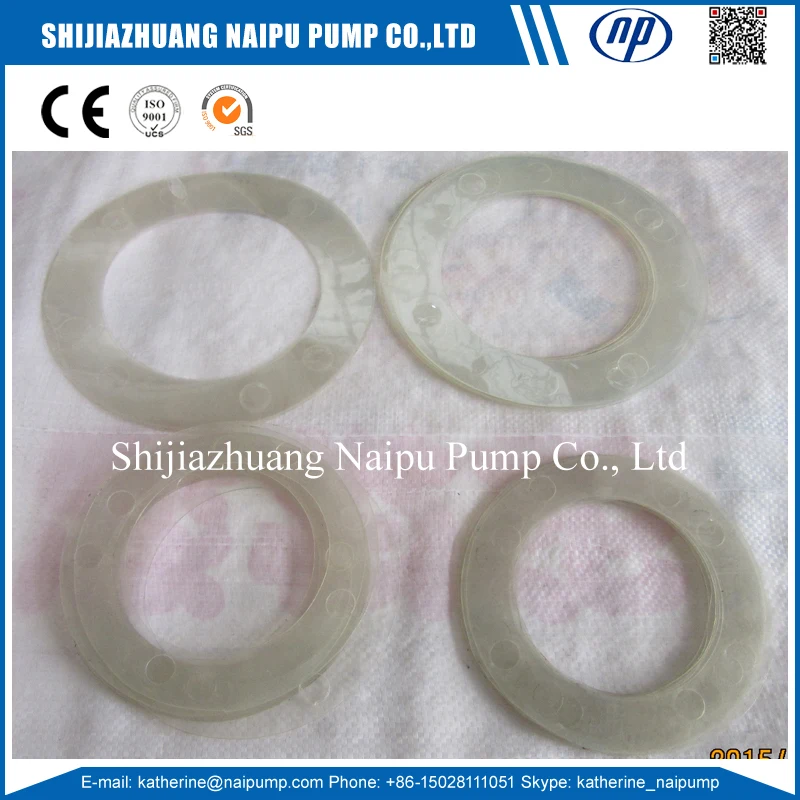

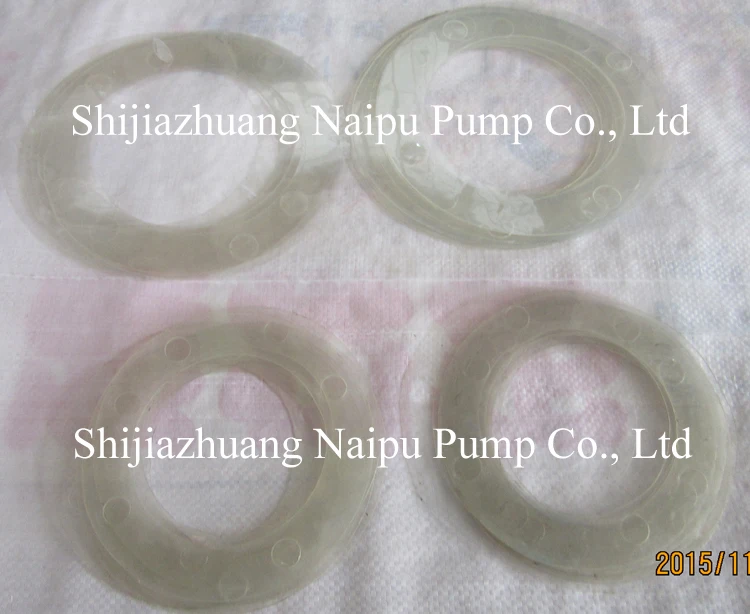

Mainly slurry pump spare parts-End Cover Gasket
Naipu Slurry pump and standard spare parts with high anti-abrosive can be supply with huge amount within a short period.
Impeller, Casing, shaft, throat bush, wear plate, case, cover, stuffing box, lantern restrictor, cover plate bolt, volute, throat bush, shaft sleeve, cover plate liner, frame plate liner...
What material does the spares including?
Slurry pump End Cover Gasket part code: B025, C025, D025, E025, F025, X025, G025, R025, S025, T025, QV025, SP025, RV025, SV025...
1) Material: S44,...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: NA05, A07, A49, A51, A33, A61, R08, R26, R33, R38, NR55, S01, S12, S21, S42, S50, U01, EPDM, PU, CR...
Product Construction

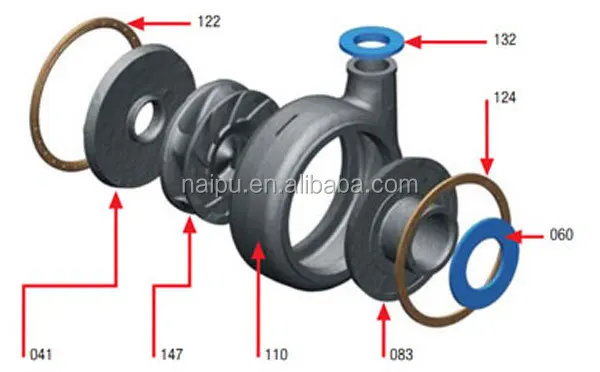

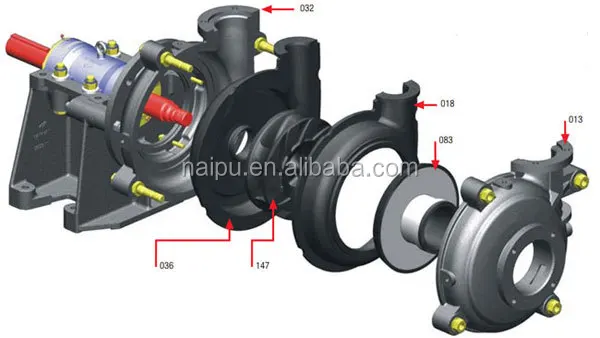

Slurry pump construction drawing
Slurry Pump Main part number at the drawing
| 032: Frame Plate 060: Intake Joint 132: Discharge Joint 083: Throatbush 110: Volute Liner 147: Impeller | 122: Stuffing Box Seal 036: Frame Plate Liner 013: Cover Plate 018: Cover Plate Liner 124: Volute Liner Seal 041: Frame Plate Liner Insert |
Slurry Pump Materials of construction
| LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
| Standard | Chrome Alloy Natural Rubber | Chrome Alloy Natural Rubber | SG Iron | SG Iron | Chrome Alloy or SG Iron | Chrome Alloy or SG Iron | SG Iron | Rubber and Nitrile |
| Options | Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Viton Nitrile EPDM Hypalon | Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon | SG Iron Various grades | MS Fabricated Cast Iron | NI Resist Ferralium Hastelloy C Polyurethane 316 SS W151 | NI Resist Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile | EN56C Ferralium Hastelloy C Titanium 316 SS 304 SS | Ceramic Stellite Chrome Oxide Nordel Neoprene Viton |
Packaging & Shipping
Packaging details
1. Outside package: standard export wooden cases.
2. Inner package: Stretch film.
Our Services
What service of Shijiazhuang Naipu?
| OEM service | Produce the pump and spare parts according to client's drawing or sample. |
| Pump slection | Help customers select the type, size and operating speed of pumps that will perform at the lowest cost. |
| Using service | Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service. |
| Quality control | Pay more attention to the quality in every process with different instruments. |
| Material service | Interchangeable metal design allow best material choice for any application. |
| After-sales service | Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts. |
| Guarantee | One year guarantee for whole machine except of the wet end parts. |
Related Products
We can produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
 |  |

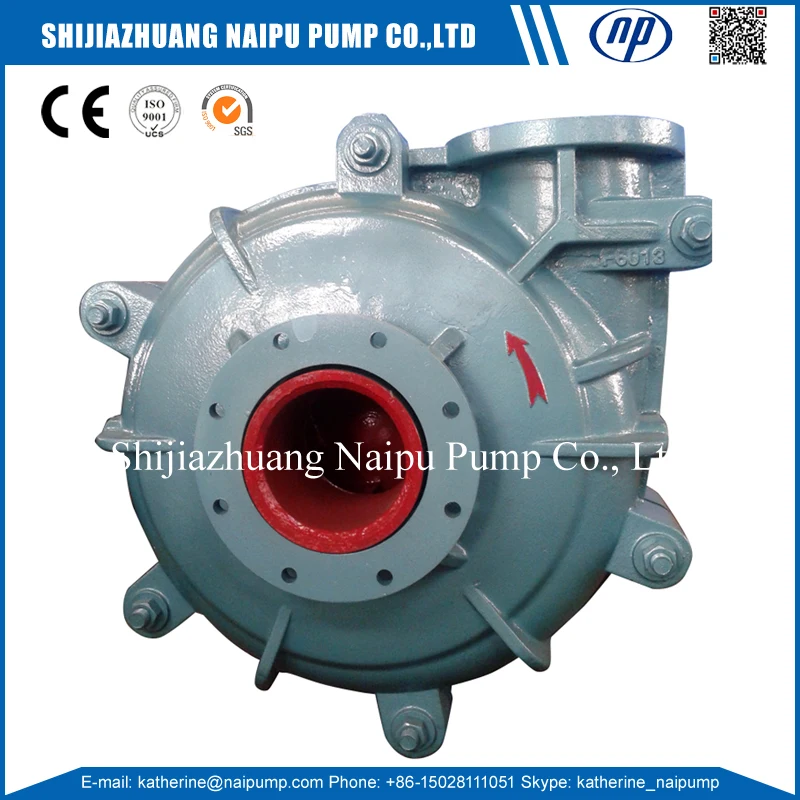

| ZGB Slurry Pump | NAH Slurry Pump |
 |  |
| NAH Slurry Pump | SP Slurry Pump |
