Product Overview

Description


Product Description

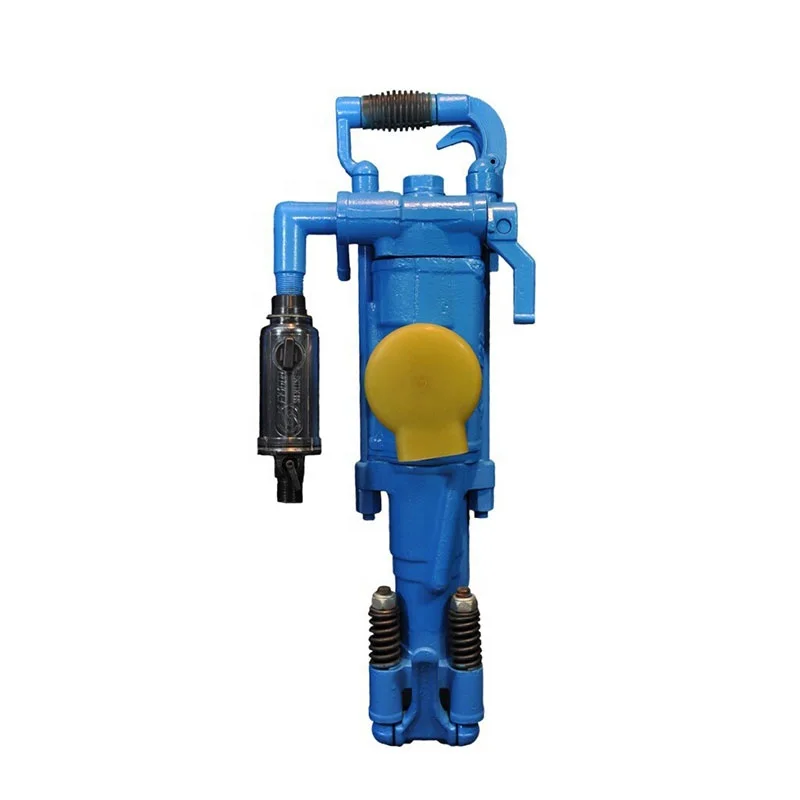

Product Application         YT24 YT27 YT28 YT29 mining Pneumatic air leg rock drill

1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

\t
SPECIFICATIONS for YT series pneumatic rock drilling machine with air leg
\t
Model
\t
YT28
\t
YT27
\t
YT29A
\t
YT24C
\t
TY24
\t
Weight
\t
26kgs
\t
27kgs
\t
26.5kgs
\t
24kgs
\t
24kgs
\t
Length
\t
661mm
\t
668mm
\t
659mm
\t
628mm
\t
678mm
\t
Air pressure
\t
0.4-0.63Mpa
\t
0.4-0.63Mpa
\t
0.4-0.63Mpa
\t
0.4-0.63Mpa
\t
0.4-0.63Mpa
\t
Impact frequency
\t
≧37HZ
\t
≧39HZ
\t
≧39HZ
\t
≧37HZ
\t
≧31HZ
\t
Air consumption
\t
≦81L/s
\t
≦86L/s
\t
≦88L/s
\t
≦80L/s
\t
≦67L/s
\t
Impact energy
\t
≧70J
\t
≧75J
\t
≧78J
\t
≧65J
\t
≧65J
\t
Cylinder*stroke
\t
80mm*60mm
\t
80mm*60mm
\t
82mm*60mm
\t
76mm*60mm
\t
70mm*70mm
\t
Air pipe diameter
\t
25mm
\t
19mm
\t
25mm
\t
25mm
\t
19mm
\t
Shank dimension
\t
22*108mm
\t
22*108mm
\t
22*108mm
\t
22*108mm
\t
22*108mm
\t
Drilling depth
\t
5m
\t
5m
\t
5m
\t
5m
\t
5m
\t
Bit diameter
\t
34-42mm
\t
34-45mm
\t
34-45mm
\t
34-42mm
\t
34-42mm

Main Features

1)It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.
2)Blast hole dia is 34-42mm,drill hole depth is 5m
3) Pay attention to the position of steel wire ring clamp, if found it fray,change it.
4)Check steel wire ring clamp whether or not abrase, if so, change another at once.
5)Do not allow use low burning point and easy explosion lubricating oil.
Certifications

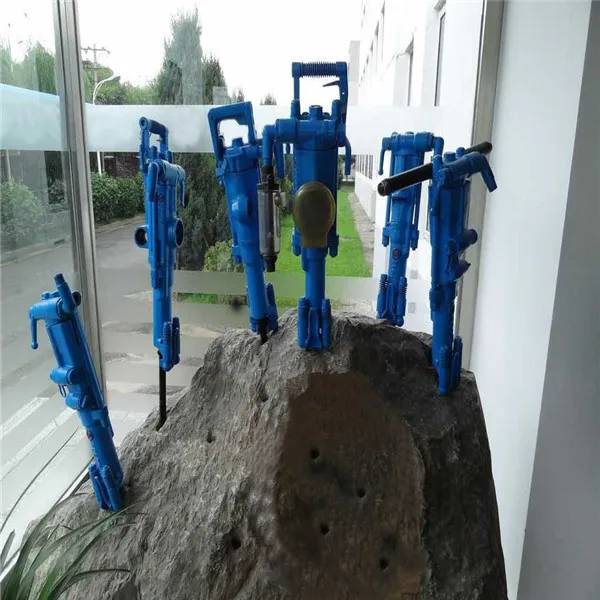

Detailed Images

Machine Parts

Ensure that technical safe practices are employed.

Main Features

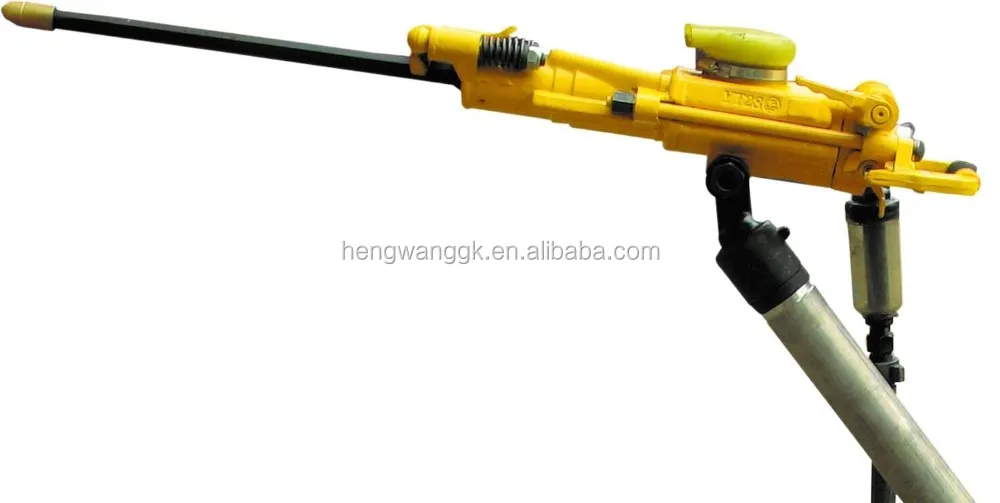

When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drillingunder various of rocks.

Machine Parts

Pay attention to the position of steel wire ring clamp, if found it fray,change it.

Main Features

Check steel wire ring clamp whether or not abrase, if so, change another at once.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

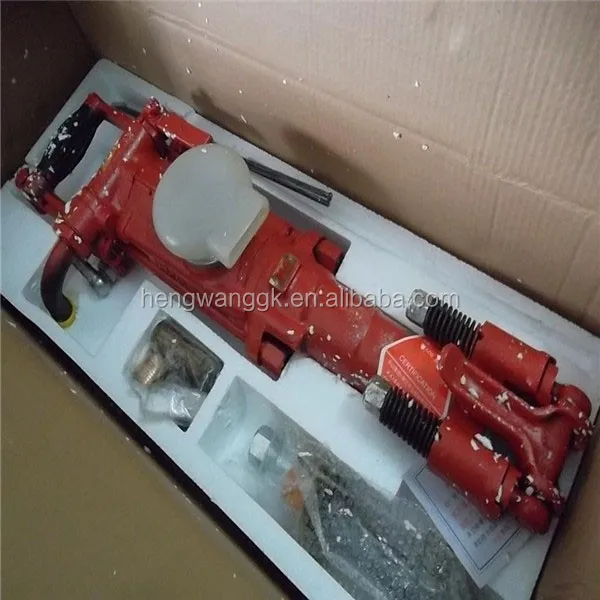

Packing & Delivery
\t
Packaging
\t



Packaging Details
\t
carton box or wooden case
\t
Packaging
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Contact Way

Pls contact Ms. Kelly to get BEST QUOTATION


Mobile: +8613665378318 (WhatsApp Wechat)

Email: hw014(AT)hengwanggk.com

Skype: live:hw014 QQ: 2853024696

TEL. No: +86 537 2330867
