construction machinery chinese wheel loader digger skid steer mini loader
- Category: >>>
- Supplier: Shanghai Shingmore Bridge Imports & Exports Co. Ltd.
Share on (60493649330):
Product Overview
Description
Product Description

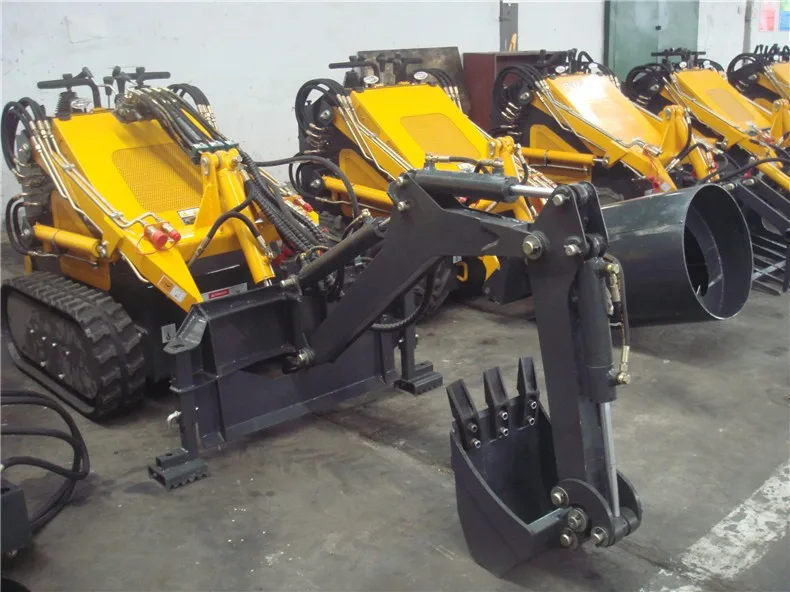

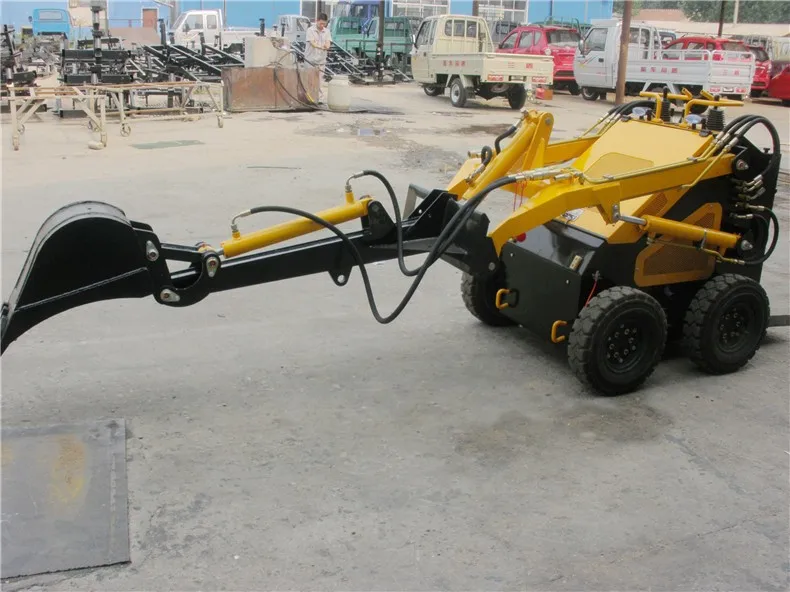

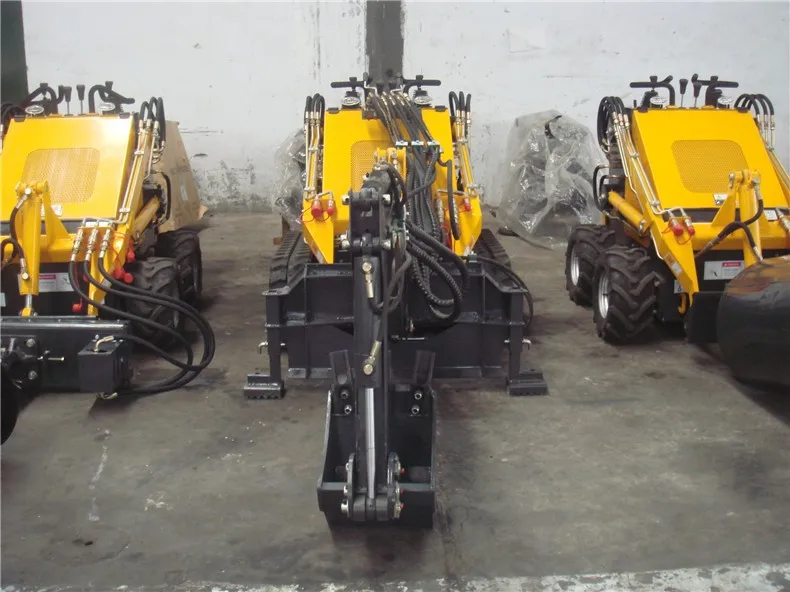

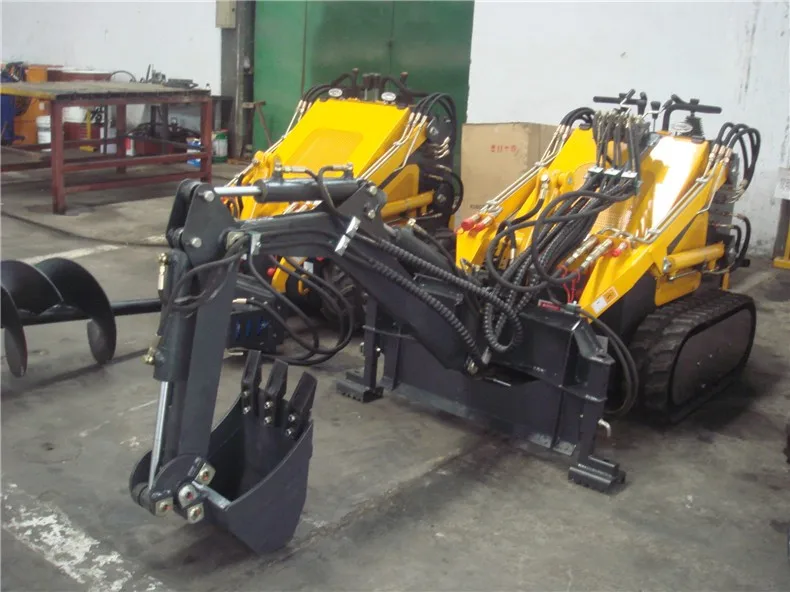

construction machinery chinese wheel loader digger skid steer mini loader
1. model no.: HY380
2. type: wheel skid steer loader with digger
3. Mini loader certification: CE Approved
4. Our main markets are Ecuador, America, Panama,Russia,Australia,New zeland, Thailand, Singapore etc
5. construction machinery chinese wheel loader digger skid steer mini loader made in China
Model | HY380 | |||||
Engine | Rated power(kw) | 17.15KW(23HP) | ||||
| Rotating speed (rpm) | 3600 | ||||
Noise(Db) | ≤95 | |||||
Hydraulic System | Hydraulic pressure(Mpa) | 17 | ||||
Cycle time(s) | Raise | Dump | Lower | |||
| 4.27 | 1.34 | 3.31 | |||
Performance parameters |
| Metric | inch | |||
Load weight (kg) | 200 Kg | 441 Lb | ||||
Bucket capacity | 0.15 m3 | 5.33 ft3 | ||||
Max lifting power | 375 Kg | 827 Lb | ||||
speed | 0-5.5 Km/h | 0-3.4 mlie/h | ||||
Operating weight | 890kg | 1958lb | ||||

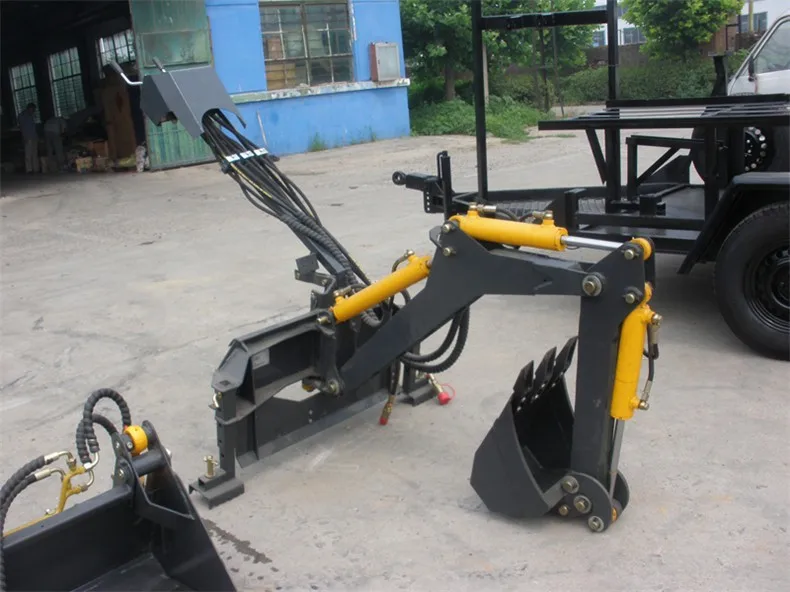

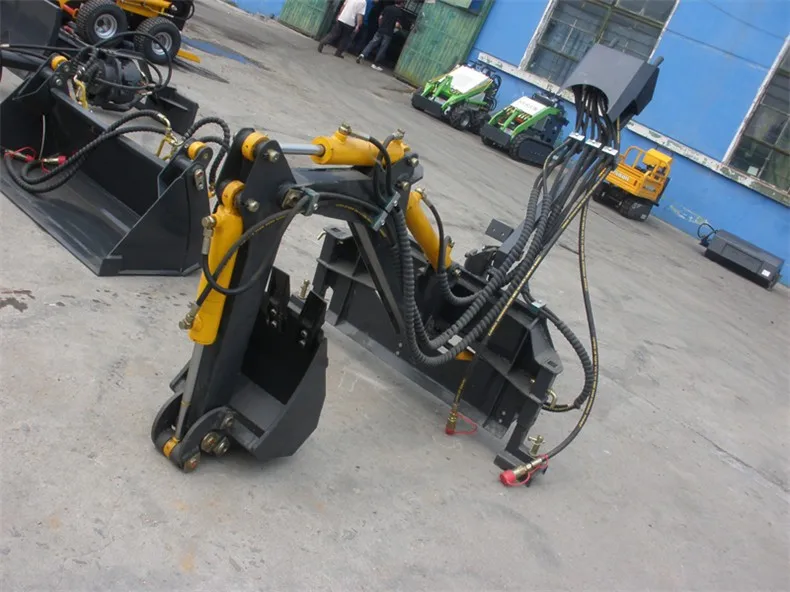

digger spec. | ||||||
size(mm): | 545*308*507 | |||||
digging depth | 1667mm | |||||
Bucket capacity | 0.03 m3 | |||||
Weight | 123kg | |||||
Company Information
Our Main Products
Packaging & Shipping
1. seaworthy export standard package,with wooden or steel pallet,wooden carton,steel frame etc for digger skid steer mini loader ;
2. one 20GP can load about 6 pieces for digger skid steer mini loader;
3. one 40GP can load about 20pieces for digger skid steer mini loader ;
4. customized package for digger skid steer mini loader.
