1.Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.
2. Main motor with inverter speed control.
3.Turret un/rewinding section,non-stop material splicing.
4. Unwinding and in-feed section with inverter speed control system and close loop tension control system.
5.Rewinding and out-feed section with inverter speed control system and close loop tension control system.
6.Closed oven and independent heating hot air blowing system, automatic constant temperature system.
7.Pneumatic impressing system and pneumatic doctor blade system.
8.Diaphragm-type pneumatic ink auto circulating system.
9. Inflatable air shaft for unwinding/rewinding material loading.
10.Printing linear speed and meter counting display.
11.Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
12.Option: Web viedo
SPECIFICATIONS
Type
AZJ-8850B
AZJ-81050B
AZJ-81250B
Max.Width of Web
850mm
1050mm
1250mm
Max.Printing Speed
170m/min
170m/min
170m/min
Max.Diameter of Unwind/Rewind
Φ600
Φ600
Φ600
Internal Diameter fo Roll Core
Φ76
Φ76
Φ76
Diameter of Printing Cylinder
Φ105-Φ300
Φ105-Φ300
Φ105-Φ300
Accuracy of Registration
±0.1mm
±0.1mm
±0.1mm
Tension Control Range
3-25kg/Fulwidth
3-25kg/Fulwidth
3-25kg/Fulwidth
Heating Power of Oven
123kw
147kw
171kw
Total Power
175kw
200kw
225kw
Weight of Machine
23000kg
25000kg
27000kg
Overall Dimension
L17000*W3500*H3500
L17000*W3500*H3500
L17000*W3500*H3500

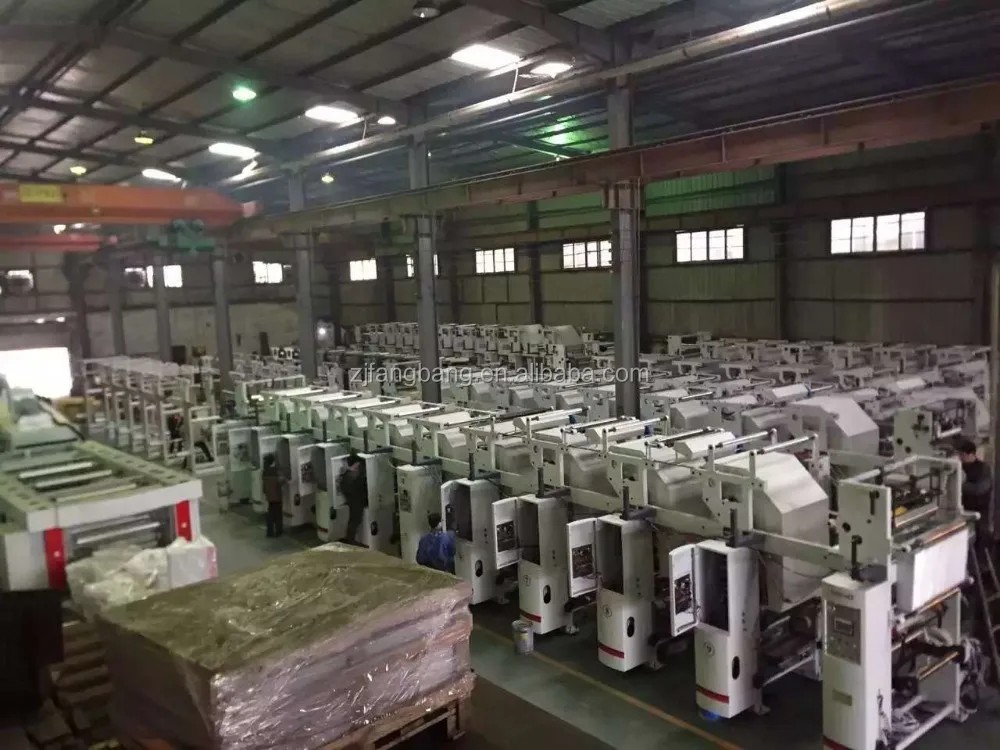

Machine View

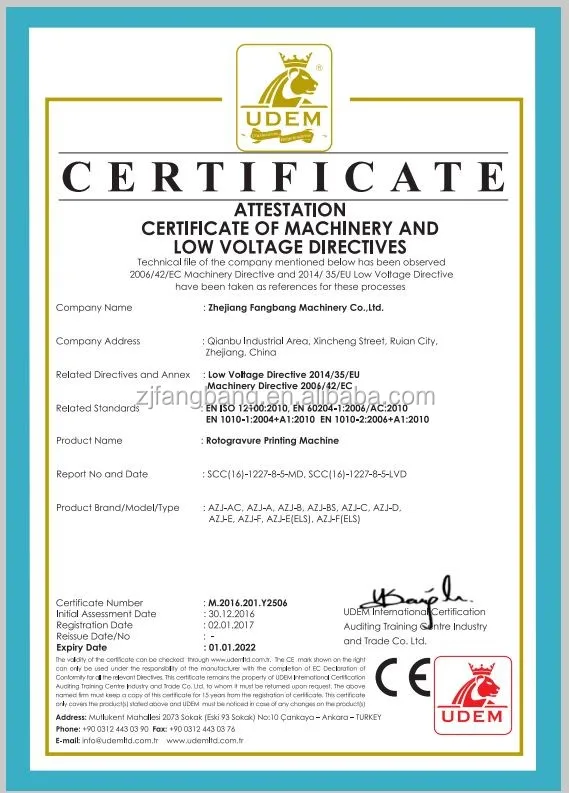

Certifications

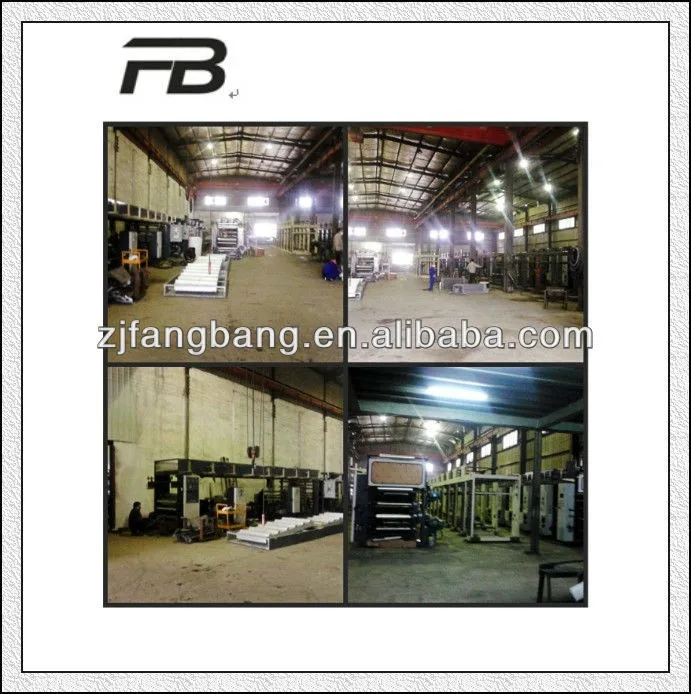

Our Company
17 years experience in the line of packing industrial Appliance is strictly in accordance with CE standard Assembly&parts are processed by CNC lathe Good after-sale service Prompt reply within 24 hours Professional&enthusiastic sales team
FangBang Development History: August ,1999 ---Ruian.jianshe Packing Equipment Co.,Ltd ,Was established April ,2002 ---Shanghai Fangbang industry Co.,Ltd Wad established October, 2003 ---Main products passed the inspection of Zhejiang Province Light Industry Machine Quality Supervision and Inspection Center,past the Province Level Authentication an listed by Govenment Authorities as the new products August .2005 ---Jiangsu Fangbang Machinery Co.,Ltd Was established October .2005 ---Passed ISO9001:2000 Authentication May,2006 ---Zhejiang Fangbang Machiery Co.,Ltd .Was established Augus,2006 --- Passed CE Authentication July ,2010 --- The Famous Product of Ruian City September ,2010 -- The Famous Brand of Ruian City August,2011 --- National High&New Technology Enterprise 2012 --- National Innovation Fund Project commitment to Corporate January,2013 ---The Famous Product of Whenzhou City
