Small 4 Axis Milling Cnc 3d Cutting Woodworking Woodpecker Machine Router Wood Working Machinery
- Category: >>>
- Supplier: Shenzhen Jiefengtai Technology Co. Ltd.
Share on (60493979667):
Product Overview
Description
Product Description
Small 4 Axis Milling Cnc 3d Cutting Woodworking Woodpecker Machine Router Wood Working Machinery

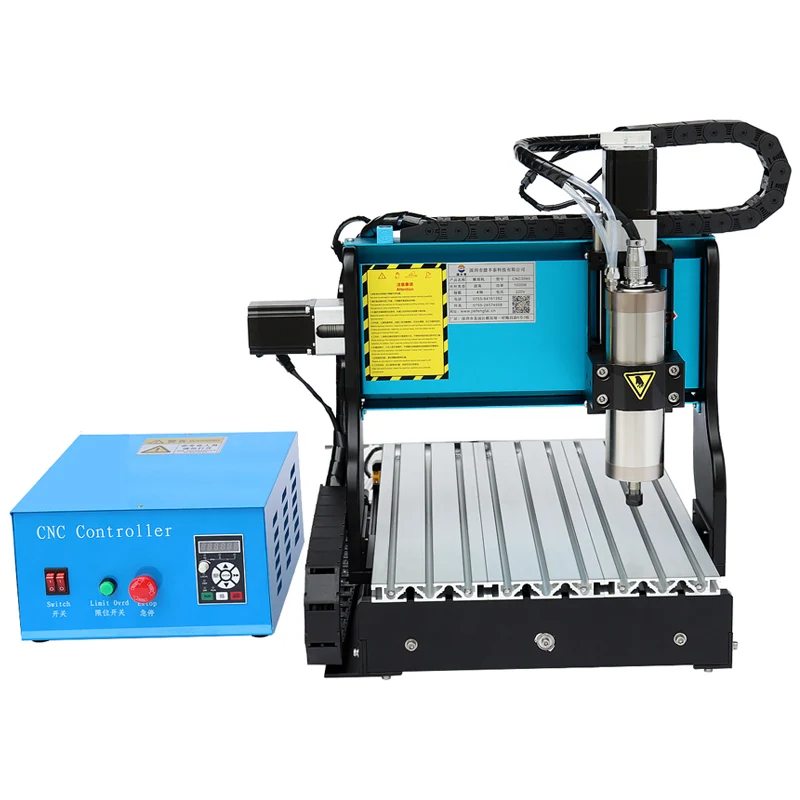

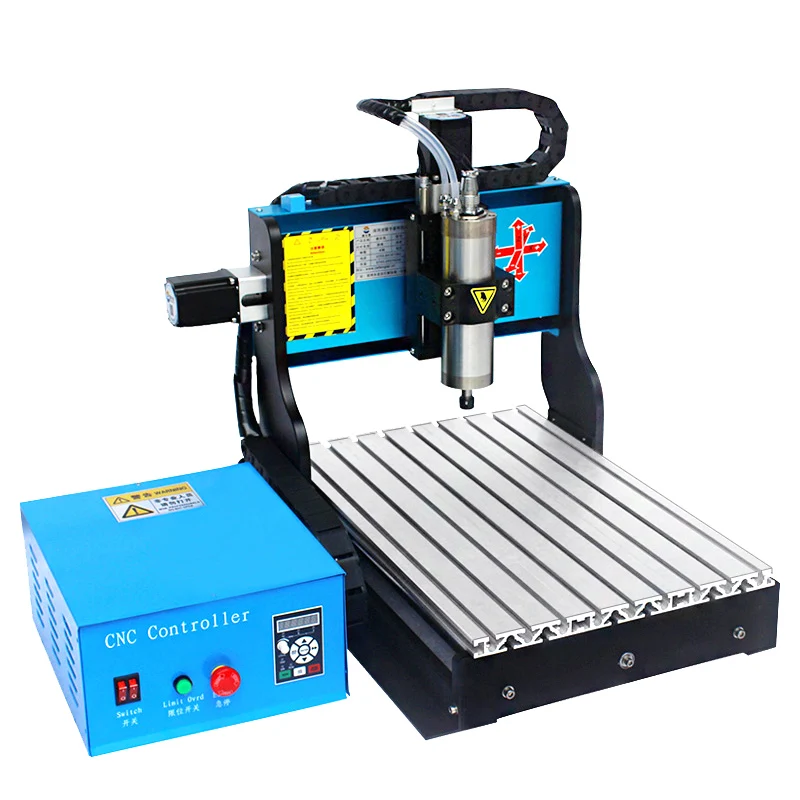

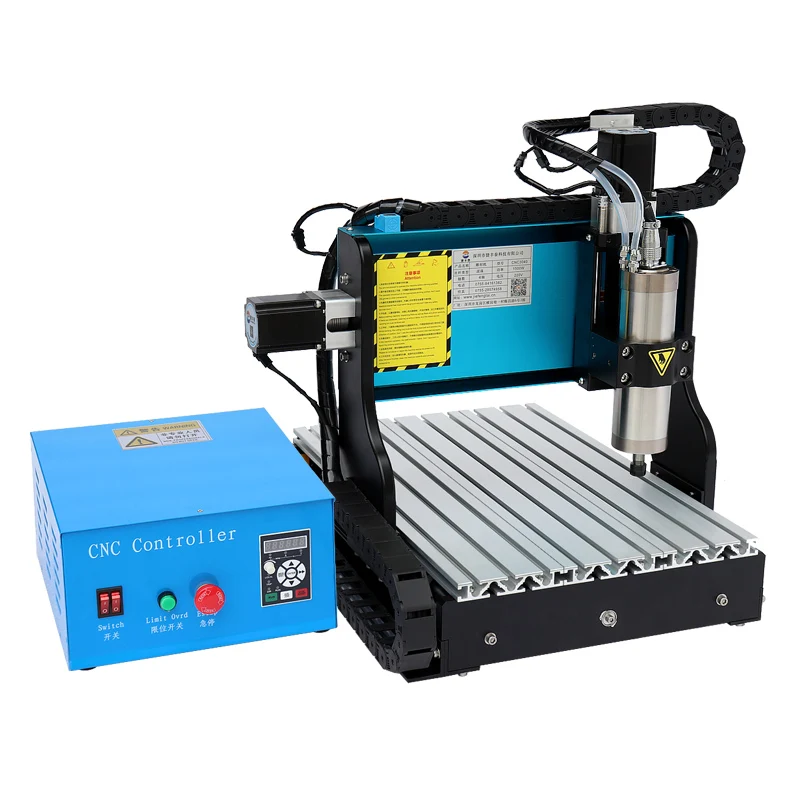

CNC3040 3 Axis

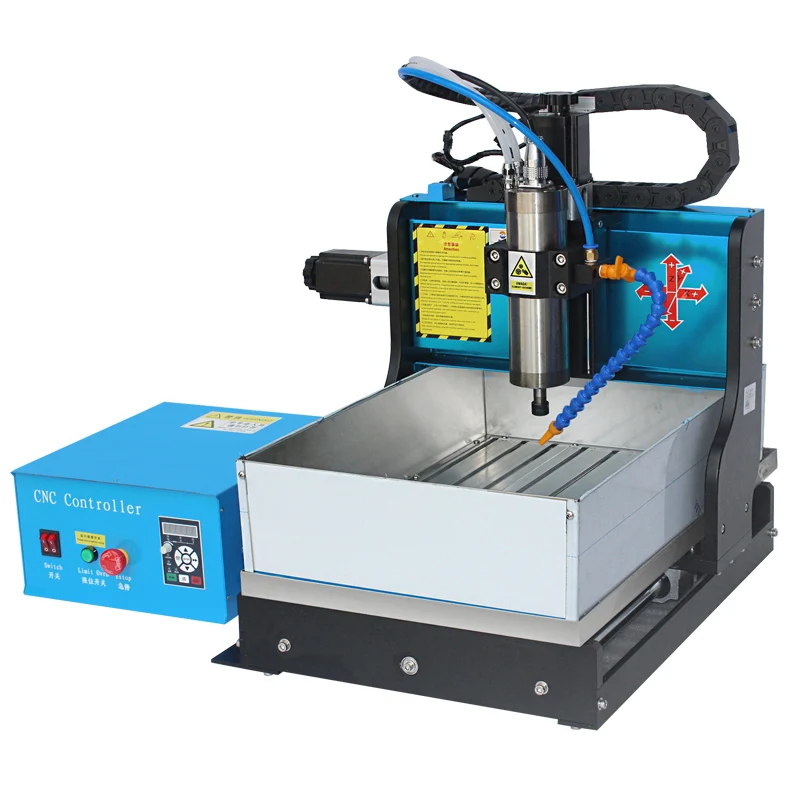

CNC3040 3 Axis with water sink

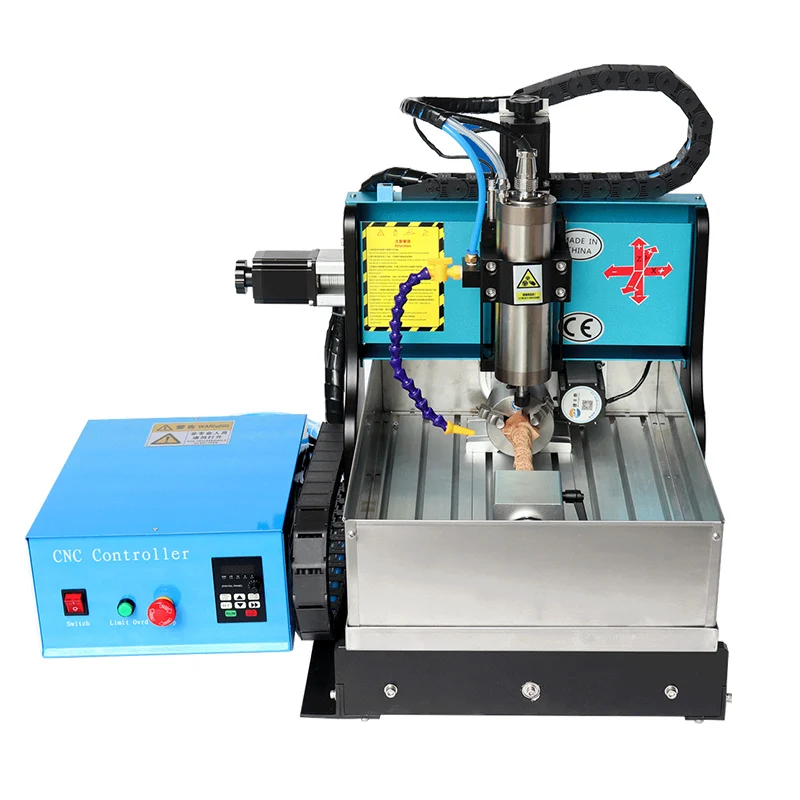

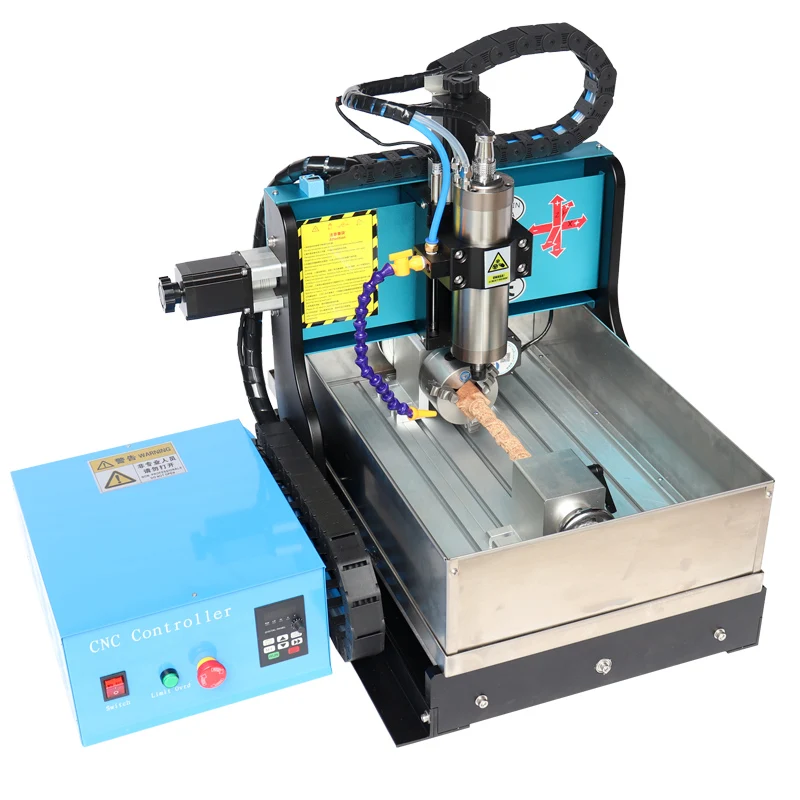

CNC3040 4 Axis with water sink
Main Features--multifunction cnc router
♠ Brand water cooled spindle,suitable to process metal materials and non-metal materials
♠ 57 type high current motor, high torque; with independent motor base, the operation is more stable♠ Independent drives
♠ Imported TBI 1605 ball screw
♠ Double stainless steel polished rod
♠ Mach3 usb control system, can be controlled by desktop computer, laptop; or dsp control system, offline version, no computer for controlling
♠ Machine frames are 6061 aluminum alloy, precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized
Parameters | ||||||
Machine name | 4 axis milling machine | Model | CNC3040 | |||
Working area | 300*400*90mm | Feed height | ≤130mm | |||
Workbench size | 360*560*20mm | Dimensions | 670*550*570mm | |||
Spindle power | 300/600/800/1500W | Drive | Independent drives | |||
Rotate speed | 24000rpm/min | Ball screw | TBI SFU 1605 ball screw | |||
Cooling type | Water cooling | Guide rail | optical axis+support round rail | |||
Collet type | ER11 | Frame materials | 6061-T6 aluminum and 6063 aluminum | |||
Max working speed | 4000mm/min | Motor | Stepper motors | |||
Working accuracy | ±0.025mm | Voltage | 110V/220V | |||
Repeating precision | ±0.01mm | Control system | Mach3 usb/DSP | |||
Packing size | 670*540*410mm | Packing weight | 62kgs | |||
Rotary axis parameters | ||||
Reduction ratio | 6:1 | |||
Center height | 65mm | |||
Tail-stock | Center height | 65mm | ||
Scalable amount | 50mm | |||
Samples Show
Detailed Images
High quality machine body
The machine body is 6061 aluminum alloy， precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized. Ordinary aluminum sheets or aluminum profiles and castings are not comparable.
Independent drives
Equipped with independent drive to ensure the high stability and fast working speed of the machine and effectively improve the accuracy
Stepper motor
Each axis motor uses the brand 57 type high current motor, high torque; with independent motor base, the operation is more stable
Strengthen guide rail
XYZ axis adopt round guide rail, formed by double stainless steel polished rod + ball screw, which effectively improving precision and stability, and is not deformed for a long time
Imported ball screw
All three axes are imported original TBI SFU 1605 genuine ball screw, high quality imported nuts with metal inverter; high efficiency, low frictional resistance
Mini control box
Exquisite and small control box, easy to carry, Mach3(usb port) control system, DSP control system is optional
Brand water cooling spindle
Changsheng brand spindle motor, full power, low noise, high precision, long-term use does not affect performance
Limit switch
The three-axis direction is respectively equipped with a limit switch to avoid over-travel in the machine running, and has the function of returning the bed point of the machine in one-button manner, effectively protecting the machine
Brand frequency converter
Brand frequency converter, frequency control, more stable performance
Brand power supply
The power supply in control box is the designated power supplier for the Olympic Games. It has stable operation, long service life, built-in EMI filter, and strong anti-interference
Support base
Equipped with double bearings and bearing seat, which is precisely fitted to ensure the engraving precision. The Y-axis adopts the supporting base to effectively prevent the deformation of the guide rail
High flexibility cables
All cables are made of high-flex cables,with high-quality insulation and smooth Teflon wrapped shield. Anti-oxidation makes the cable prolonged in the presence of both torsional and bending stresses
Optional parts
Stainless water sink
For processing metal, high hardness materials,need to be equipped with water sink circulating water to cool the work piece and tool. One set of water tank include table bottom tray, surrounding baffle, nozzle, blue water pipe, water pump
Rotary axis
When engraving cylindric materials, rotary axis is required, 360° rotary engraving.The A-axis motor is extended 57 type, the max rotation diameter is 130mm, and the deceleration is 1:6. There is adjustable wrench on the side of the tail stock for extra strength, tightening and durability
Our Service
Pre-sale service
1. 24 hours online inquiry and consulting supporting.
2. Providing the most professional advice for choosing the most suitable and economic machines
2. Providing the most professional advice for choosing the most suitable and economic machines
3.Free proofing
After-sales service
1. Providing instructional videos and English user manual for guiding to install and operate the machines
2. Engineers guide to operate the mahcines by remote service
3. 1 years free warranty for machine quality and technical service
2. Engineers guide to operate the mahcines by remote service
3. 1 years free warranty for machine quality and technical service
FAQ
1. Instructions for choosing suitable specification cnc machine
Applicable materials:
300W can process PVC, acrylic, plastic, Chemical Wood, ordinary wood and other soft materials etc; Air-cooled models
600W can process PVC, acrylic, plastic, PCB circuit board, IC grinding, double color board, Chemical wood, solid wood, hardwood etc; Air-cooled models
800W can process PVC, acrylic, plastic, PCB circuit board, IC polishing, double color board, EVA foam, carbon fiber, glass fiber board, graphite, bakelite, chemical Wood, solid wood, hardwood and soft metal etc; Variable frequency,water-cooled machine, suitable for long time processing
1500W can process PVC, acrylic, plastic, PCB circuit board, IC grinding, double color board, EVA foam, carbon fiber, glass fiber board, graphite,bakelite, chemical Wood, solid wood, hardwood and silver, gold, copper, steel,iron, aluminum alloy, jade and jade agate etc; Variable frequency water-cooled machine, suitable for long time processing
Water sink:
When engraving hard materials, like metal, gold, silver, aluminum, Jade, stone and so on, need add a water sink on the machine, the water sink can help to protect the cutting bits, also help to smooth and cool the material surface. One set of water sink includes table bottom tray, surrounding baffle, nozzle, blue water pipe, water pump
We have a whole set of teaching videos, start with a zero basis, also can provide training
through remote system, WeChat video, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn
through remote system, WeChat video, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn
3. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 1 year (except consumables, such as
knives, chuck, nuts and so on ), each machine is equipped with an unique code, enjoying the after sale service by this machine unique code
knives, chuck, nuts and so on ), each machine is equipped with an unique code, enjoying the after sale service by this machine unique code
4. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
Related Products
Packing&Shipping
1. 1 CNC Engraving machine (including control box)
2. 1 U-disk (Different software in U
-disk)
3. 1 Power cable
4. 2 Open Wrench
5. 1 Plastic tool box(5 pcs cutter are included)
6. 1 Tool setting gauge
7. 1 Water pumps
8. 1 Data cable
9. 8 Sets Allen wrench
-disk)
3. 1 Power cable
4. 2 Open Wrench
5. 1 Plastic tool box(5 pcs cutter are included)
6. 1 Tool setting gauge
7. 1 Water pumps
8. 1 Data cable
9. 8 Sets Allen wrench
Packing by wooden case
Machines will be packing by high quality non-log wooden case, with foam inside for protectiving. Long distance transportation will not be damaged.
Shipping channel
Shipping via sea or air, depend on clients' requirements
