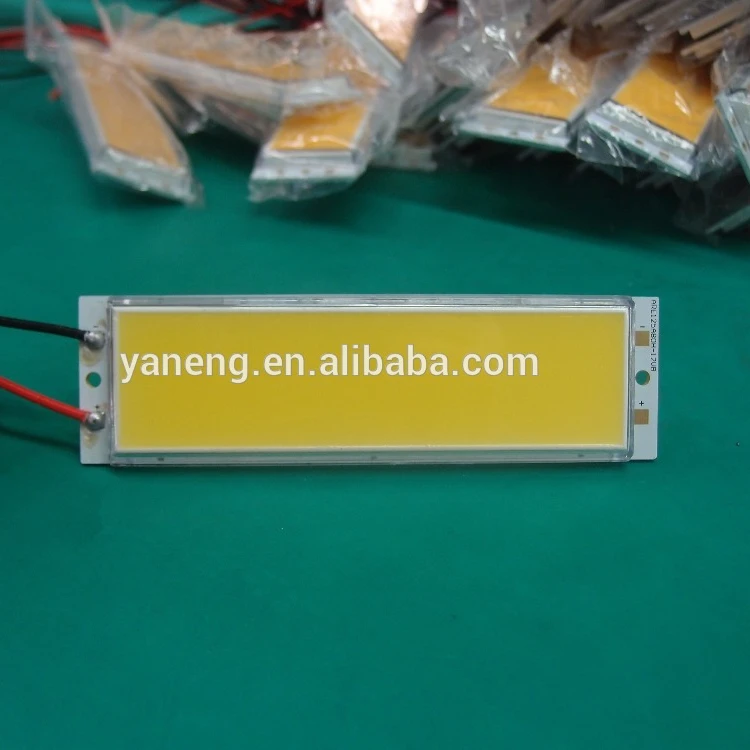

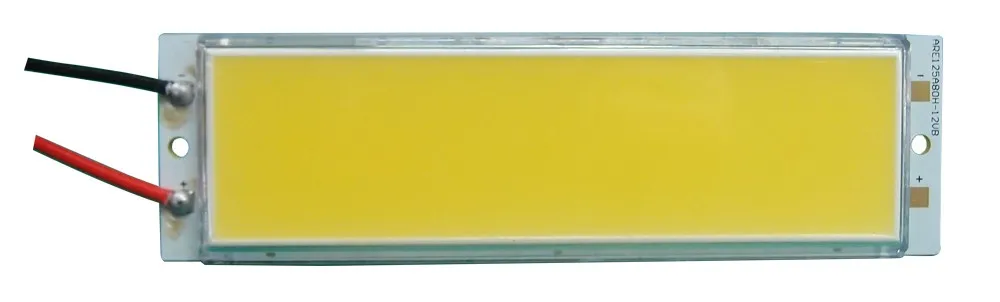

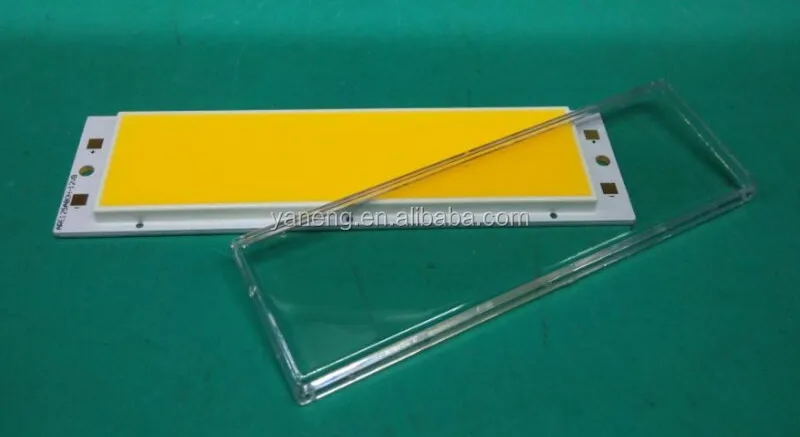

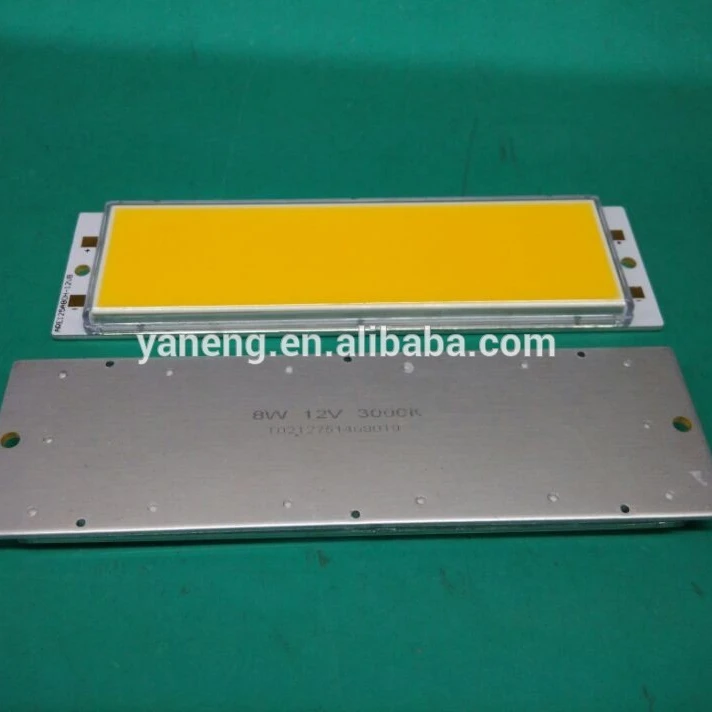

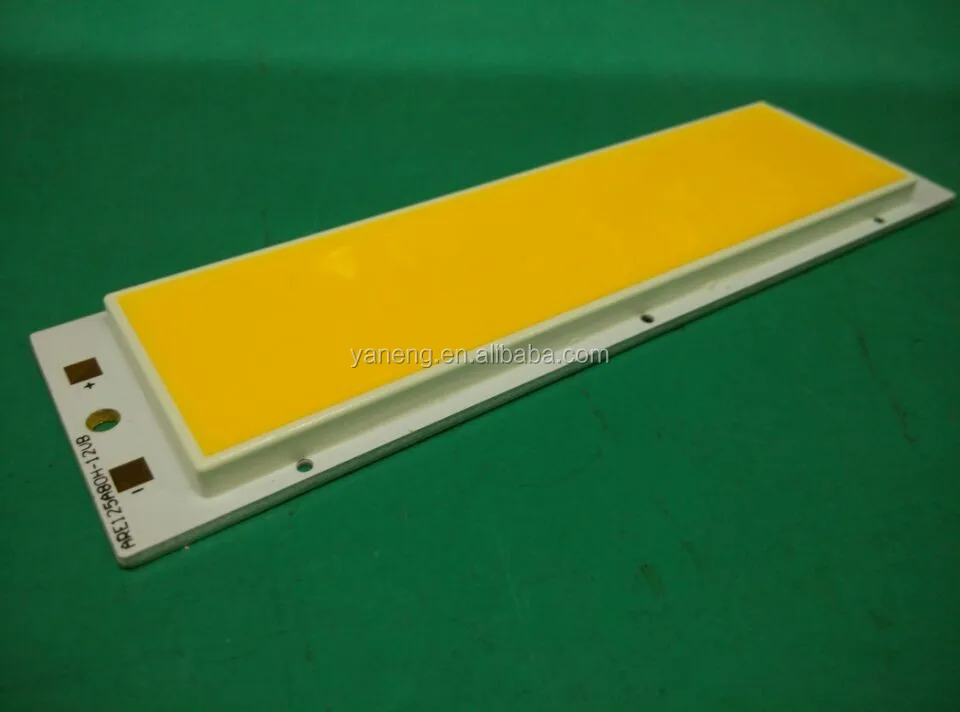

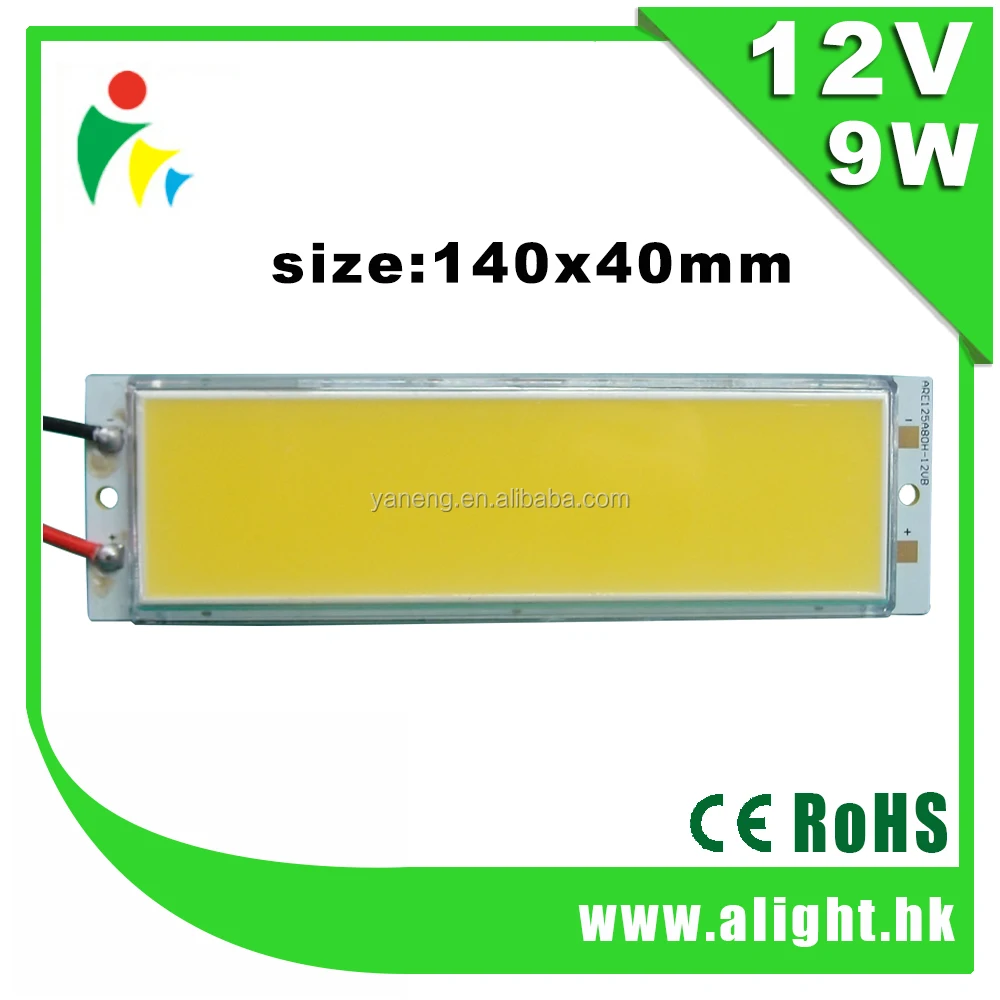

High Power 6W 9W 24W 30W 12V Dimmable for Led Cob Chip
lDevice Selection Guide
Part No.
Chip
Lens color
Material
Emitting color
ARE125A90H-12V
InGaN
White
Yellow Diffused
lParameter
item no
lighting area(mm)
pcb type
lighting source type
color temperature range(K)
ARE125A90H-12V
118.5×31.5
Aluminum
upper lighting
2700~8000
lOptical Characteristics
Symbol
Parameter
Min
Type
Max
Unit
If
Operating current
-
750
-
mA
Vf
Forward Voltage
11.2
12
13.2
V
Φ
Luminous Intensity
720
900
-
Lm
Tc
Color temperature
-
6500
-
K
Ra
color rendering index
70
80
-
lAbsolute Maximum Ratings
Symbol
Parameter
Min
Type
Max
Unit
P
power dissipation
-
9
-
W
To
junction temperature
-40
-
65
℃
Tstg
storage temperature range
-40
-
85
℃
Rth
thermal resistance
-
0.5
-
℃/W
Note: the condition of the test result data in the diagram above is Tc=25 degree, the product of Light Panel with color temperature is 5000k.
The Same Series COB
Part No.
Power
Forward Voltage
Material
pcb type
Emitting color
Lumen output
CCT
CRI
ARE125A80H-12V
8w
12v
InGaN
Aluminum
White
100-110lm/w
2800-8000k
75/80
ARE125A90H-12V
9w
12v
ARE125Z300H-15V
30w
15v
Features
1. LED chip is fixed on the aluminium layer of PCB, the heat can be spread out through aluminium layer rapidly.
2. Low light decay: decay rate is less than 3% after 1000 hours and less than 30% after 35000 hours.
3. Equable and soft irradiancy, no glaring and eye protection.
4. Good reliable, no dead bulb, no dark space, uniform spherical scattering.
5. COB LED encapsulation lighting can be multi-functionally used in variety lighting products.
6. Highly color-rendering index and lighting effect, no ultraviolet and infrared rays, no attraction to mosquitoes.
7. Low voltage work to ensure the products safety used.
8. No contain mercury, lead and other heavy metals, environment friendly.
Application
1. Round COB module: LED bulb, LED cup, LED spotlight, LED downlight, LED grow light.
2. Flat COB module: LED tube(such as T5,T8,T10), LED rigid bar, LED desk lamp.
3. High power LED COB module: LED street light, LED tunel light, LED flood light.
