3d printing powder gas atomiser gas atomization equipment

Product Overview

Description

3d printing powder gas atomiser gas atomization equipment

3D printing print metal powder  gas atomization equipment

metal powder gas atomizing equipment, gas atomizer equipment

Both Vacuum gas atomization equipment and gas protection gas atomization equipment

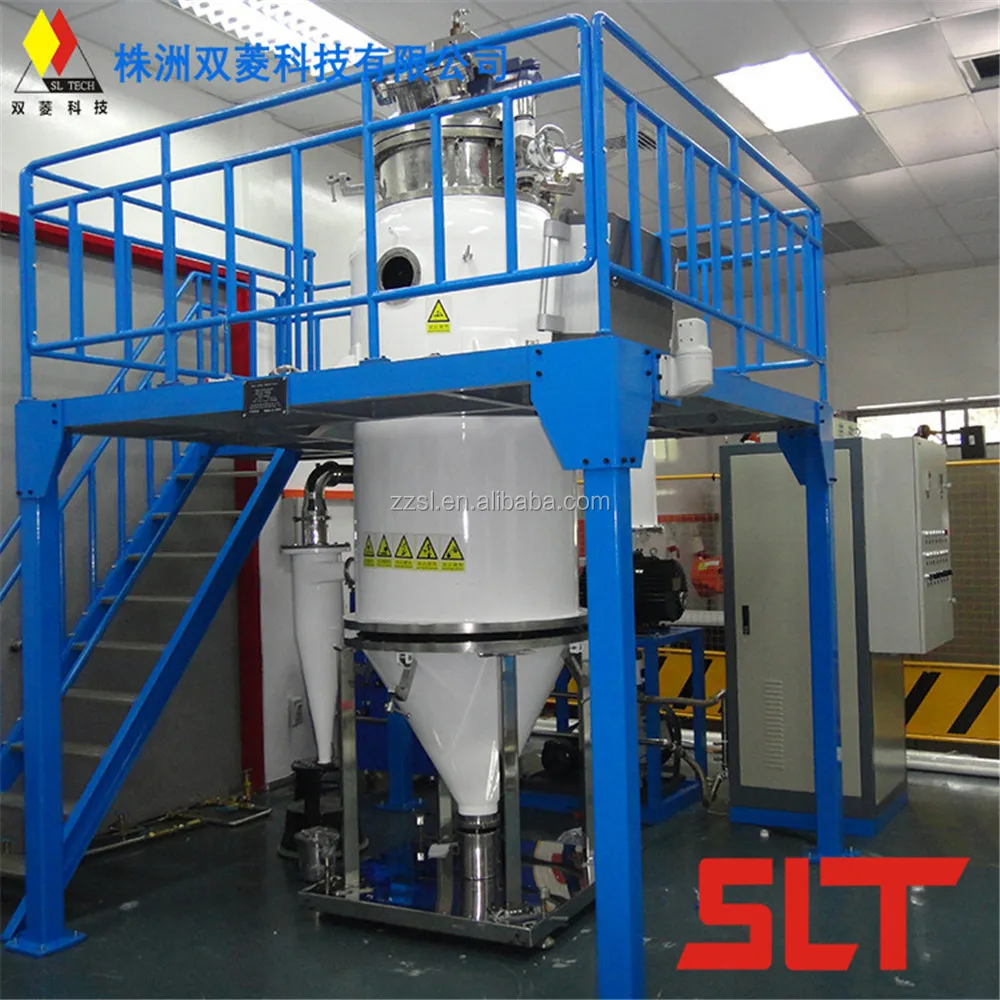

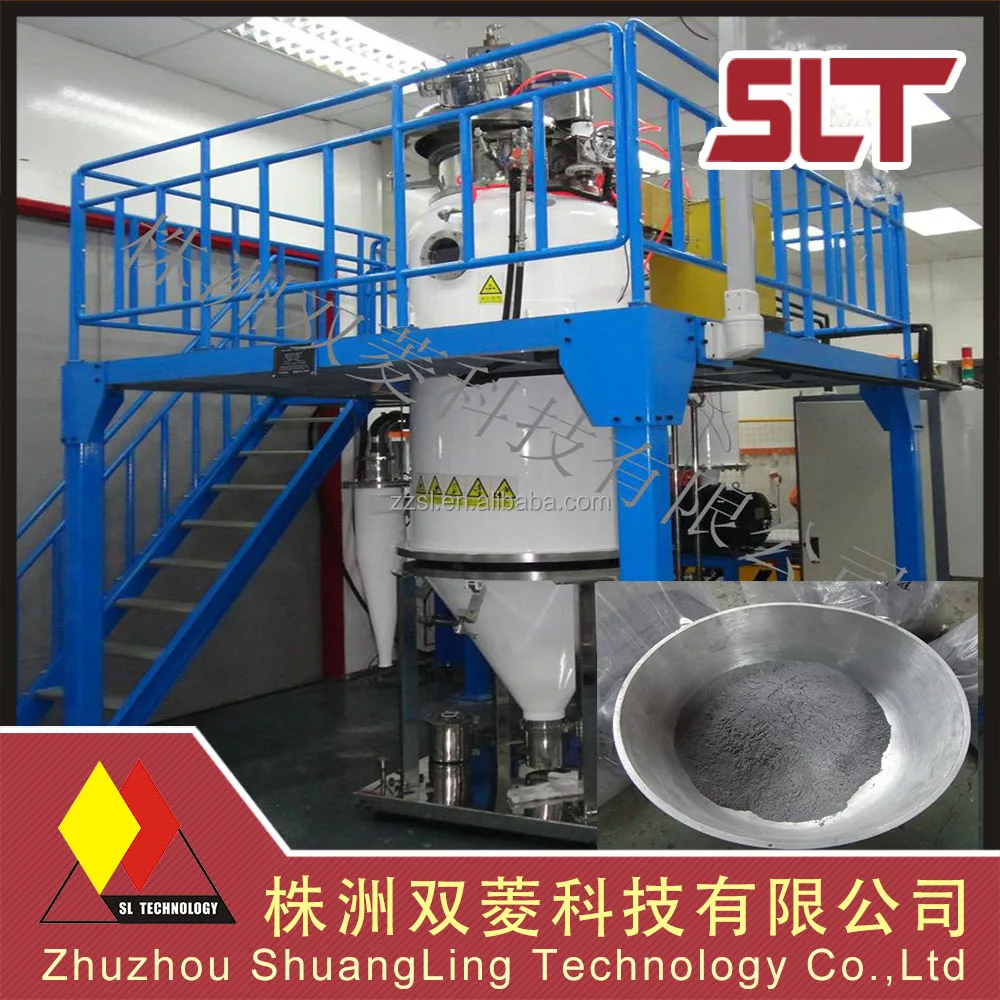

The atomization powder making method has many advantages, such as simple operation, it is easy for workers to master the process technology. The material will not be oxidation, and the equipment with higher automation ability. At first, the alloy (metal) is melting in induction furnace, then the melt is poured into the heat preservation crucible and go into diversion tube and nozzle. The metal liquid will be atomizing by high pressure fluid (or gas flow),the metal powder after atomization solidification and go down in the atomization charmber. At end it will be collected in the powder collection charmber.

It can be used making all types metal powder, such us titanium powder,solder powder, copper powder, aluminum powder, iron powder, stainless steel powder and so on;



2.Advantages

Our  factory is the only one factory who cooperate with the Chinese State Key Lab of metal powder metallurgy -Central South University together. The Central South University is much famous in metallurgical industry, the only one institute who can make metal powder particle size less than 500(20 micros) meshes in China.

2.1 The equipment use high quality steel structure, with high efficiency and long life;
2.2 Easy to operate, less burning waste, safe operation
2.3 The melt is mixed by electromagnetic force, with uniformity temperature and components.
2.4 High melting speed, high efficiency, good particle size distribution

2.5 We can adjust the craft parameters and change the atomization craft to make different powder particle shape, size, structure and size points in a wide range.



3.Parameters

3.1 Capacity of one furnace 5-1000KG, melting power 500kw

3.2 Powder size 80mesh (it can adjust to 1025mesh)

3.3 Powder shape spherical

34 Melting temperature>1700 °C

3.5 The highest pressure of atomization system 20Mpa~100Mpa

3.6 Atomization materials iron, copper, silver, stainless steel, copper matrix, and iron base alloy



4. Accessories

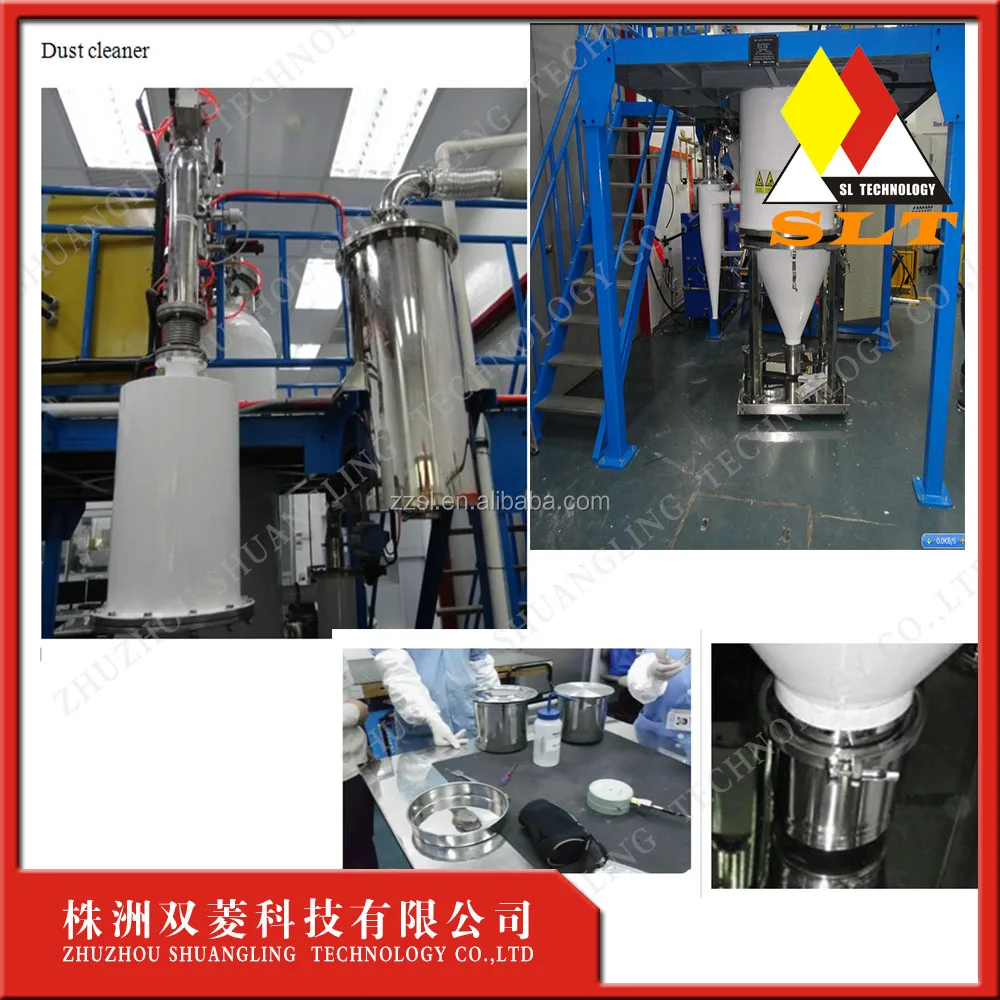

The whole equipment include all accessories as following:

Melting furnace                     1set

Heat preservation furnace 1set

Atomization chamber    1set

Collection chamber      1set

gas atomization system 1 set

Steel frame             1set

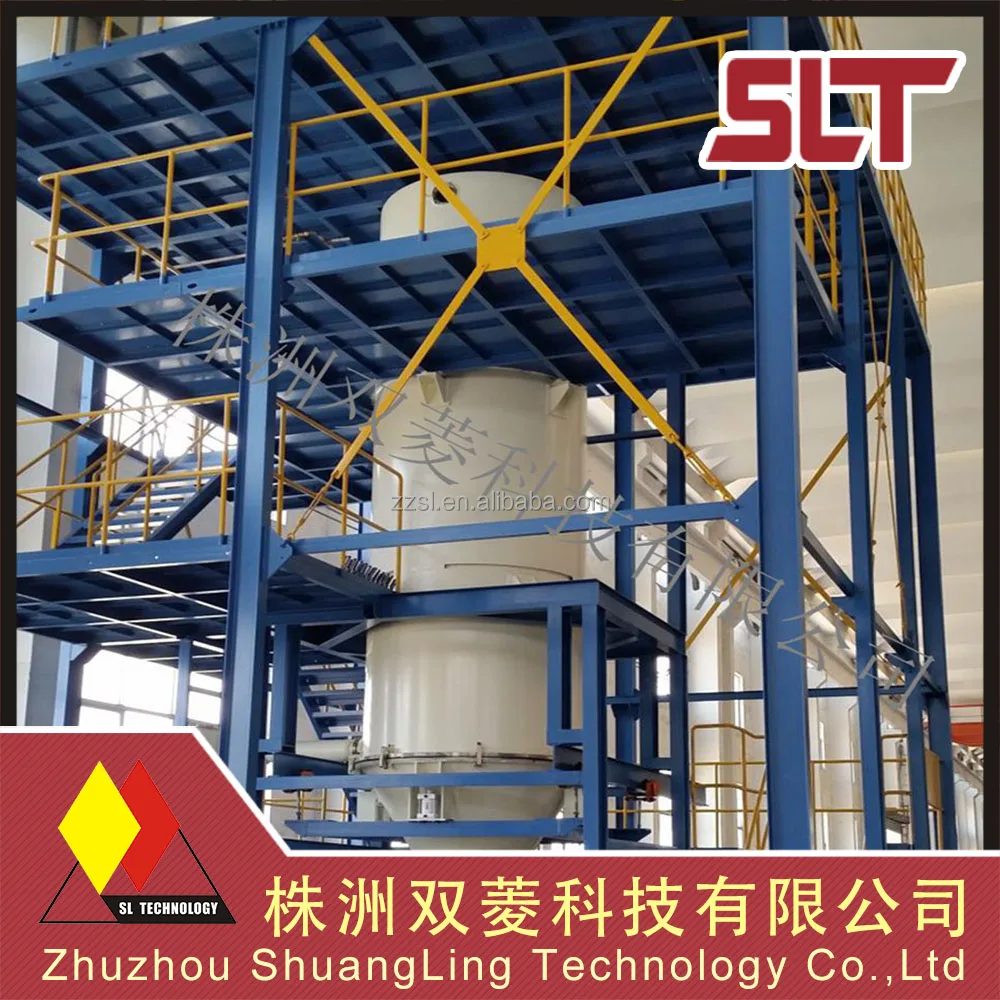

Our gas atomization equipment exported  in customer's site
