1500w Quartz Halogen Infrared Heat Lamp

Product Overview

Description

1500w Quartz Halogen Infrared Heat Lamp - Buy Halogen Infrared Heat Lamp,Quartz Infrared Heat Lamp,Infrared Heat Lamp

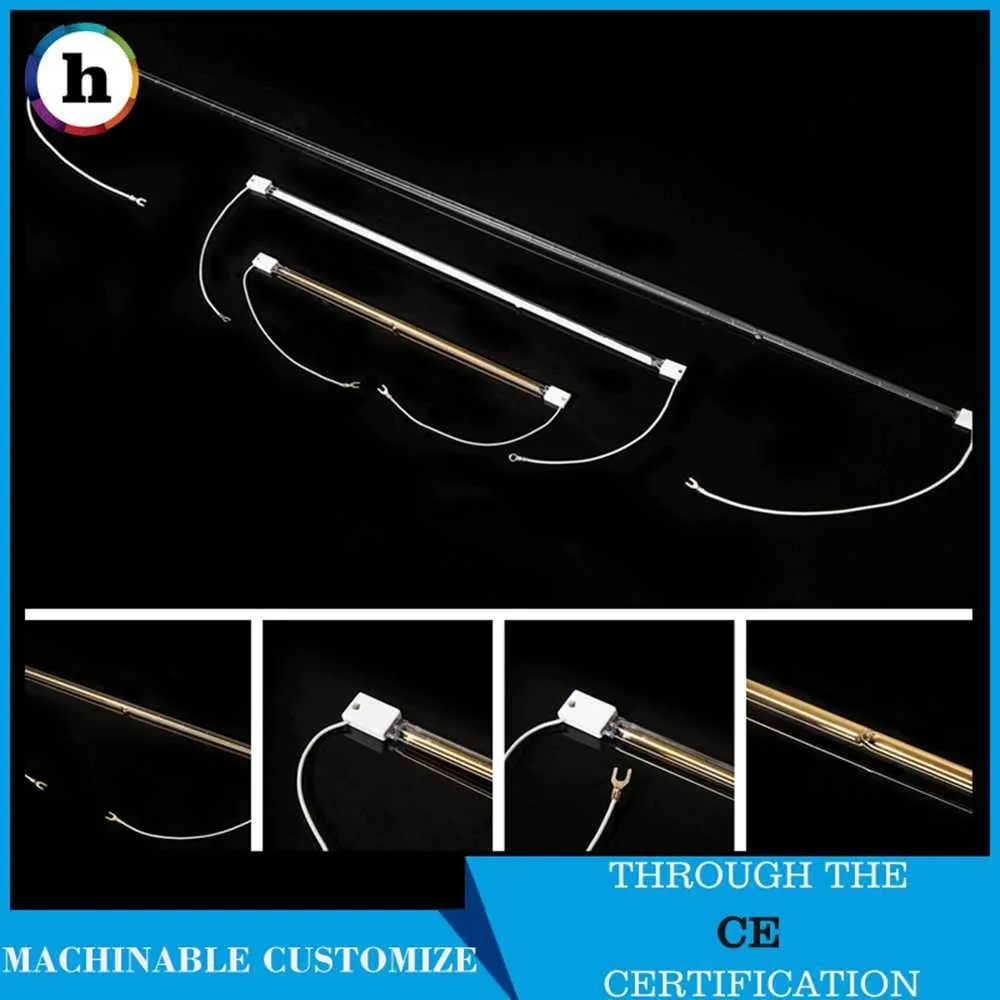

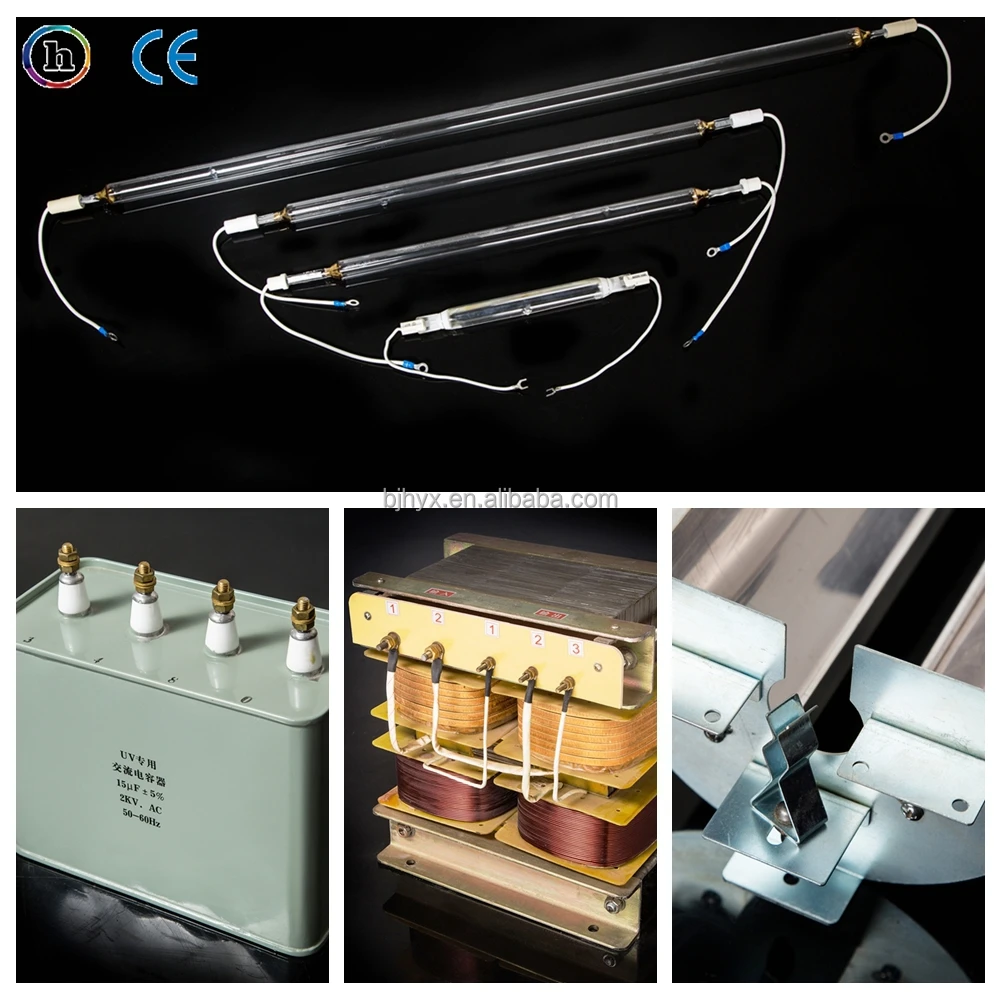

We are manufacturer of Lamps from 1998, produce infrared heating lamp,quartz infrared halogen lamp,gold coated infrared halogen lamp, carbon fiber infrared heater lamp and UV lamps

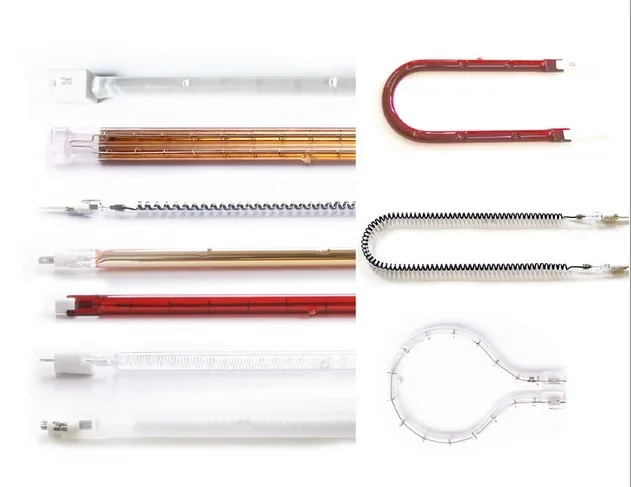

Short Wave ir heating lamp:

1.gold coated infrared heater lamp
2.white reflector infrared halogen lamp
3.clear infrared heating lamp
4.ruby infrared halogen heating lamp
5.gold reflector infrared heating lamp
6.other special lamps(Twin tube infrared halogen heating lamp)

Far wave infrared heating lamp:

1.Clear infrared carbon fiber lamp
2.ruby infrared carbon heating lamp
3. gold infrared carbon heating lamp
4. gold reflector carbon fiber infrared heating lamp


Benefits VS Features:

1.Versatility of heat source:

Wide range of lamps lengths and power available.

2.Clean: No byproducts, no pollution.

3.Safe: Quartz envelope, heat shock resistant.

4.Economical: More than eighty-five percent of consumed energy transmitted into infrared heat.

5. Long life: More than 5000 hours.

6.Near infrared heating:

The wave of infrared is from seven hundred fifty nm to one thousand five hundred nm.

Application:

Dry and baking equipment

Heater and car painting, spray painting

Sterilizing device,etc.

Food baking and industrial production oven.

High temperature curing for glue and printing ink.

PET bottle blowing laminating and Paper drying

Wood drying and preheating before painting

Plastic softening and synthesis cable production.

Beauty apparatus,infrared physical therapy care.

Infrared drying for shoes making machine.

Heating lamp for wave soldering ,reflow soldering equipment.


We also can do the lamp as the customer need, please feel free contact me if you have any question .





 Infrared (IR) lamps



Infrared is widely applied in industrial heating or drying,which can be used in surface heating and drying-curing process ,such as automotive, plastics, printing, glass, textile, food, metal parts, circuit boards packaging, films and electronic neighborhood ,and can also be used in greenhouse heat preservation, and healthcare.

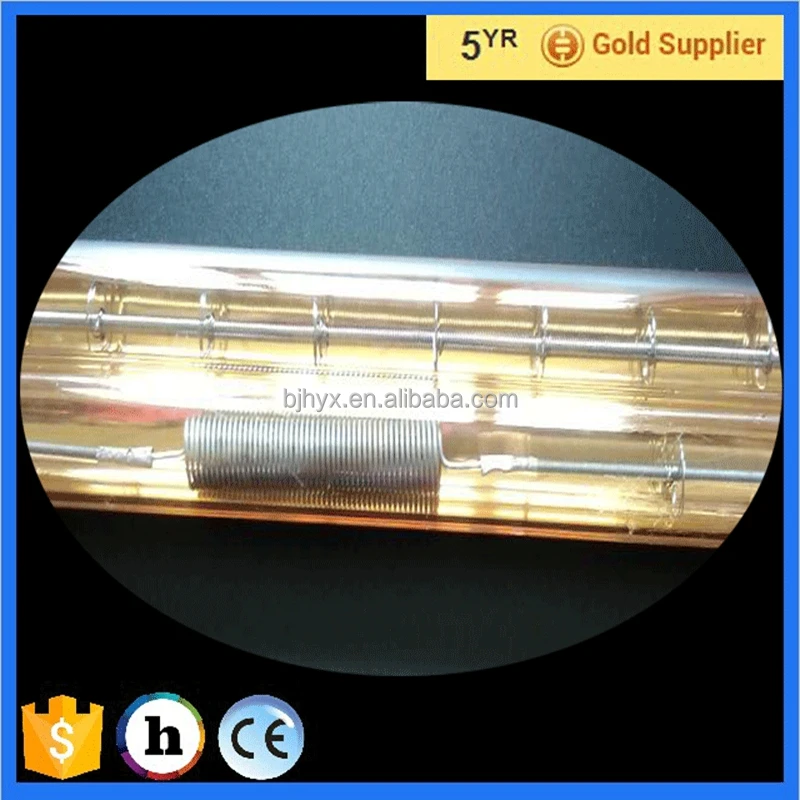

Infrared lamp tube, in which the tungsten wire will turn electrical energy into infrared radiation, the wavelength of which is between 780mm and 1mm, is produced on the principle of thermal radiation. The wave is a powerful radiation of thermodynamic objects, so it is also known as thermal radiation, which accelerates the drying of the printing ink. Infrared IR-A (780nm-1400nm) is typically used. Infrared lamps are usually divided into near infrared light and far infrared light.

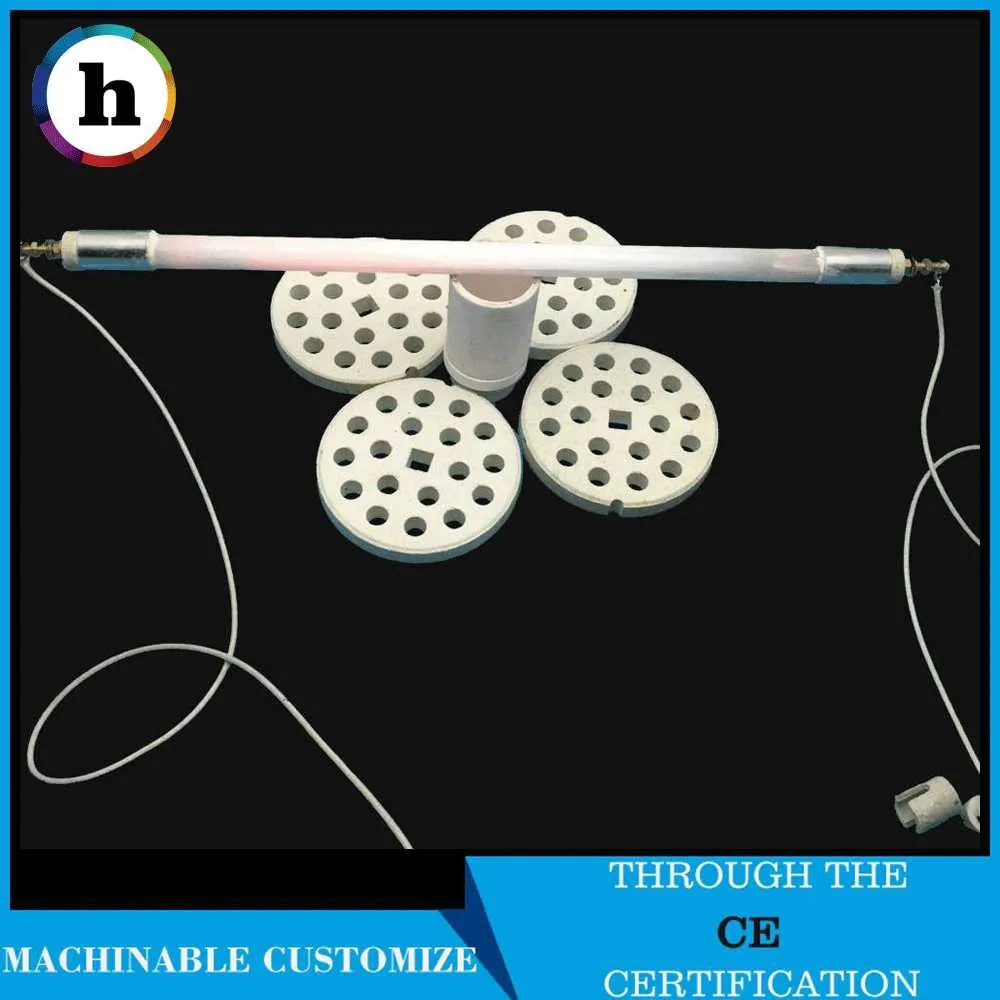

A. Far infrared lamps are made of Milky quartz or ceramic tube. The characteristic is fast heating up, uniform heating, good penetration, small thermal inertia. It just needs 1-3 minutes to reach the component temperature, and the high power radiation conversion efficiency reaches 60%-75%. It will not crack in hot or cold condition, with the features of energy saving and long service life.













B. Near infrared lamps IR-A (780-1400nm,1400-3000nm), the characteristic of which is fast heating up, high efficiency, and the convenient control in the heating process, such lamp tubes are divided into single-pipe form, double pipe form and straight pipe form.

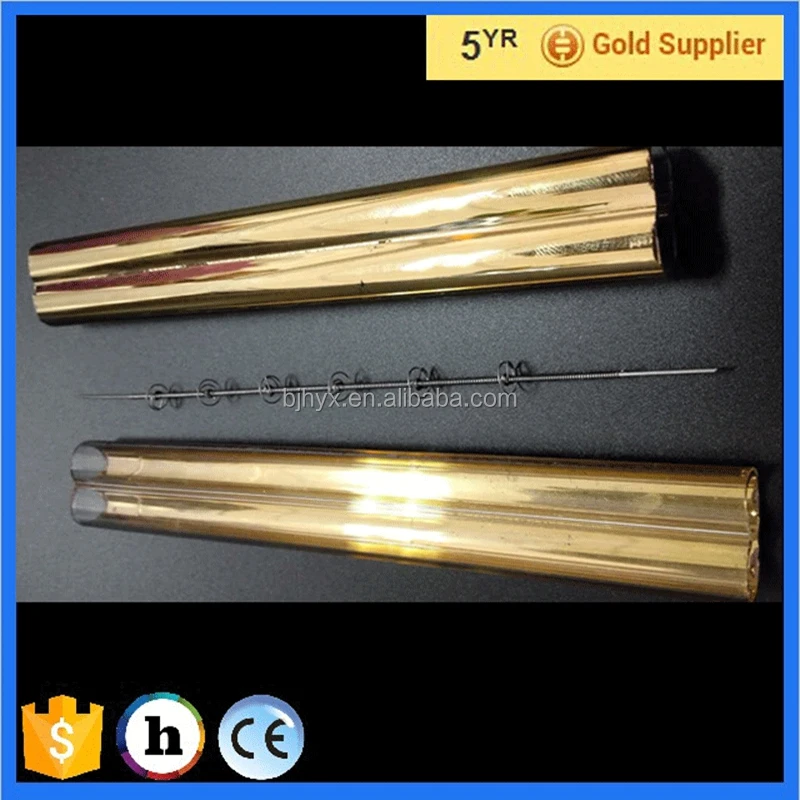

To improve thermal efficiency and save energy, the different angles of the single and double -pipe infrared lamp can be coated with high performance and durable gold-coated reflective layer to achieve above 96% emission efficiency and extend the service life of the lamp.



Gold-coated reflective layer can considerably lower the temperature of non-heating in the reverse side, reducing the high temperature of equipment and furnace body and saving the reflector. Gold-plated or ceramic–plated reflective layer can concentrate heat in the heating direction to improve the heat efficiency and save electric energy.

It is recommended to use gold-plated layer when the lamp surface temperature is lower than 800 ℃. When the temperature is higher than 800 ℃, it is recommended to use ceramic-plated reflection layer, which can resist 1000 ℃.



Except the standard plated layer of 180 degrees (semi-circle), the plated layer of 270 degrees (3/4 circle) and other angles can be produced according to the users requirements.









TradeManager- cn1510875316

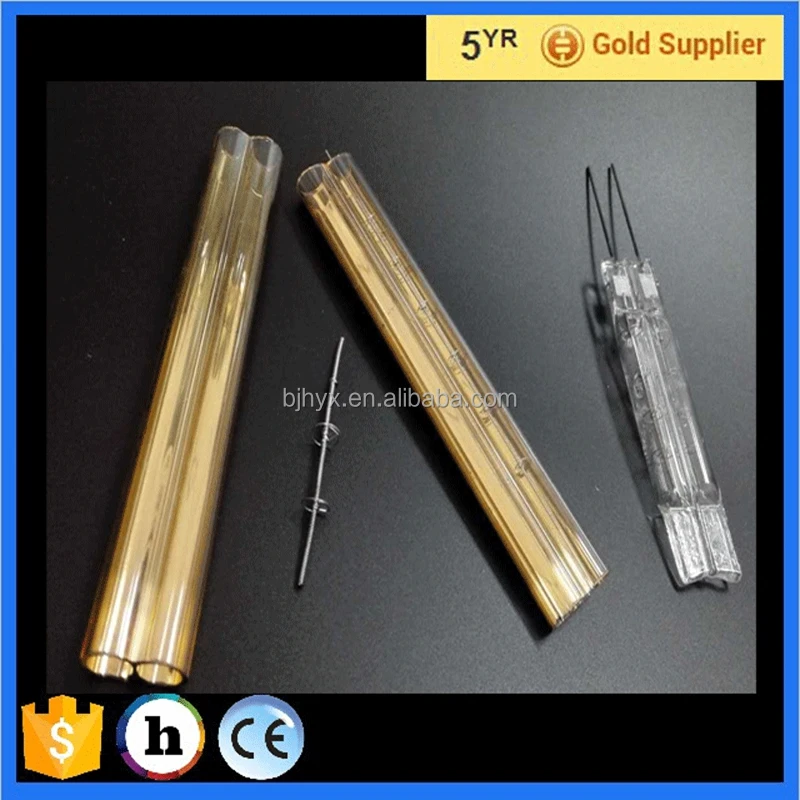

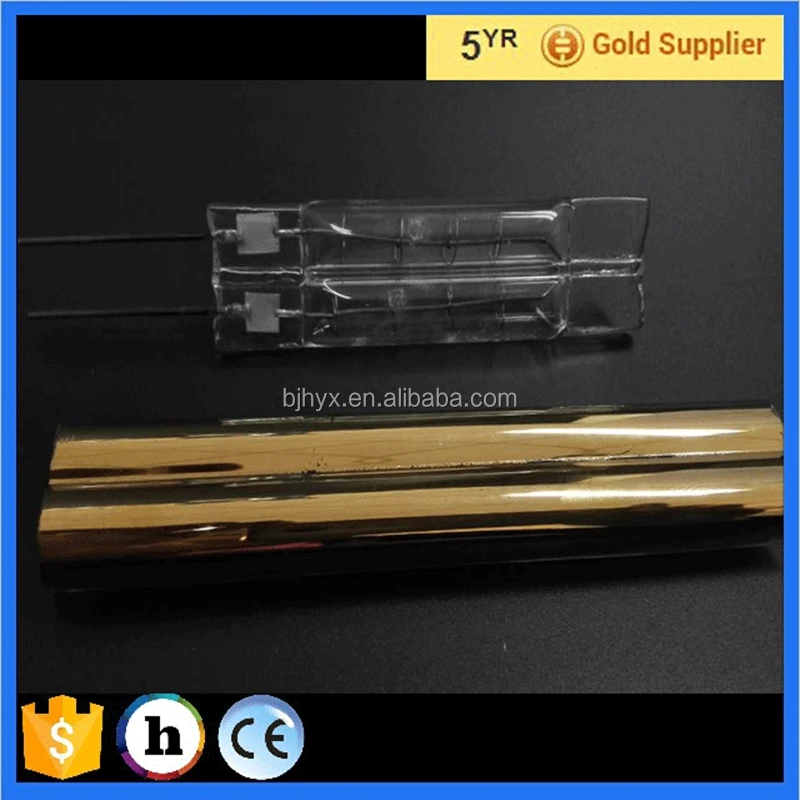

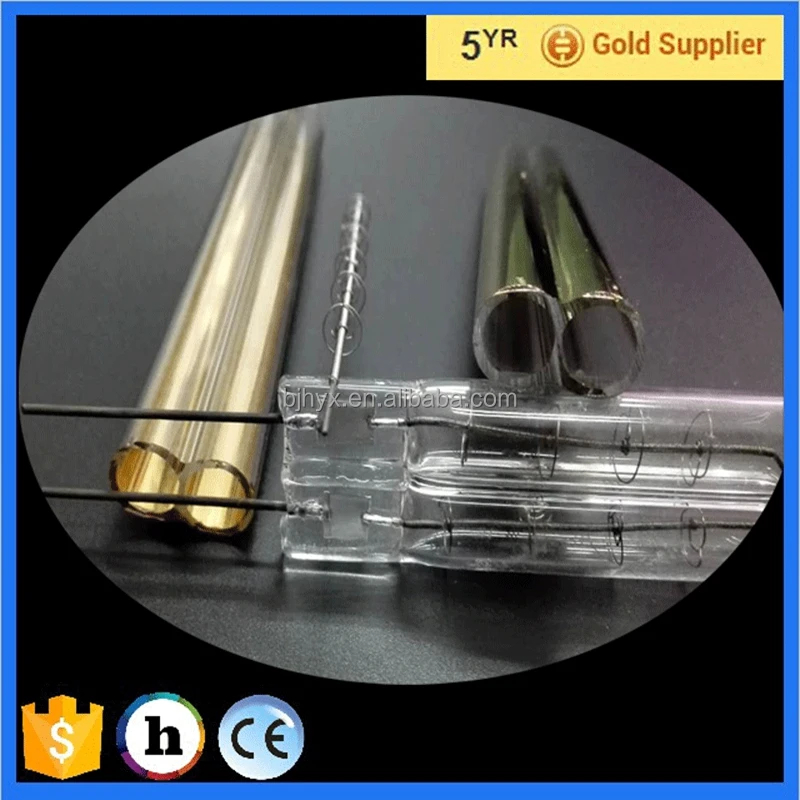

There are two options single tube and double tube

Different length can be customized

For more information, pls feel free to contact us, we will offer you more information,

and the best goods, most advantage price and good service all the time.
