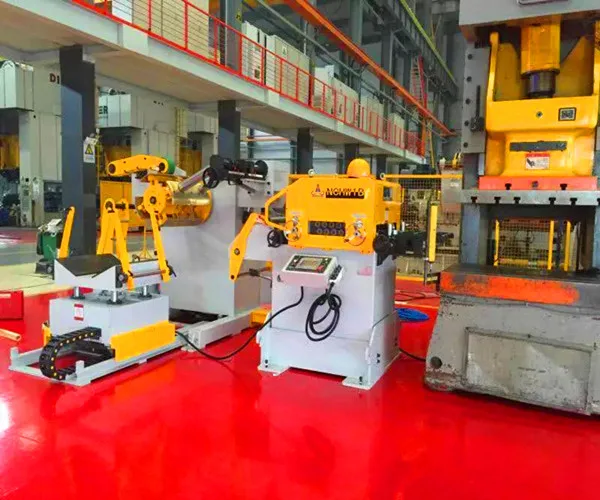

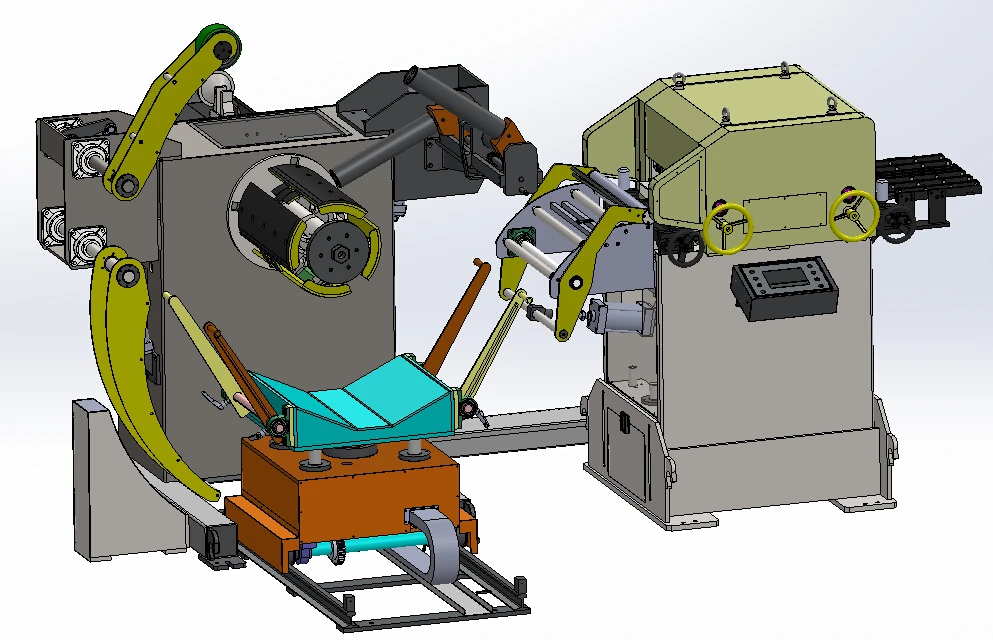

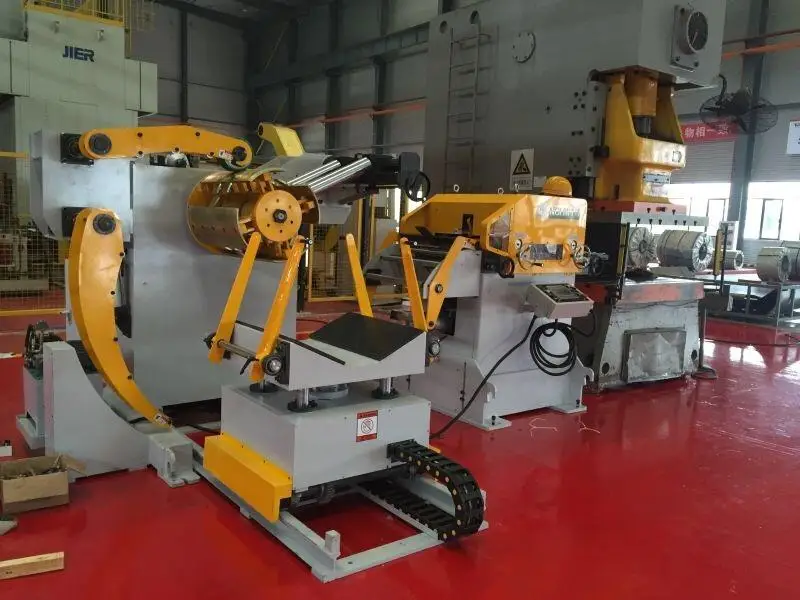

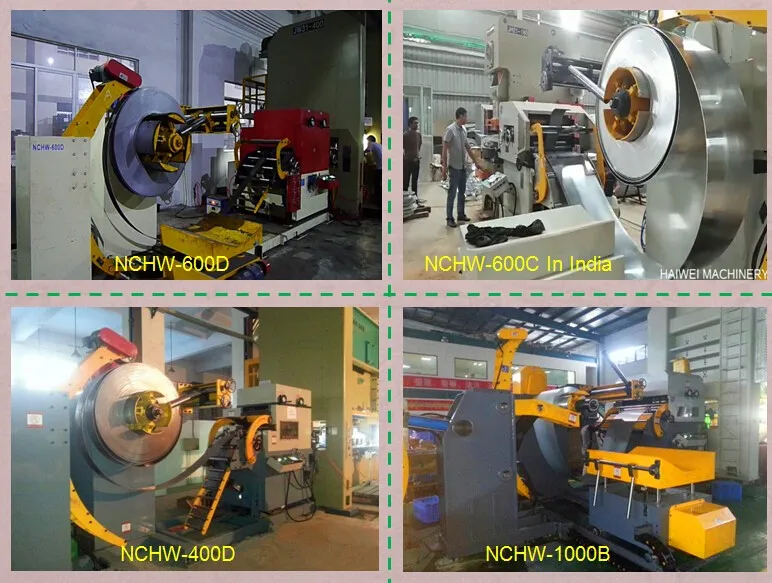

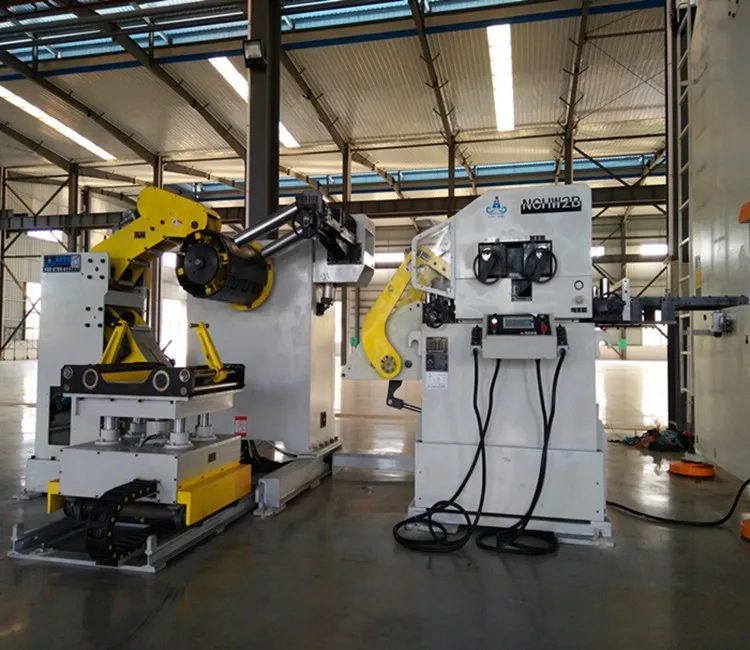

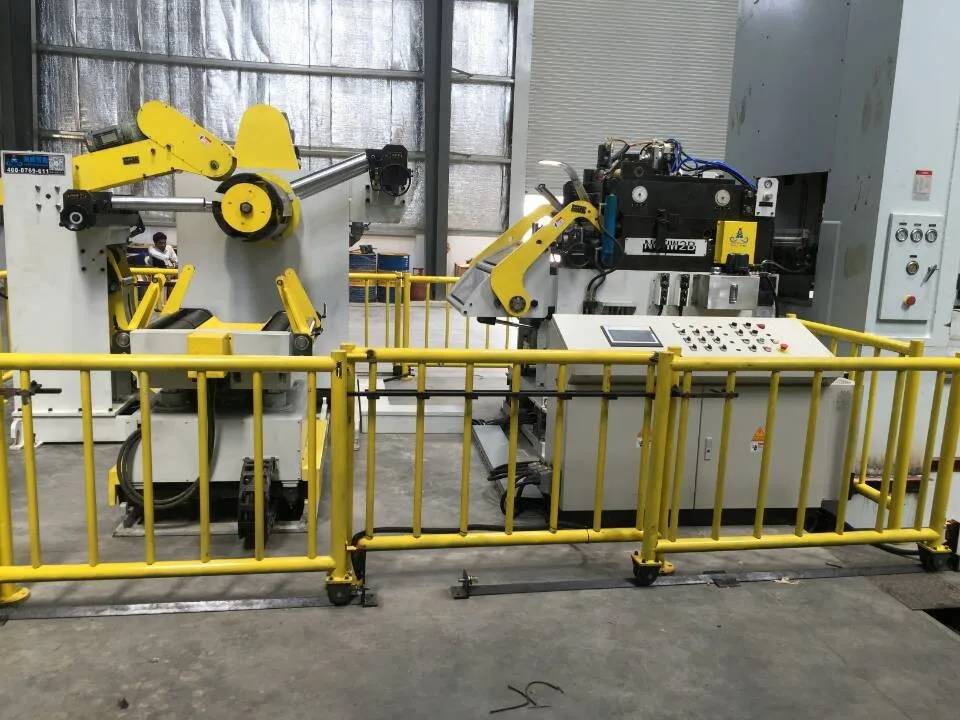

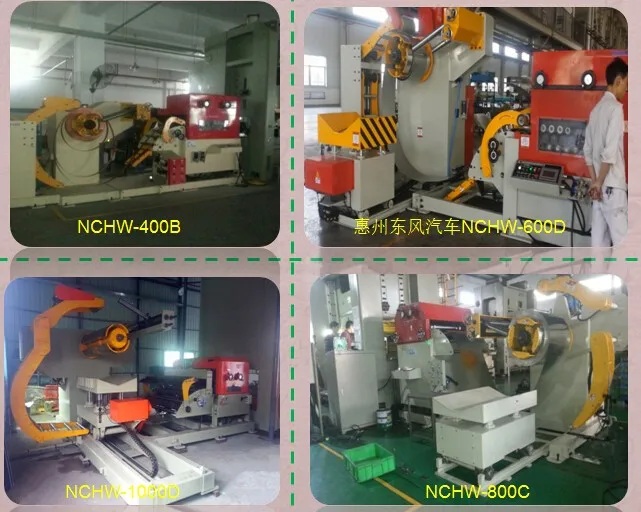

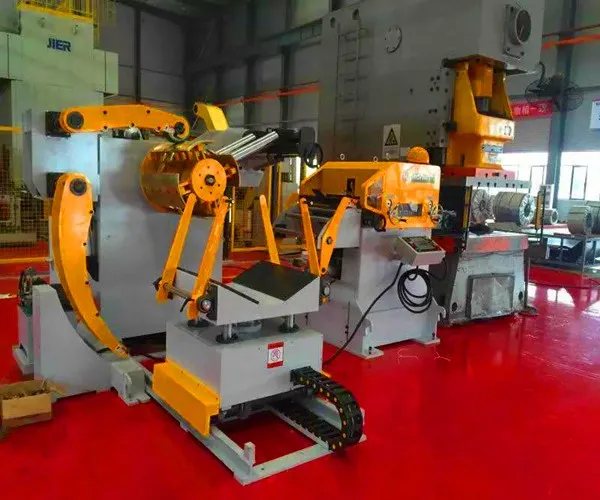

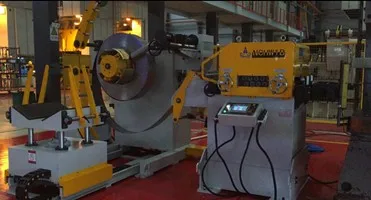

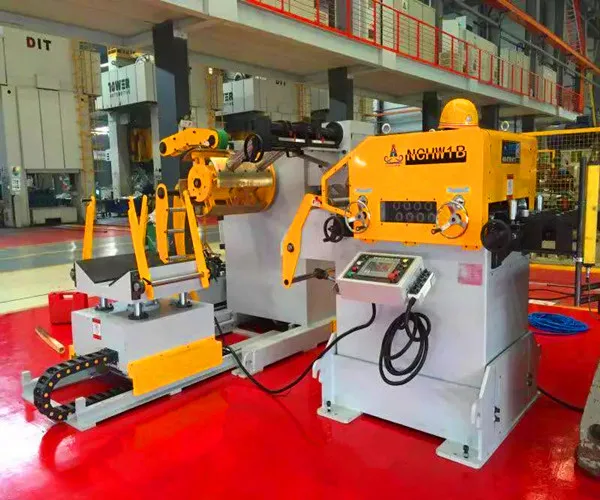

HAIWEI 3 in 1 decoiler straightener feeder for press

1. For decoiler part:
(1). Mandrel hydraulic expansion.

(2). Press arm device equipping with PU wheel to prevent scraching coil surface.

(3). Limit arm device or A shaft bar. Clamp & guide coil in width directly, preventing coil slid during running.

(4). Spindle was driven by AC motor+inveter, payoff strips smoothly and speed adjustable.
(5). Loop contol method: Electric eye loop control system.
(6). Pneumatic disc brake device.

(7). Hydraulic taikstock arm device(OPTIONAL part). It was mainly used to support decoiler's spindle on one end, especially coil weight is heavier than 10T, making the decoiler have enough loading capacity and long life time.

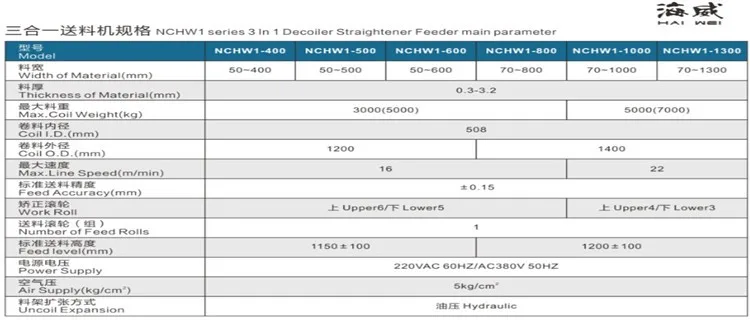

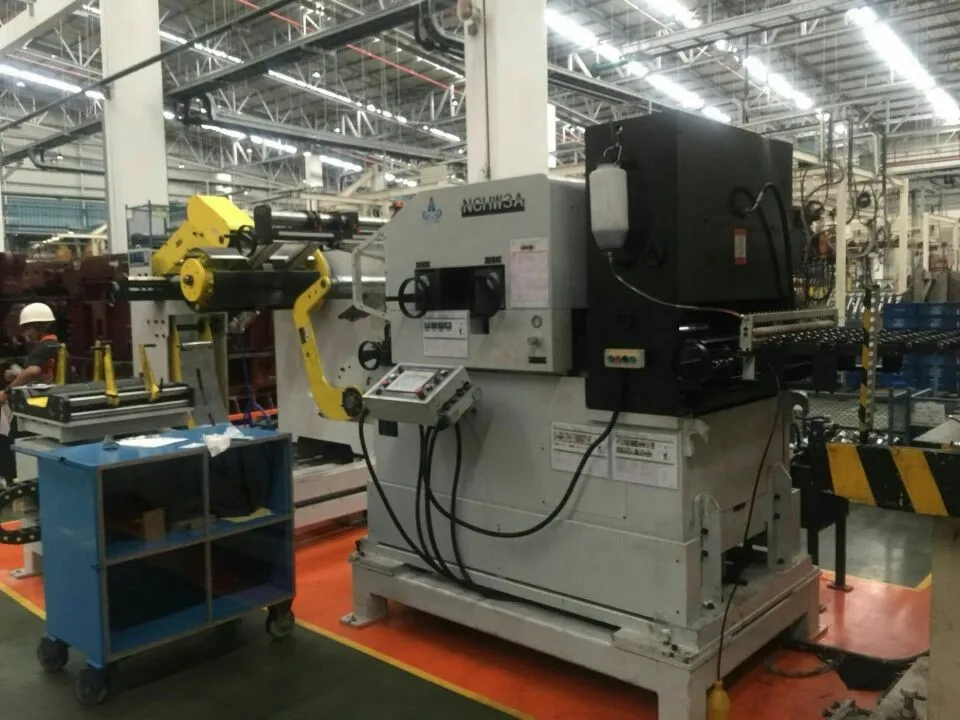

2. For straightener feeder part:

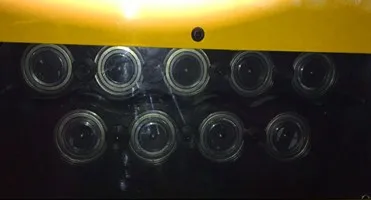

1). Feeding and straigtening roller material is GCr15, finished heat treament, hard chrome plated, grind etc, surface hardness comes HRC 58-60.
2). Driven by servo motor+conveyor belt, power transmitted via gears
3). Backup roller device. There are a column of backup roller set arranged on both upper and lower straightening rollers, enhancing machine has enough straightening capaity, especially for high tensile steel, stainless steel etc.

4). Straightening roller gap ELECTRIC adjustment device(Optional part). Driven by 2 set servo motor+gear box to driven upper straightening roller up and down to adjsut straightener roller gap.
5). Bend arm device and material entrance assist device. They are mainly used to insert and guide strip head into straightener entrance automatically and conveniently.
6). Pass line height ELECTRIC adjustment device. Driven by AC motor via chains+SWL(Screw worm Lift device)

Advantages of our 3 in 1 uncoiler straightener feeder than others:
1. It was designed, manufactured by ourself engineer team and workers, program also made by our engineers. We are professional on SIEMENS system and MITSUBISHI system, it also can be cutomized according to buyer's requirements.

2. Standard HMI operation manual language are English and Chinese, but it also can be made of the buyer's required language, such as Spanish, Portuguese, Polish etc(refer to the following image).

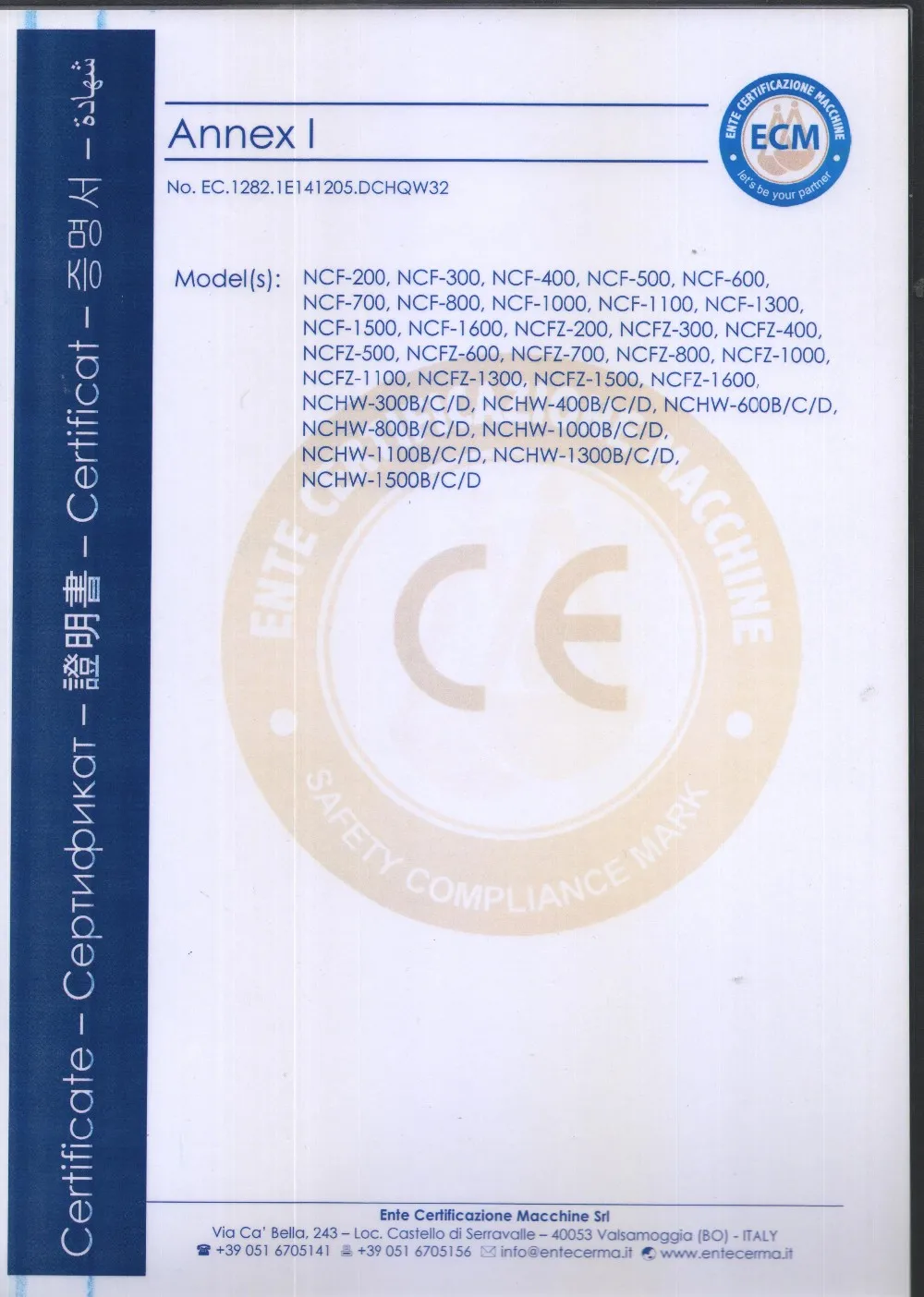

3. It was CE certificated. Reliable both on sequrity and actual usage etc.

4. It can be added strip oil feeder and customized of flip-top according to buyer's requirements and actual need in practice.

Detailed Images

Machine Parts

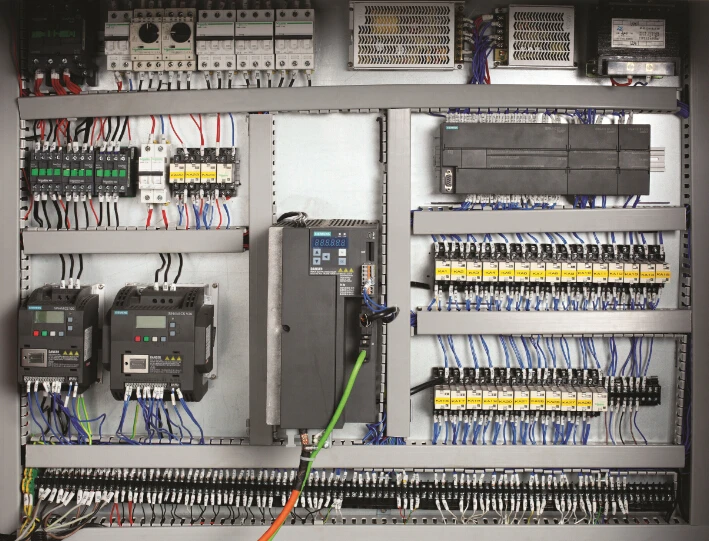

Name: control board

Brand: Siemens

Original: Simens China factory

Equipped with Siemens servo motor driver, PLC, full sets of Schneider low voltage components, ensure machine has high sequrity.

Main Features

Name: HMI(Human Machine Interface)
Brand: Siemens
Original: Simens China factory
Machine equipped with all kinds of funtion buttons and manual operation box, the operator just need to put in production data in the HMI, machine will runs automatically.

Machine Parts

Name: Loading car
Brand:
Original: China
It was used to carry and install coil on decoiler's mandrel automatically, saving labor power and ensure security.

Main Features

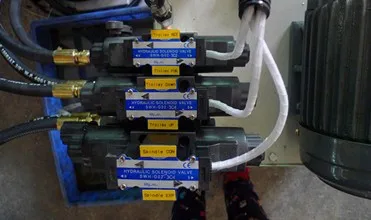

Name: Hydraulic solenoid valve
Brand:  YUTIEN
Original: Taiwan
The hydraulic solenoid valves are mainly used in the hydraulic staion, all them were exported from Taiwan, with CE certificate. Long life time and perfect performance.

Packing & Delivery

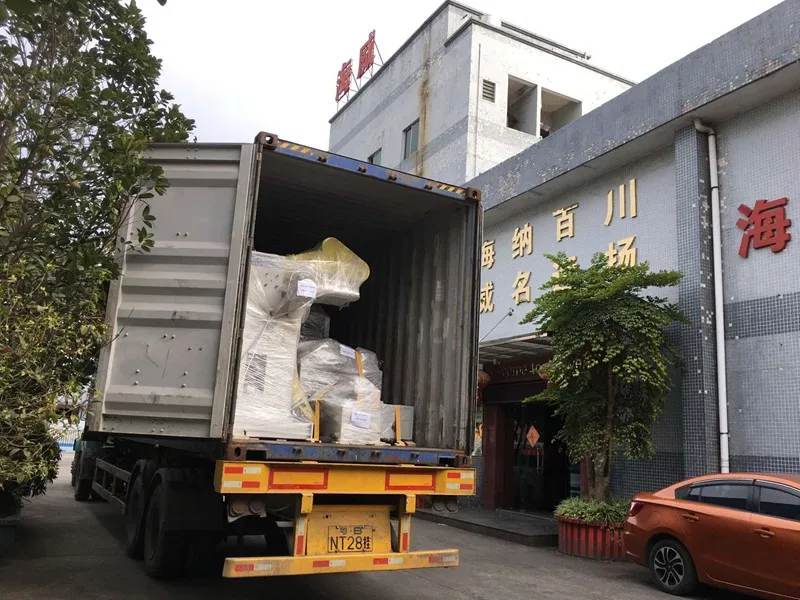

Packaging
Size	3.5m(L) * 1.7m(W) * 1.9m(H)
Weight	4T
Packaging Details	Machine will be well packed by wrapping film and fixed in the 20 foot FCL fasten firmly by wirerope, preventing machine movable in the container.
