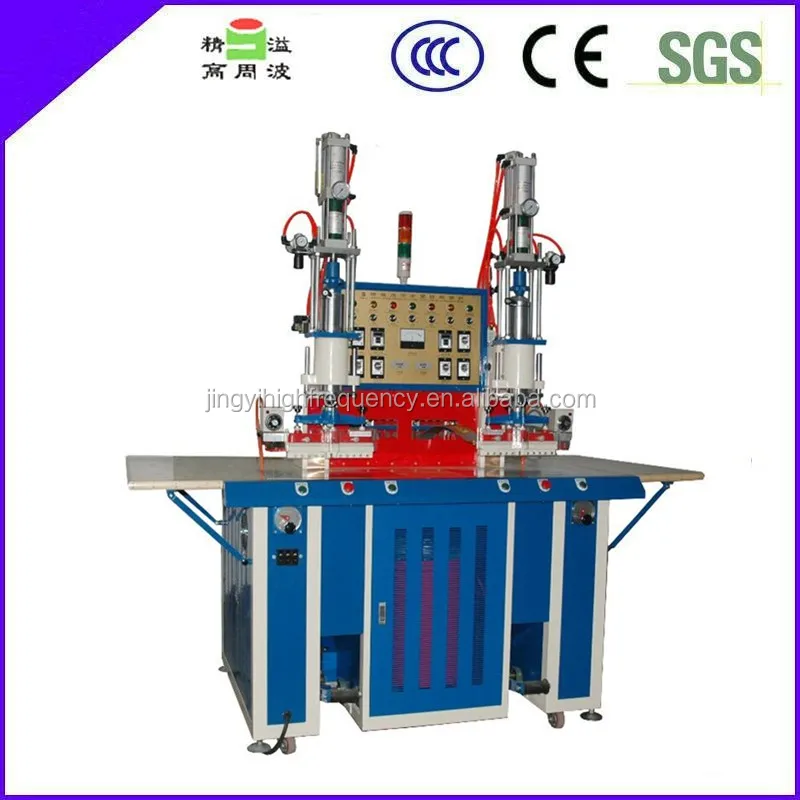

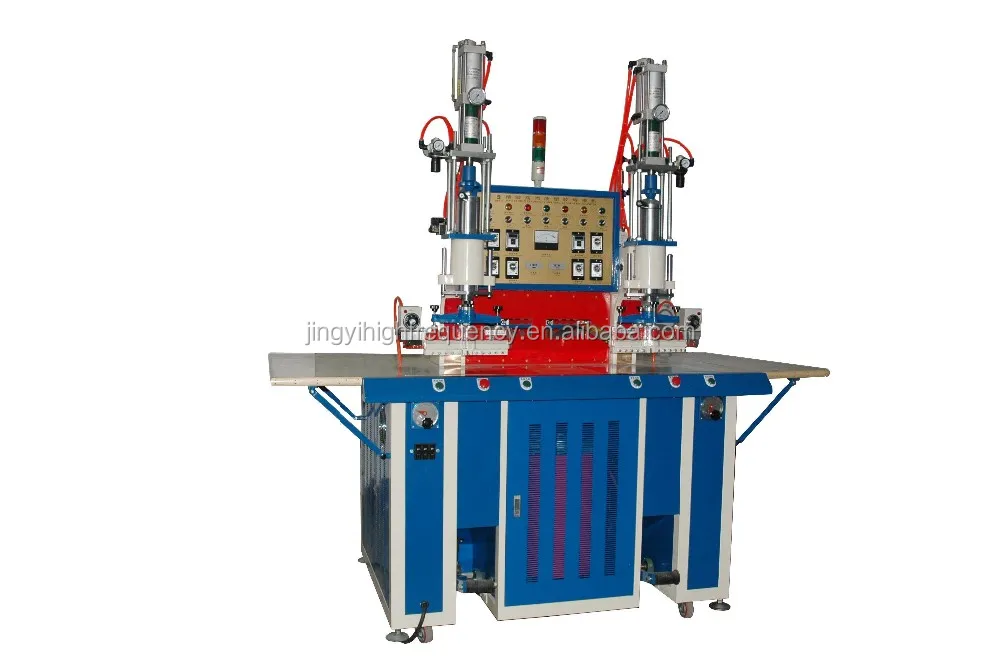

8KW HF System, Double Station High Frequency Plastic Welding Machine for Sport Shoe Upper
- Category: >>>
- Supplier: Dongguan Jingyi High Frequency Machinery Co. Ltd.
Share on (60494535219):
Product Overview
Description
8KW HF System, Double Station High Frequency Plastic Welding Machine for Sport Shoe Upper
Product Description
Application:
PVC stretch ceiling,TUP/PU Shoes upper, trademarks, raincoat,stickers,PVC umbrella,PVC bag,leather bag,handbag,beach bag,stationery,nameplate,inflatable toys,waterbed
Basic operating principles:
This machine is a high frequency device, whose self-exited oscillator of the electron tube can produce high frequency electromagnetic field. And the plastic to be processed is in the high frequency electromagnetic field between the upper and low electrode. When its interior molecules are polarized and produce heat automatically by mutual movement and friction, it will be welded with the pressure of the die.
Features:
1. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety Device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The frequency deviation caused by mistake is avoided.
4.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
Specifications:
| Model | JY5000F-2 | JY8000F-2 |
| H.F. Output | 5KW | 8KW |
| Oscillation Frequency | 27.12MHZ | |
| Power Supply | AC220/380/400/415/440V 3 PHASE(Customize) | |
| Input Power | 8.5KVA | 15KVA |
| Oscillation Tube | 7T85RB | 7T69RB |
| Max Pressure(kg) | Air Pressure 600kg/Oil Pressure 2000kg | |
| Max gap of electrodes(mm) | 80mm | |
| Stroke(mm) | 60mm | |
| Working table size | 300*500mm | 300*500mm |
| Operation mode | Pneumatic/Hydraulic | |
| Net weight(kg) | 400KG | 480KG |
| Gross weight | 450KG | 530KG |
| Package Size | 1700(L)x1200(W)x2150(H)mm | |
Machine Maintenance:
a. Add oil lubricant in each function parts every several days, and often wipe cleanly.
b. To cleanout and lubricate each parts of the machine every half year, clear away the dust in the parts of transformer, high voltage capacitor, blower fan and Resonant Cavity.
c. If the aluminium pan of the output adjusting capacitor and the capacitor in the side of resonant cavity, was ablated by caustic caused by dust or eyewinker, the caustic surface should be repair flatly and smoothly in time.

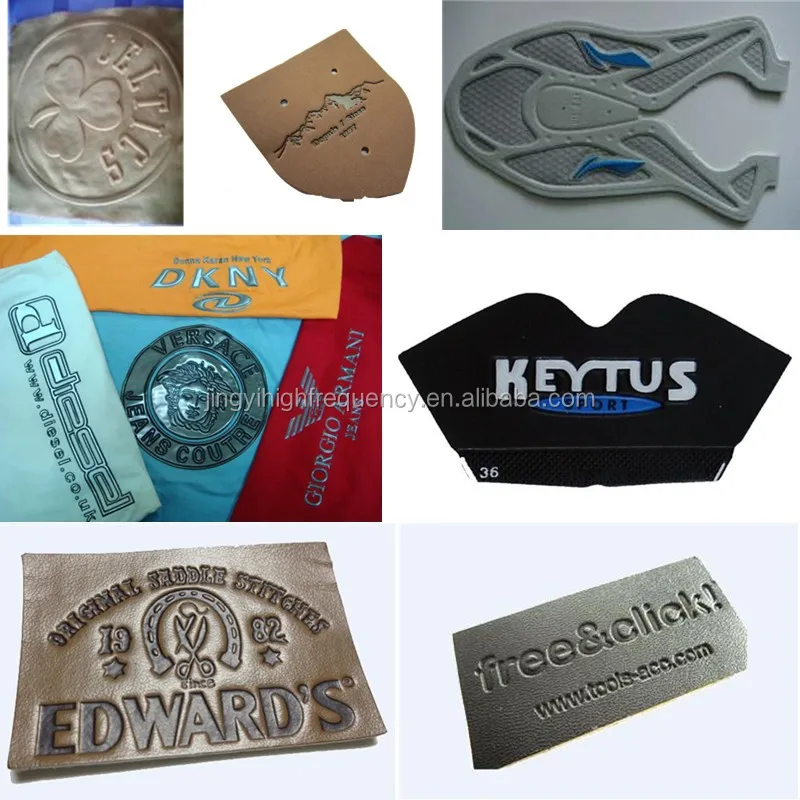

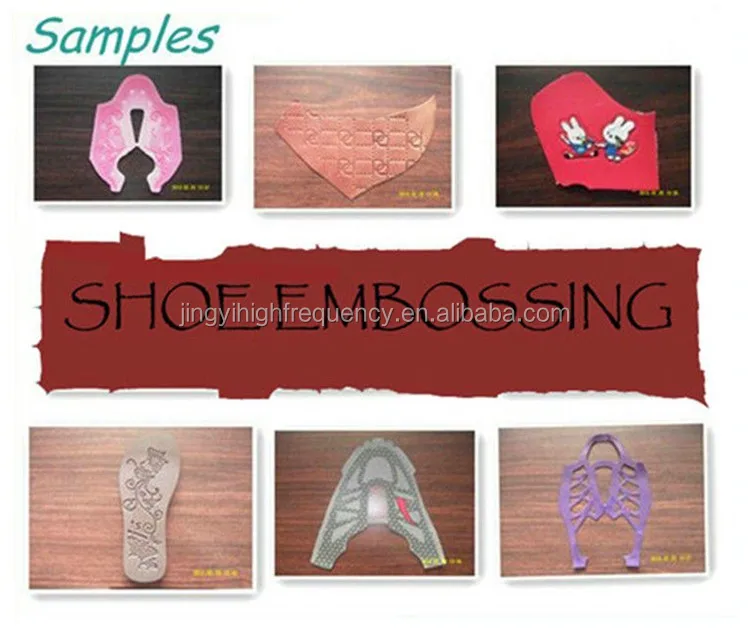

Samples:
Packaging & Shipping
Our Services
Service:
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visiting are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. 1 years warranty when you receive the goods, life long maintenance
2. 24-hours telephone service or whatsapp/wechat
3. A large stock of components and parts, easily-worn parts.

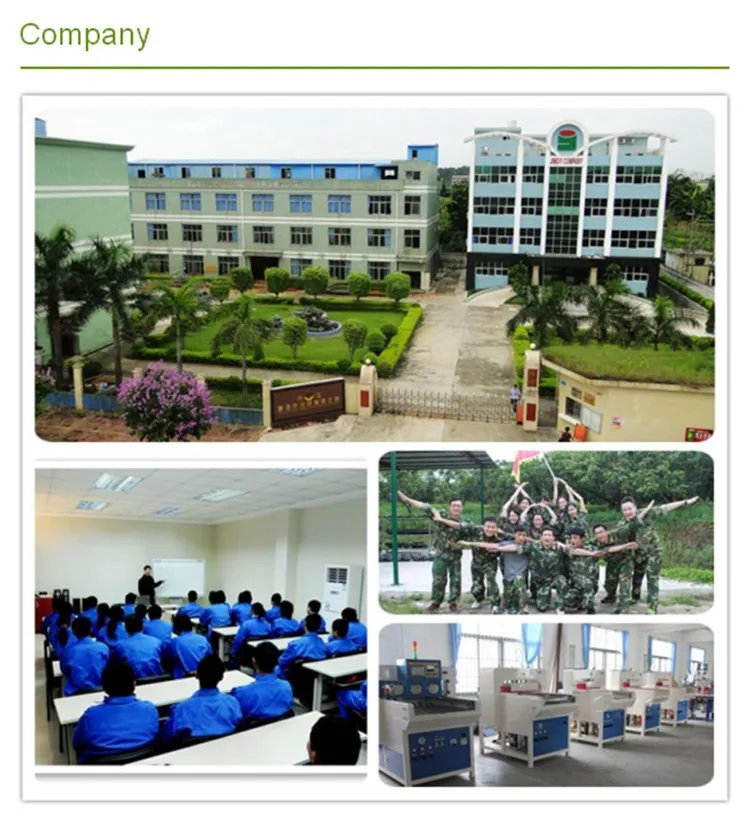

Company Information
Jing Yi High Frequency Welding Machines Factory has been focusing on the production of high-frequency welding machines since 1991. We are always keep upgrading our products to meet the need of the market with outputs 1,000 units annually. Moreover, we have gotten the system certification of ISO 9001,CE,SGS Approved in Feb. 2004 and obtained two national patents in August 2009.
Jing Yi boasts strong technical force, advanced production and testing facilities, perfect management. There are ten professional qualification certificate engineers in our company. We have the up-to-date products catering to the international market, which make our company in the leading post.
We are emphasized on setting up a perfect after-sale service system in the farther development.
“To be perfect, customer first, scientific management, keeping improving for excellence”,this is our long-term developing policy.
The complaint-free is the main goal that we will always strive for.
FAQ
Q: Are you factory?
A: Yes, We are a factory that all machine is made by ourselves and we can provide customize service (OEM, ODM) according to your requirement.
Q: Where is your factory? Can I visit your factory?
A: Our factory is located on DONG GUAN city which near SHENZHEN and Guangzhou City. We are warmly welcome you to visit our factory, we can pick you up when you come to DONGGUAN bus or train station.
Q: How to buy your machine?
A: Please send me an inquiry to our email, when we reach an agreement, we will sign a contract to confirm our order.
Q: What about your warranty?
A: All the spare parts of machine can be replaced for free within 1 year if it is broke (not including human factor).
Q: How long we will get the machine?
A: We usually choose the delivery by sea shipping, so once confirmed you full payment, We are ensured the delivery time within 7 days, and about 7-35 days (depends on the destination port) you will get the machine.
Q: Are we still needs to install the machine after we got?
A: We will debug the machine before we deliver to you. Also we will send you a video and manual to teach you how to use the machine.
Q: How can you guarantee we receive a good quality?
A: Firstly, we have a Q/C department to control the quality. When the machine was produced, we will send you the inspect video and pictures. Or you can come to our factory to inspect the machine property before you arrange shipment.
