USB адаптер Taidacent IEEE802.11 b/g/n, 150 Мбит/с, MT7601UN
- Category: WiFi Modules >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60494609669):
Product Overview
Description

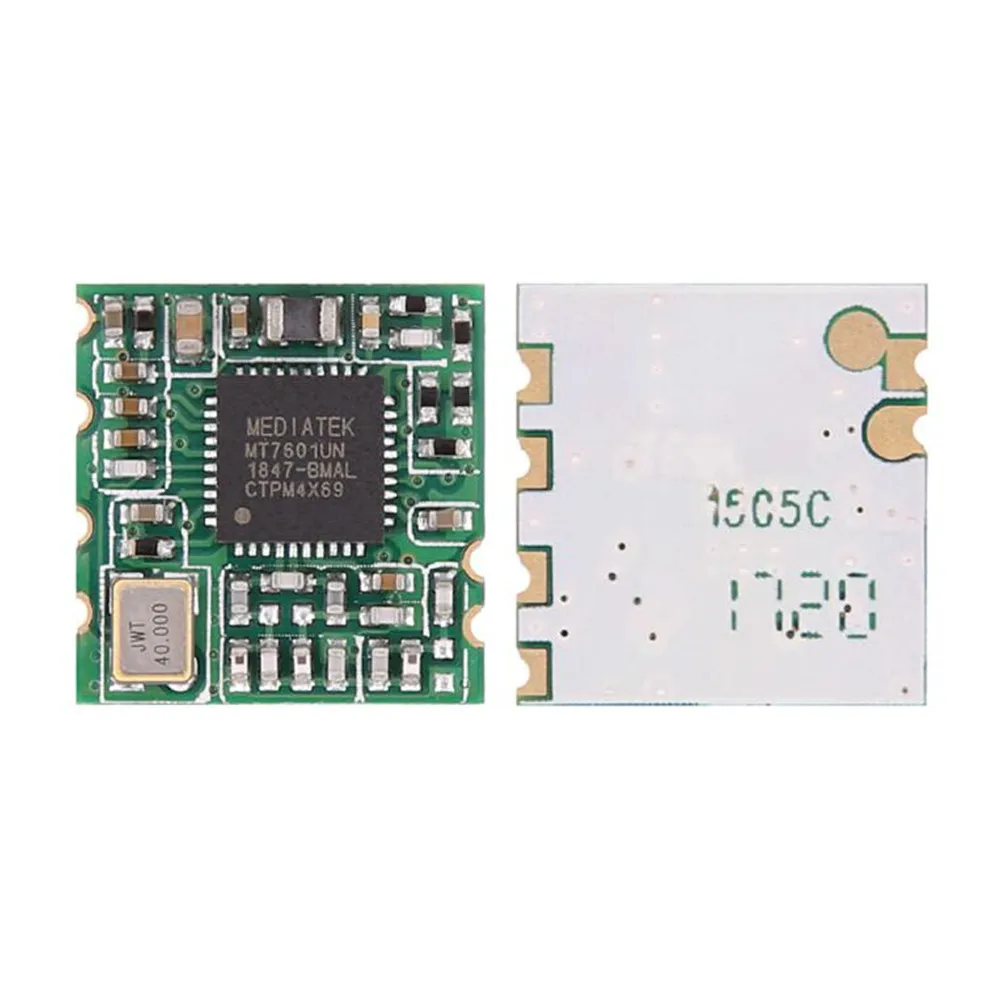

Taidacent IEEE802.11 b/g/n 150mbps WIFI Wireless USB Adapter Dongle Board MT7601UN MT7601 Usb Wifi Module
The MT7601UN is a highly integrated Wifi module which supports 150Mbps PHY rate. It fully complies with IEEE 802.11n and IEEE 802.11 b/gstandards, offering feature-rich wireless connectivity.At high standards, and delivering reliable, cost-effective throughput om
anextended distance.Optimized RF architecture and base band algorithmsprovide superb performance and low power consumption. Intelligent MACdesign deploys a high efficient DMA engine and hardware data processingaccelerators which offloads the host processor.The MT7601UN is designed to support standard based features in the areas of security, quality ofservice and international regulations, giving end users the greatestperformance any time and in any circumstance.
anextended distance.Optimized RF architecture and base band algorithmsprovide superb performance and low power consumption. Intelligent MACdesign deploys a high efficient DMA engine and hardware data processingaccelerators which offloads the host processor.The MT7601UN is designed to support standard based features in the areas of security, quality ofservice and international regulations, giving end users the greatestperformance any time and in any circumstance.
Feature
IEEE802.11 b/g/n client
Embedded high-performance 32-bit RISC microprocessorHighly integrated RF with 55nm CMos technology
1T1R mode with support of 150Mbps PHY rateIntegrate high efficiency switching regulatorBest-in-class power consumption performanceCompact 5mm x 5mm QFN40L package
1/2/3/4-wire PTA Wi-Fi / Bluetooth coexistence support802.11 d/h/k compliant
Security support for WFA WPA/WPA2 personal, wPS2.0, WAPISupports 802.11w protected managed frames
Qos support of WFA WMM, WMM PS
Supports Wi-Fi Direct
Fully compliance with USB v2.0 High-speed modePer packet transmit power control
Antenna diversity
Auto-calibration
Embedded high-performance 32-bit RISC microprocessorHighly integrated RF with 55nm CMos technology
1T1R mode with support of 150Mbps PHY rateIntegrate high efficiency switching regulatorBest-in-class power consumption performanceCompact 5mm x 5mm QFN40L package
1/2/3/4-wire PTA Wi-Fi / Bluetooth coexistence support802.11 d/h/k compliant
Security support for WFA WPA/WPA2 personal, wPS2.0, WAPISupports 802.11w protected managed frames
Qos support of WFA WMM, WMM PS
Supports Wi-Fi Direct
Fully compliance with USB v2.0 High-speed modePer packet transmit power control
Antenna diversity
Auto-calibration
Product Description
Specification
item | value |
Model Number | TDJLMT7601UN |
Type | WiFi Module |
Country of Origin | China |
Brand | Taidacent |
Chipset | MT7601 |
Application | USB Wifi network dongle |
