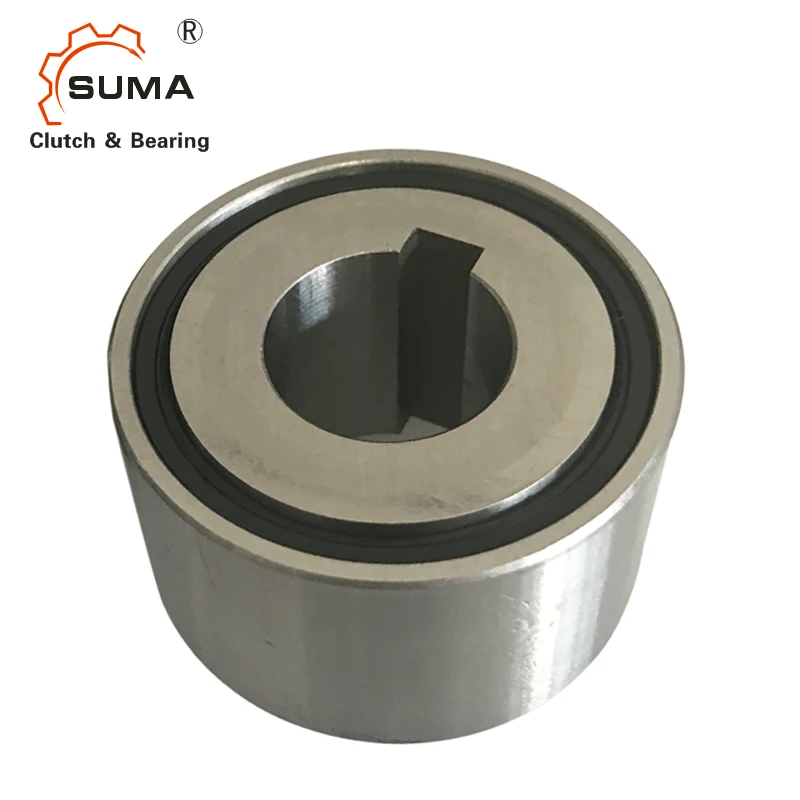

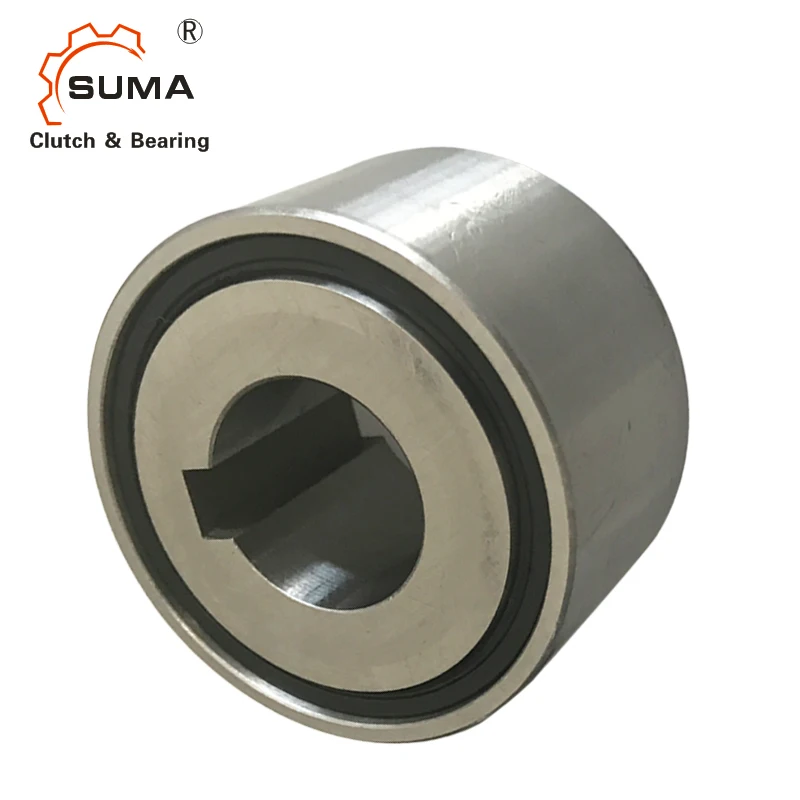

FND 470M FND 470Z Machinery односторонний роликовый подшипник сцепления
- Category: Other Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60494727962):
Product Overview
Description
FND 470 M Machinery One Direction Roller Bearing Clutch
Product Description
Complete Freewheel Clutch FND SERIES
Data Sheet
| Item | FND |
| Material | GCr15 |
| Inner dia. | 40 mm |
| Outer dia. | 75 mm |
| Width | 34 mm |
| Torque | 550 Nm |
| Weight | 0.69 kg |
| Item No. | 300765 |
| Port | Shanghai;Ningbo |
| Delivery time | 10 - 15 days |
Characteristics
Width:34 mm
Operating temperature:max. 100° C
Components
| Components | |
| Freewheel clutch | |
| insert element* | FE 400 M (meander spring) |
| FE 400 Z (tension spring) | |
| + Raceways | Bearing steel, hardened and ground |
| inner ring | Keyway per DIN 6885, Sheet 1 |
| Tolerance: P9 with back clearance | |
| outer ring | Press fit |
| + Ball bearing | Integrated |
| + Roller bearing | RL 400 |
| + Lubrication | Lifetime oil lubrication |
Different Sizes For Your Reference
Data

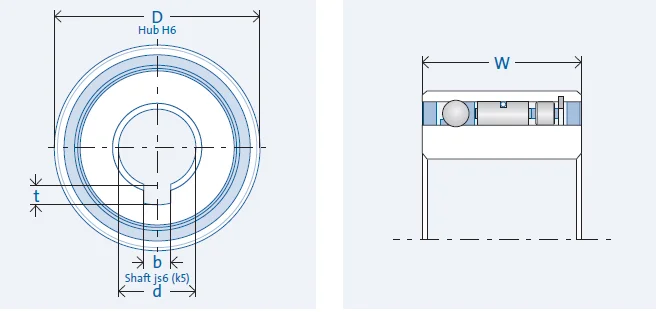

Drawing legend
d=inner diameter D=outer diameter W = width T = torque n = rotation speed
C = load capacity b = keyway width t = keyway depth
| Designation | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | b | t | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | [mm] | [mm] | ||
| FND 437 M | 15 | 41 | 34 | 176 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300737 |
| FND 437 Z | 15 | 41 | 34 | 161 | 1,700 | 8,962 | 8,661 | 0.24 | 5 | 2.3 | 300738 |
| FND 442 M | 20 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300743 |
| FND 442 Z | 20 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.28 | 6 | 2.8 | 300744 |
| FND 453 M | 25 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300751 |
| FND 453 Z | 25 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.46 | 8 | 3.3 | 300752 |
| FND 459 M | 30 | 64 | 34 | 411 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300758 |
| FND 459 Z | 30 | 64 | 34 | 381 | 1,100 | 12,691 | 16,320 | 0.55 | 8 | 3.3 | 300760 |
| FND 463 M | 35 | 68 | 34 | 462 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306528 |
| FND 463 Z | 35 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.6 | 10 | 3.3 | 306529 |
| FND 470 M | 40 | 75 | 34 | 550 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300765 |
| FND 470 Z | 40 | 75 | 34 | 509 | 1,000 | 14,050 | 19,840 | 0.69 | 12 | 3.3 | 300766 |
| FND 473 M | 45 | 78 | 34 | 588 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306532 |
| FND 473 Z | 45 | 78 | 34 | 543 | 1,000 | 14,128 | 19,896 | 0.73 | 14 | 3.8 | 306533 |
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping direction.

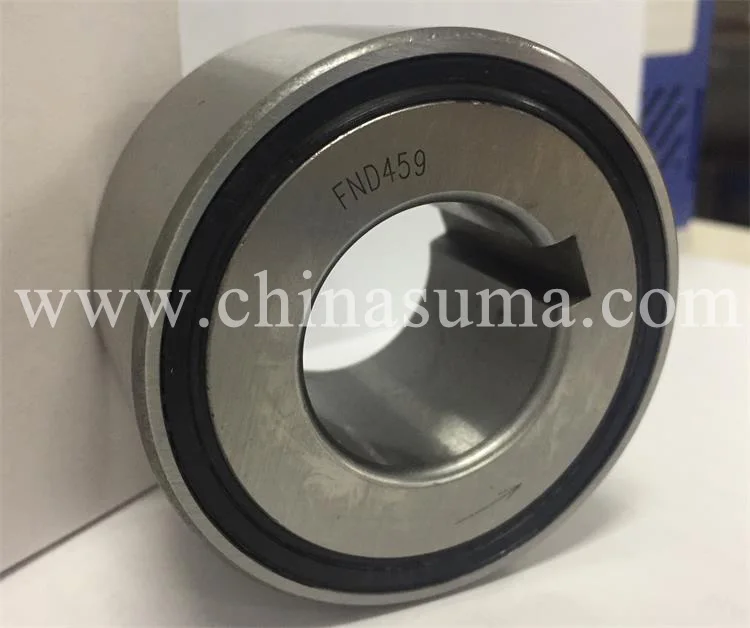

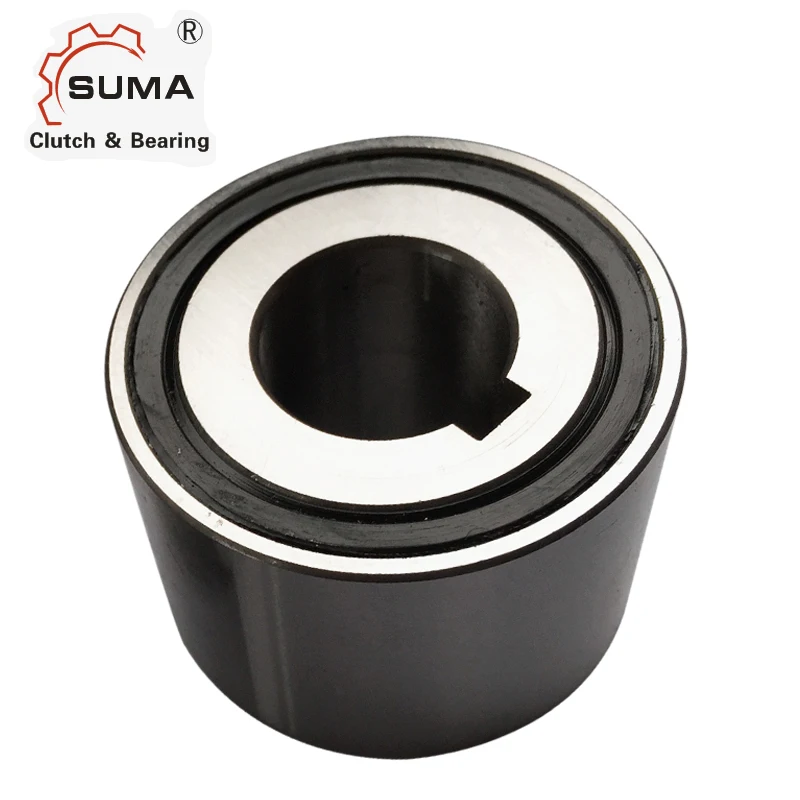

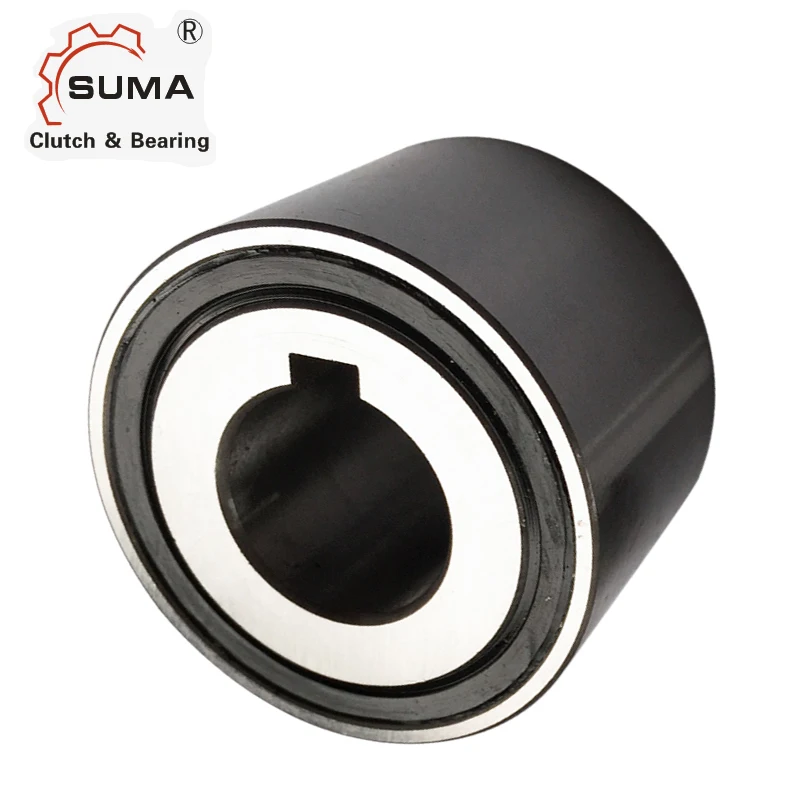

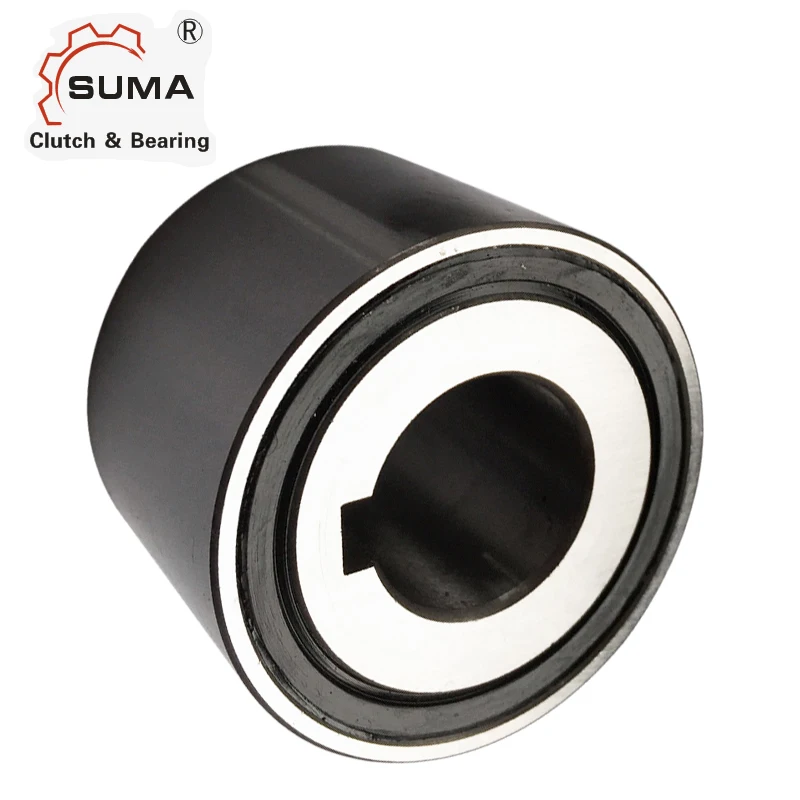

Detailed Image
