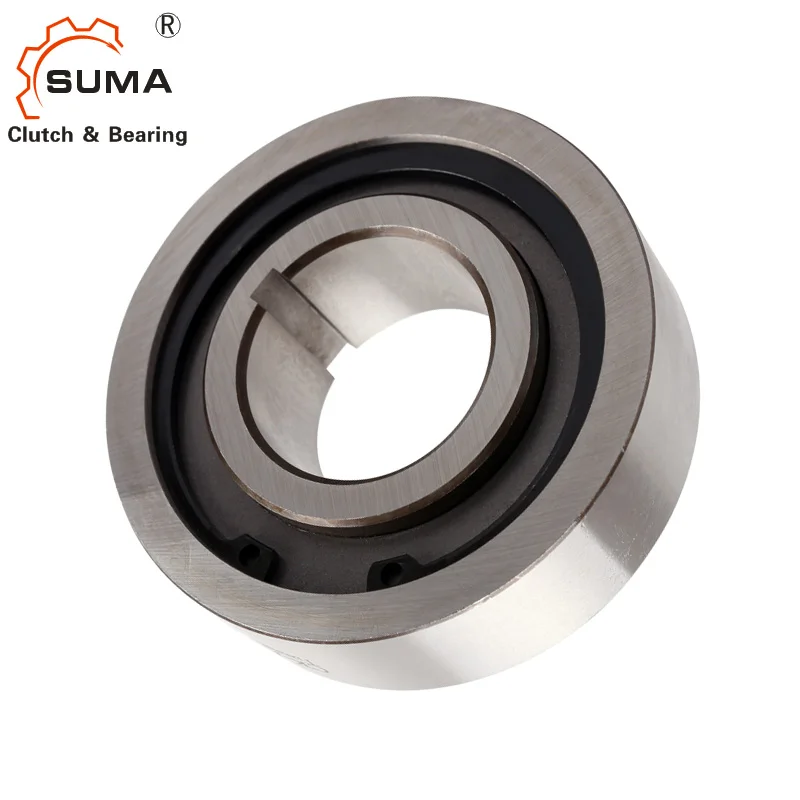

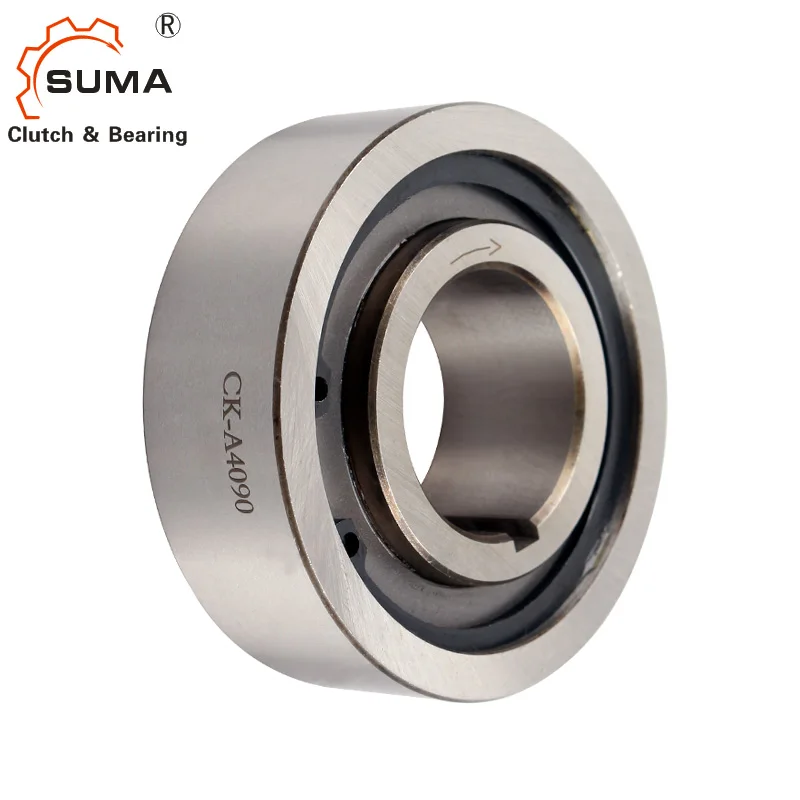

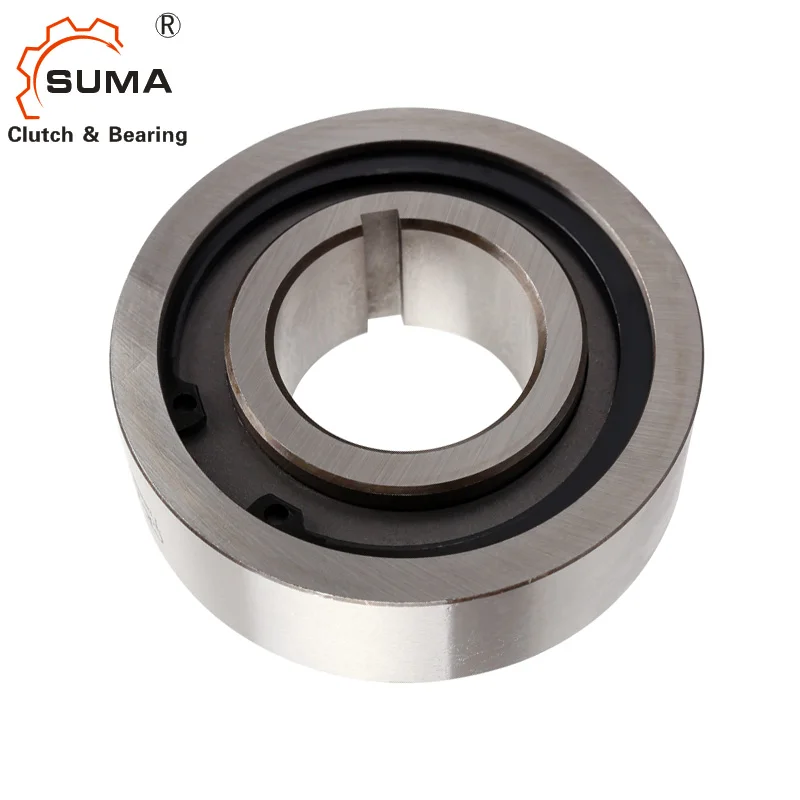

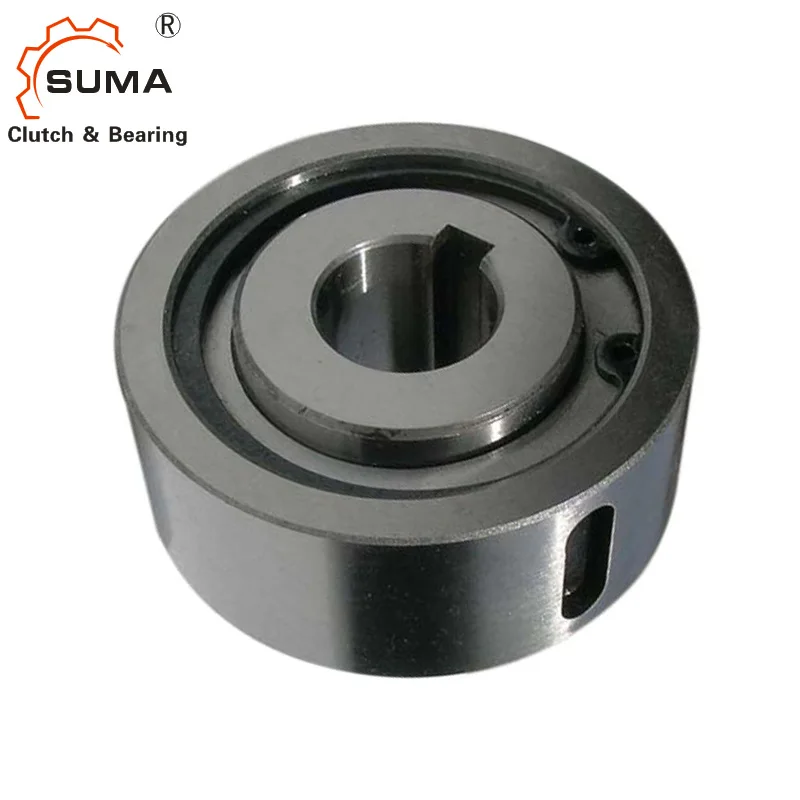

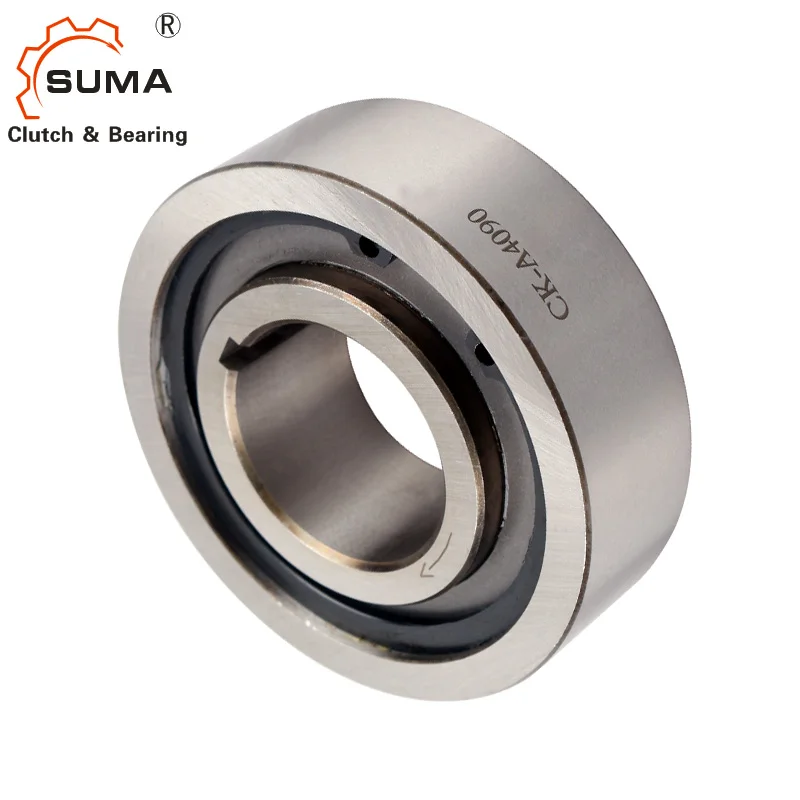

CK A40100 China Clutch Manufacturer One Way Clutch Sprocket

Name: CK A40100 China Clutch Manufacturer One Way Clutch Sprocket
SKU: 60494814173
Price: $20.00 - $40.00 USD
Availability: InStock

Price:$20.00 - $40.00

Quantity:

Product Description

1our products

CK-A40100 China Clutch Manufacturer One Way Clutch

Data Sheet

Item	CK-A
Material	GCr15
Inner dia.	40 mm
Outer dia.	100 mm
Width	34 mm
Weight	1.2 kg
Nominal Torque	780 Nm
Overrunning Limiting Speed(Inner Race)	560 r/min
Overrunning Limiting Speed(Outer Race)	200 r/min
Port	Shanghai;Ningbo
Delivery time	15-20 days
Package	Singer package or as your requirements

Different Sizes For Your Reference

Model	Nominal Torque	Overrunning Limiting Speed (r/min)		Dimension [mm]						Bearing	Weight
				Outer race			Inner race
	[N.m]	Inner race	Outer race	D[h7]	B	bwxtw	d[h7]	C	bnxtn		[kg]
CK-A1542	54	1750	500	42	23	3x1.8	15	24	3x1.4	6302	0.17
CK-A1747	75	1575	400	47	23	3x1.8	17	24	3x1.4	6304	0.21
CK-A2052	95	1400	400	52	23	3x1.8	20	24	3x1.4	6305	0.25
CK-A2562	145	1260	350	62	23	4x2.5	25	24	4x1.8	6306	0.35
CK-A3072	208	1050	300	72	23	5x3.0	30	24	5x2.3	6307	0.47
CK-A3580	340	815	200	80	28	8x4.0	35	30	6x2.8	6308	0.69
CK-A4090	462	700	200	90	28	8x4.0	40	30	6x2.8	6309	0.87
CK-A45100	783	560	200	100	28	8x4.0	45	30	6x2.8	6310	1.07
CK-A50110	850	525	180	110	28	10x5.0	50	30	8x3.3	6311	1.59
CK-A60130	1050	490	180	130	34	10x5.0	60	36	8x3.3	6312	2.16
CK-A65140	1224	490	180	140	34	10x5.0	65	36	10x3.3	6313	2.49
CK-A70150	1850	455	150	150	40	10x5.0	70	42	10x3.3	6314	3.36
CK-A75160	2140	455	150	160	40	12x5.0	75	42	12x3.3	6315	3.81
CK-A80170	2450	420	150	170	40	12x5.0	80	42	12x3.3	6316	4.29
CK-A1250	31.5	1750	400	50	22	3x1.8	12	24	3x1.4		0.24
CK-A1855	50.0	1575	350	55	22	4x2.5	18	24	4x1.8		0.28
CK-A2060	63.0	1600	350	60	22	6x3.5	20	24	6x2.8		0.33
CK-A2563	100	1260	350	63	24	6x3.5	25	26	6x2.8		0.37
CK-A2563T	140	1260	350	63	30	6x3.5	25	32	8x3.3		0.68
CK-A2870	180	1050	300	70	30	8x4.0	28	32	8x3.3		0.60
CK-A3080T	340	875	200	80	30	8x4.0	30	32	8x3.3		0.75
CK-A3585	400	815	200	85	30	8x4.0	35	32	8x3.3		1.00
CK-A35100	780	875	200	100	32	10x5.0	35	34	10x3.3		1.34
CK-A35140	1000	490	180	140	35	8x4.0	35	35	10x3.5		3.28
CK-A40100	780	560	200	100	34	10x5.0	40	34	10x3.3		1.20
CK-A40110	850	700	180	110	32	10x5.0	40	34	10x3.3		1.19
CK-A50125	1000	490	180	125	36	14x5.5	50	35	14x3.8		2.21
CK-A50130	1050	560	180	130	36	14x5.5	50	38	14x3.8		3.02
CK-A55160	2000	455	150	160	52	16x6.0	55	55	16x4.3		6.96
CK-A58130	1050	490	180	130	36	14x5.5	58	38	14x3.8		2.60
CK-A60180	2000	420	140	180	52	18x6.0	60	52	18x4.4		7.40

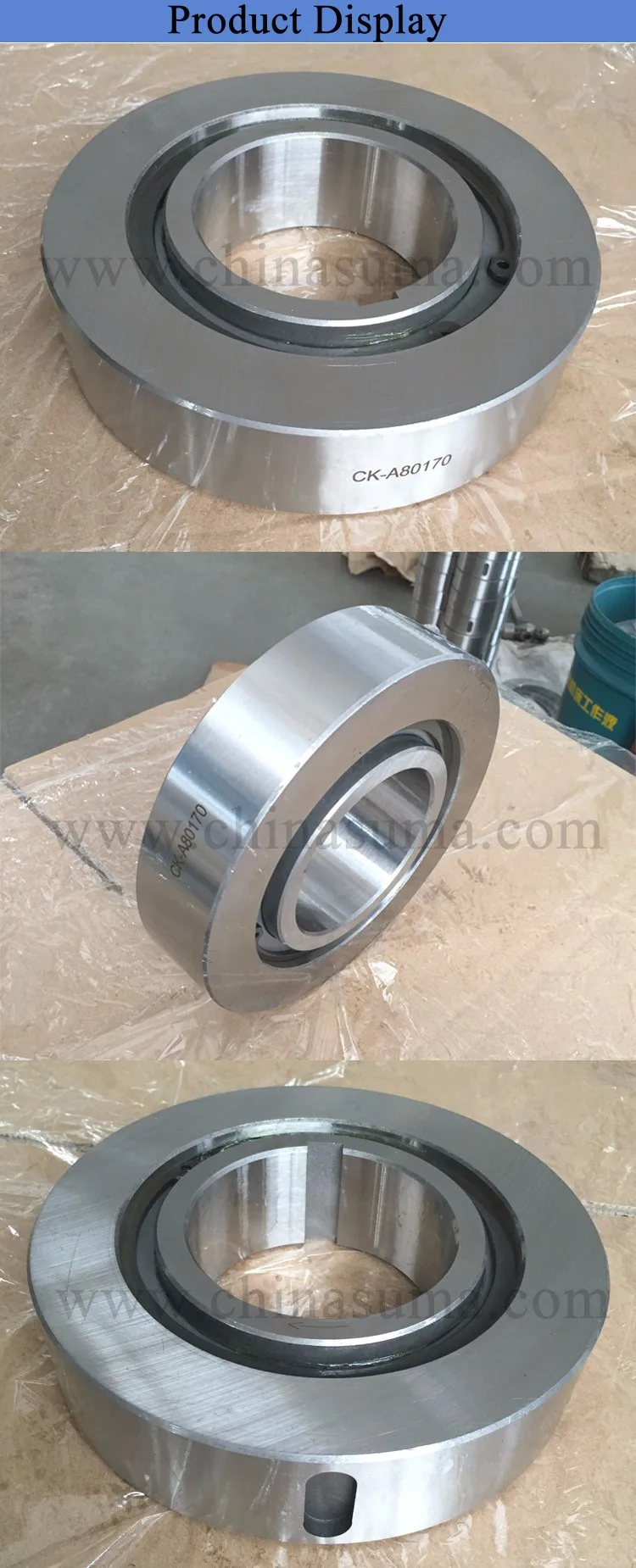

Detailed Image

CKA 4090-1

Packaging

2packing
