Indoor/Outdoor Invisible Barrier Dual Beam IR Alarm Sensor 100m Infrared Detector
- Category: >>>
- Supplier: Shenzhen Ansky Technology Co. Ltd.
Share on (60495044583):
Product Overview
Description
Indoor/Outdoor Invisible Barrier Dual Beam IR Alarm Sensor 100m Infrared Detector
2, 3, 4 beam optional
20-250m optional
Features - Beam Infrared Detector Infrared Beam Sensor:
* Dual beams
* Digital frequency conversion
* Active infrared detector
* Dual beams simultaneously blocked inspection
* Infrared LED lighting
* PC engineering plastic material
Other additional function: photic instruction, OK instruction, test terminal
Model ABT-20 ABT-30 ABT-40 ABT-60 ABT-80 ABT-100
Detecting distance (outdoor) 20m 30m 40m 60m 80m 100m
(indoor) 60m 90m 120m 180m 240m 300m
Beams:2 Beams
Response speed:50-700m/sec adjustable
Alarm output:1C relay contact output ,contact capability DC30V/0.5A MAX
Power and voltage:DC12~24V, AC11~18V
Operation current:35mAmax /35mAmax /40mAmax /40mAmax /40mAmax /40mAmax
Working temperature:-25℃~55℃
Exterior dimension:refer to relevant picture
Tamper output:1Bcontact output,DC30V/0.5A MAX
Optical axis adjust angle(horizontal):180°(±90°)
Optical axis adjust angle(vertical):20°(±10°)
Weight:receiver:300g, transmitter:300g

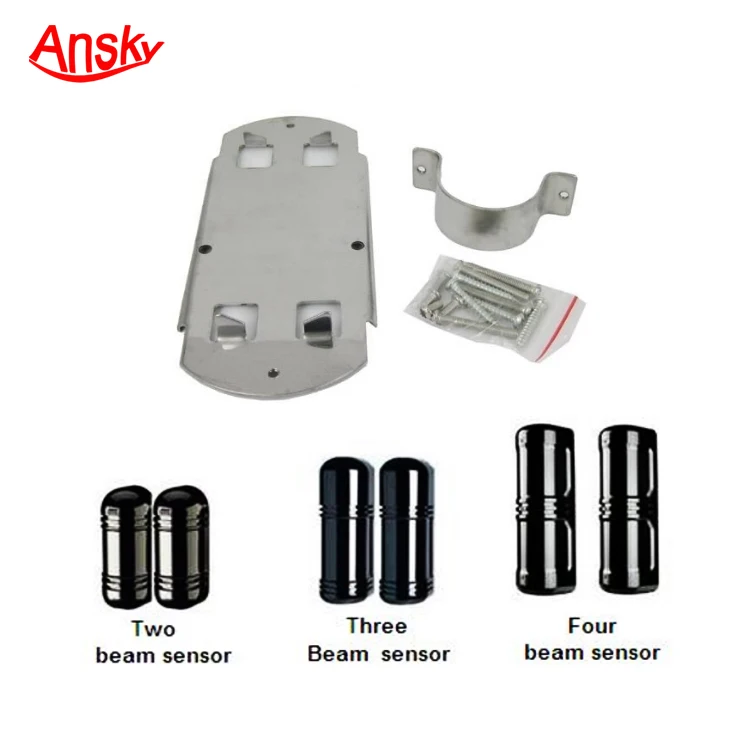

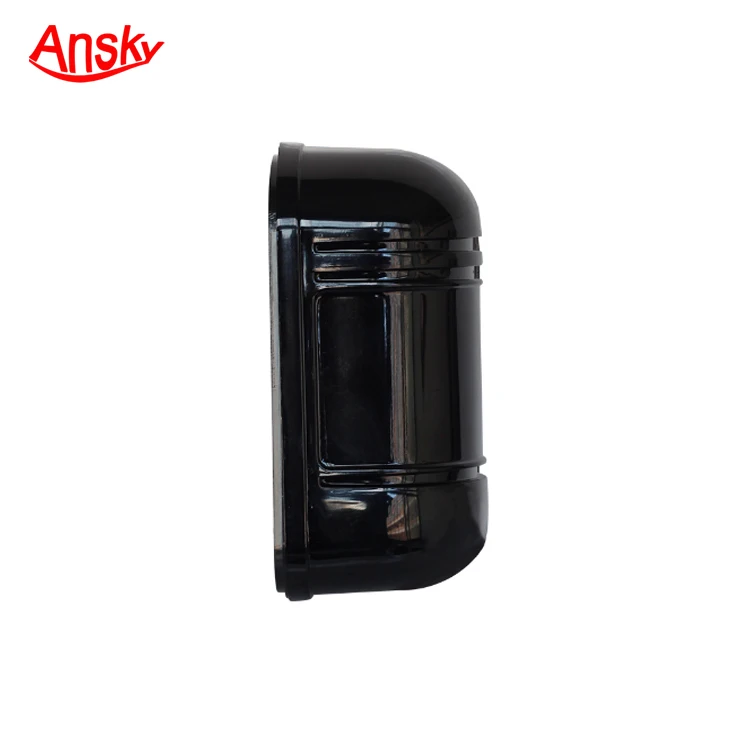

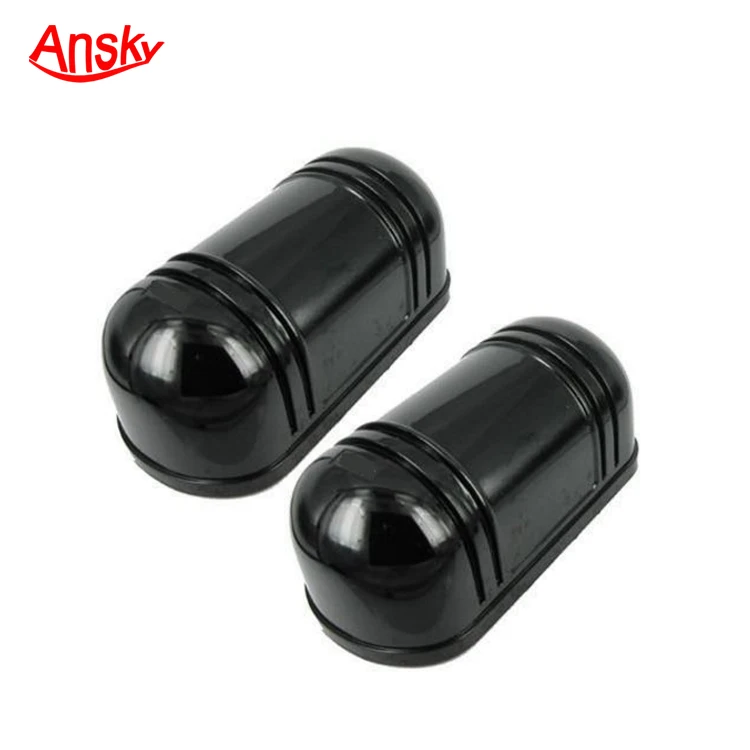

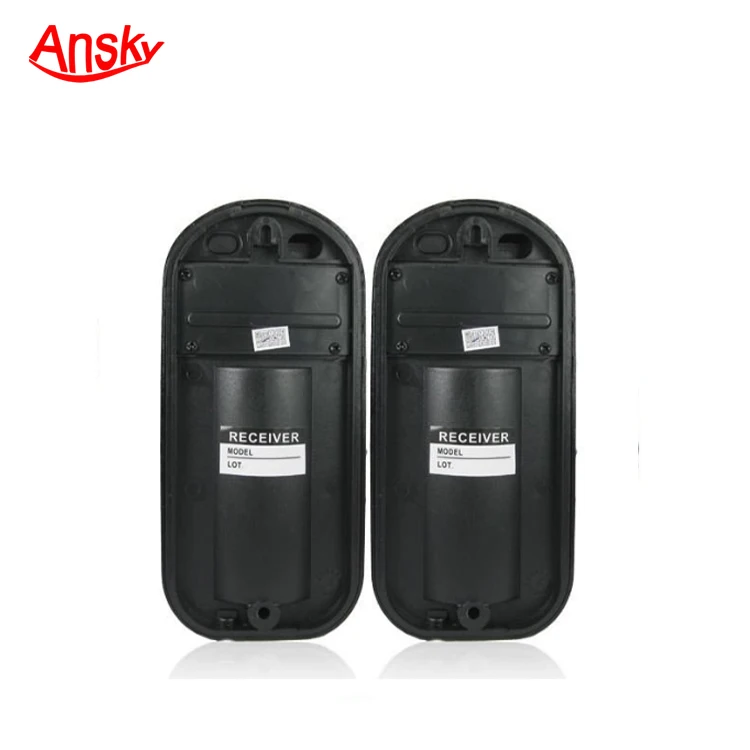

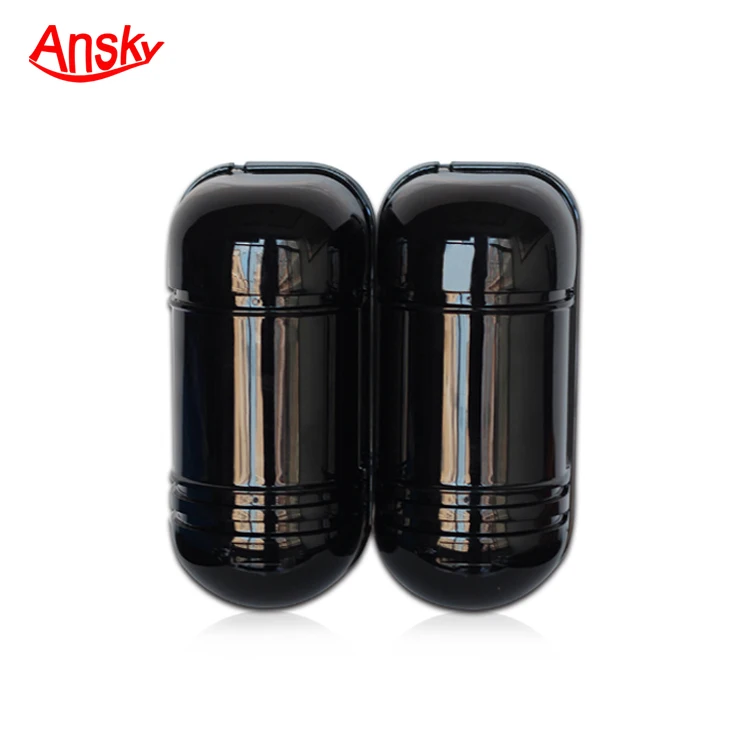

Product Image - Beam Infrared Detector Infrared Beam Sensor:
Certifications
Factory Image
Inspection Process
Packaging & Shipping
Payment Term:
1.T/T:30% deposit bu T/T,70% balance by T/T before shipment.
2.Western union
3.L/C at sight
Packing details:
Neutral packing: Color box with export standard carton
ODM packing as your requests
Delivery time:
4-6 weeks work day after the silkprint confirmation.
