Product Overview
Description
DC Gear Motor With 400rpm Speed
Product Overviews
| Diameter |
Motor & Gearbox 12/28/36/42/60/90/115 to 160mm (Customized) |
| Voltage |
DC Input 3v, 6v, 9v, 12v, 24v, 36v, 48v, 60v (Customized) AC Input 110v, 220v, 230v, 380v (Customized) |
| Power | 12/20/50/75/100/125/200/250/300 to 800w (Customized) |
| Speed | Variable Speed (Customized) |
| Torque | 0.3/3/5/20/25/30 to 50N.m (Customized) |
| Shaft | Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customized) |
| Bearing at output | Ball Bearing |
| IP Class | IP55 / IP65 / IP68 (Customized) |
| Accessories | Gearbox, Encoder, Brake, Cool Fan etc (Optional) |
| Note | Ratios and shaft configuration can be designed |
DATASHEET DOWNLOAD
Product Description
|
Product Name |
Square DC Gear Motor | ||||
| Model No. | GP-36WGM80 | ||||
| Continuous Current (A) | 2.5A | ||||
| No-load speed (rpm) | 6-167rpm | ||||
| Rated speed (rpm) | 4-125rpm | ||||
| Rated Torque (kg.cm) | 1.6-24.3kg.cm | ||||
| Max. Torque (kg.cm) | 30-80kg.cm | ||||
| Serial No. | 6036 | 6060 | 6086 | 60162 | 60265 | 60315 | 60594 | 60651 | 60973 |
| No-load Speed rpm | 167 | 100 | 70 | 37 | 22 | 19 | 10 | 9 | 6 |
| Rated Speed rpm | 125 | 75 | 52 | 27 | 16 | 14 | 7 | 6 | 4 |
| Rated Torque kg.cm | 1.6 | 2.1 | 3 | 5.2 | 7.9 | 8.7 | 14.8 | 16.3 | 24.3 |
| MAx. Torque kg.cm | 30 | 30 | 30 | 60 | 60 | 60 | 60 | 60 | 80 |

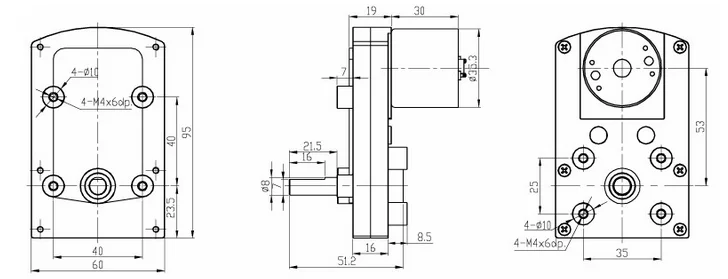

| Outline Drawing |
|
|
|
|
Application
Customized Solutions
|
Customized Motor GP Motor specialize in design, custom and manufacture electric motors, including DC motors, Brushless Motors, Gear Motors, Motor Drivers, etc. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
Company Information
Our Services
GP Motor has been a sophisticated designer and manufacturer of topnotch custom DC motors, Brushless Motors, Gear Motors, Motor Drivers, etc. for different applications since 1991.All of our custom electric motors are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
