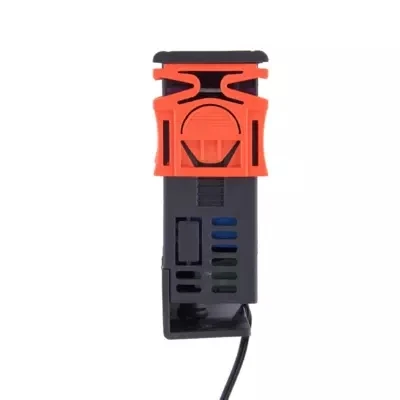

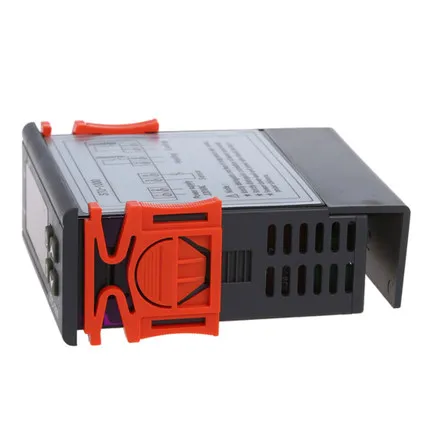

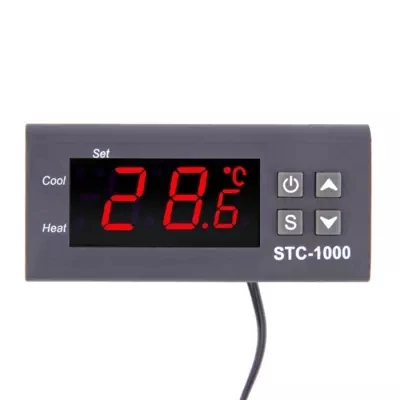

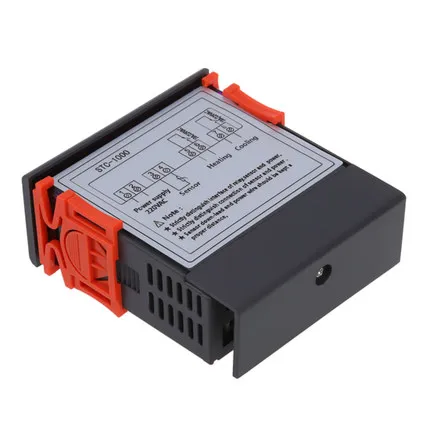

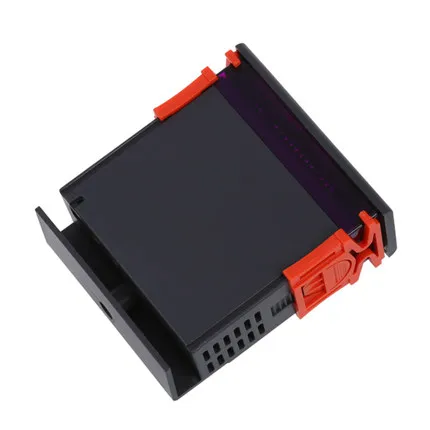

220v temperature controller sensor 2 relay output stc 1000
- Category: >>>
- Supplier: Shanghai Teshi Machinery Equipment Co. Ltd.
Share on (60495182044):
Product Overview
Description
Product Description
Product Features
- Fahrenheit and Celsius Display Can Be Choose
- Alarm When Temperature Exceeds the Limit or When Sensor Error
- 2 Relays, Switch Between Cooling and Heating Modes
- Control the Temperature by Setting the Temperature Set Value and the Difference Value
- Temperature Calibrating, Refrigerating control output delay protection
1.Product Overview:
The incubator temperature controller is suitable for all kinds of seafood machine,water chiller and other equipment which needs automatic switching between refrigerating and heating.
2.Features:
1.Switch the modes between cool and heat;
2.Control temperature by setting the temperature setting value and the difference value;
3.Temperature calibration;
4.Refrigerating control output delay protection;
5.Alarm when temperature exceeds temperature limit or when sensor error.
3.Main Function:
Refrigeration,heating,Alarm 1NTC,Temperature Calibration
4.Parameter:
1. Temperature measuring range: -50~99oC;
2. Resolution: 0.1oC;
3. Accuracy: ±1oC (-50~70oC);
4. Sensor error delay: 1 minute
5. Power supply: 220VAC±10%, 50/60Hz;
6. Power consumption: ≤3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60oC;
10.Storage temperature: -30~75oC;
11.Relative humidity: 20%~85% (No condensate).
5.Specifications:
Front panel size75(L)×34.5(W)mm;
Mounting size:71(L)×29(W)mm;
Product size75(L)×34.5(W)×85(D)mm;
sensor length2minclude the probe.
Specifications:
Type of temperature control
Control mode intelligent temperature control regulator
Measurement object Chiller, seafood machine
Mounting Embedded
STC-1000
I. Product Overview:
Machine suitable for seafood, seafood pools, and the need for chillers and other refrigeration, heating automatic switching equipment.
Second, product characteristics
1. The cooling and heating mode automatically converted;
2. hysteresis temperature control;
3, temperature correction;
4, cooling control output delay protection;
5, over range and sensor failure alarm.
Three main functions
Cooling, heating, single sensor, temperature correction.
Fourth, the technical parameters
Technical parameters
| Temperature measuring range : | -50℃~99℃ |
| Resolution: | 0.1℃ |
| Accuracy: | ±1℃(-50℃~70℃) |
| Sensor error delay : | 1minute |
| Power supply : | 220VAC±10%, 50/60Hz |
| Power consumption: | <3W |
| Sensor : | NTC sensor (1PC) |
| Relay contact capacity: | Cool (10A/250VAC); Heat (10A/250VAC) |
| Ambient temperature: | 0℃~60℃ |
| Storage temperature: | -30℃~75℃ |
| Relative humidity: | 20~85%(No condensate) |
Specification and size
| Front panel size: | 75(L)*34.5(W)(mm) |
| Mounting size: | 71(L)*29(W)(mm) |
| Product size : | 75(L)*34.5(W)*85(D)(mm) |
| Senor length : | 2m(include the probe) |
applications:
- Refrigeration industry(freezers, refrigerators, , Cold stores, cold chain, iceboxes, cooling towers, water coolers, oil coolers, cold water chillers, water chilling units etc.)
- HVAC industry (Heating Ventilation Air Conditioning)
- Pet industrial: Aquariums, fish tanks, terrariums, seafood machines, Vivariums, Paludariums, Incubators etc.
- Medical thermostatic equipment (for blood, drugs, Pharmaceutical etc.)
- Food processing (Brewing, Abattoirs etc.), Food Wholesale, Food Retail (Hypermarkets, Supermarkets, Convenience Stores, Food Shops, Charcuteries, Delicatessens etc.)
- Solar water-heating system central controller
- Sauna room, foot bath, foot sauna, foot massager etc.
- Wine production, wine cabinet, display cabinet etc.
- Catering (Hotels, Restaurants, etc.)
- Agriculture
- Automobile
- Photography
- Process control
- Laboratory, Chemical
- Greenhouses, cultivating-houses
- Ice-skating rinks
- Energy management
- Other industries need temperature measuring and controlling
Wiring Diagram
