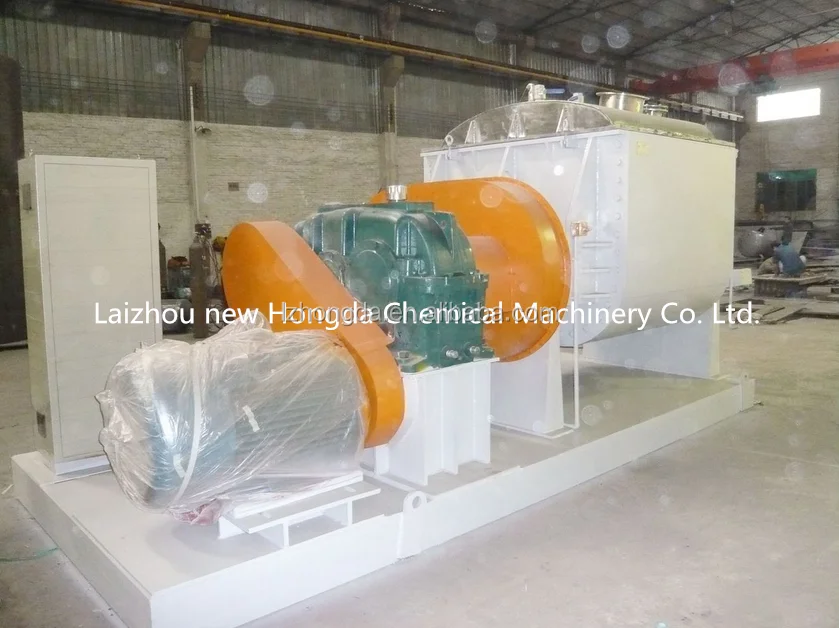

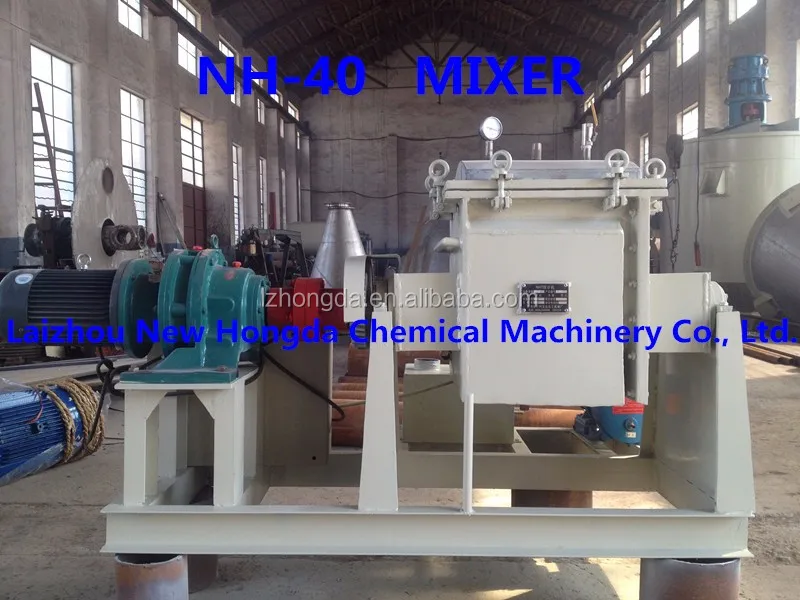

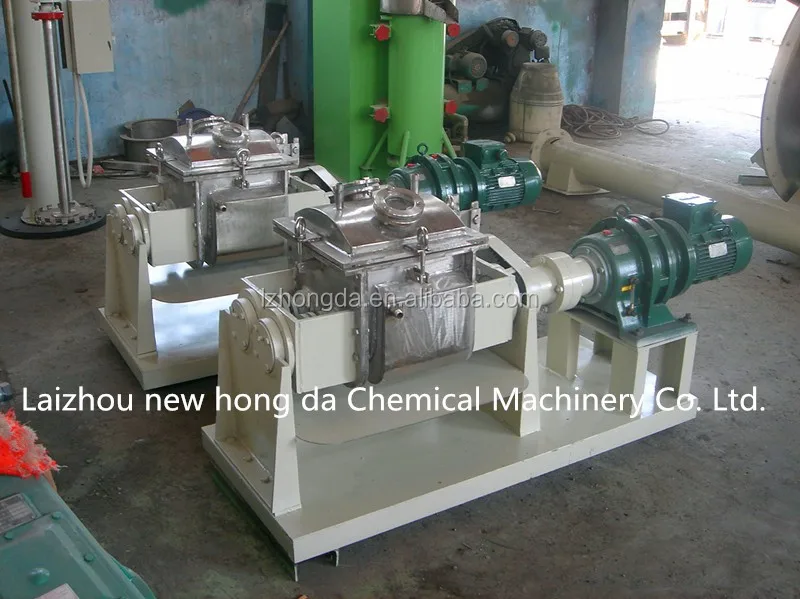

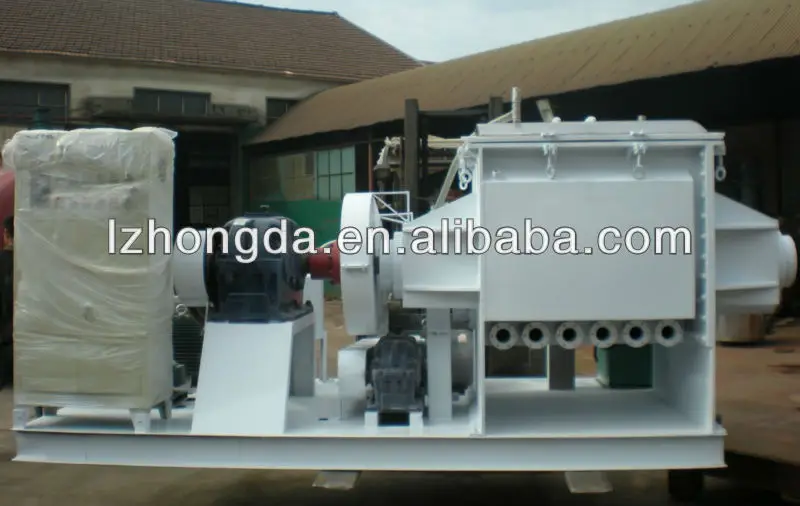

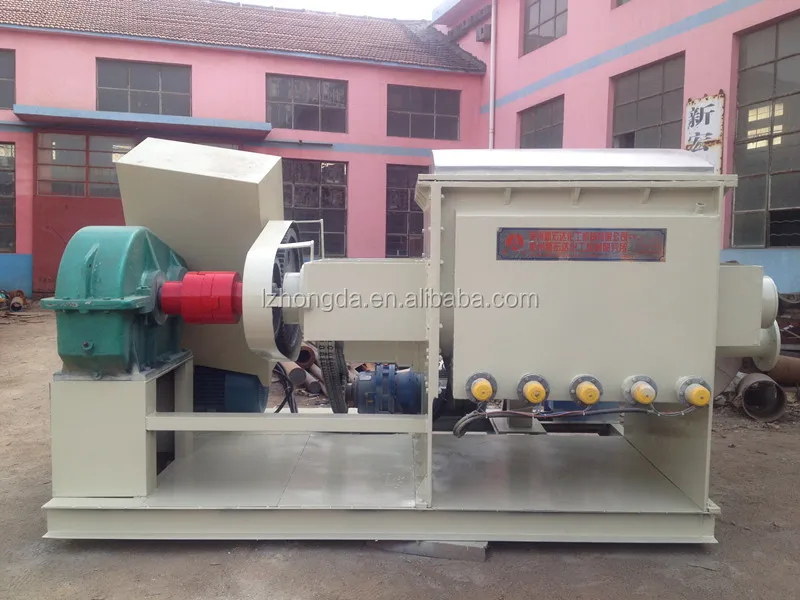

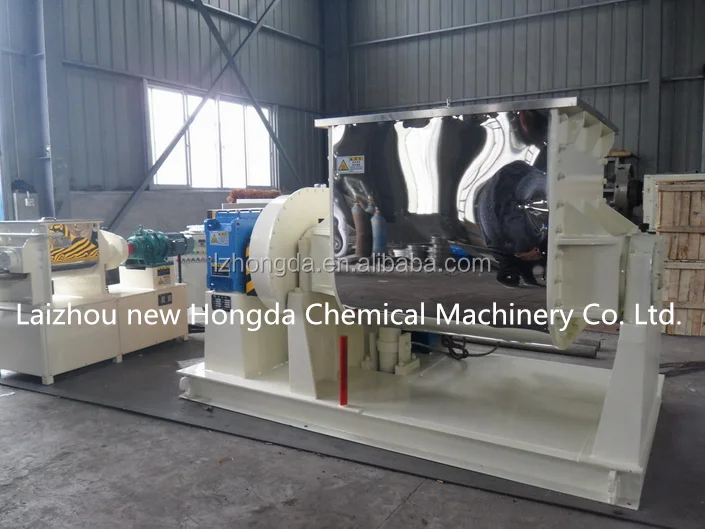

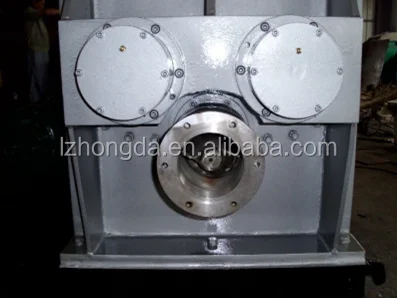

Double Z Arm kneader sigma mixer for high viscosity

Double Z Arm kneader sigma mixer is used to knead, mix, crush, disperse and re-polymerize high viscosity paste or elastoplastic materials, which can not be processed by the general powder mixers and liquid blenders. Pressure type kneading machine r is the ideal equipment for all kinds of chemical products and has the merits of stirring evenly, kneading efficiently and no dead corner. The materials are scraped, stretched, folded and squeezed among the blade, slot wall, and ridge-like protrusions.The materials cycle from one end of the impeller to the other. The two mixing paddles are tangent and spin at different speeds to complet the kneading process. Tilt the solt to discharge the materials.



 It is widely applied to produce high viscosity sealant, silicone rubber, neutral and acidic glass cement, chewing gum, bubble gum, paper pulp, cellulose, and is also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics and other industries.

the best choice for high-viscosity materials!

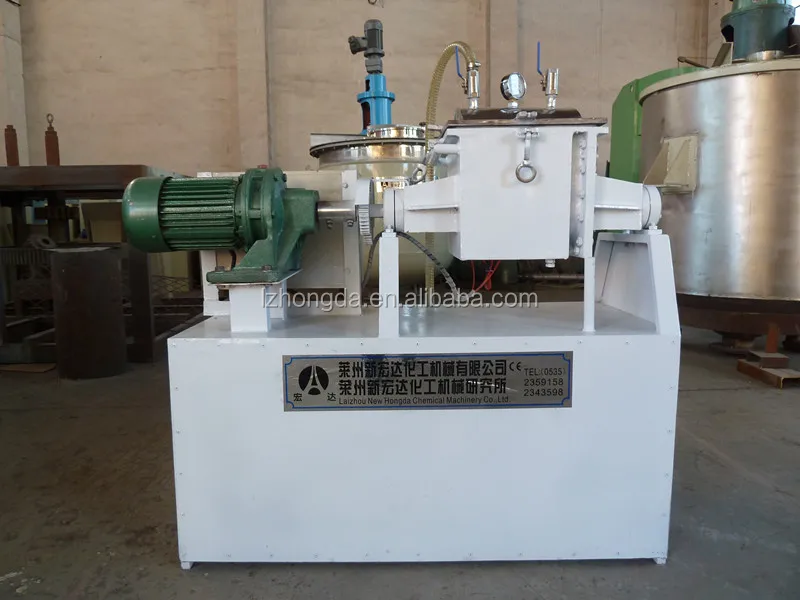

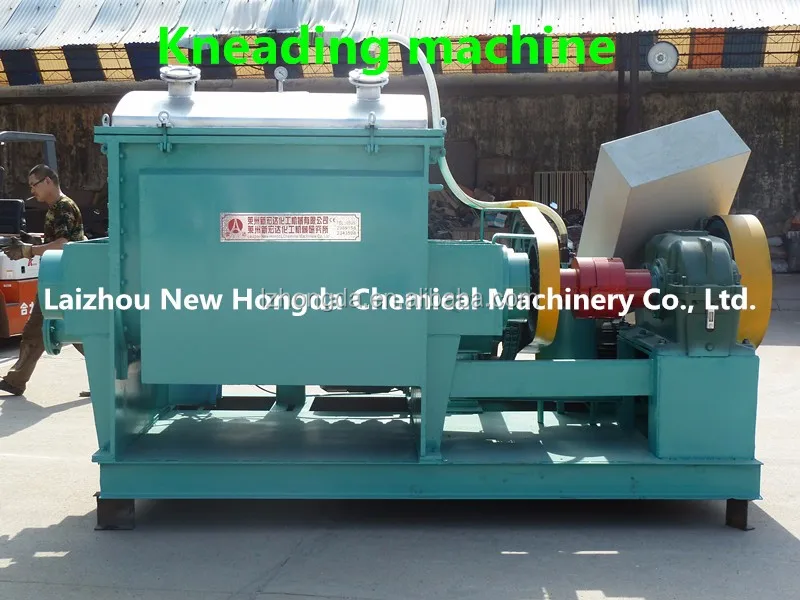

1.Pressure type kneading machine  consists of two "U" shape container made of either Mild Steel or Stainless Steel(SUS304, SUS321, SUS316L), with jacket of Carbon Steel covering two sides for heating or cooling.

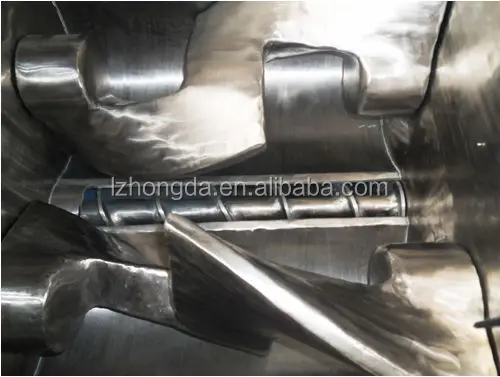

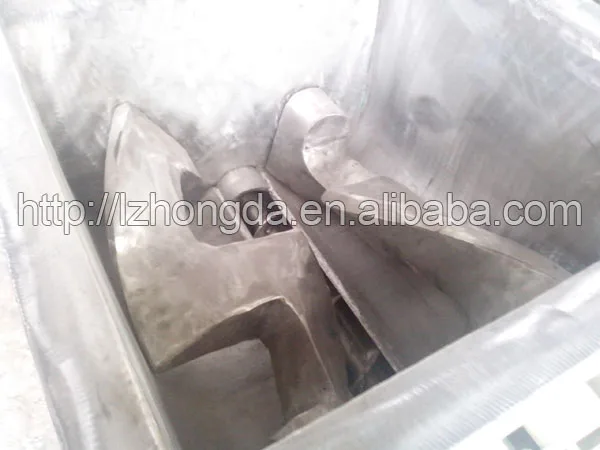

2.The mixing elements of the sigma kneader are two pieces of Z type casted steel blades. They contrarily rotate inward and are fitted at close or specific clearance with the mixing chamber to finish thorough and uniform mixing. The two blades rotate at different speed(usually about3/2).

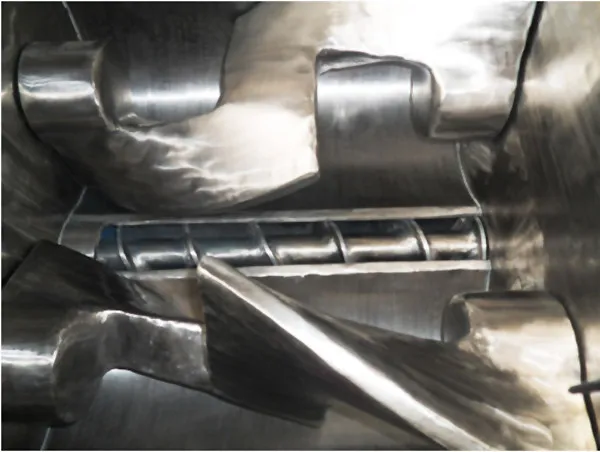

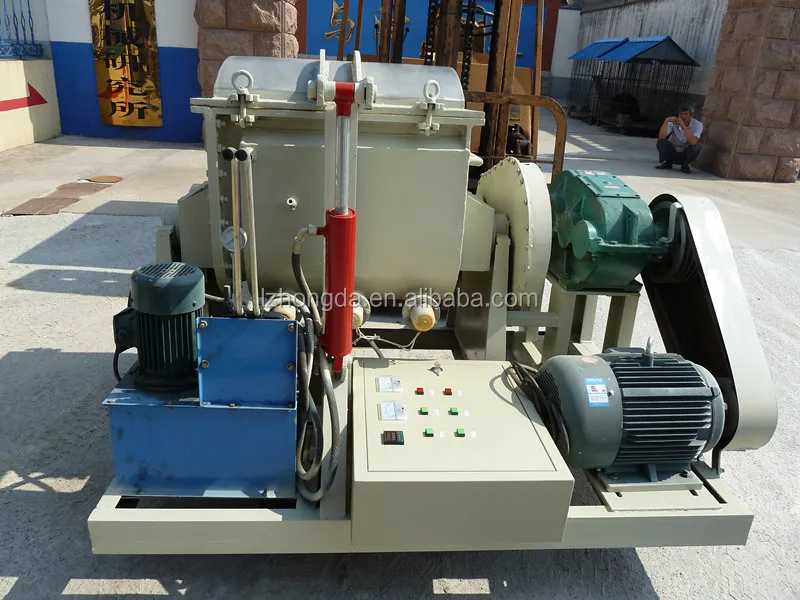

3. Category: There are four kinds of Sigma Mixer: Vacuum kneader, pressure kneader, atmospheric pressure kneader and high temperature kneader. It has three ways of discharging: Hydraulic turning cylinder pumping type, ball valve type and screw extrusion type.

4. Control and record the temperature, time, viscosity and other relevant data through the PLC in real time during production. The parts of the cylinder and the blade that contact with the materials are made of stainless steel, to ensure product's quality. The top and the bottom axis use the sealing construction, avoid the phenomenon of bearing damage caused by the dust.

5. We can make different sigma kneader according to the customer's different demands, For example, vacuum system, heating or cooling methods, feeding hole, discharging methods, changeable liner, filtration net, safety valve, view glasses, Cover opening methods and so on.



Notes:
(1) Our company can design the equipment according to user's specific requirements.
(2) For the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.
(3) If you are not certain of which type to choose, please call us and we will recommend for you.

Packed in plywood case, iron tray.

This is Chanshan Yu from Laizhou NewHongda Chemical Machinery CO.LTD of China. Our company is specialized in manufacturing many kinds of chemical machinery such as chemical reactor, mixer machine, grinder machine etc. Our company has in good faith as the fundamental focus and product quality, and all products have past the test of CE certificate. We can make all kinds of products according to your special need. By consistently keeping to professional operation concept, We shall continue to provide you with service quality of a higher level. We are elaborately carving and presenting the best in the aspects of product design, manufacturing and product quality. The 100% customer satisfaction services system is started to provide you with the most considerate and build the ‘one-stop service’ system. Customers are our best friends, and we are always doing the best to repay the support from our friends. Seeking perfection is our common demand and do believe that we can make it. In pursuit of perfection and permanence, we are connected.

Our main markets:

China, Europe, Africa, Middle East, South America, South Asia, Eastern Asia, Oceania, South America, North America ,we can sell machines to anywhere as long as it needs.

1. How about your advantages?

a. On time delivery.

b.  More than 20 years’ experience.

c. Quality guaranteed and professional service.

d. Various design based on client’s requirements.

2. How to place order?

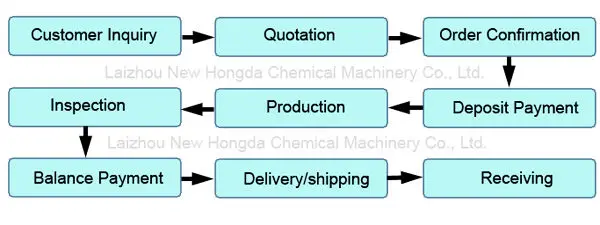

Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production ( 20-30 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale

service.

3. Will you send us drawing of required machine for checking?

Yes, we’d like to send you our draft drawing of the required machine . After you place

order, we shall send you details drawing and technical parameters. Then shall put into

production once you confirm the production.

4. Is there any quality warranty and after service?

The warranty period of mechanical portion of the equipment shall be a year after you

received the equipment, and help buyer installation and commissioning the equipment,

and free training operator.
