36v 250w magnetic motor for bike
- Category: >>>
- Supplier: Changzhou Ncyclebike Co. Ltd.Changzhou Ltd.
Share on (60495355701):
Product Overview
Description

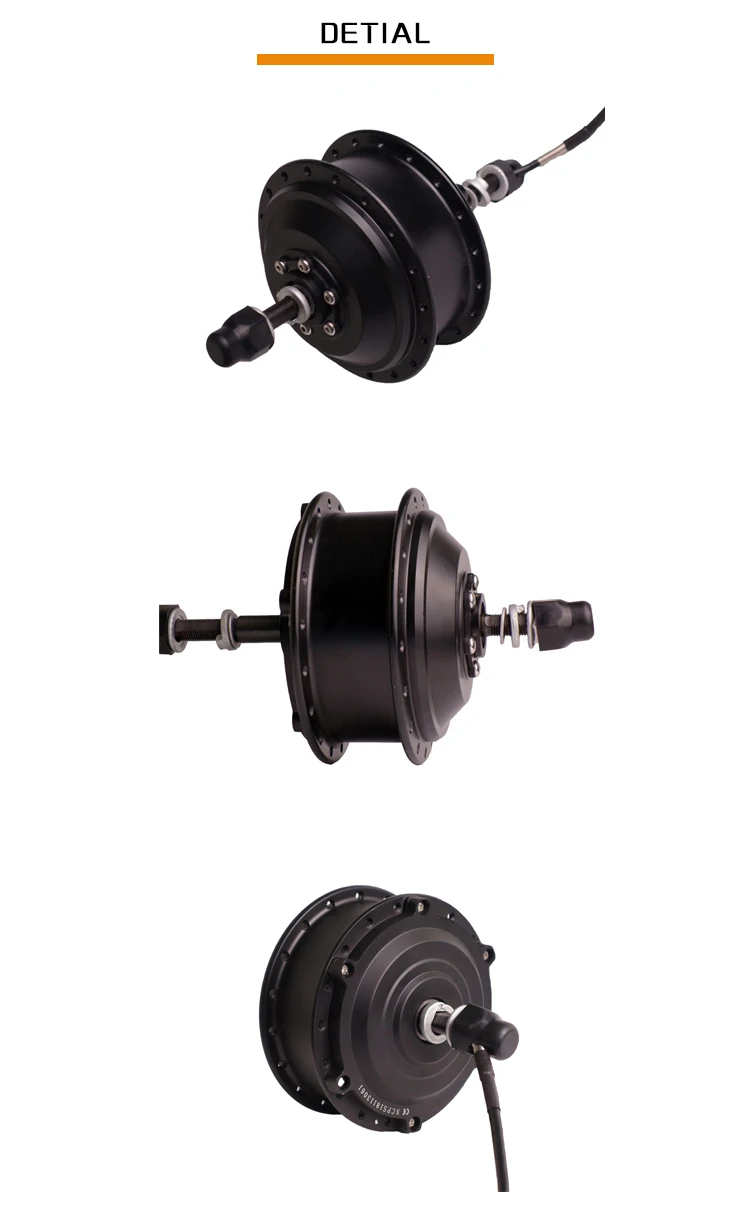

PRODUCT PICTURES

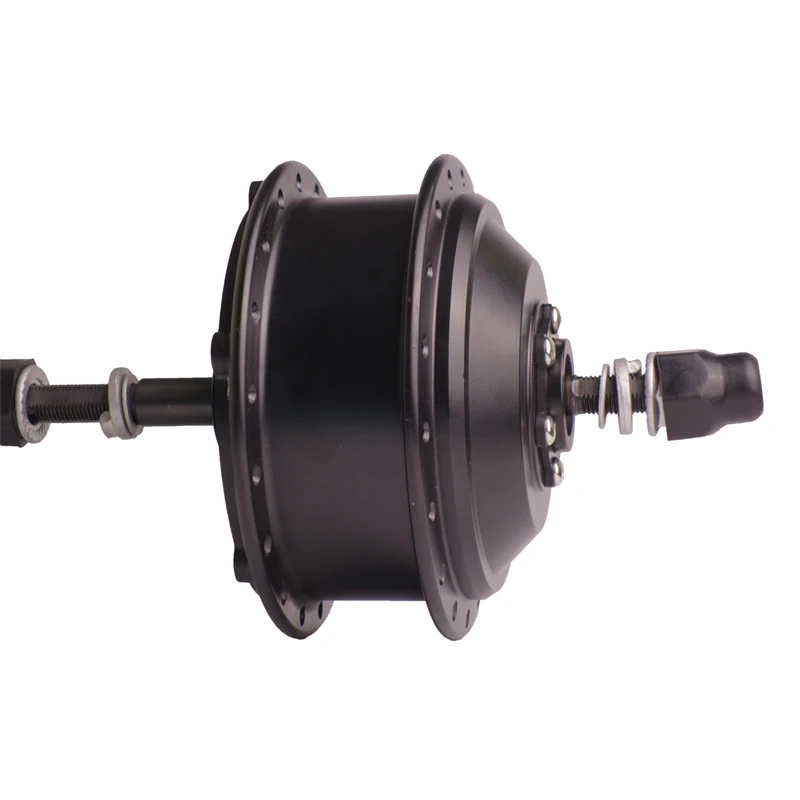

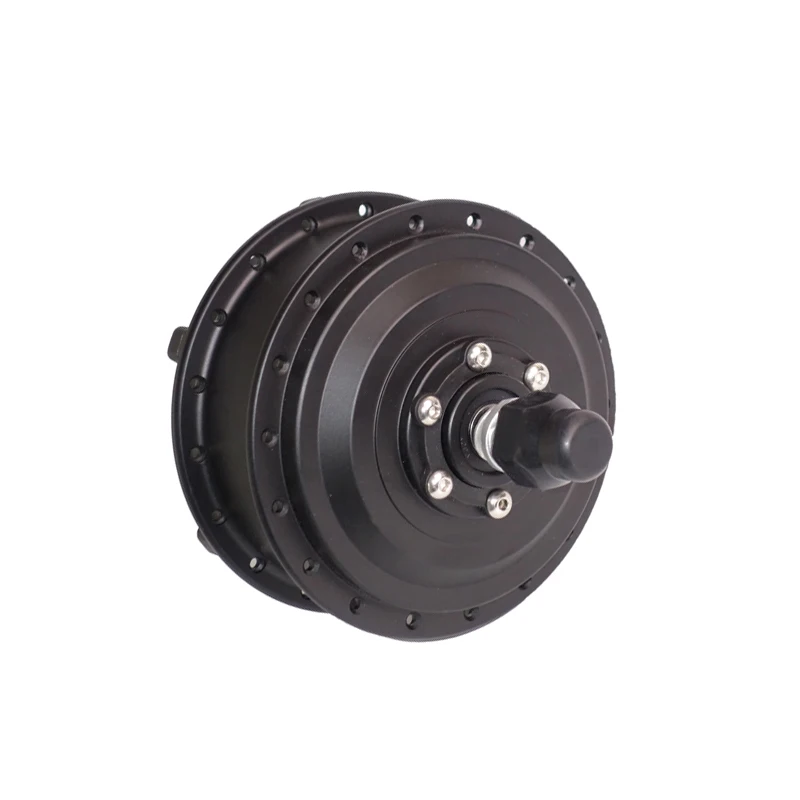

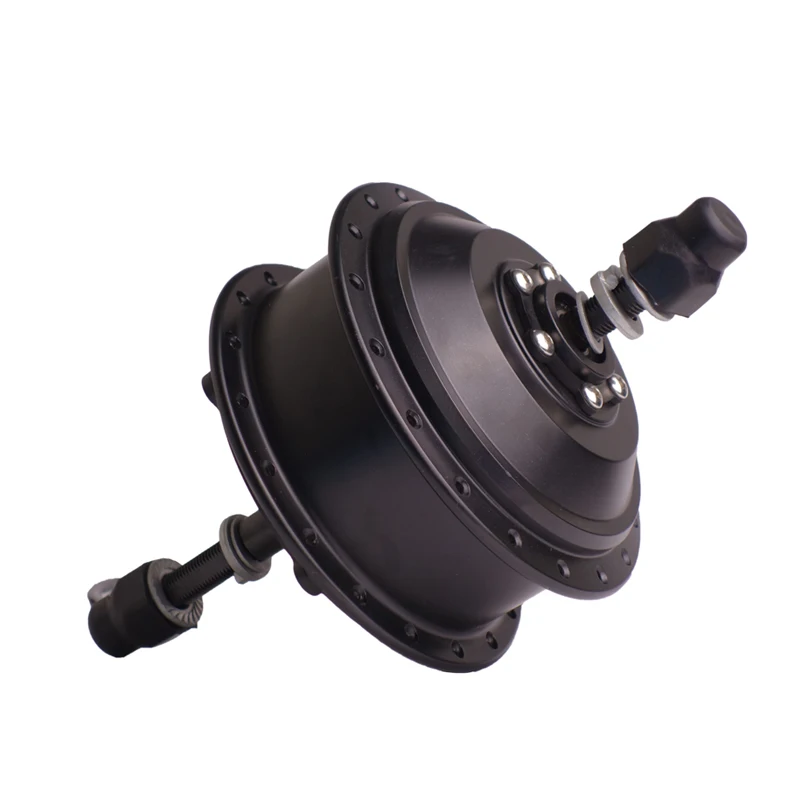

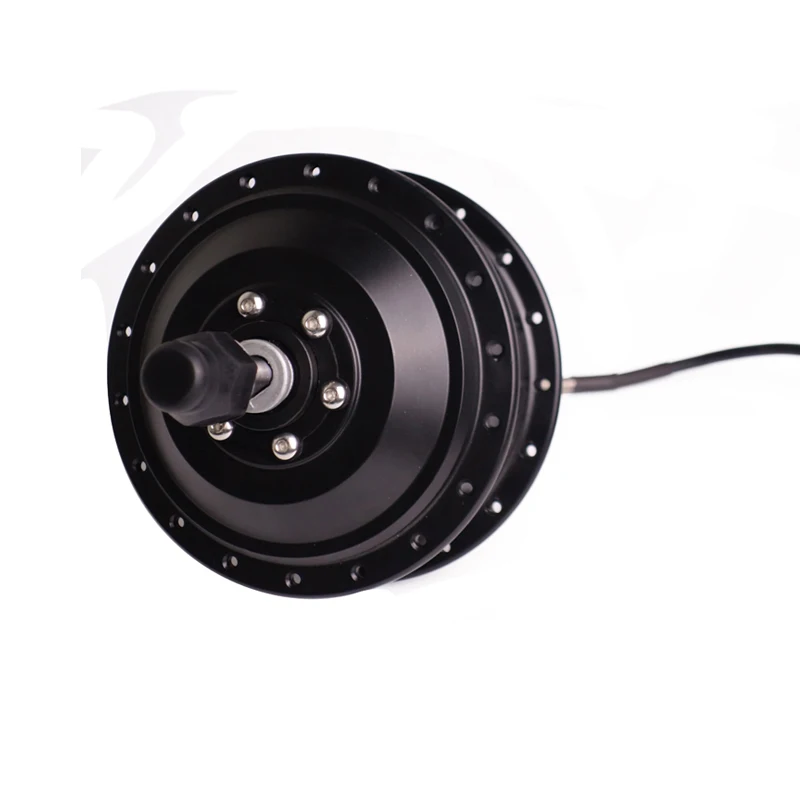

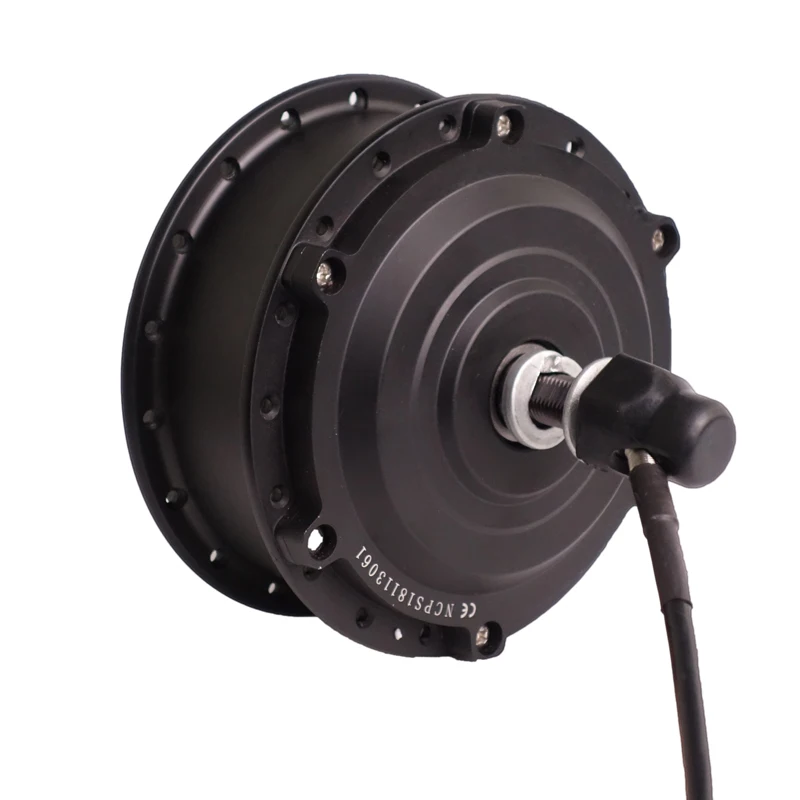

NC36250 hot sale motor 36v 250w magnetic motor for bike
PRODUCT PICTURES
Model | NC36250 |
Motor power | 250w |
Axle | 10mm* 12mm |
Type | Front or rear motor to choose |
Voltage | 36v |
Magnet Height | 24mm |
Design | Brushless geared |
Windings | 5*12 |
Waterproof grade | IP54 |
RPM/min | 270 |
Cable size | 1.5mm2 |
Max torque | 19N.M |
Max Efficiency | >=83% |
Open size | 100mm for front motor, 135mm for rear motor |
Wheel size | 16-28inch |
Hall sensor | Optional |
Hall sensor angle | 120 degrees |
Integrate speed sensor | Optional |
Brake | Disc brake |
Surface color | dark black/ sliver white |
N.W | 2.75kgs |

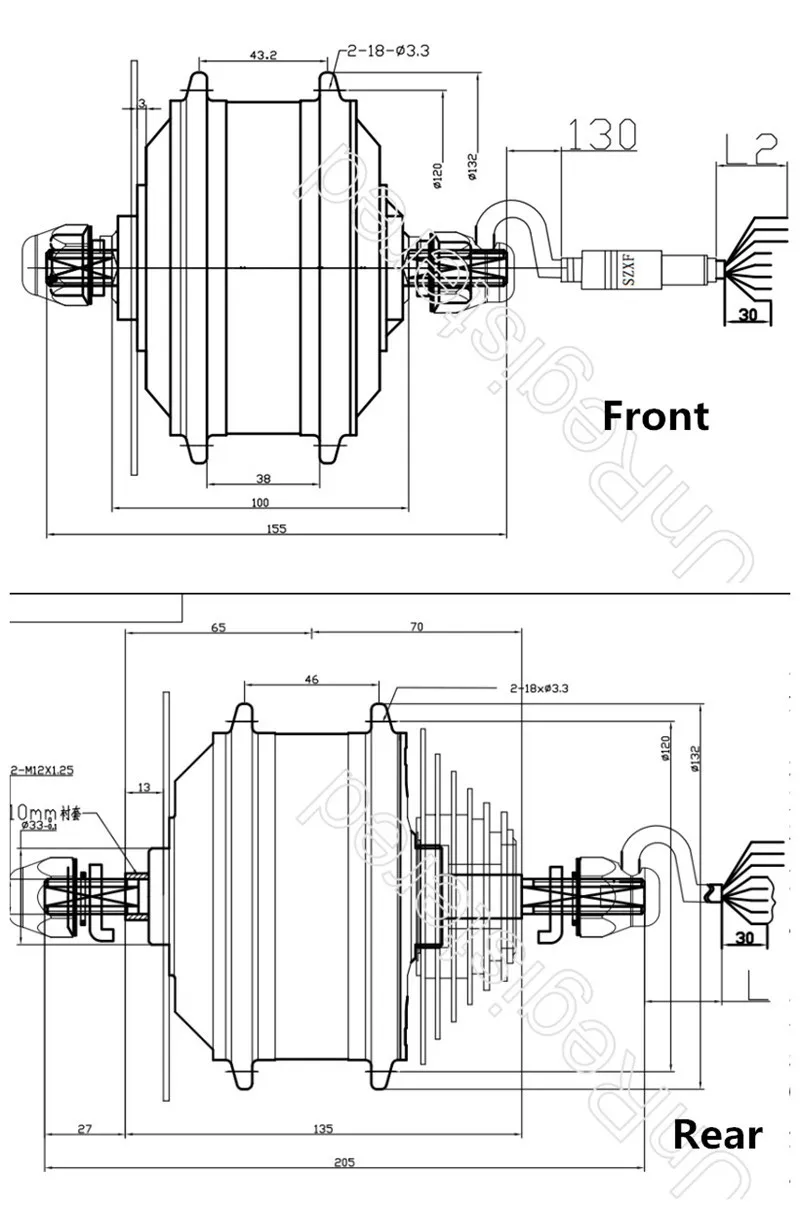

PRODUCT DRAWING
PRODUCT FEATURES
Ncycle hot sale motor 36v 250w magnetic motor for bike
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Big power
l Warranty : 2 years
l OEM

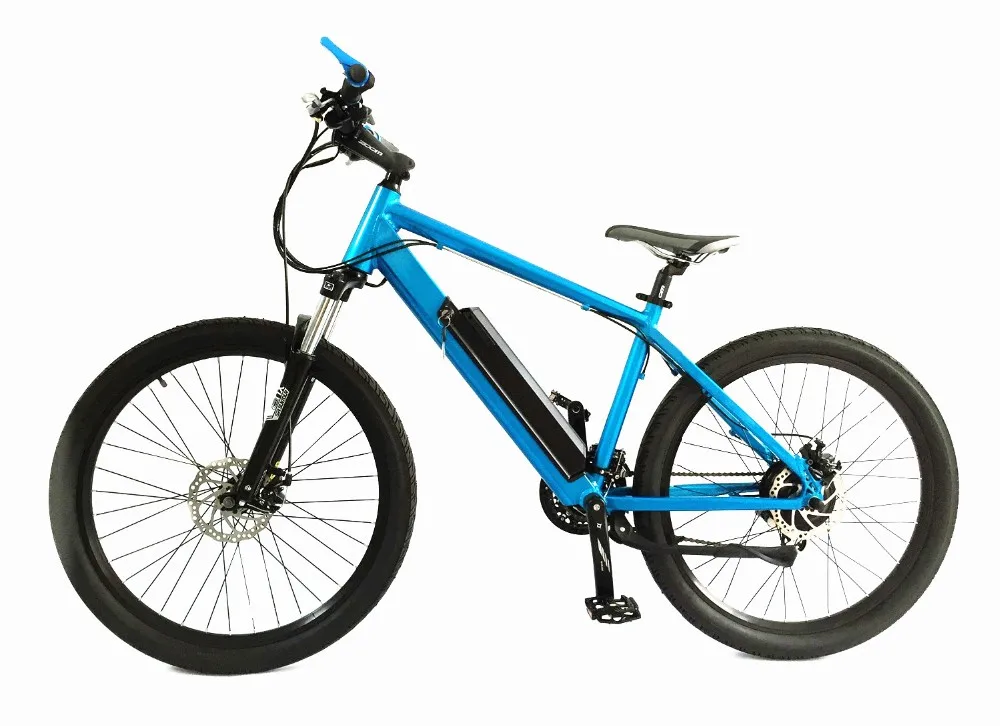

PRODUCT APPLICATION
NC36250 hot sale motor 36v 250w magnetic motor for bike
