2016 New Arrival Ultrasonic Plastic Pipe Welding Machine 20KHz 2000W
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (60495594613):
Product Overview
Description
Product Description

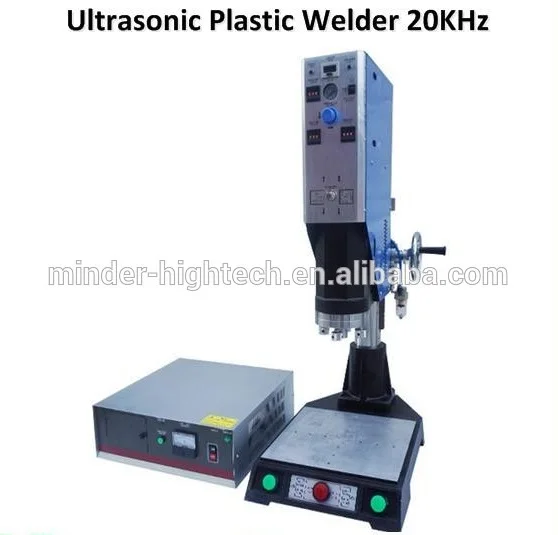

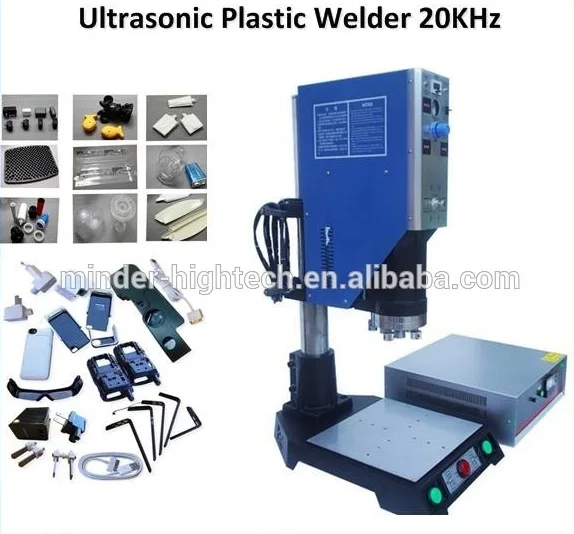

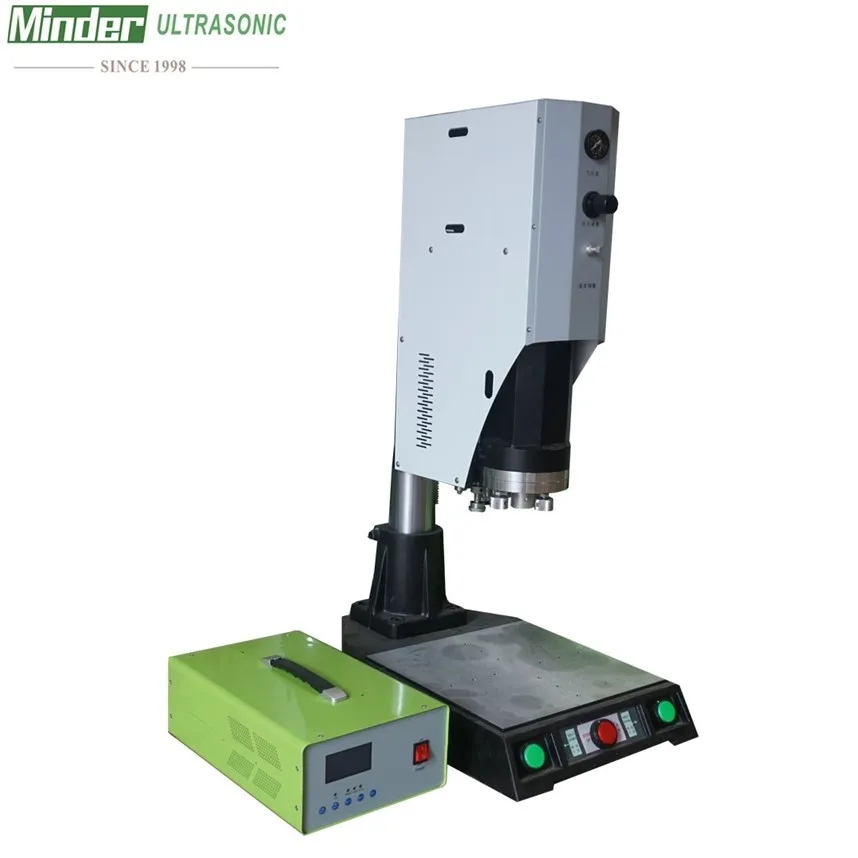

2016 New Arrival Ultrasonic Plastic Pipe Welding Machine 20KHz 2000W
As a joining process for industrial thermoplastics, the ultrasonic method is very well proven in practice. Particularly in the production of mass- produced parts, the process offers definite advantage over previous methods such as for instance high strength, clean weld seams, fast processing time, extremely low rejection rates and low energy consumption. In addition, this technique can be used successfully for riveting, forming, stacking as well as embedding of metal parts into thermoplastic materials.
This Ultrasonic Plastic Welding Mach adopts new generation of ultrasonic welding technology, which greatly shortens the processing time, a few milliseconds can complete the welding.
Ultrasonic Welding Principle
lUltrasonic welding machine is the use of ultrasonic generator to convert low current frequency to high frequency AC, then the same frequency of mechanical vibration by ultrasonic transducer.
lMechanical vibration transmitted to the ultrasonic welding joints by the amplitude modulator, the vibrational energy welding joints received transfer to the workpiece to be welded joint. In the region, the energy through friction converted into heat energy, to melt the plastic.
lAfter vibration stopped, maintain short-term pressure makes the weldment on artifacts in molecular link way solidification as a whole.

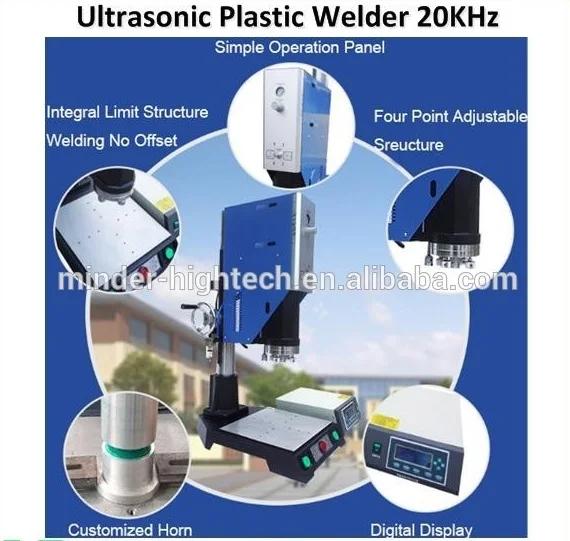

Features
lRugged construction using the highest quality components provides superior performance precision and reliability.
lDigi-Trac tuning automatically tracks the resonant frequency digitally.
lUltrasonic overload protection, with status indicator for ease of troubleshooting. The overload power limit is based on true RMS power output level.
lRemote pneumatics availability offers increased flexibility in system integration
lLine Voltage Regulation compensates for line fluctuations assuring consistent amplitude.
lLED readouts display parameter settings - during setup and operation for easy reference and monitoring. LEDs are large and easy to read in most light conditions.
lHydraulic Speed Control offers precision hydraulic control of the melt velocity. This is critical to achieve maximum weld strength in staking, inserting and shear joint applications.
Advantages
l High-quality ultrasonic transducer, strong power, good stability.
l Welding fast, each welding time only 0.01-9.99 seconds.
l Titanium alloy mold, for a variety of environments, difficult to damage.
l Compact design, small space.
l Low noise, good working environment.
l Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.
l It can be accurately set and quickly adjusted parameters.
l Metal paint box, beautiful appearance, durable resistance to fall.
Technical Parameters
Model | MD-PW2012 | MD-PW2015 | MD-PW2018 | MD-PW2020 | MD-PW2026 |
Input Voltage | 220/110V, 50/60 Hz | ||||
Frequency | 20 KHz | ||||
Output Power | 1200 W | 1500 W | 1800 W | 2000 W | 2600 W |
Welding Size | 80* 80 mm2 | 100* 100 mm2 | 150*150 mm2 | 180*180 mm2 | 200* 200 mm2 |
Air Pressure | 1-7 bar | ||||
Welding Head Stroke | 85 mm | ||||
Generator Type | Digital automatic frequency tracking, generator can be adjusted the output amplitude from 5% to 95% | ||||
Welding Time | 0.01-9.99S | ||||
Cooling Mode | Natural cooling | ||||
Weight | 100 kg | 100 kg | 115 kg | 121 kg | 121 kg |
Size | L700*W400*H1300 mm | ||||
Warranty | One year limited manufacture warranty with lifetime support | ||||

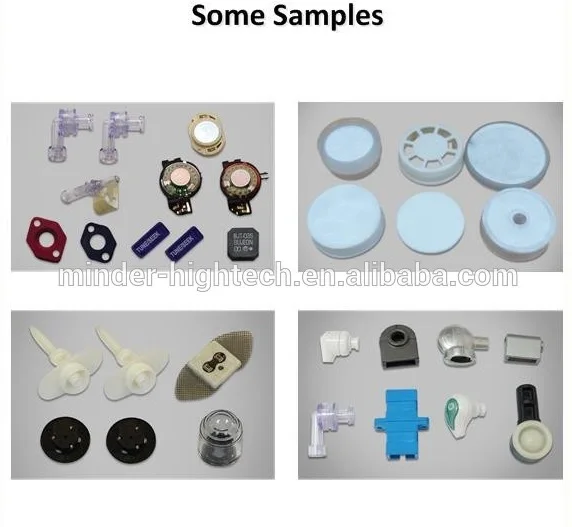

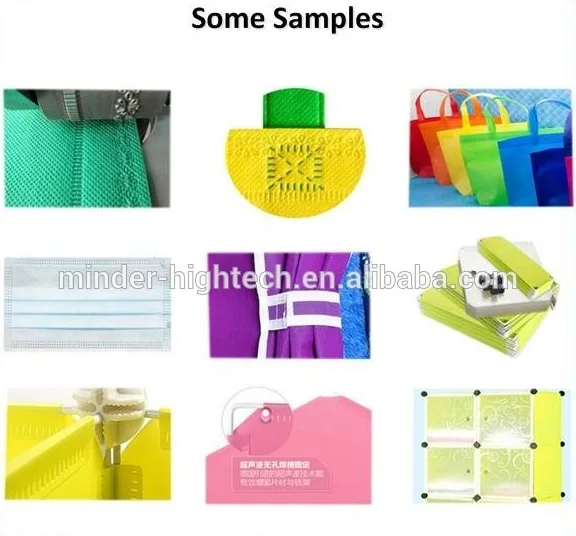

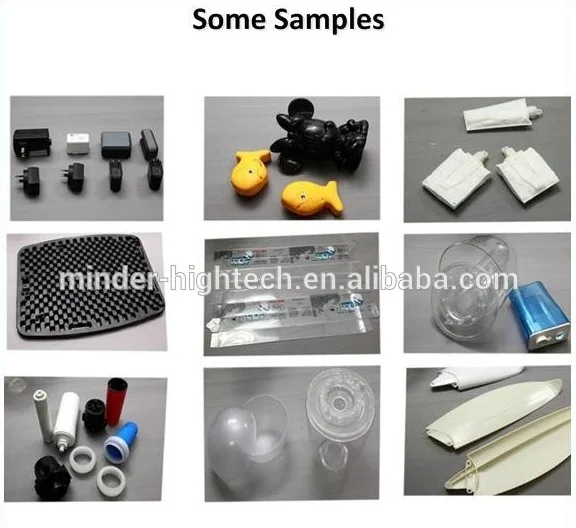

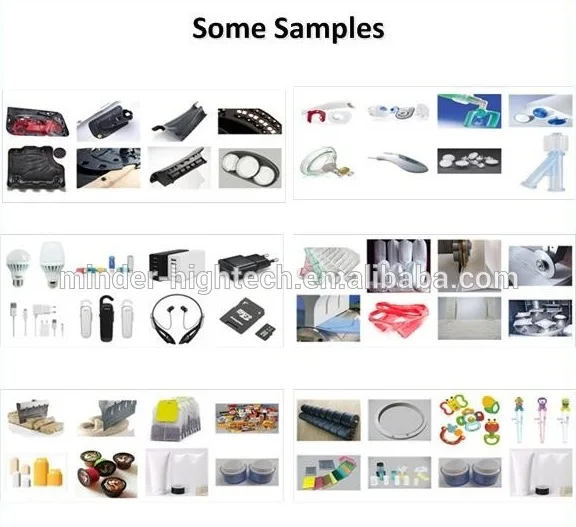

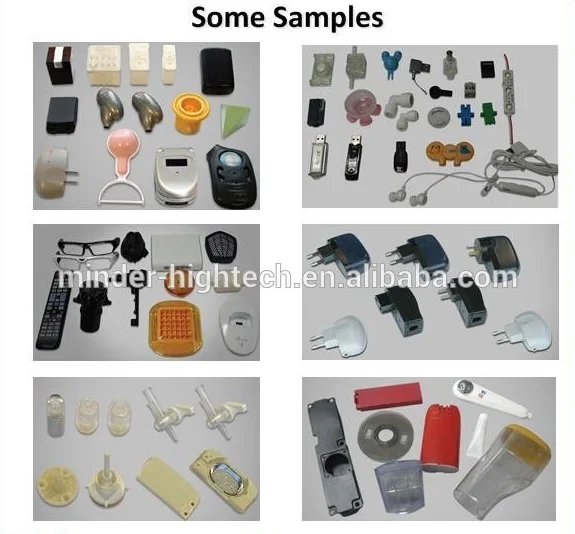

Application area
Toy industry | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
Electronic products | recording, audio tape boxes and core wheel, disk enclosure, board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
Household appliances | electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-hsiang, computer, etc |
Stationery, daily necessities | stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container, etc |
Car, motorcycle | battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
The application of the sports industry | table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps, gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path to indicate the brand, the X Display Stand and other sports equipment, etc |
The packaging industry | hollow crate welding, ziplock welded, etc |
Trademarks industry | Mark woven belt, printed labels with spot welding positioning, etc |
Garment industry | The procedure of underwear before sewing machine, welding braid and brace web, available for hot fix. |

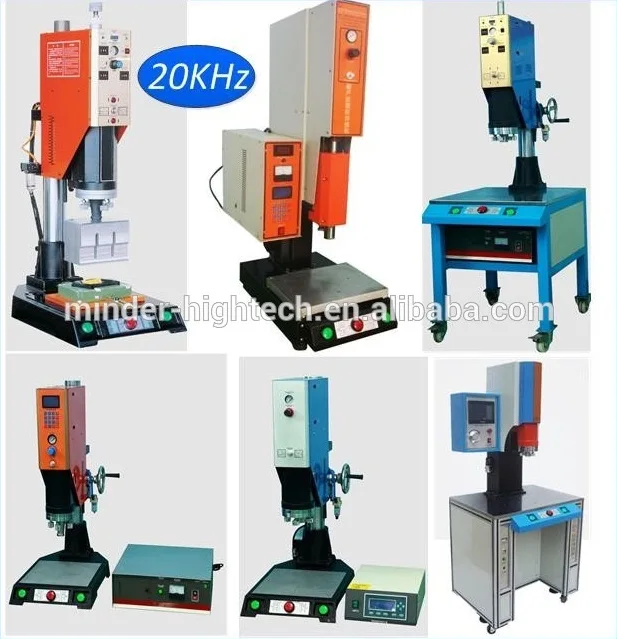

Please Click on the Picture to See More Models
Packaging & Shipping
l Package with foam and wooden case
l Size: 900*600*1500mm
l Weight: 130kg
Our Services
- Help customer analyze product project and provide welding solution.
- Freely sample welding test.
- Provide professional welding solution.
- Skilled jig design services.
- Provide shipping/delivery information checking service.
- One year guarantee, all life maintain promise.
- 24 hours feedback speed by email of others.
