BBM 12v semaforo led

Product Overview

Description

BBM 12v semaforo led

1.Outstanding with good visual angle, equal light intensity, standard chromatogram and long service time.

2.Human-based design, the lamp is easy for dismounting, installation and debugging.

3.It uses high reliable LED ensured by strict aging test.

4.Every LED is exceptionally exchangeable.





1.wide work votage

2.water and dust proof

3.long life span:100,000 hours

4.energy saving, low power consumption

5.easy installation, can be mounted by horizontally as well as vertically

6.Reduced operational costs

7.Integrated LED luminous
8.Uniform optical output

Technical Parameters:
Color	LED Q.ty	Light Intensity	Wave Length	Viewing Angle		Power	Working Voltage	Housing Material
				L/R	U/D
RED	45pcs	≥225cd	625±5nm	30°	30°	≤2W	85V-265VAC, 50/60HZ;  12/24VDC	Aliuminum
YELLOW	45pcs	≥225cd	590±5nm	30°	30°	≤2W
GREEN	45pcs	≥360cd	505±5nm	30°	30°	≤4W

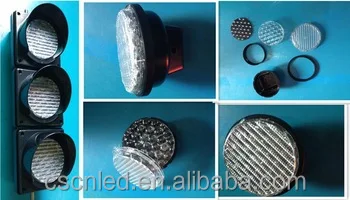

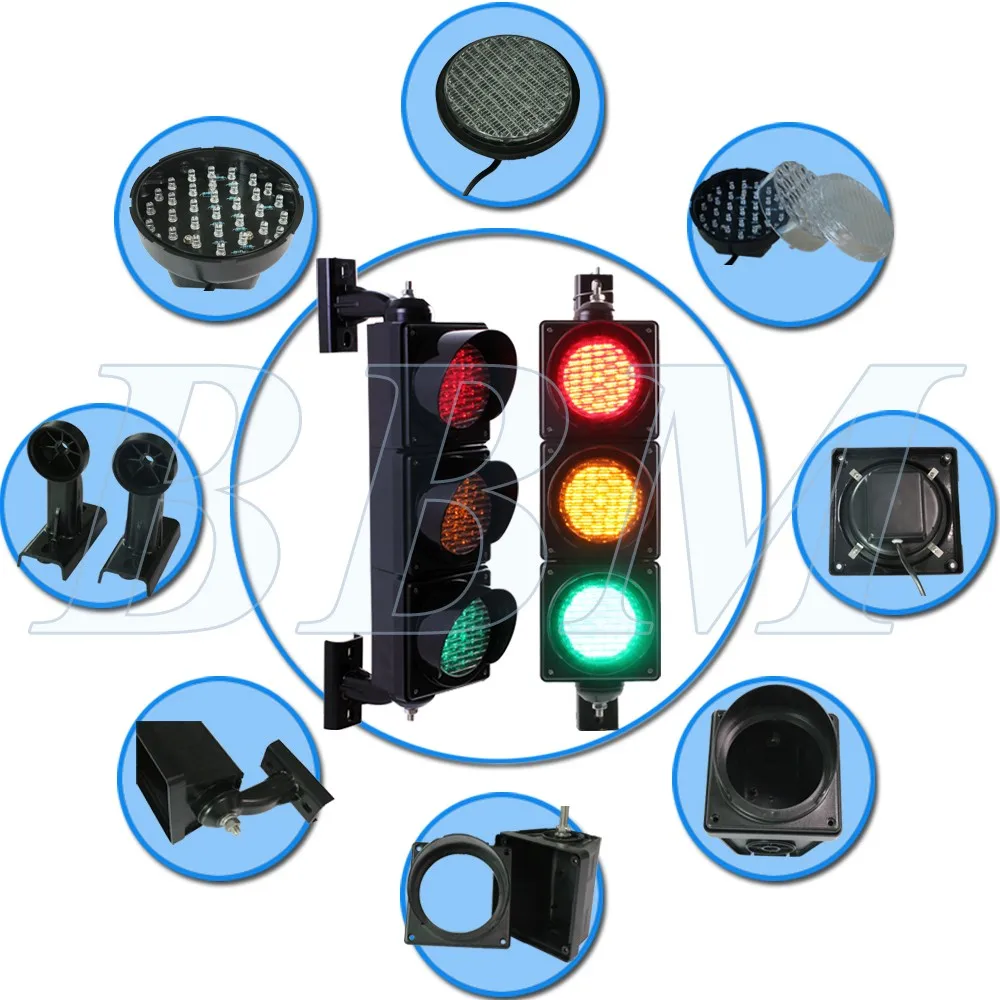

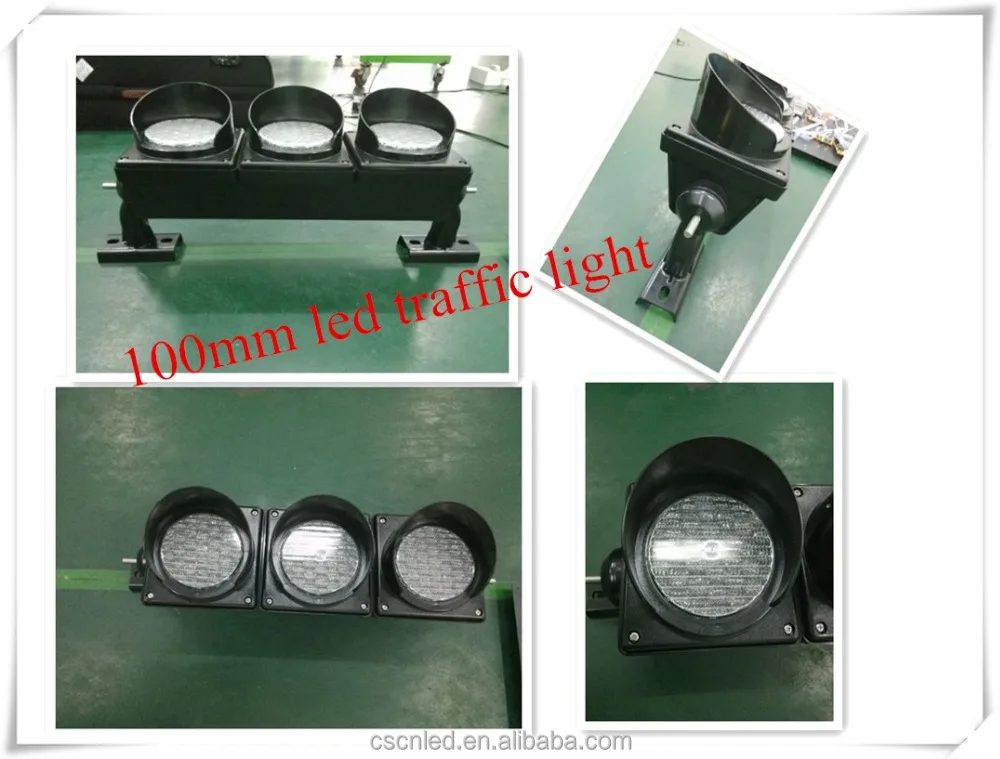

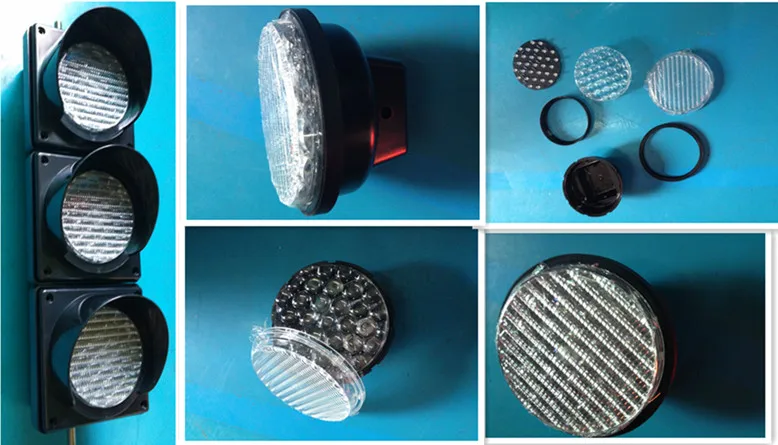

Showing you the details pictures:

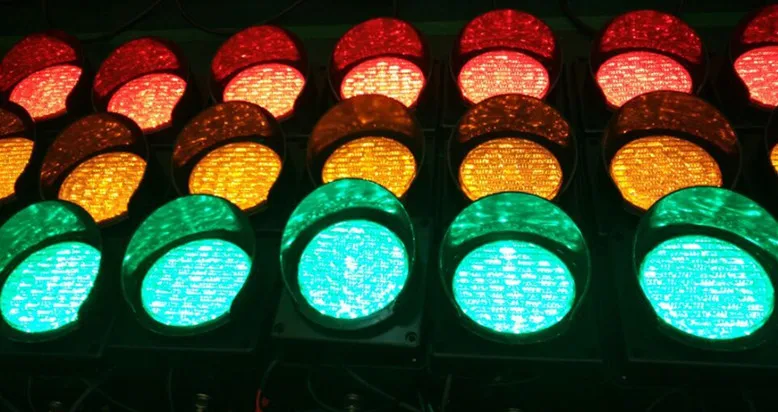

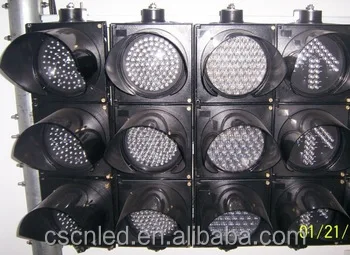

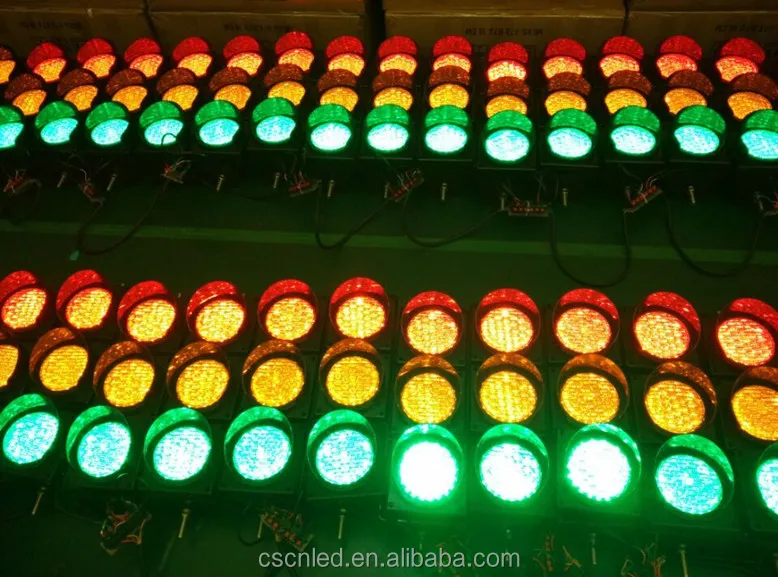

BBM 12v semaforo led  (under 72 hours anging test)

Packing Info:

Carton Size	Q'TY	GW	NW	Wrapper	Volume(CBM)
66*35.5*22cm	2pcs/carton	10.31kg	5.5kg	K=K Carton	0.05

Packing List:

Part name	Light	PC Bracket	Sun Visor	M4x10 Screw	M4x20 Screw	Wiring Box And Gasket	Using Manual	Certificate
Q'ty.(pcs)	2	4	0	0	0	0	1	2



Our services:
We are Reliable LED Traffic Signals Manufacturer!!!
1) Your inquiry related to our products or prices will be replied in 24hrs.
2 ) Well-trained and experienced staffs to answer all your inquires in fluent English.
3 ) OEM&ODM, any your customized lightings we can help you to design and put into product.
4) Protection of your sales area, ideas of design and all your private information.
5) We offer 2 years product warranty.
6) We offer the fast delivery in 1-5days for sample, 10-15 days for bulk order.
7) We offer the fast shipping way such as DHL, UPS, FedEx, EMS etc.
8) We offer the best competitive price, NO MOQ required.
