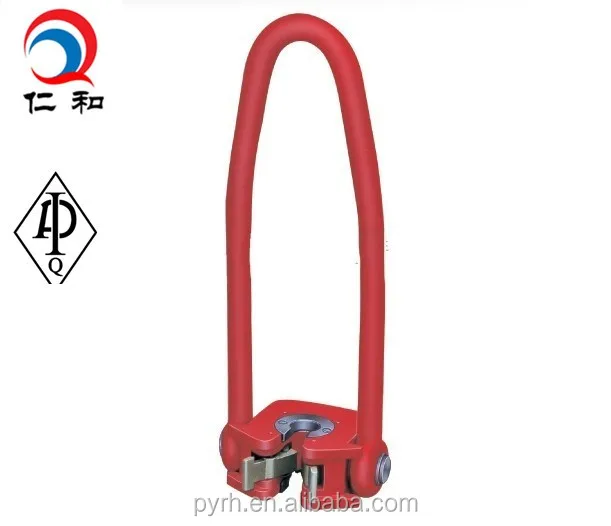

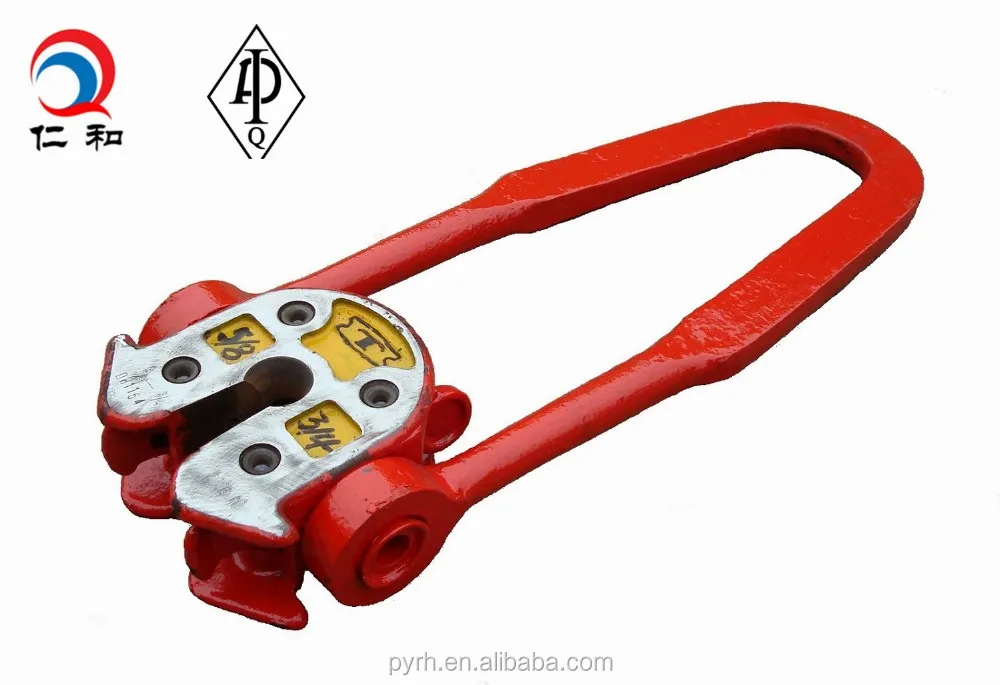

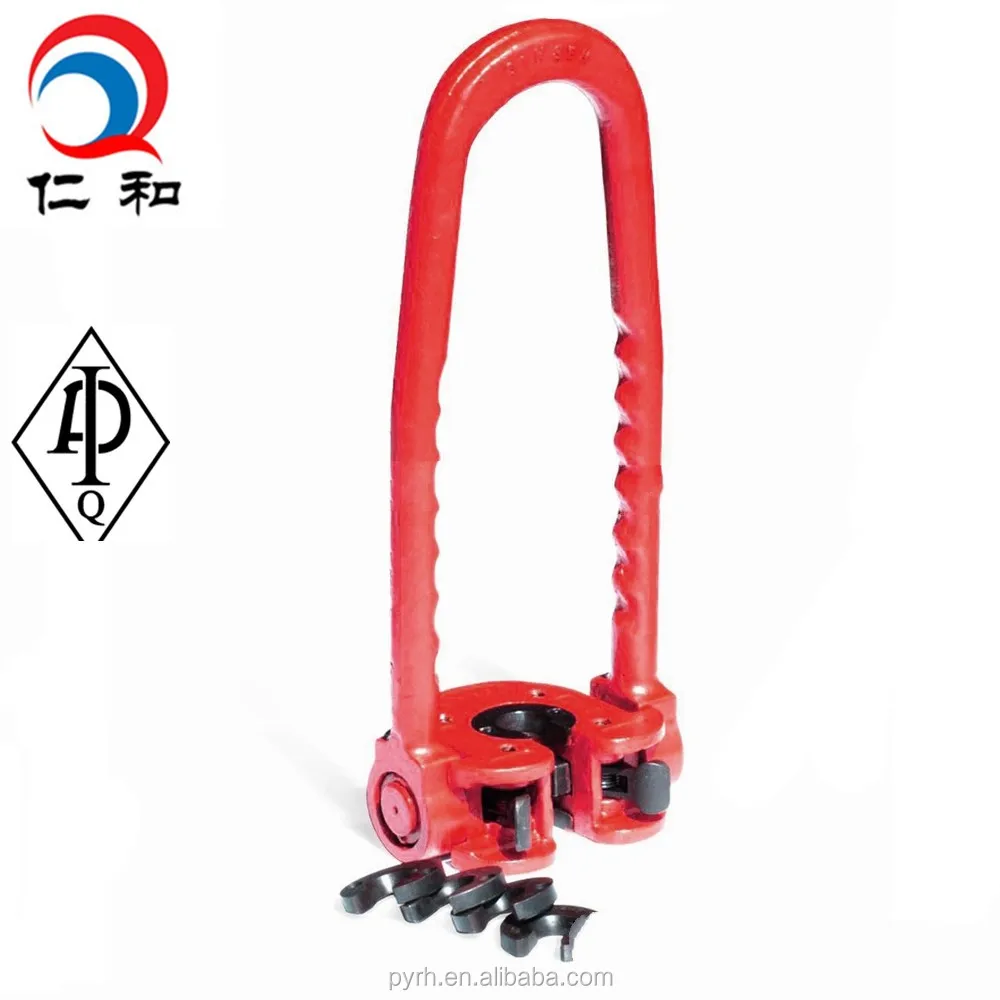

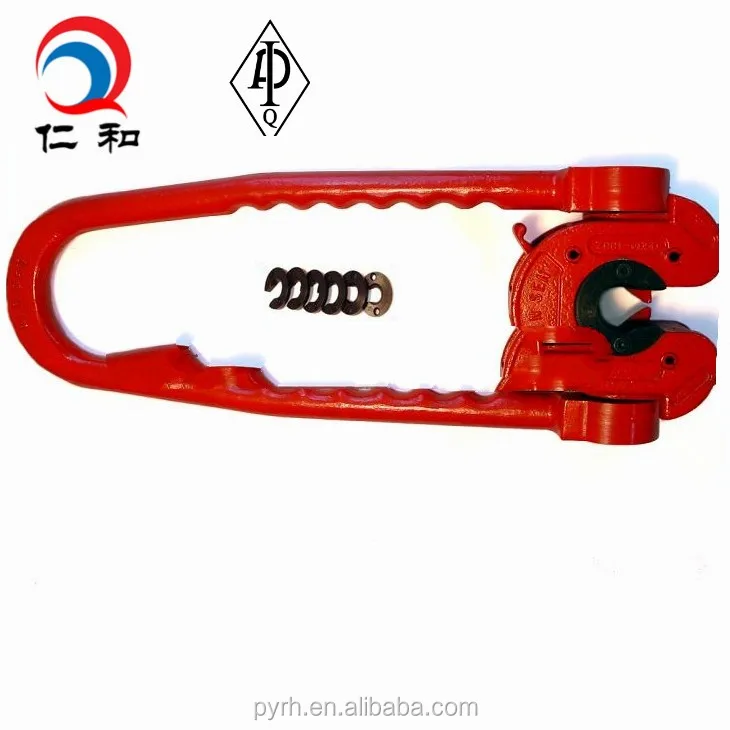

API Oilfield Sucker Rod Elevator / Polished Rod Elevator
Sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size.
Additional saving is realized because work plates can be replaced instead of replacing the entire elevator.
The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment.
2016 Hot sale API Oilfield Sucker Rod Elevator / Polished Rod Elevator In Alibaba
Sucker Rod Elevator Specifications | ||||
Model | Rod Size | Elevator Bores | Max load | Weight |
in | mm | kg | ||
SRE20 | 1/2" - 5/8" | 19 | 20tons (180KN) | 12 |
5/8" - 3/4" | 23 | |||
3/4" - 7/8" | 26 | |||
1" | 30 | |||
1 1/8" | 32 | |||
1 1/4" | 35 | |||
SRE25 | 5/8" - 3/4" | 23 | 25tons (225KN) | 17 |
3/4" - 7/8" | 26 | |||
7/8" - 1" | 30 | |||
