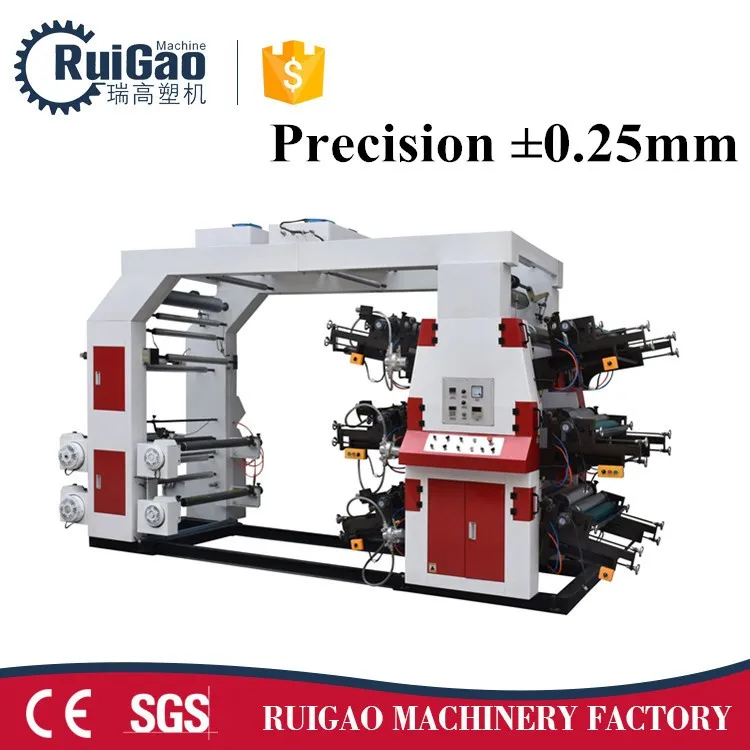

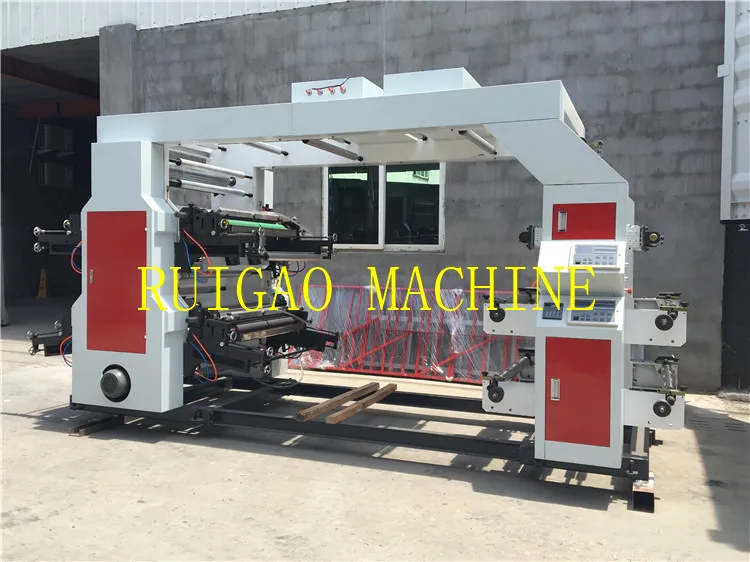

YT 6600 Save power flexo printing press machines/flexographic printer
- Category: >>>
- Supplier: Ruian Ruigao Machinery Factory
Share on (60495863306):
Product Overview
Description
Product Description
Product Application
it is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass
paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
Model of Machine | YT-6600 | YT-6800 | YT-61000 | YT-61200 |
Max.Width of Printing Material | 600mm | 800mm | 1000mm | 1200mm |
Max.Printing With | 560mm | 760mm | 960mm | 1160mm |
Length Range of Printed Product | 191-914mm | 191-914mm | 191-914mm | 191-914mm |
Max.Diameter of Roll Material | φ450mm | φ450mm | φ450mm | φ450mm |
Printing Speed | 5~50m/min | 5~50m/min | 5~50m/min | 5~50m/min |
Thickness of plate(Including Two-sides Glue Paper) | 2.38mm | 2.38mm | 2.38mm | 2.38mm |
Main motor power | 3.7kw | 3.7kw | 3.7kw | 3.7kw |
Weight of Machine | 3500kg | 4200kg | 5000kg | 5500kg |
Overall Dimensions(mm) | 3900×1660×2950 | 3900×1860×2950 | 3900×2060×2950 | 3900×2260×2950 |
heating power | 8Kw | 9Kw | 10Kw | 12Kw |
Total Power | 11.5Kw | 15Kw | 18.5Kw | 22Kw |
Weight of Machine | 3000kg | 3500kg | 4000kg | 4500kg |
Overall Dimension | L4300×W1700×H2500mm | L4300×W1900×H2500mm | L4300×W2100×H2500mm | L4300×W2300×H2500mm |
Detailed Images
Machine Parts

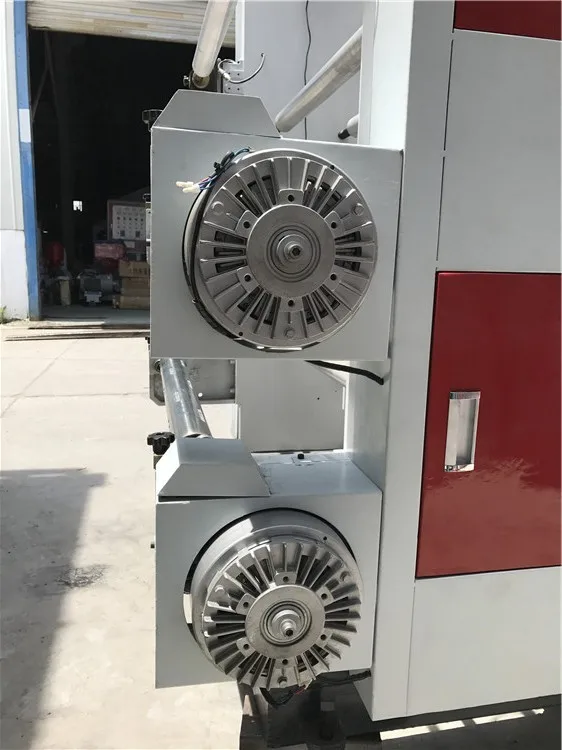

Name: Magnetic BrakeBrand: RuiGao
Original: China
This Magnetic brake is best supplier in China. it can the tension of printing materials very accurately.

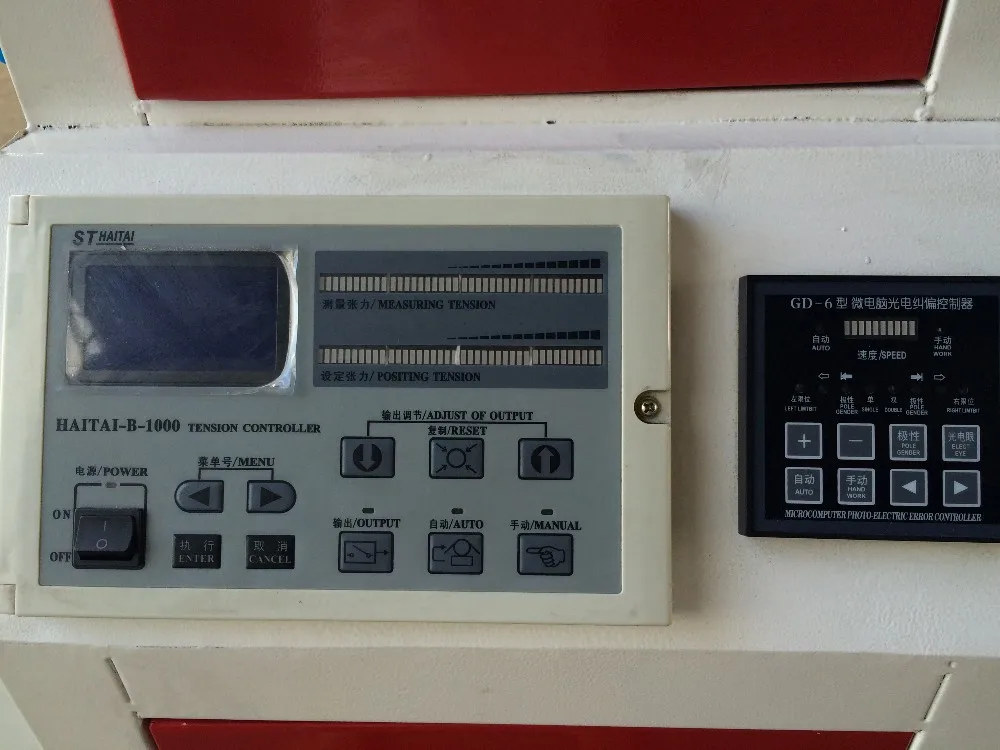

Name: Automatic Tension Controller
Brand: Ruigao
Original: China
It is Automatic Tension Controller, which can adjust the tension of printing materials automatically. No manual mistake.

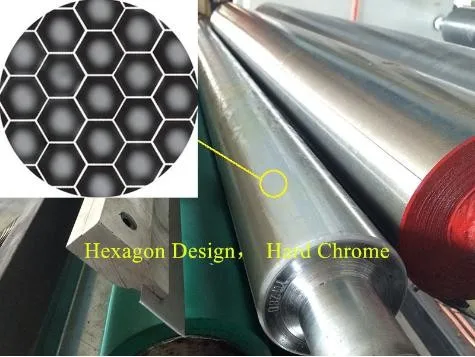

Name: Steel Anilox Roller
Brand: RuiGao
original: China
We design the allilox roller like Hexagon design. Printing Quality is very accurate and even.

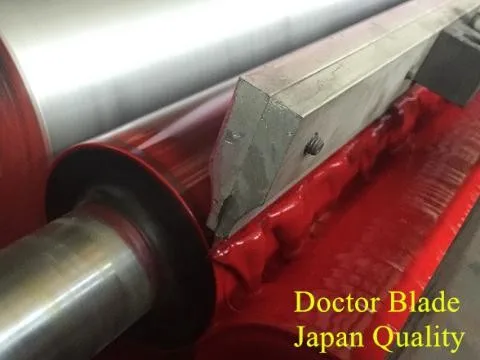

Name: single doctor blade
Brand: Ruigao
It is Germany quality blade, make ink more even
Machine Details

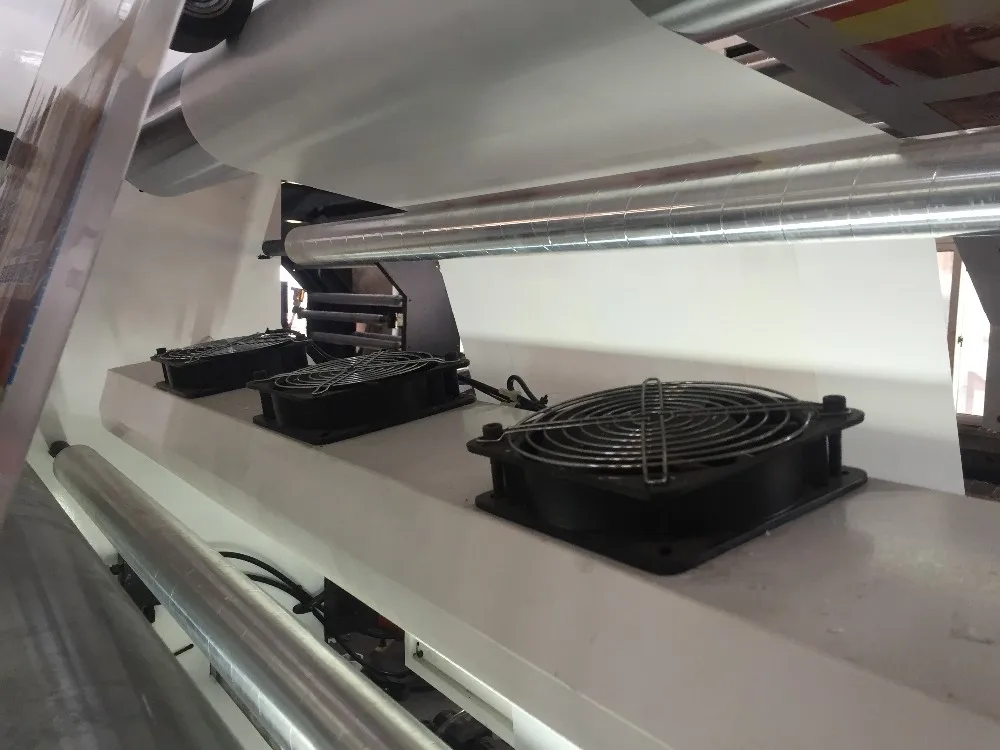

Name:Separate Heating drying
Brand:Ruigao
Origianl: China
We design is with separate hot dring for each printing parts, which can dry faster, improve the printing speed.
Machine Details
Name:Air Shaft
Brand:Ruigao
Origianl: China
It can tight the material,easy to unwinder
Related Products
Three layers film blowing machine with big output
100% Response Rate
Taiwan Quality High Speed PE Vest Bag Machine
100% Response Rate
Automatic Plastic Roll Slitting Machine
100% Response Rate
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
