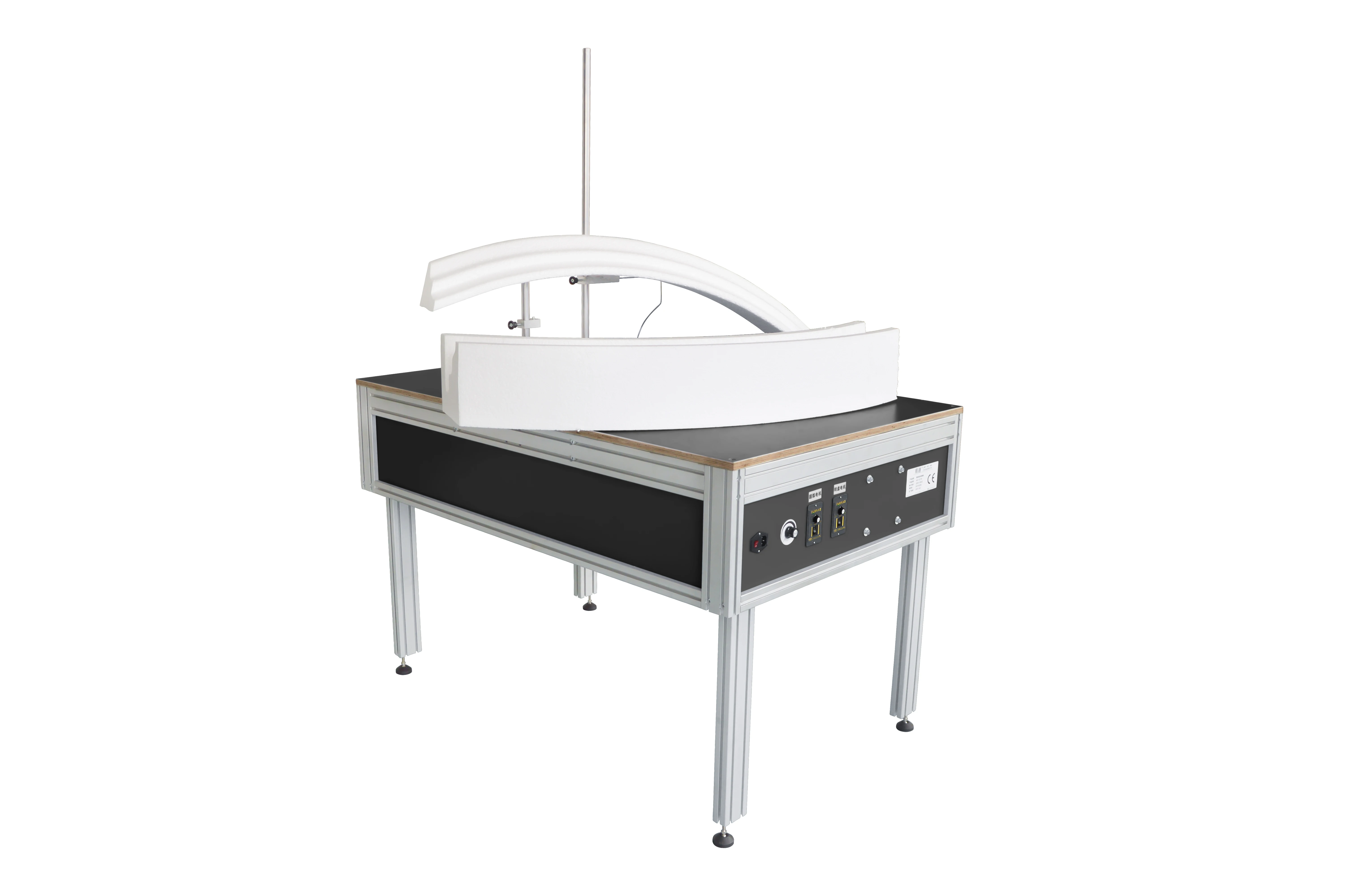

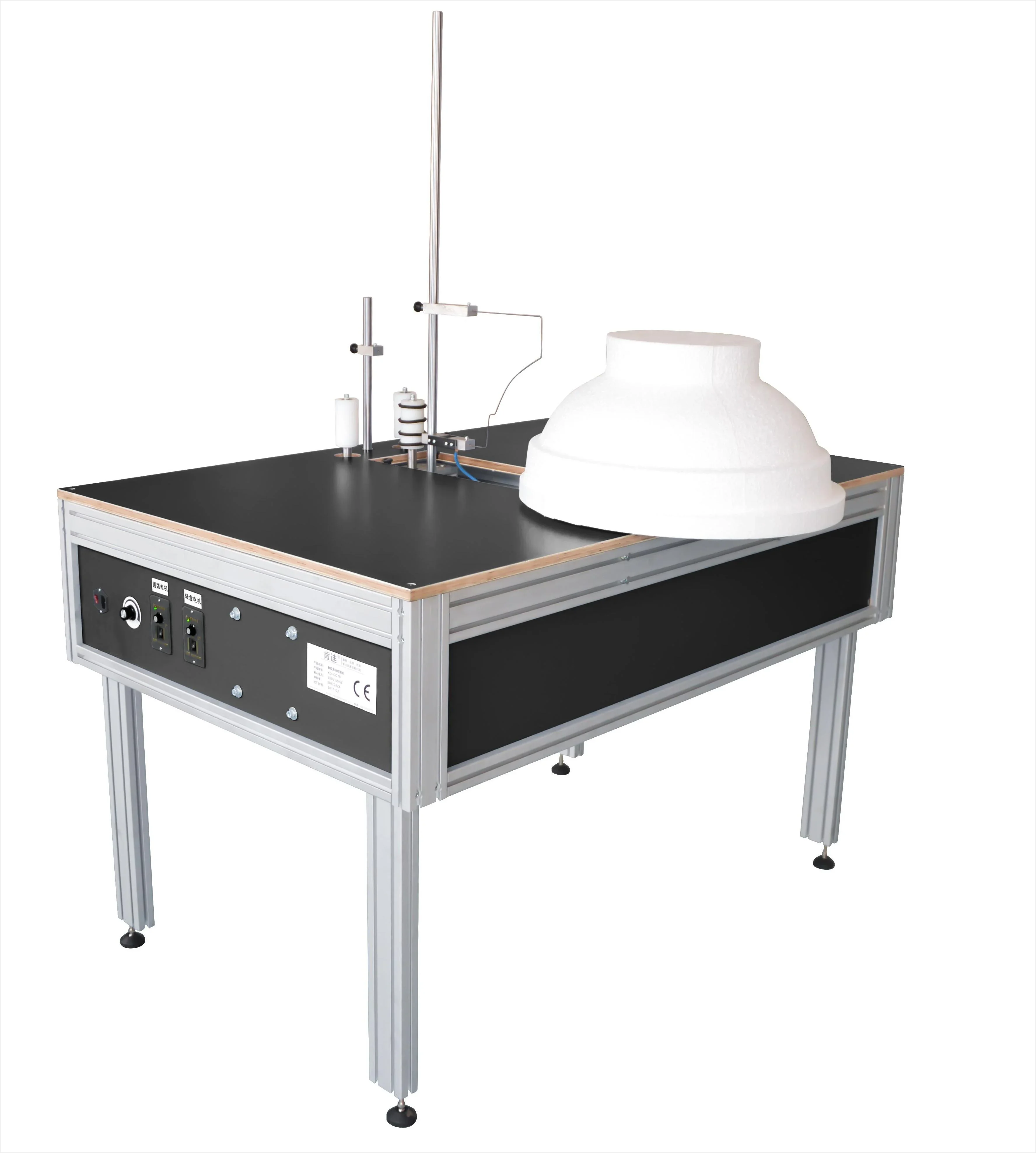

3d CNC Machine Arch foam Cutter CNC foam cutting Kd CC70
- Category: >>>
- Supplier: Changzhou Canty Electric Industry Co. Ltd.
Share on (60496081432):
Product Overview
Description
Video Description
Products Description
Product Detail
Technical Data | ||
Product Model： | KD-CC70 | |
Rated power: | 220V/50Hz, 16Amp | |
Table size: | Approx. 100*170*94 cm | |

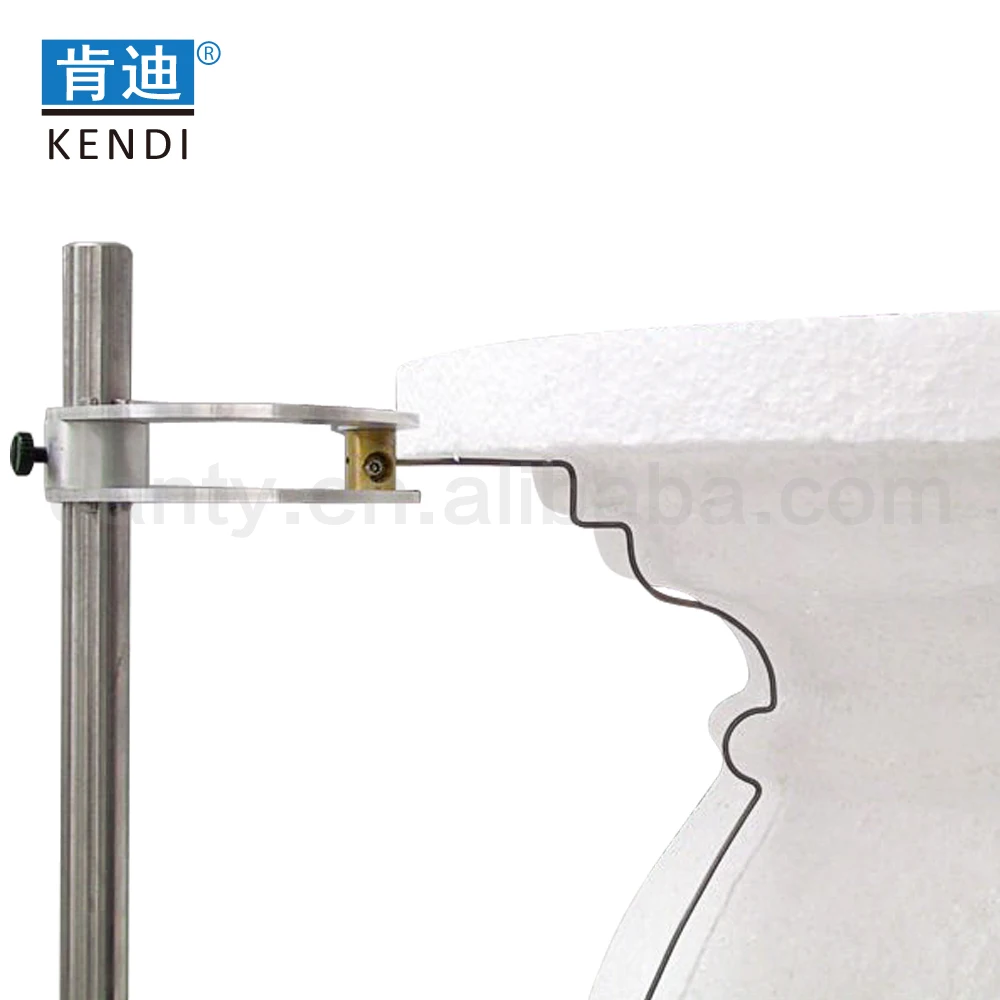

Base&Cap Cutting | ||
Max. Diameter | 110 cm | |
Max Height | 75 cm | |

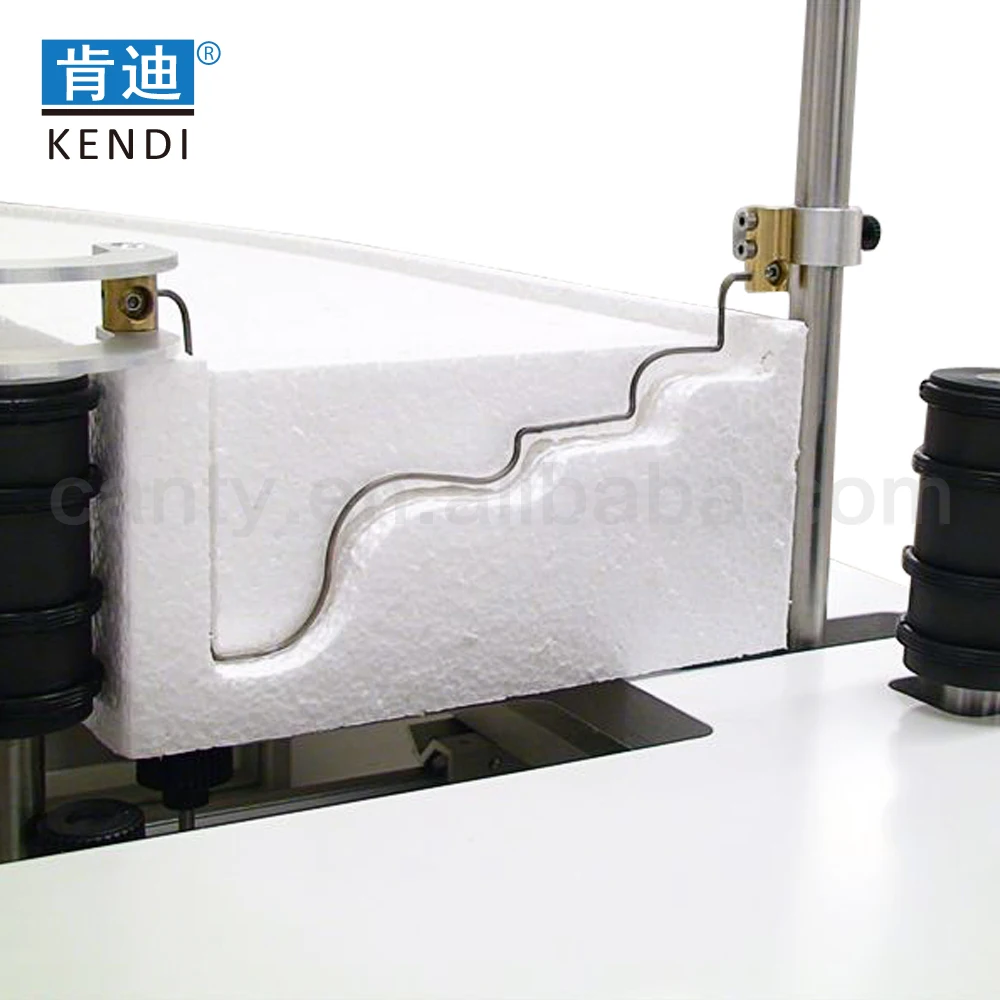

Arch Cutting | ||
Arch max. Width | 54 cm | |
Arch max. Height | 25 cm | |
Arch max. Length | Unlimited | |
Min. Internal Radius | 13 cm | |
Min. External Radius | 25 cm | |
Basic Kit |
Arch Cutter Pack in a Box (Assembly time is about 30 min) |
20 m Hot Wire |
FAQ
Common failures:Some axis does not move and return to the exact position after turning on the machine, return to the mechanical origin.

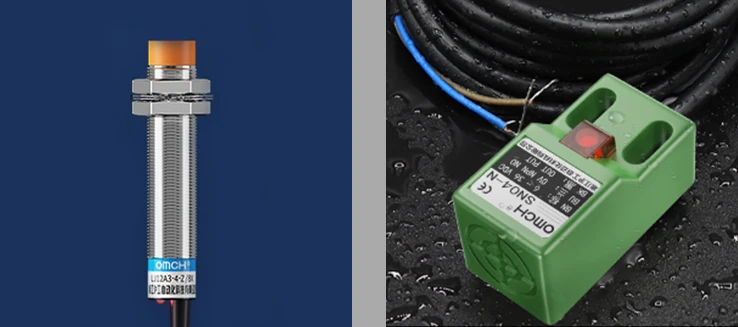

Reason:Problem with Limit switch and wiring.
Solution:Replace Limit switch and wiring（Normally wiring faults are rare）.
Reason:Problem with Limit switch and wiring.
Solution:Replace Limit switch and wiring（Normally wiring faults are rare）.
Common failures:The machine emits metal Friction noise during movement.

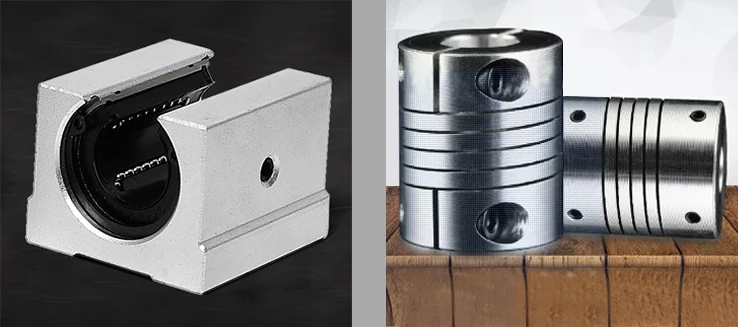

Reason:Linear bearing wear or Coupling cracking occurs.
Solution:Replace Coupling or Linear bearing.
Reason:Linear bearing wear or Coupling cracking occurs.
Solution:Replace Coupling or Linear bearing.
Common failures:Some axis does not move while the machine is running.

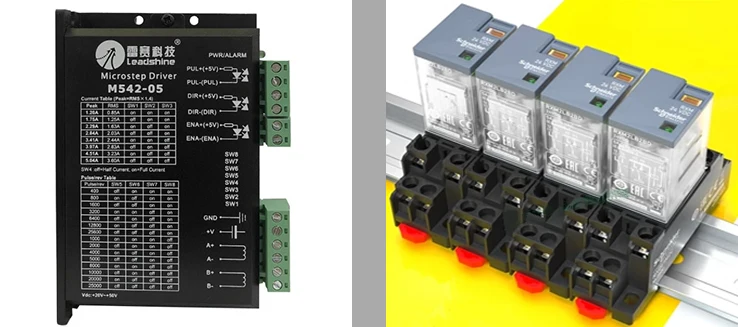

Reason:Controller is damaged or Intermediate Relay Poor contact.
Solution:Replace Control drive or Intermediate Relay.
Reason:Controller is damaged or Intermediate Relay Poor contact.
Solution:Replace Control drive or Intermediate Relay.
Common failures:Hot wire does not become hot and Indicator does not light up.

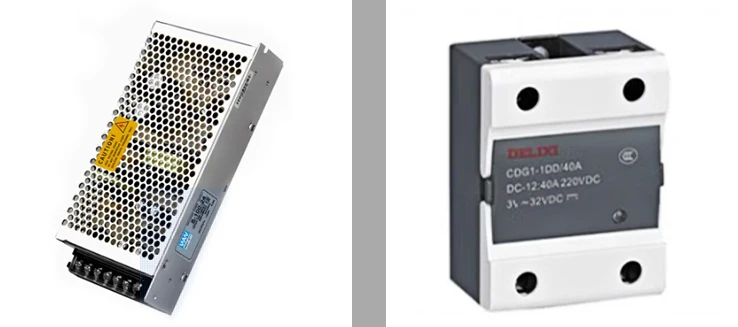

Reason:Power supply or Contactor is damaged .
Solution:Replace Power supply or Contactor.
Reason:Power supply or Contactor is damaged .
Solution:Replace Power supply or Contactor.
