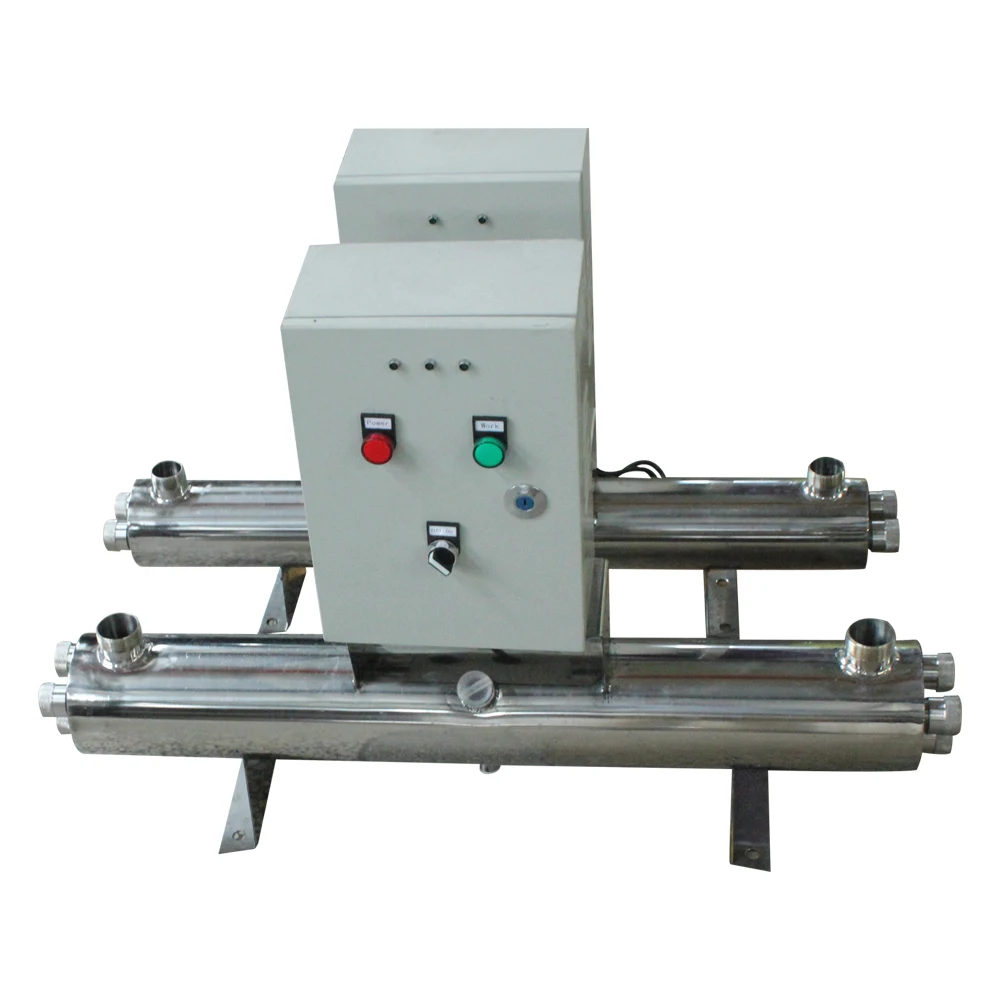

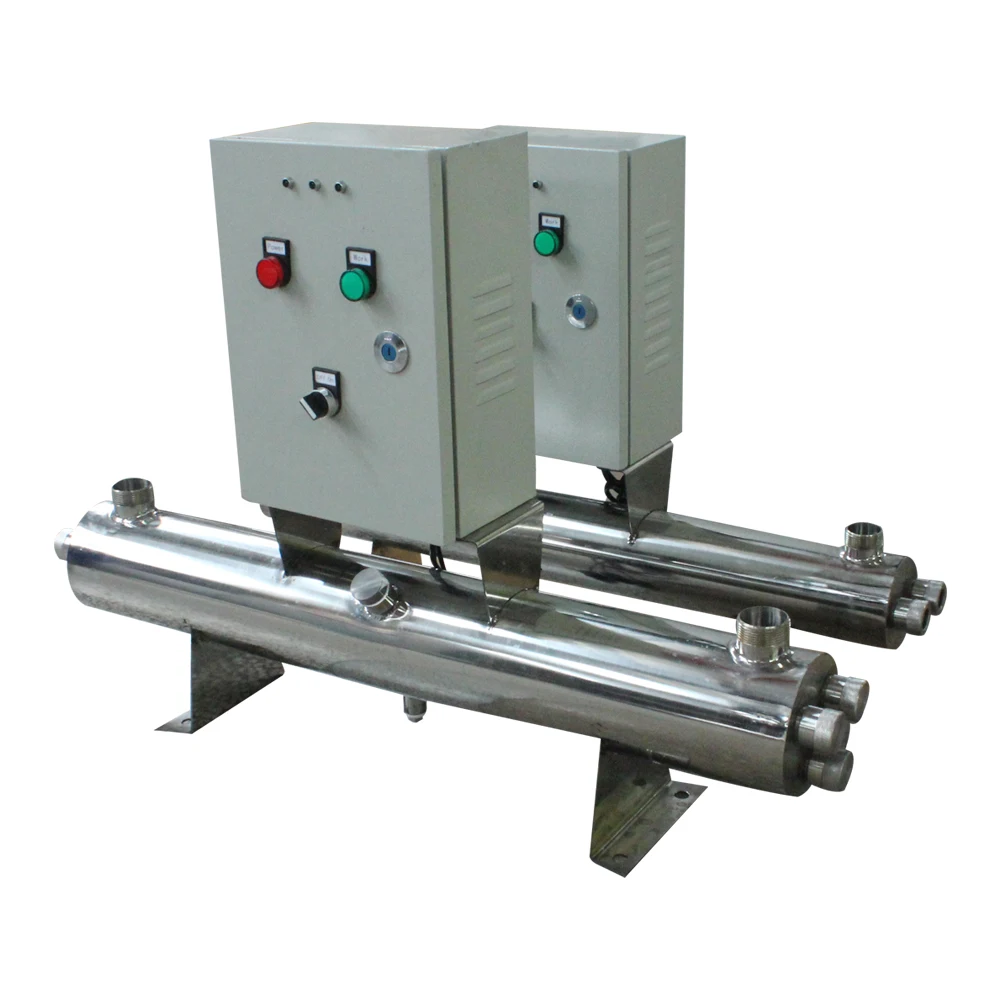

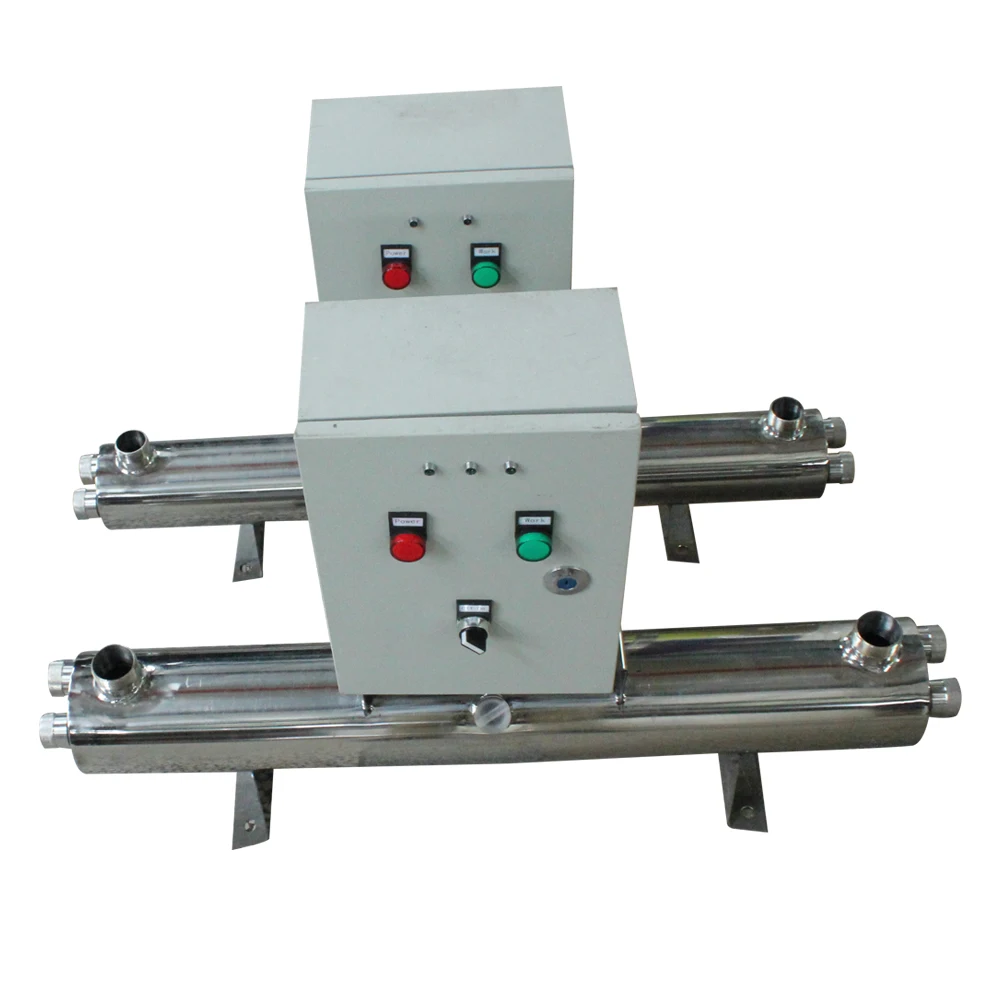

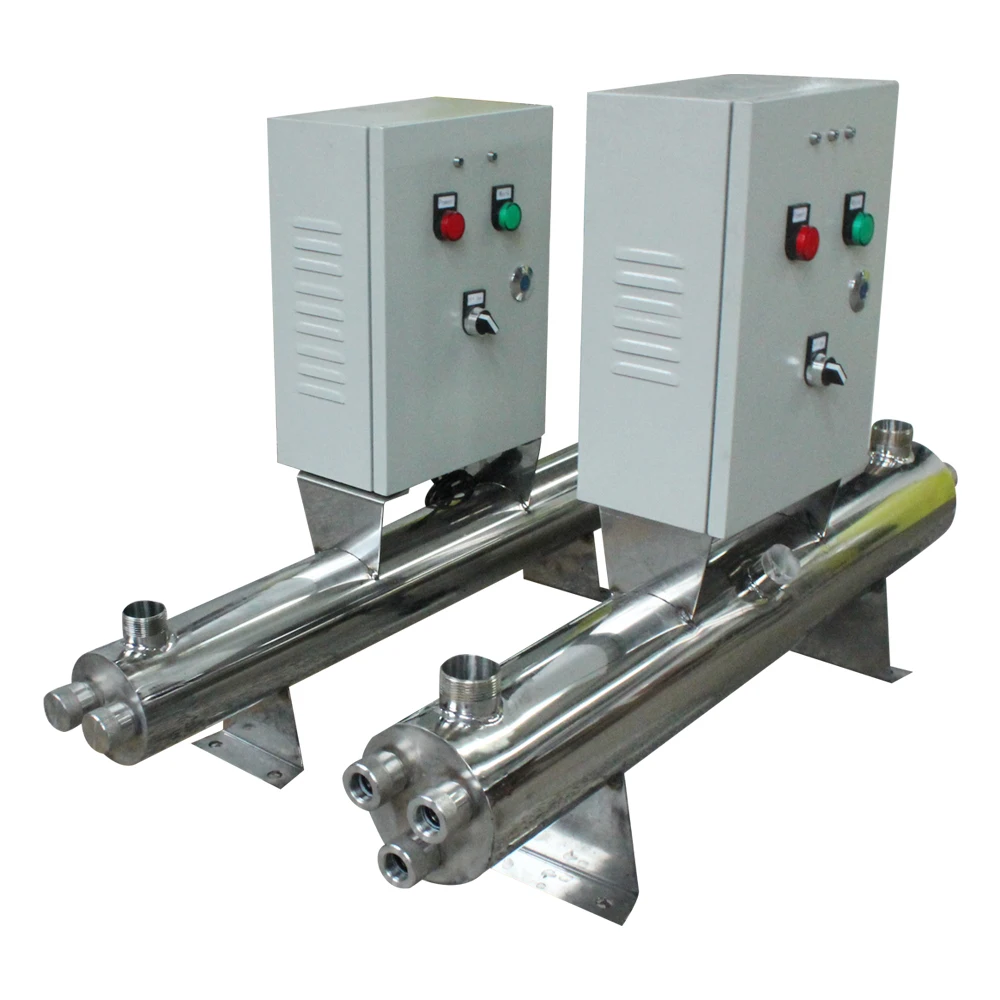

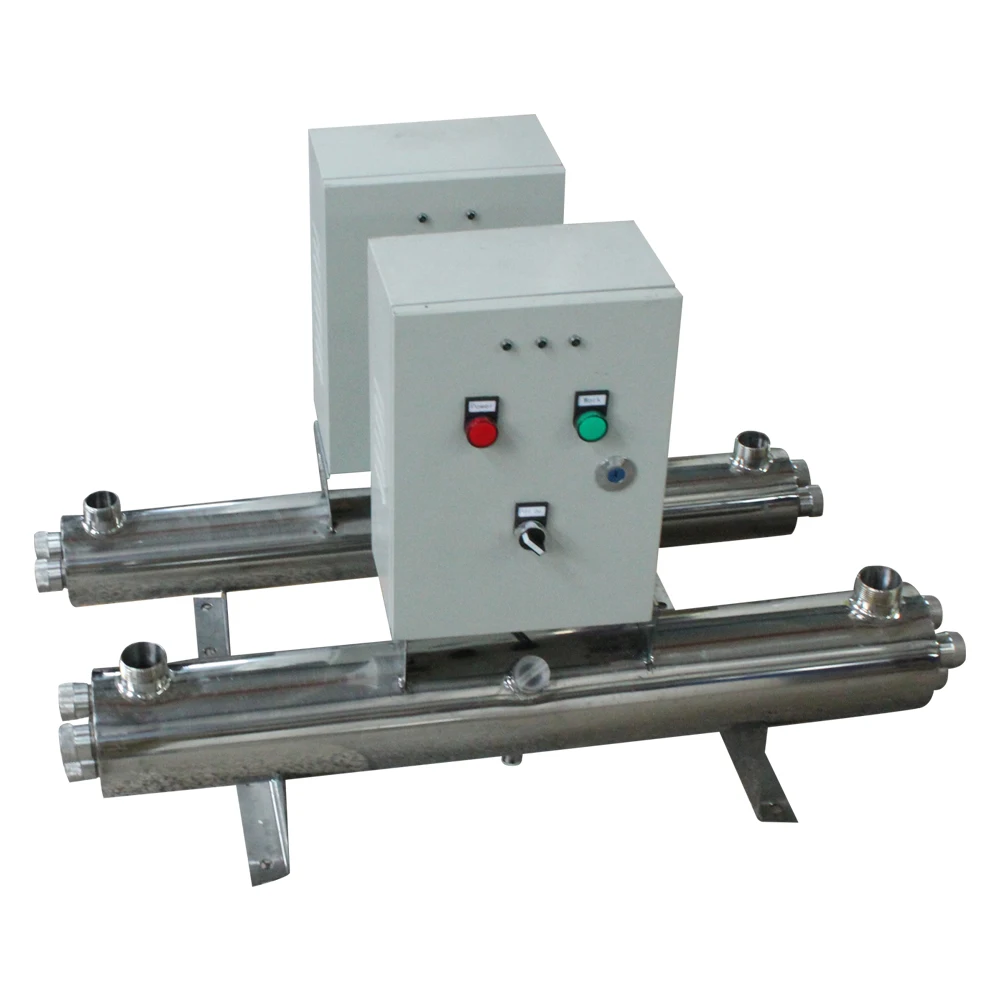

254 nm UV low pressure mercury lamp sterilizer for aquarium water disinfection
- Category: >>>
- Supplier: Jiangsu YLD Water Processing Equipment Co. Ltd.
Share on (60496187239):
Product Overview
Description
254 nm UV low-pressure mercury lamp sterilizer for
aquarium water disinfection
Working Principle

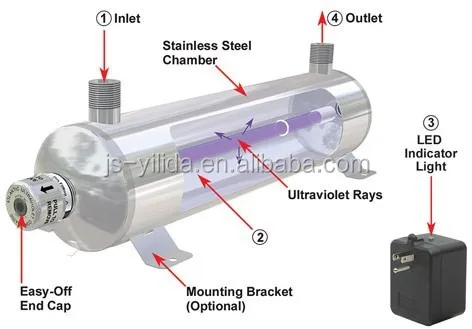

Special low-pressure mercury vapor lamps produce ultraviolet radiation at 254 nm, the optimal wavelength for disinfection and ozone destruction. The UV lamp never contacts the water; it is either housed in a quartz glass sleeve inside the water chamber or mounted external to the water which flows through UV transparent Teflon tubes. Some ultrapure water systems use 185 nm UV units for reducing TOC (total organic carbon).
Ultraviolet (UV) sanitizing units are used in many water purification systems to control bacteria and have certain applications in animal drinking water systems. UV units can be effective water treatment tools, but it is important to recognize what UV can do, what its limitations are, and what maintenance is required.
UV sterilizers are not a replacement for good biological and mechanical filtration, regular water changes, or proper control of the nitrogen cycle.
Limitation of use
The UV water disinfection system NOT intended for the treatment of water that has an obvious contamination or intentional source, such as raw sewage, nor is the unit intended to convert waste water to microbiologically safe drinking water.
Product Description
Water Quality(in)
Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels.
Maximum Concentration Levels (Very Important)
Total iron content | Less than 0.3ppm(0.3mg/L) |
H2S | Less than 0.05ppm(0.05mg/L) |
Total suspended matter | Less than 10 mg/L |
Manganese content | Less than 0.05 mg/L |
Water hardness | Less than 120 mg/L |
Water Temp. | 5-60Centigrade |
PH value | 6.5-8 |
To customers details
01. What is the source of raw water to be treated?
--is it underground water or well water?or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
Technical parameter
Flow rate (T/H) | Lamp Power (W) | Inlet & outlet | Shell dimension (mm) L×W×H | Control cabinet(mm) L×W×H | Weight (Kg) | ||
mm | inch | ||||||
YLCn-005 | 0.3 | 16 | 20 | 1/2" | 350*63*110 |
| 2 |
YLCn-008 | 1 | 25 | 20 | 1/2" | 470*63*110 |
| 2 |
YLCn-050 | 2 | 40 | 25 | 1" | 930*76*130 |
| 10 |
YLCn-150 | 6 | 80 | 32 | 1+1/4" | 930*108*240 | 250*140*300 | 15 |
YLCn-200 | 8 | 120 | 40 | 1+1/2" | 930*133*270 | 250*140*300 | 20 |
YLCn-300 | 12 | 160 | 50 | 2" | 930*159*290 | 300*150*400 | 25 |
YLC-360 | 15 | 200 | 65 | 2+1/2" | 930*159*370 | 300*150*400 | 32 |
YLC-500 | 20 | 240 | 65 | 2+1/2" | 930*159*370 | 300*150*400 | 35 |
YLC-600 | 25 | 280 | 80 | 3" | 930*159*370 | 300*150*400 | 40 |
YLC-700 | 30 | 320 | 100 | 4" | 930*159*370 | 300*150*400 | 45 |
YLC-1000 | 40 | 360 | 100 | 4" | 930*159*370 | 350*200*450 | 60 |
YLC-1200 | 50 | 400 | 125 | 5" | 930*219*450 | 350*200*450 | 80 |
YLC-1500 | 60 | 420 | 150 | 6" | 1630*219*450 | 400*200*500 | 80 |
YLC-2000 | 80 | 560 | 150 | 6" | 1630*219*450 | 400*200*500 | 90 |
100 | 700 | 150 | 6" | 1630*219*450 | 400*200*500 | 120 | |
YLC-3000 | 125 | 840 | 150 | 6" | 1630*219*450 | 500*200*600 | 125 |
YLC-4000 | 150 | 1120 | 200 | 8" | 1630*273*530 | 500*200*600 | 135 |
YLC-5000 | 200 | 1400 | 200 | 8" | 1630*273*530 | 500*200*600 | 150 |
YLC-7000 | 300 | 2100 | 250 | 10 | 1630*325*580 | 500*350*1000 | 180 |
YLC-10K | 400 | 2520 | 250 | 10" | 1630*325*580 | 500*350*1000 | 200 |
YLC-15K | 600 | 3080 | 300 | 12" | 1630*377*640 | 600*350*1200 | 220 |
Advantages
1.High efficient sterilization: normally kill 99%-99.9% bacteria within 1 to 2 seconds.
2.Broad spectrum: UV rays has the broadest spectrum, killing almost all bacteria and virus.
3.No secondary pollution: don’t add any chemical agent, it does not create secondary pollution to water and surrounding environment, do not change any ingredients in water.
4.Safe and reliable to operate: traditional disinfection technology such as adopt chloride and ozone, the disinfectants themselves are highly toxic and flammable material. While UV sterilizer has no such potential safety hazard.
5.Low maintenance fee: UV sterilizer occupies a small area (and have a simple structure requirement, so smaller total investment and lower operation cost are easy to achieve).Its cost only half than chlorine disinfection in kiloton water treatment.
Application
Ultraviolet technology is used extensively in many industry sectors including:
1.Manufacturing
2.Pharmaceuticals
3.Catering
4.Off-shore industries
5.Swimming and leisure industry
6.Ocean-going vessels (drinking water & ballast water)
7.Drinking water industry
8.Food and beverage production
9.Waste water treatment industry
To Customers
1.What is the water flow of your water system?
2.What is your raw water to be disinfected?
3.Do you need the accessories like flow switch,UV intensity detector,timer,etc?
4.Do you also require other kinds of filters for prefiltration used in your water system?

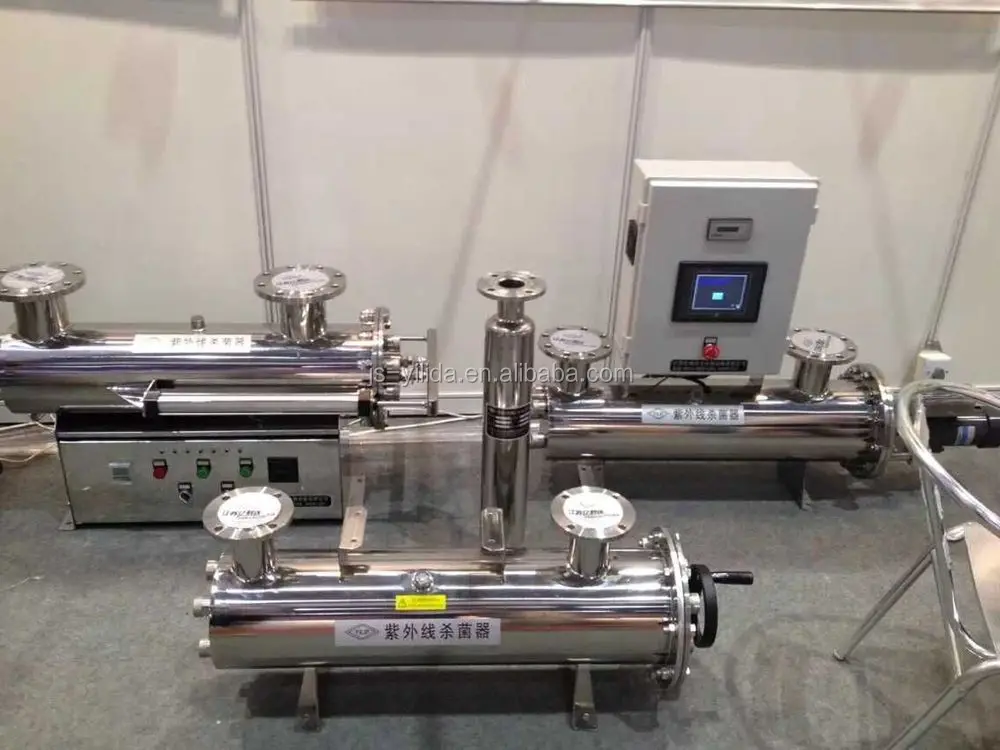

Product Show

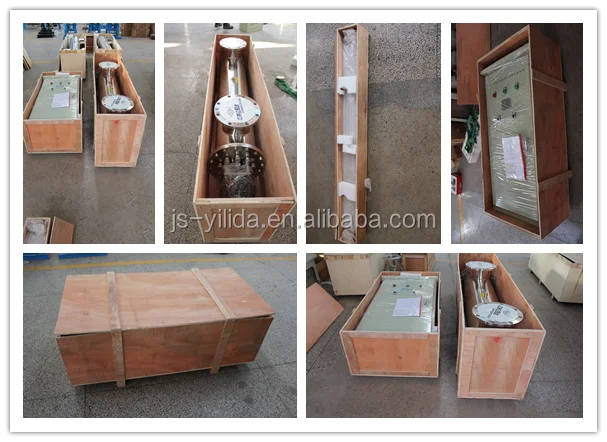

Packaging & Shipping
Our Services
We provide 24 hours online customer service.
Any inquiry about water treatment system, please feel free to contact me for further details!
Contact information:
Mobile phone/ WhatsApp/ Wechat: +86 13585066069
Email: yld AT jsyld.com.cn
Alibaba website: http://js-yilida.en.alibaba.com
Official website: www.zgyld.com
Guarantee period:1 year
After-sale service:800-827-87-226

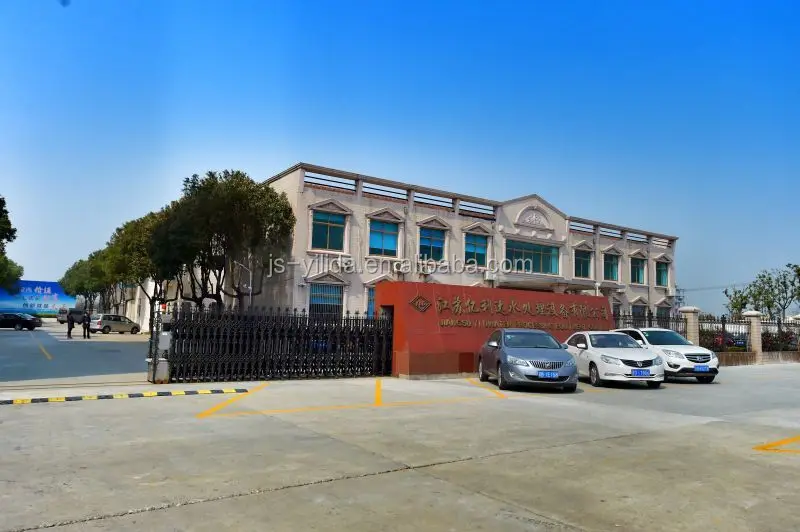

Company Information
Development History:
2000: Jiangyin YLD was founded.
2004:Jiangyin YLD change to Jiangsu YLD, registered fund from 50 ten thousand to 500 million, factory area from 1500m2 to 15000 m2.
2005: From 2005 year to now, every year credit rating was awarded "AAA" .
2007: Jiangyin science and technology bureau granted YLD "JIANGYIN ENGINEERING AND RESEARCH CENTER FOR WATER FILTER AND ULTRAVIOLET STERILIZATION"
2009: Open the foreign market, the products were sold abroad, Canada, USA, Singapore and so on.
2010: YLD Trademark was registered successful.
2012: The formal establishment of the ministry of foreign trade opened up more foreign markets.
2014: Patented by many products independently researched and developed by the company.
2015: The self-developed multi-cartridge automatic backwash filter was rated as a high-tech product and obtained a certificate.
2016: The company was rated as a scientific and technological enterprise and a high-tech enterprise in Jiangsu Province.
2019: The company got "Manufacture License of Special Equipment People's Republic of China".
2020: Awarded the title of "Loving Enterprise" by the government and "Quality Supplier" by suppliers
