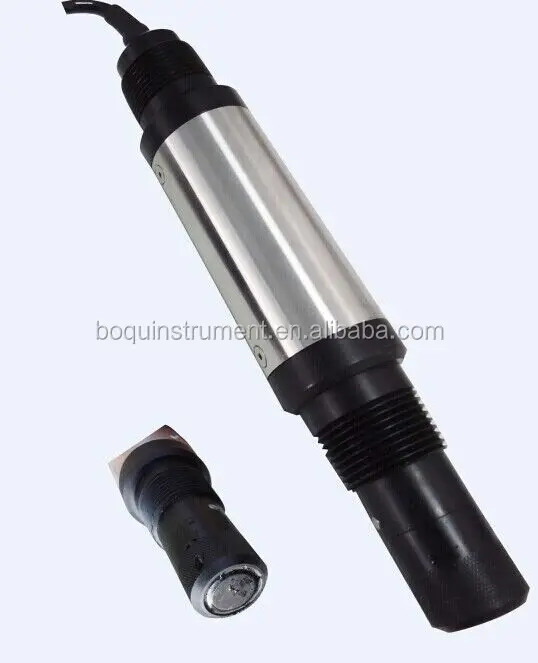

DOG-209FYA Online Optical Dissolved Oxygen Sensor
DOG209FYA type oxygen electrode improved from the previously dissolved oxygen electrode, change diaphragm into a grit mesh metal membrane, with high stability and stress resistant, can be used in a more harsh environment, free maintenance, suitable for urban sewage treatment, industrial wastewater treatment, aquaculture and environmental monitoring and other fields of continuous measurement of dissolved oxygen.
1. Description: Optical dissolved oxygen sensor
CPVC(or PVC)/ Stainless Steel 316 body with replaceable membrane cap module.
M9 male connector, IP-68
2. Range: DO: 0-20mg/L
Working temperature: -5 to 50℃
Sat. %: 0-200%
3. Accuracy: DO: ±0.1mg/L
4. Response Time: 30 second to 90% (T-90), 60 seconds to 100%
5. Expected Luminophore Module Life: 2 years
