Eddy current separator for scrap steel for separating copper and aluminum, nonferrous metal separation machine

Product Overview

Description

Eddy current separator for scrap steel for separating copper and aluminum, nonferrous metal separation machine

Eddy Current Separator Systems



The Eddy Current Separator (ECS) is an advanced metal sorting system/ unit that is capable of separating non-ferrous metals such as aluminum and copper from dry recyclables.

Eddy Current Separators are increasingly used wherever separation of non-ferrous metals from a product stream can give a more valuable product, whether the end use is in recycling, waste reduction, raw material production or any other process whereby separation is beneficial.

Non-ferrous separators are very common in the fast-growing market of beverage can sorting, these eddy current systems can provide an accurate separation of aluminum cans from waste streams.



Operating Principles



An Eddy Current Separator consists of a short belt conveyor that has its drive located at the return end and a high-speed magnetic rotor system installed at the discharge end. The magnetic rotor, which is positioned within a separately rotating non-metallic drum, revolves at around 3000 revolutions per minute during operation whilst the outer drum cover rotates at the speed of the Eddy Currents' belt conveyor.



As the eddy current systems rotor spins at these high speeds, an electric current is induced into conducting metals. The induced electric current produces a magnetic field, which opposes the field created by the rotor, repelling the conducting metals over a pre-positioned splitter plate. The remaining materials such as plastics, glass and other dry recyclables will simply free-fall over the rotor, separating them from the repelled metals.

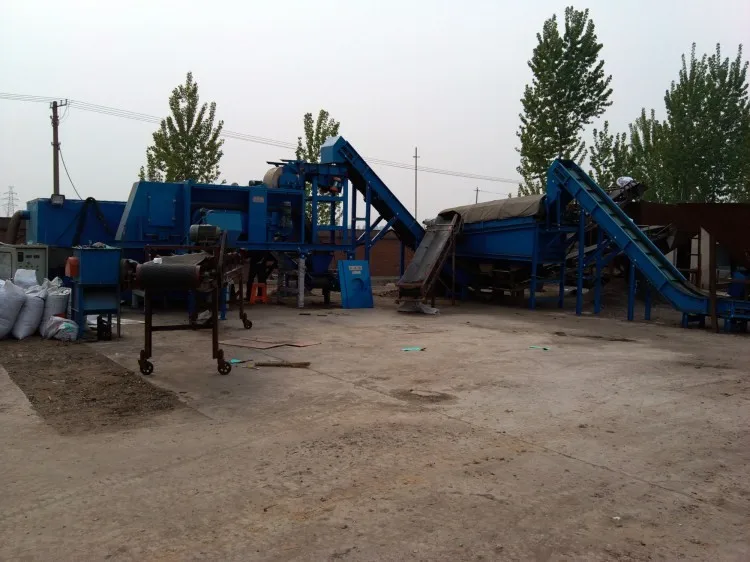

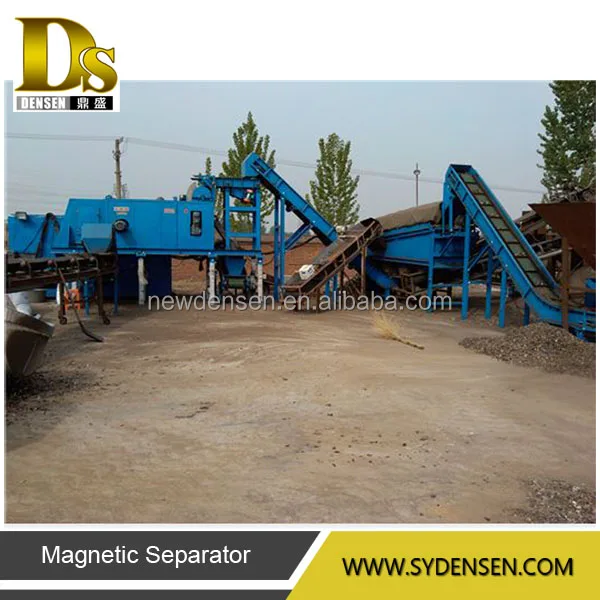

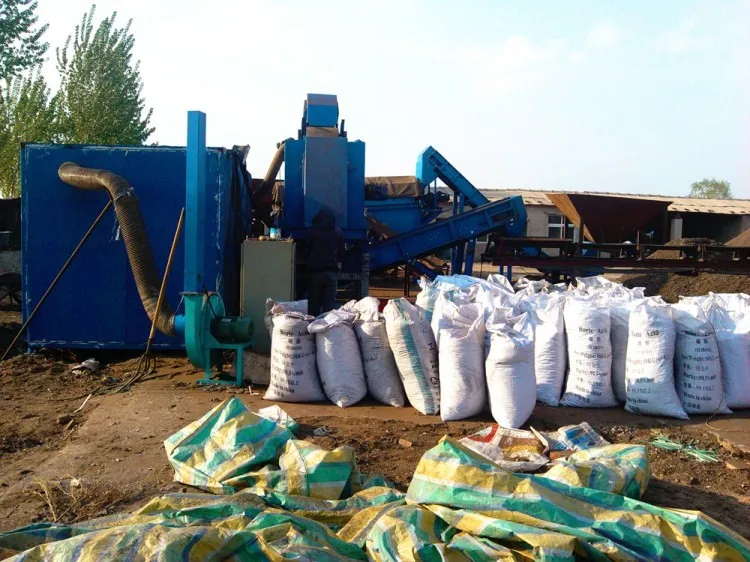

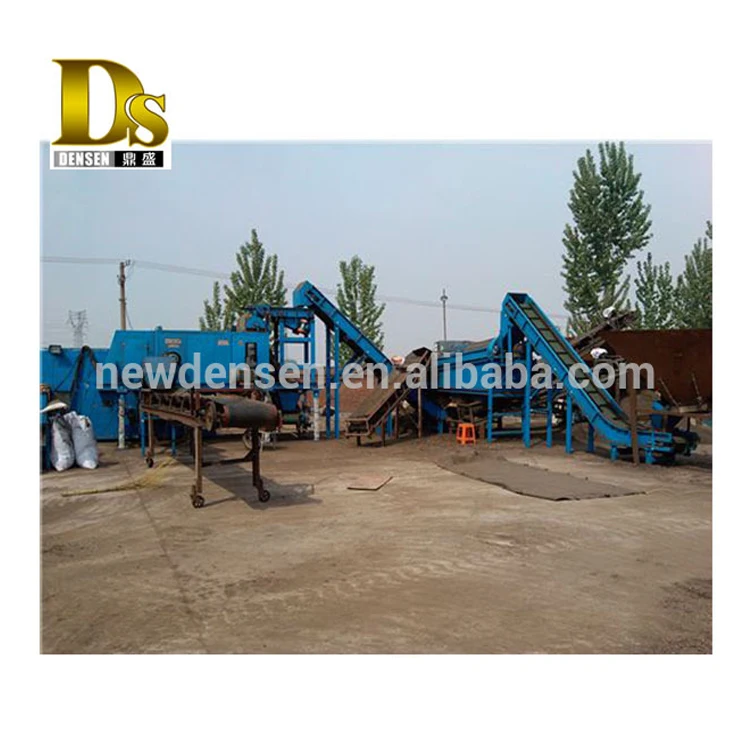

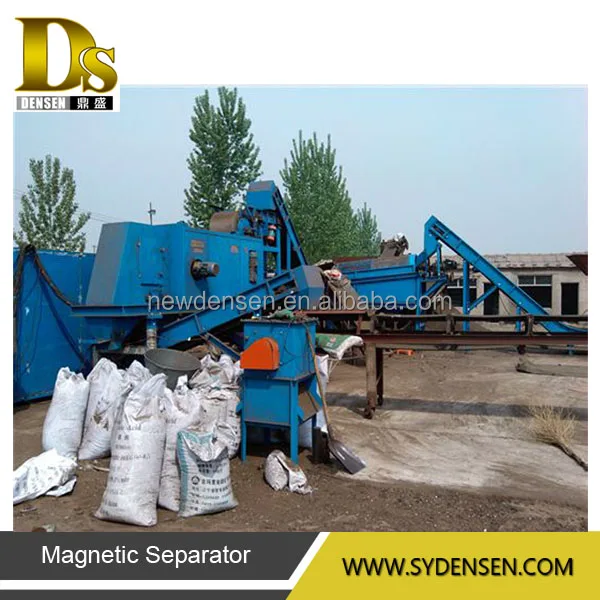

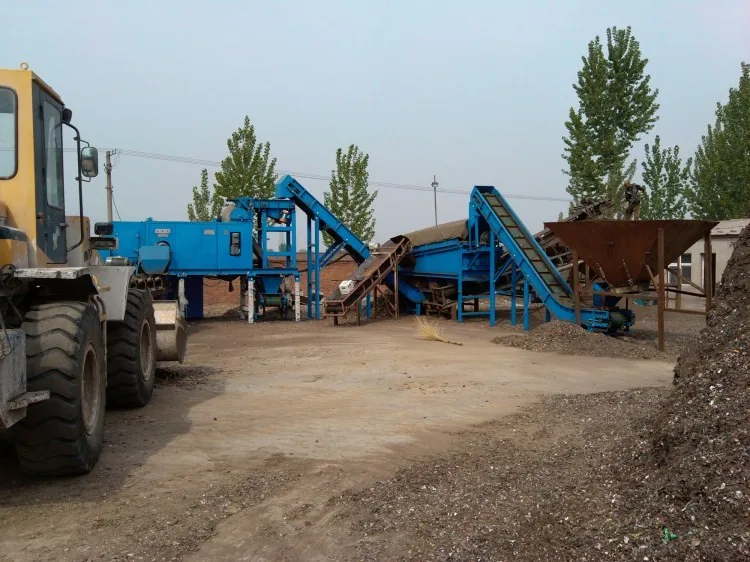

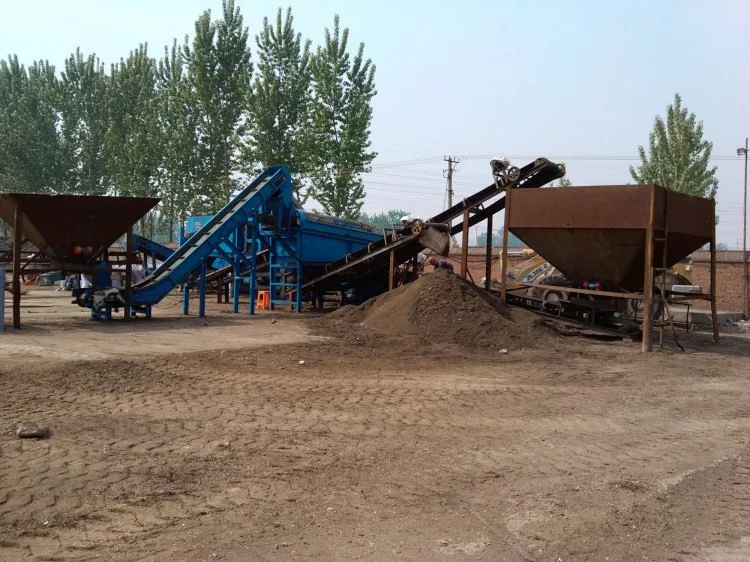

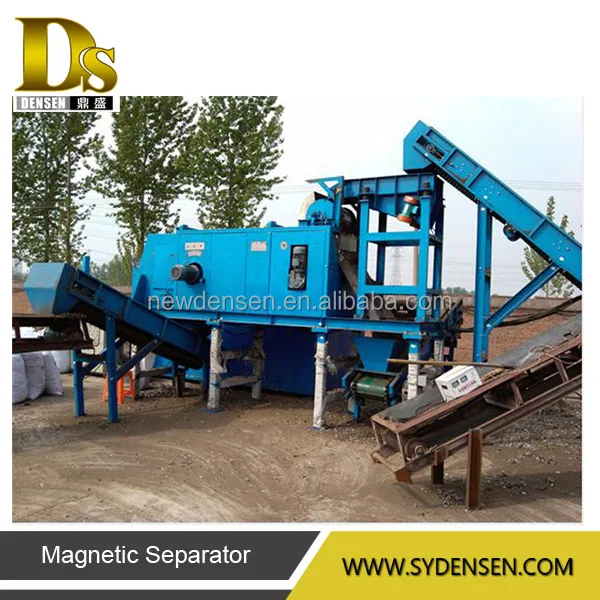

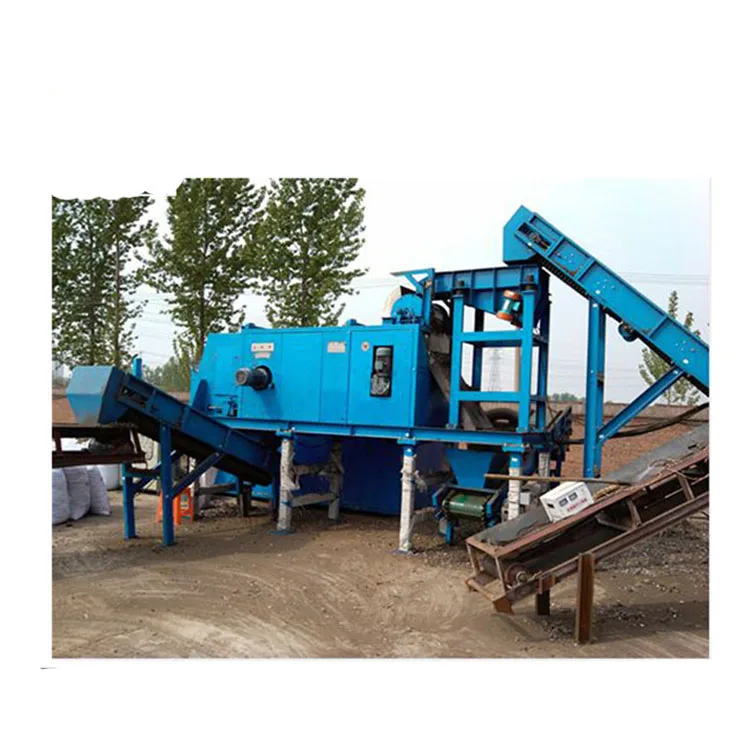

Product show:

Product Description



Eddy current separator for scrap steel for separating copper,aluminum and iron

This system could deal with waste tailing pollution of steel industry and separate non-ferrous metal, stainless steel, robber, plastic etc. from the waste tailing.

Densen also could provide the suitable recycling solutions according to customers’ requirement, such as solid waste sorting line, aluminum recycling line, papermaking waste sorting lines, and PET flakes sorting line.



Specification:

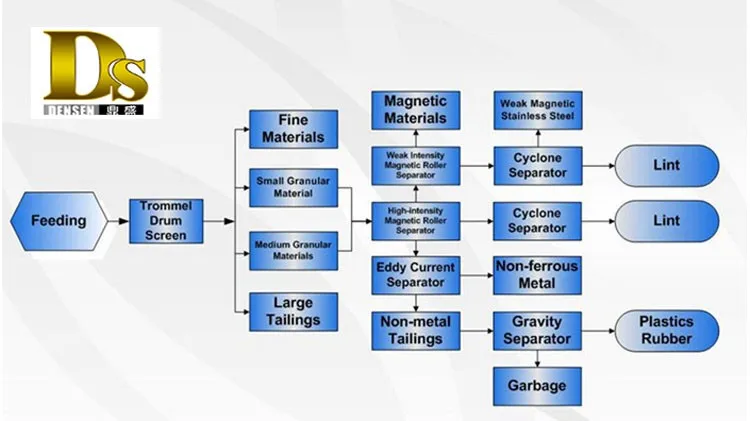

Work principle:





 Example drawing:

Our engineering team could design drawing according your needs
