130lm/w led t5 tube light g5 end cap design 120cm 18w led tube light t5
- Category: >>>
- Supplier: Shenzhen Nge Technology Co. Ltd.
Share on (60496365939):
Product Overview
Description
130lm/w led t5 tube light g5 end cap design 120cm 18w led tube light t5
Product Description
Designed as the replacements for T5 fluorescent tube light, NGE T5 LED tube light have great advantages of higher bright, beautiful appearance and longer service lifetime. At the same time, the T5 LED tube light g5 have one end input and two end input types. With internal driver inside, our T5 LED tube can directly replace the traditional T5 fluorescent tube light and keep the existing fitting.
Benefits
• Replacement for T5 fluorescent tube light
• Energy saving over 40%
• Environmental protection, no pollution
• Significant reduction in maintenance
Features
• Epistar 2835 LED, completed light efficiency 160lm/w
• Internal driver design, G5 end caps, easy installation
• Better heat dissipation with aluminum shell and PCB
• Consistent color rendering (CRI) > 80
• Warranty: 5 years
Product Specification
| Specification for 130lm/w led t5 tube light g5 end cap design 120cm 18w led tube light t5 | ||
General Information | Product Type | t5 tube fixture |
| Product Size | D22mm*L1148mm | |
| End Cap Pins | G5 | |
| Electric parameter | Driver Type | internal driver |
| Input Voltage | AC100-240V/50-60Hz | |
| Power | 18W | |
| PF | >0.90 | |
| Optical Parameter | LED Brand | Epistar chip, 2835 SMD |
| CRI | >80 | |
| Color Temperature (CCT) | 2700K-7000K | |
| Luminous Flux | 2340lm±5% | |
Luminous Efficiency | 130lm/w | |
| Beam angle | 120° | |
| Others | Lifetime | 50,000Hr |
| Operating temperature | -40℃~50℃ | |
| Warranty | 5 years | |
| Materials | AL housing+PC cover | |
| Installation | Suspending and Mounting | |
| Application | warehouse, home, office, parking lots | |
Series Products of 130lm/w led t5 tube light g5 end cap design 120cm 18w led tube light t5
Item No. | Input Voltage | Power | Luminous Flux | Luminous Efficiency | CRI | PF | End Cap Pins |
NGE-T501H-60CM-10W | AC100-240V | 10W | 1300lm±5% | 130lm/w | >80 | >0.90 | G5 |
NGE-T501H-90CM-13W | AC100-240V | 13W | 1690lm±5% | 130lm/w | >80 | >0.90 | G5 |
NGE-T501H-120CM-18W | AC100-240V | 18W | 2340lm±5% | 130lm/w | >80 | >0.90 | G5 |
NGE-T501H-120CM-20W | AC100-240V | 20W | 2600lm±5% | 130lm/w | >80 | >0.90 | G5 |
NGE-T501H-150CM-22W | AC100-240V | 22W | 2860lm±5% | 130lm/w | >80 | >0.90 | G5 |
NGE-T501H-150CM-25W | AC100-240V | 25W | 3250lm±5% | 130lm/w | >80 | >0.90 | G5 |
| NGE-T501H-150CM-30W | AC100-240V | 30W | 3750lm±5% | 130lm/w | >80 | >0.90 | G5 |
Application
• Office
• Warehouse
• Parking lot
• Factories

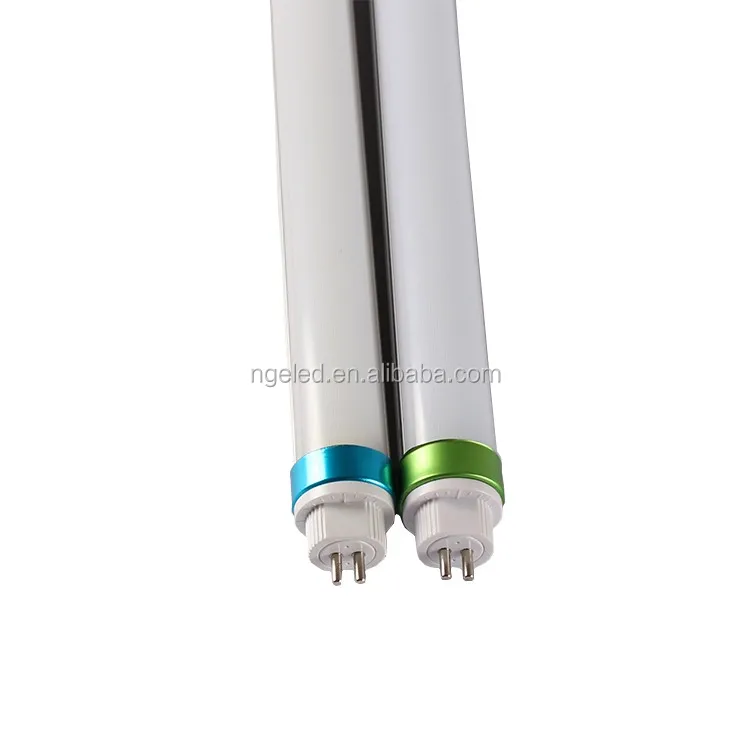

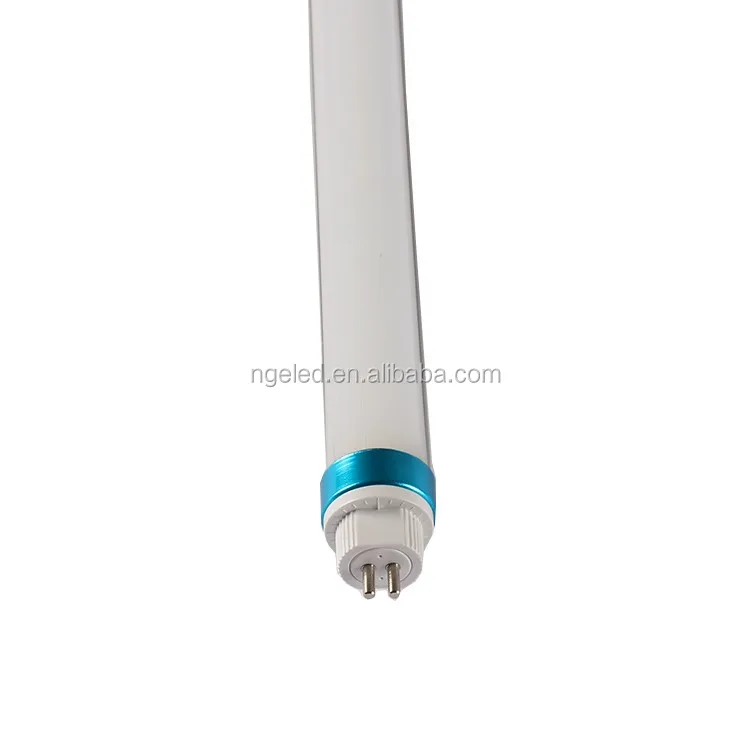

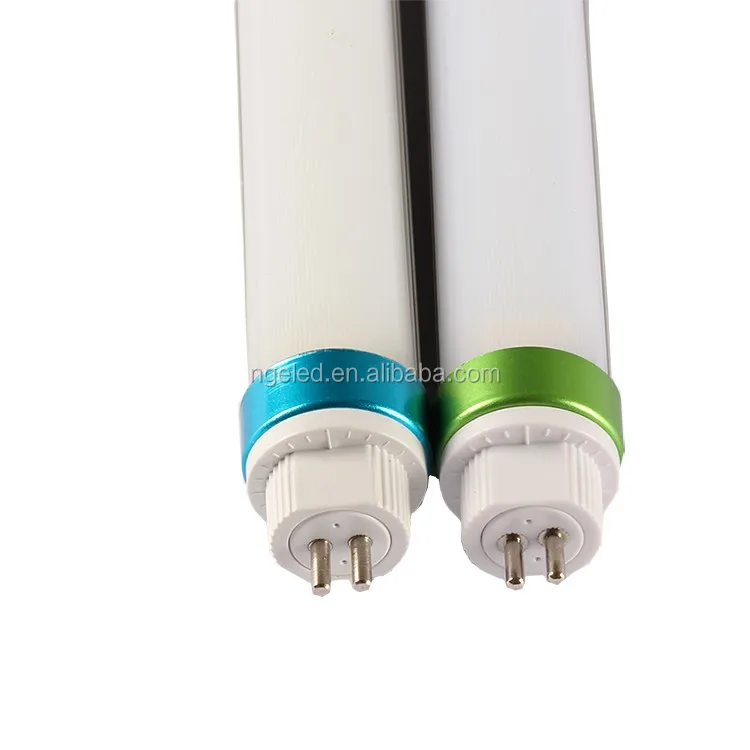

Detailed Images
Packaging & Shipping
Item No. | Quantity/Carton | Gross Weight/ Carton | Carton Size | Notes |
NGE-T501H-60CM | 25 | 5.7kg | 660*220*220mm | Each T5 tube light packed by one PE bag and box. |
NGE-T501H-90CM | 25 | 8.6kg | 960*220*220mm | |
NGE-T501H-120CM | 25 | 11.4kg | 1260*220*220mm | |
NGE-T501H-150CM | 25 | 14.3kg | 1560*220*220mm |
Company Information
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are Gimbal LED downlight, rectangular LED downlight, LED panel light, LED high bay light and IP65 LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquire 130lm/w led t5 tube light g5 end cap design 120cm 18w led tube light t5.
