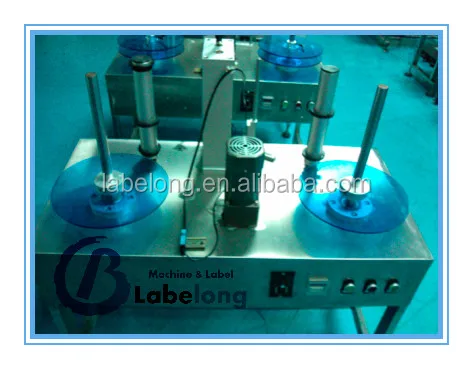

Auto Label Slitter Rewinder

Product Overview

Description

Auto Label Slitter Rewinder



The main purpose

Automtic label counting machine is used to count rolled lables. Fast  speed, high accuracy and efficiency.

Avaible labels:  paper adhesive  self-adhesive label( Transparent label needs special fiber sensor )



Features
1. wrap can be used to change the label to label rolls around, while achieving count labels.
2. equipped industrial cameras, which can detect good or bad and whether the label.
3. When the count reaches the set value, there is a voice alarm alerts.
4. mechanical constant speed and frequency control, start running smoothly
5. equipped industrial cameras, which can detect good or bad and whether the label.
6. retractable use air shaft, easy adjustment.

Technical Parameters

Model	LBL-C1
Max roller Diameter	500 (mm)
Suitable to Height	200(mm)
Paper pipe interior diameter	76mm
Machine Dimension	1500(L)* 800(W) *1000(H) mm
Machine weight	120kg
Power Supply	220V 50HZ
Power	0.4KW






Contact me for get more information
