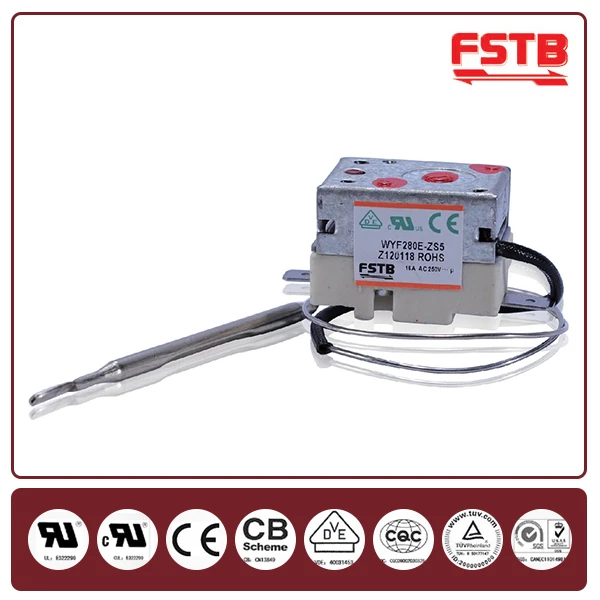

16A/32A/50A Liquid Capillary Thermostat For Water Heater Thermostat Liquid Expansion Thermostat

Product Overview

Description

16A/32A/50A Liquid Capillary Thermostat For Water Heater Thermostat

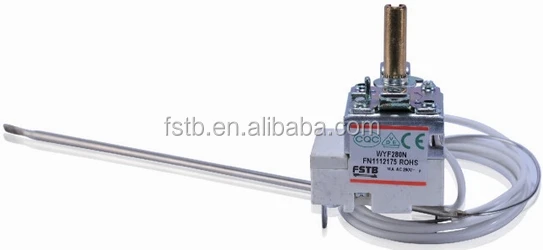

 WYF series thermostat, utilizes the ceramic switch box, has the advantages of accurate temperature controlling, wide control range, great contact capacity, high reliabilities, minor volume. It is suited for electric heater, electric boiler, cylinder washer, electric oven and so on, as electric-thermal control. It is also suited for room temperature control and refrigeration control.









Parameters:

Rated current and rated voltage of switch	C-1: 16 (3) A  AC 250V
	C-2: 6 (1) A  AC 250V
Control range	Max.320℃
Tolerance on operating range	3~12℃
Differential range	1~17℃
Insulation resistance	>100MΩ(normal)
Dielectric strength	2000V. AC 1min (normal)
Life cycles	>40000
Test gradient	≤1.0℃/min (liquid medium)
Rotating torque of adjustment shaft	<40N.cm
Max. ambient temp. of main body	150℃
Switch type	SPST/SPDT







Advantages:
accurate temperature controlling;:

great contact capacity;

wide control range;

high reliabilities.

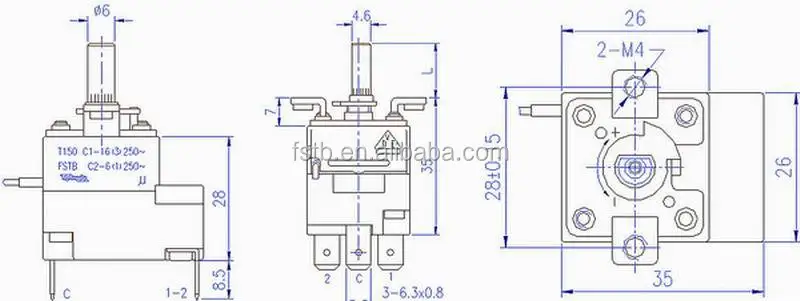

Dimension of main body:



Safety Certificate:

Rated current and rated voltage of switch	C-1: 16(3) A  AC 250V	C-2: 6(1)A  AC 250V
Safety Certificate	DVE, CQC, CE	DVE, CQC , CE
Life Cycles	>40000	>40000





  FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT US OR VISIT OUR WEBSITE: //www.thermostat-gb.com/html/Capillary_Thermostat/



Our Company:

FSTB began to manufacture thermostats in 1982, with many years of development, FSTB became the leading thermostat manufacturer in market and scale of industry worldwide, it has 10 sub-companies with professional bimetal raw material development and production base in upstream of industrial chain,as well as various kinds od thermostats and protectors production base in the downstream of industrial chain.
